How To Stop Horn When Connecting Battery

Connecting your car battery should be a straightforward process. However, it can quickly turn frustrating and alarming when the horn starts blaring the moment you attach the final terminal. This issue, while seemingly minor, can indicate underlying electrical problems that need immediate attention. Understanding the cause and implementing the correct solution is crucial for the safety and proper functioning of your vehicle's electrical system. This article will explore the reasons behind this horn-honking headache, outline the steps to diagnose the problem, and provide practical solutions to get you back on the road without the unwanted serenade.

Understanding the Horn Honking Issue on Battery Connection

Problem Overview: When connecting a car battery, you expect a smooth process, the car to start, or for power to return without fanfare. However, if the horn immediately starts sounding the moment you connect the last battery terminal, it indicates a problem with the car’s electrical system. This usually points to a short circuit or a misconfiguration related to the alarm system.

Answer: The likely cause of the horn sounding upon battery connection is an activated alarm system that wasn't properly disarmed or a short circuit within the car's electrical system, specifically related to the horn or alarm wiring. Addressing this requires identifying the specific trigger and either deactivating the alarm correctly or isolating and repairing the short circuit.

Why It's Important: Ignoring this problem can lead to several issues. First, the incessant honking is incredibly disruptive. Second, and more importantly, a short circuit can drain your battery, potentially leaving you stranded. Third, continuous current flow through a short can overheat wires, potentially leading to a fire hazard. Finally, it can prematurely wear out the horn and/or alarm components.

Symptoms

Here's a list of the common symptoms you might experience when the horn sounds upon connecting the battery:

The horn starts sounding immediately upon connecting the last battery terminal (positive or negative).
The horn sounds continuously until the battery is disconnected.
The alarm system may not respond to the key fob or other disarming methods.
Other electrical components might behave erratically, such as lights flashing.
You might have recently had a battery replacement or electrical work done on the vehicle.
The issue might be intermittent, occurring only sometimes when connecting the battery.
The car may fail to start even after the battery is connected, indicating a potential immobilizer issue related to the alarm.
If equipped with a security light, the security light may flash rapidly or remain on constantly.

Root Cause Explained

The root cause of the horn blaring usually falls into one of two categories:

Alarm System Malfunction/Activation: Many modern vehicles have factory-installed or aftermarket alarm systems. These systems often have a "panic mode" that can be triggered by power loss or reconnection. When the battery is disconnected, the alarm might enter a state that activates the horn when power is restored. Sometimes, the system simply fails to recognize the key fob or disarming sequence correctly, resulting in the constant horn activation. This is a common issue especially with aftermarket alarm systems that rely on voltage-sensitive triggers.
Short Circuit in the Horn Circuit: A short circuit occurs when electrical current takes an unintended path back to the power source, bypassing the intended circuit. In this case, a wire in the horn circuit might be damaged, frayed, or improperly grounded, causing the horn to activate as soon as power is applied. This could be caused by rodent damage to the wiring harness, corrosion in electrical connectors, or a faulty horn relay. The horn relay can sometimes fail in the closed position, causing the horn to activate continuously when power is supplied to the relay coil.

Deeper Dive into Alarm Systems: Alarm systems are complex, often integrating with the car's central computer. They are designed to prevent theft and vandalism. However, their complexity also makes them prone to malfunctions. A sudden power surge or drop, like during battery replacement, can scramble the system's memory or trigger a false alarm state. Some aftermarket alarms are especially susceptible to these issues because they might not be fully integrated with the car's original electrical architecture.

What Happens If Ignored

Ignoring the issue of the horn sounding upon battery connection can lead to significant problems:

Battery Drain: The continuous horn activation will rapidly drain the battery, potentially leaving you stranded.
Horn Failure: Constant activation can damage the horn itself, requiring replacement.
Alarm System Damage: Repeatedly triggering the alarm system can lead to internal damage and malfunction.
Electrical Fire Hazard: A short circuit can cause wires to overheat, increasing the risk of an electrical fire, especially if the issue is related to a chafed wire rubbing against the car's chassis.
Inconvenience and Annoyance: The incessant honking is disruptive and can attract unwanted attention.
Potential Immobilizer Problems: If the alarm system is integrated with the car's immobilizer, the car might become inoperable, even after resolving the horn issue.

Recommended Fixes

Here's a breakdown of the recommended fixes, starting with the simplest and progressing to more complex solutions:

Disarm the Alarm System: The first step is to try disarming the alarm system. This might involve using the key fob, entering a security code (if applicable), or turning the ignition key to a specific position. Refer to your car's owner's manual or the alarm system's documentation for the correct procedure. Try replacing the battery in your key fob, as a weak battery can sometimes prevent the system from disarming.

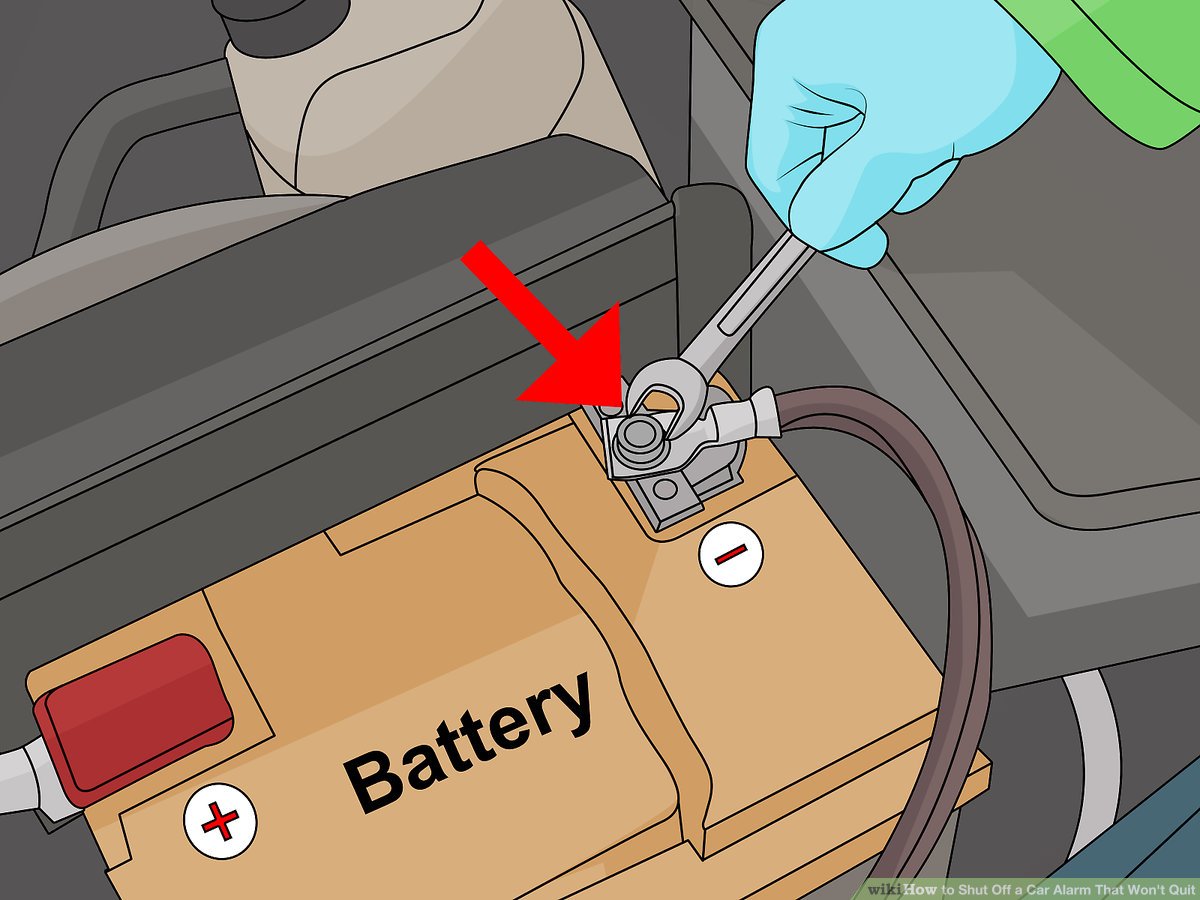

Check and Reset the Alarm System: Some alarm systems have a reset button or a specific sequence of actions that can reset the system to its default state. Again, consult the alarm system's documentation. Disconnecting the battery for an extended period (30 minutes or more) can sometimes reset the alarm system, but this is not a guaranteed solution and might erase other important settings.

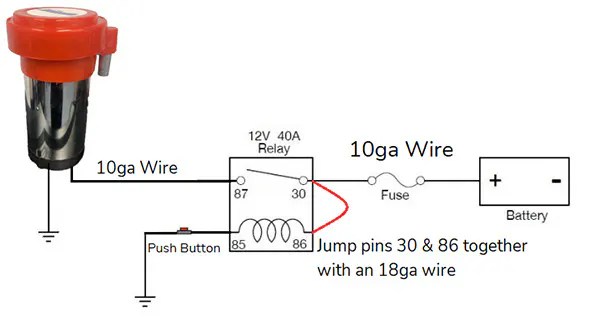

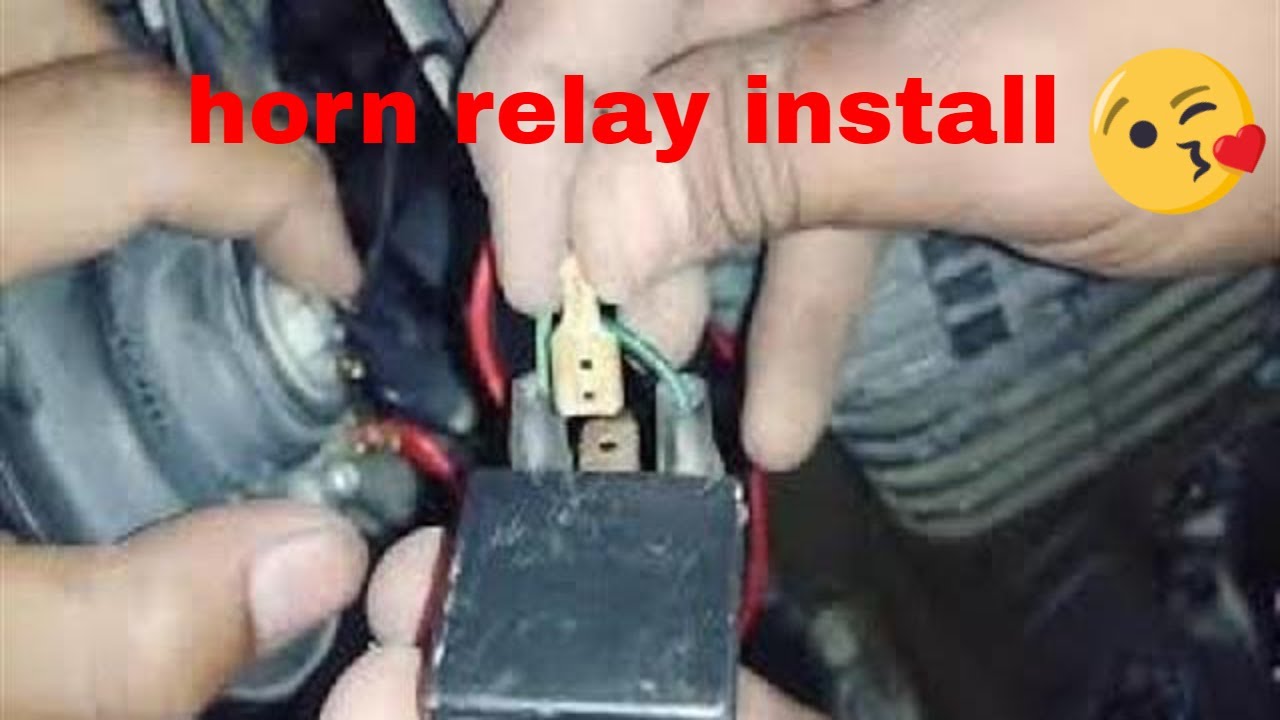

Inspect the Horn Relay: Locate the horn relay in the fuse box (refer to your owner's manual for its location). Try swapping it with an identical relay from another circuit (e.g., the rear window defogger relay). If the horn stops sounding and the other circuit now malfunctions, the relay is faulty and needs to be replaced.
Check for Short Circuits: This is a more involved process that requires a multimeter and some electrical knowledge. Start by visually inspecting the wiring harness connected to the horn and the alarm system. Look for damaged, frayed, or corroded wires. Pay close attention to areas where the wiring harness might rub against metal parts of the car. If you find any damaged wires, repair or replace them using proper electrical connectors and heat shrink tubing.
Isolate the Short Circuit (Advanced): If a visual inspection doesn't reveal any obvious problems, you can use a multimeter to test for a short circuit. Disconnect the horn and alarm system from the wiring harness. Then, use the multimeter to check for continuity between the power wire (usually red) and ground (usually black). If there's continuity, there's a short circuit in the wiring. You'll need to trace the wiring harness to find the location of the short. This process can be time-consuming and requires patience.
Professional Diagnosis: If you're not comfortable working with electrical systems or if you've tried the above steps and the problem persists, it's best to take your car to a qualified mechanic. They have the tools and expertise to diagnose and repair complex electrical problems.

Cost Estimates and Shop Advice

The cost of fixing the horn issue can vary significantly depending on the cause:

Simple Fixes (Relay Replacement, Wire Repair): If the problem is a faulty relay or a simple wire repair, the cost might be relatively low, ranging from $50 to $150.
Alarm System Reset/Reprogramming: If the alarm system needs to be reset or reprogrammed, the cost could range from $75 to $250, depending on the complexity of the system and the labor involved.
Short Circuit Diagnosis and Repair: Diagnosing and repairing a short circuit can be more expensive, especially if the short is difficult to locate. The cost could range from $150 to $500 or more, depending on the labor required.
Alarm System Replacement: If the alarm system is faulty and needs to be replaced, the cost could range from $200 to $800, including the cost of the new system and installation.

Shop Advice: When taking your car to a mechanic, be sure to provide them with as much information as possible about the problem, including when it started, what you've already tried, and any other relevant details. This will help them diagnose the problem more quickly and accurately, potentially saving you time and money. Ask for a detailed estimate before authorizing any repairs. It is helpful to ask if they have experience specifically with your car make and model’s security system.

Credibility and Additional Information

While a direct Technical Service Bulletin (TSB) addressing specifically a horn sounding during battery connection is unlikely, TSBs often address alarm system malfunctions, parasitic draws, and electrical shorts. Searching online databases like the NHTSA (National Highway Traffic Safety Administration) using keywords related to your car's make, model, and year, along with terms like "alarm system," "electrical short," or "battery drain," might reveal relevant TSBs that offer insight into potential causes and fixes. Many car owners have reported similar experiences on online forums. Searching for your car's make and model along with terms like "horn on battery connect," "alarm malfunction," or "security system problem" can often yield valuable information and potential solutions from other owners who have faced the same issue. Communities of car owners are helpful, sharing information like certain mileage when they had an alarm or horn issue. Keep in mind that aftermarket alarm systems have their own TSBs, and you should search their brand specific technical websites.

By understanding the potential causes and implementing the recommended fixes, you can resolve the horn-honking issue and ensure the proper functioning of your car's electrical system. If you're not comfortable working with electrical systems, don't hesitate to seek professional assistance. A qualified mechanic can quickly diagnose the problem and provide the necessary repairs.
