How To Take Off A Broken Spark Plug

The dreaded scenario: you're performing routine maintenance on your car, changing the spark plugs, and *snap*! The porcelain insulator of the spark plug breaks, leaving the threaded metal body firmly lodged in the cylinder head. What now? Panic is understandable, but with the right approach and a little mechanical know-how, a broken spark plug can be removed without causing further damage to your engine. This article provides an in-depth guide to tackling this challenging situation, covering the techniques, tools, and considerations involved.

The Problem: A Plug Stuck in the Head

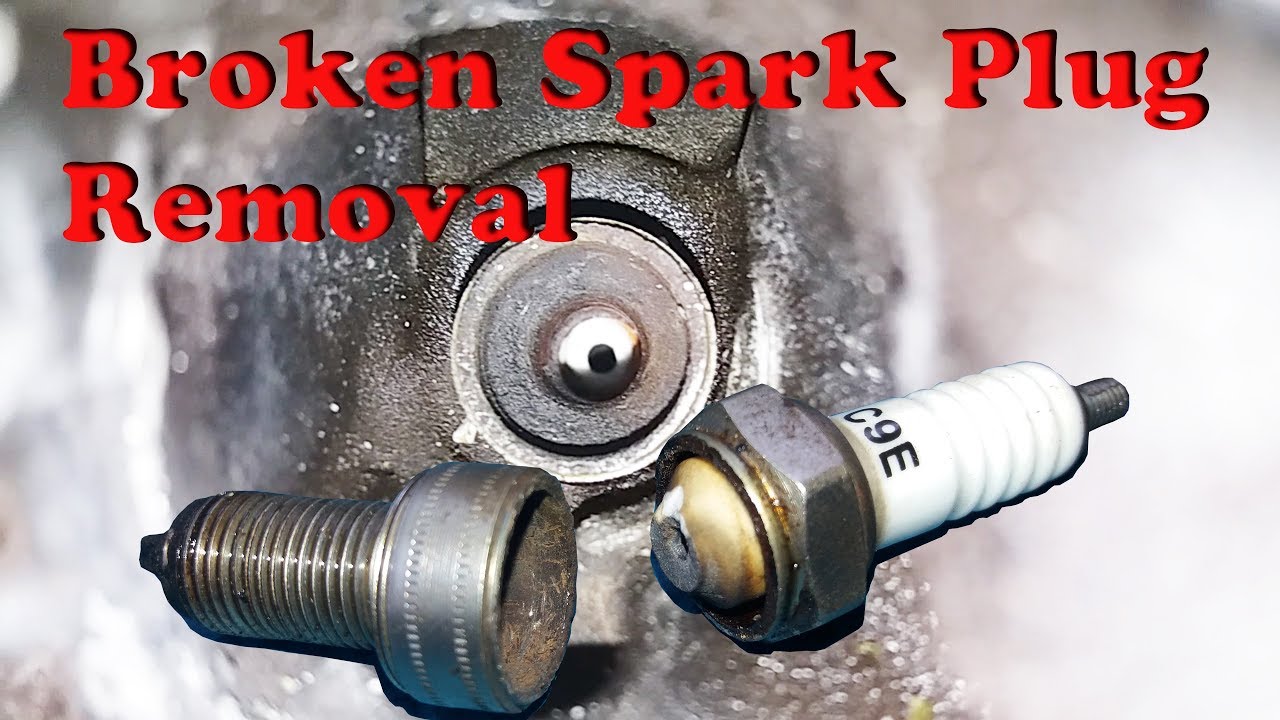

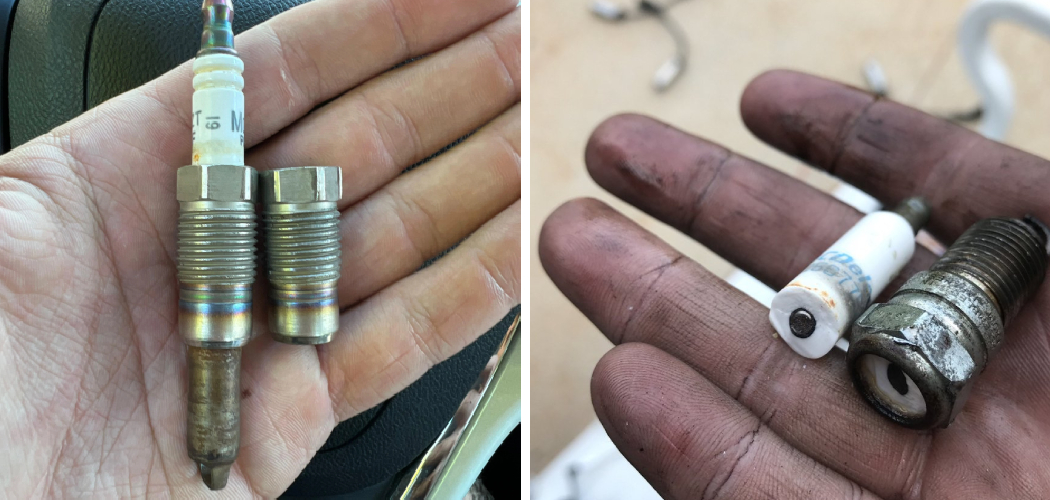

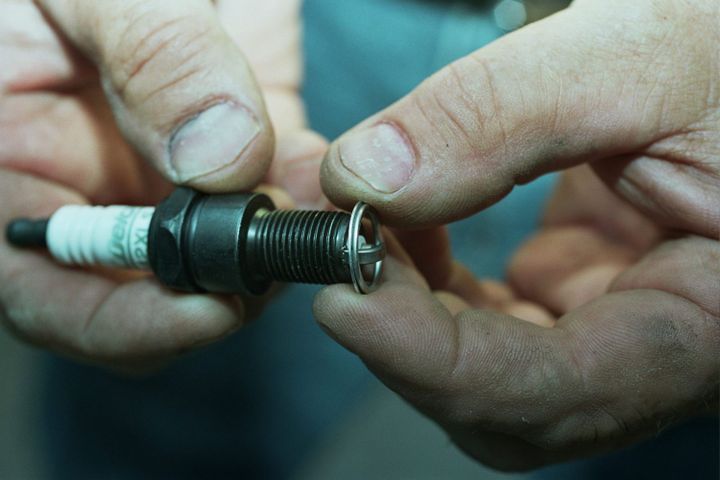

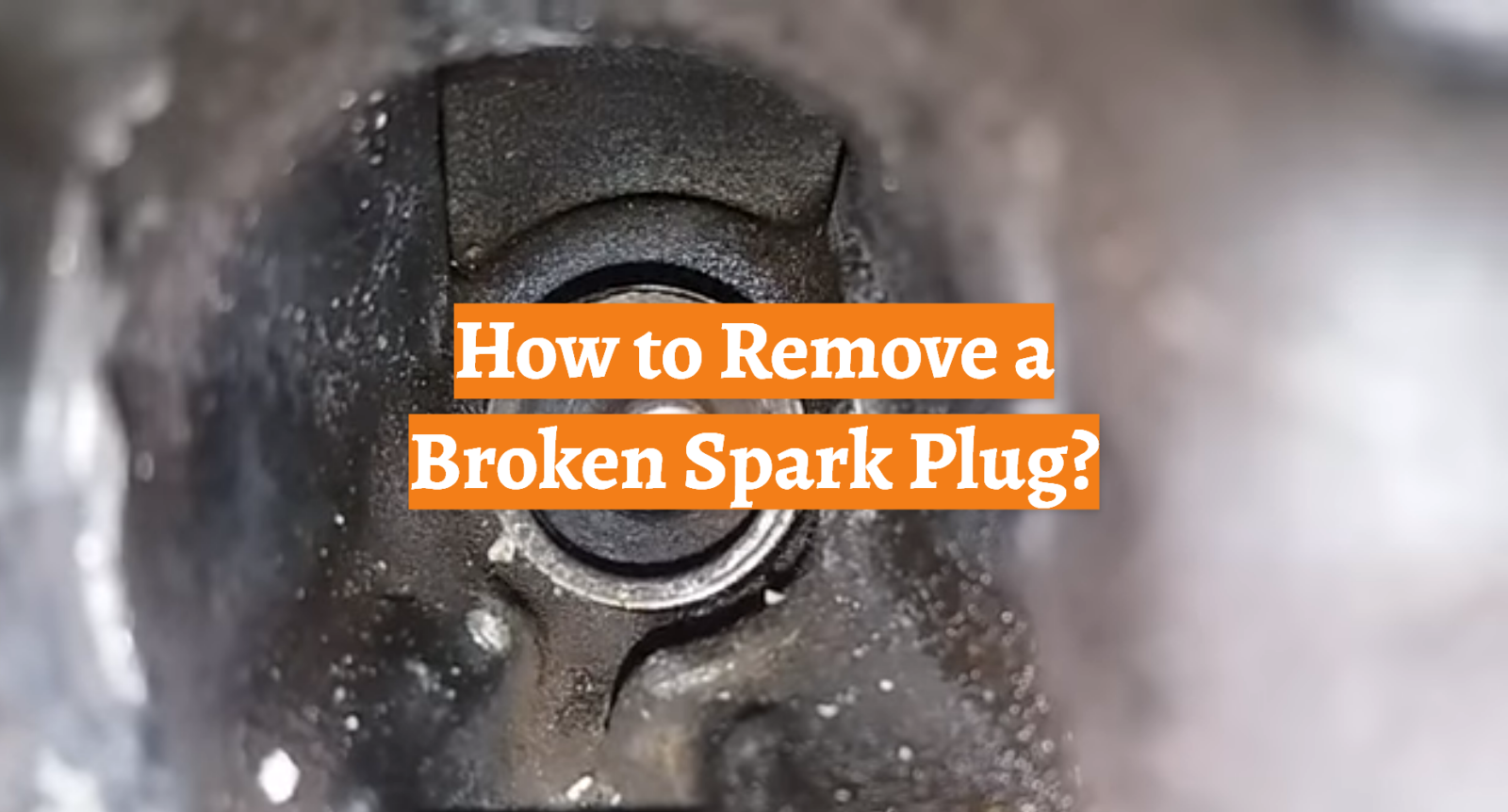

Imagine trying to remove a stripped bolt. You can't get a good grip, and any force you apply just rounds it off further. A broken spark plug presents a similar, albeit more complex, problem. The most common failure mode is the breakage of the ceramic insulator, often near the hex nut. This leaves the metal body of the spark plug deeply embedded in the cylinder head. The difficulty arises from several factors:

Limited Access: Spark plugs are often located in tight spaces, making access difficult even with specialized tools.
Thread Corrosion: Over time, corrosion can build up between the spark plug threads and the aluminum cylinder head, effectively "welding" them together.
Potential for Damage: Forcing the broken plug can damage the threads in the cylinder head, necessitating costly repairs, such as re-tapping the threads or even replacing the head.
Debris Contamination: Breaking the spark plug can introduce ceramic shards and metal fragments into the cylinder, potentially causing severe engine damage if they enter the combustion chamber.

Think of the cylinder head as the foundation of a house (the engine) and the spark plug as a critical support beam. If you damage the foundation while removing the support beam, the entire structure could be compromised. Therefore, precision and careful execution are paramount.

Understanding the System: Spark Plugs and Cylinder Heads

Before diving into the removal process, it's crucial to understand how spark plugs function within the engine and how they interact with the cylinder head. Spark plugs deliver the electrical spark that ignites the air-fuel mixture in the combustion chamber. They are typically screwed into the cylinder head, a complex aluminum or cast-iron casting that houses the valves, combustion chambers, and coolant passages.

The spark plug's threaded body engages with corresponding threads in the cylinder head. This connection must be gas-tight to prevent combustion gases from escaping. The threads are usually lubricated with anti-seize compound during installation to facilitate future removal and prevent corrosion. However, even with proper lubrication, corrosion and carbon buildup can still occur over time, making removal difficult.

The cylinder head is a critical engine component, and its integrity is essential for proper engine operation. Damage to the spark plug threads can lead to compression leaks, reduced engine performance, and even engine failure. This is why a careful and methodical approach is essential when dealing with a broken spark plug.

Removal Techniques: A Step-by-Step Guide

Several techniques can be employed to remove a broken spark plug. The best approach depends on the severity of the breakage and the tools available. Here's a breakdown of common methods:

1. The Easy Out (Spark Plug Extractor)

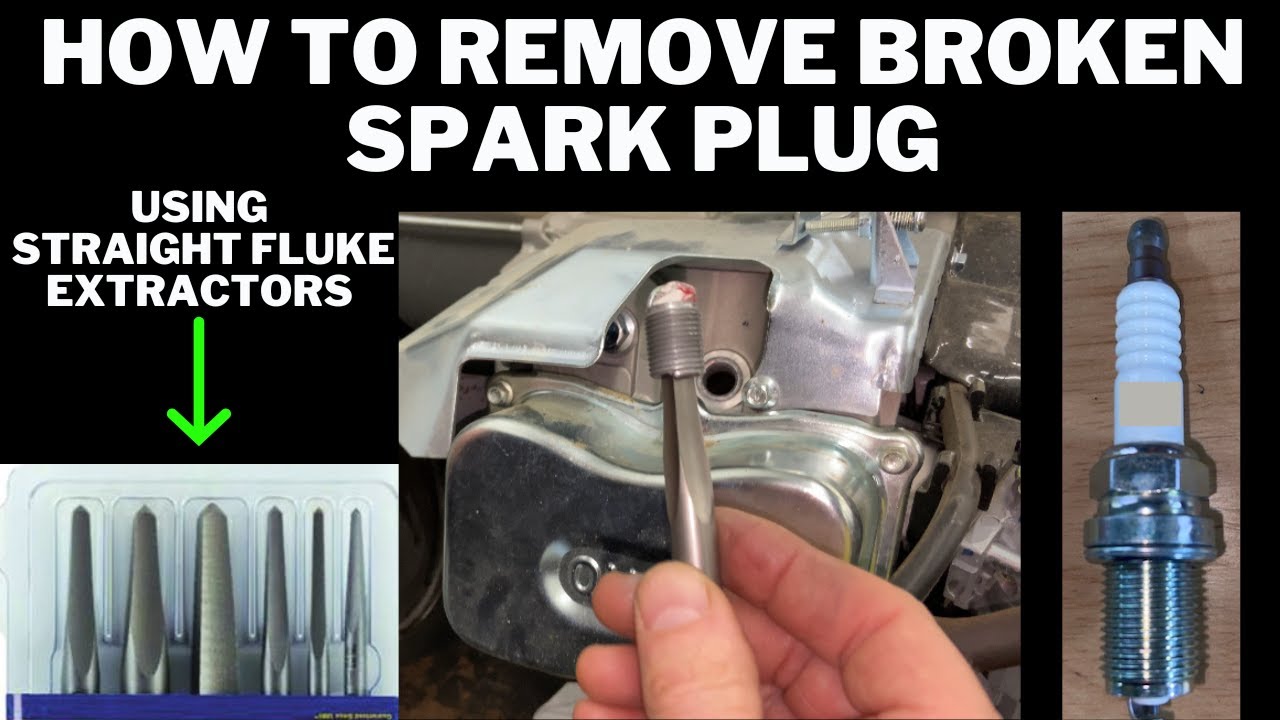

This is often the first line of attack. An Easy Out, also known as a screw extractor, is a hardened steel tool with a reverse thread. Here's how it works:

Preparation: Carefully clean the area around the broken spark plug. Use compressed air to remove any debris from the spark plug well.
Drilling (If Necessary): If the spark plug is broken flush with the cylinder head, you may need to carefully drill a pilot hole in the center of the broken spark plug body. Use a drill bit slightly smaller than the Easy Out's minor diameter. Caution: Drilling is a critical step and can easily damage the cylinder head threads if not performed correctly. Use a center punch to mark the center and drill slowly and steadily, keeping the drill bit aligned.
Inserting the Easy Out: Gently tap the Easy Out into the pilot hole (or directly into the spark plug body if no drilling is required).
Turning the Easy Out: Using a wrench or socket, slowly and carefully turn the Easy Out counterclockwise. As you turn, the reverse thread will grip the inside of the broken spark plug body and begin to unscrew it.
Extraction: Continue turning the Easy Out until the broken spark plug is completely removed.

Pros: Relatively simple and inexpensive. Cons: Can break easily, especially if the spark plug is tightly seized. Can damage cylinder head threads if not used carefully. Requires a clear access to the center of the broken plug.

Use Case: Best for plugs that are not excessively corroded or stuck. Suitable for amateur mechanics with some experience.

2. Spark Plug Removal Tool with Porcelain Crusher

These specialized tools are designed for broken spark plugs. They often include a section to crush any remaining porcelain and a gripping mechanism to grab the metal shell.

Crushing the Porcelain: Use the tool's crushing mechanism to carefully break up any remaining porcelain within the spark plug body. This allows for better access and grip.
Grip and Extract: Use the tool's gripping jaws or a similar mechanism to firmly grasp the inside of the spark plug body.
Turning and Extraction: Slowly and carefully turn the tool counterclockwise to unscrew and remove the broken spark plug.

Pros: Designed specifically for broken spark plugs. Offers better grip than standard Easy Outs. Cons: Can be more expensive than standard Easy Outs. Requires some familiarity with the tool's operation.

Use Case: Ideal for spark plugs where the porcelain is significantly damaged and a standard Easy Out might slip. Suitable for DIY mechanics with intermediate experience.

3. The "Penetrating Oil and Patience" Method

Sometimes, the most effective approach is the simplest. Penetrating oil, such as Kroil or PB Blaster, can work wonders in loosening corroded threads. Apply a generous amount of penetrating oil to the spark plug threads and let it soak for several hours, or even overnight. Repeat the application periodically. After soaking, try gently rocking the broken spark plug back and forth with a socket and breaker bar. If it starts to move, continue working it back and forth until it comes free.

Pros: Non-invasive and minimizes the risk of damaging the cylinder head threads. Cons: Can be time-consuming and may not be effective if the spark plug is severely seized. Requires patience and multiple applications of penetrating oil.

Use Case: A good starting point for any broken spark plug removal. Suitable for all skill levels.

4. Welding (Professional Assistance Required)

In extreme cases, a professional welder can weld a nut onto the top of the broken spark plug. This provides a solid gripping surface for removal. This method is best left to experienced welders to avoid damaging the cylinder head.

Pros: Provides a strong gripping point. Cons: Requires specialized equipment and expertise. Carries a risk of damaging the cylinder head if not performed correctly.

Use Case: Only for severely stuck and damaged plugs where other methods have failed. Should only be performed by experienced professionals.

Manufacturer Examples and Tool Variations

Several manufacturers offer specialized tools for removing broken spark plugs. Lisle, OTC, and Craftsman are well-known brands in the automotive tool industry. Their offerings often include variations on the Easy Out design, spark plug extractors with porcelain crushers, and specialized sockets for gripping damaged spark plugs. Specific models like the Lisle 65900 Broken Spark Plug Remover or the OTC 4691 Spark Plug Thread Repair Kit are designed for particular applications and may offer advantages depending on the specific circumstances.

Preventative Measures and Best Practices

Prevention is always better than cure. To avoid the headache of a broken spark plug, follow these best practices:

Use Anti-Seize: Always apply a thin coat of anti-seize compound to the spark plug threads before installation.
Torque Properly: Tighten the spark plugs to the manufacturer's specified torque. Overtightening can damage the spark plug or the cylinder head threads.
Regular Maintenance: Replace spark plugs according to the manufacturer's recommended service intervals.
Inspect Threads: Before installing new spark plugs, inspect the threads in the cylinder head for damage or corrosion. Clean the threads with a thread chaser if necessary.

Real-World Insights and Recommendations

Based on real-world experience, the "penetrating oil and patience" method should always be the first approach. Give it ample time to work. If that fails, a spark plug extractor with a porcelain crusher is often the next best option. Standard Easy Outs are less reliable and can easily break. When drilling, use a center punch and start with a small pilot hole, gradually increasing the size as needed. Keep the drill bit lubricated and avoid excessive force. Regularly vacuum or use compressed air to remove debris.

Above all, be patient and persistent. Rushing the process can lead to costly mistakes. If you are uncomfortable with any of these procedures, seek the assistance of a qualified mechanic. A professional will have the experience, tools, and knowledge to safely remove the broken spark plug and avoid further damage to your engine.
