How To Take Off Airbag Light

The dreaded airbag light – that little amber or red indicator that glows ominously on your dashboard. It's a signal that something is amiss with your Supplemental Restraint System (SRS), more commonly known as your airbag system. While a seemingly minor annoyance, an illuminated airbag light indicates a potentially serious problem. Your airbags might not deploy in a crash, or, in rare cases, could deploy unexpectedly. Understanding how to diagnose and potentially fix the issue can save you money and ensure your safety. This guide provides experienced DIYers with the technical knowledge to troubleshoot and address common airbag light issues. However, it's crucial to understand that working with airbag systems can be dangerous. Incorrect handling could lead to accidental deployment and serious injury. If you are not comfortable with electrical systems, diagnostic tools, and vehicle repair, consult a professional mechanic.

Background of the SRS System

The SRS is a complex, interconnected system designed to protect occupants during a collision. It's far more than just the airbag itself. Modern SRS systems include several key components:

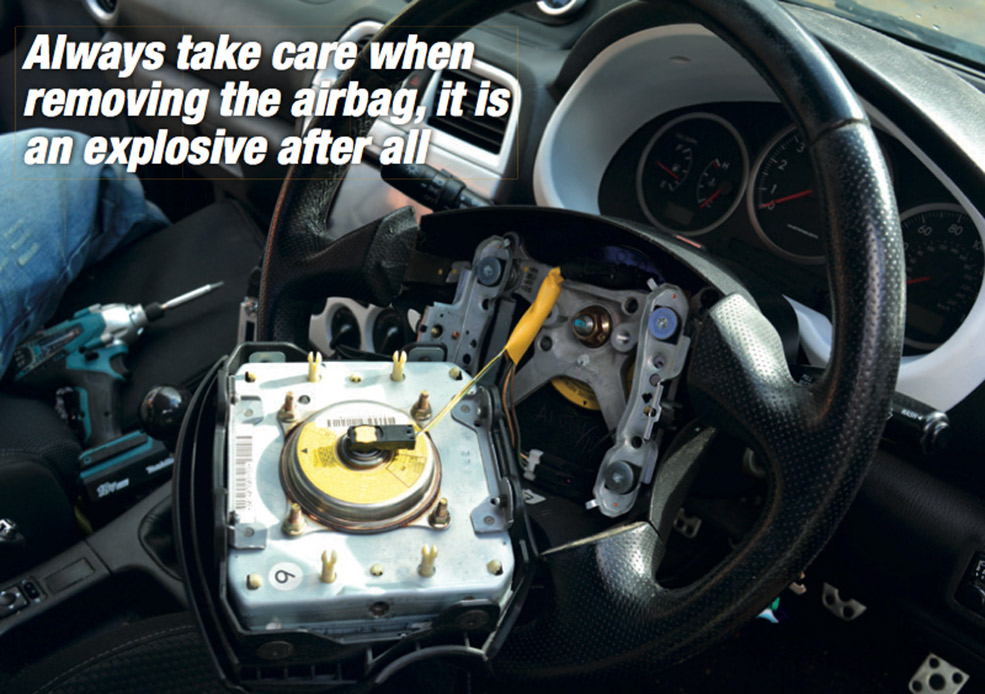

• Airbag Modules: These are the inflatable cushions located in the steering wheel, dashboard, seats, and side pillars. Each module contains a folded airbag and an inflator unit.
• Crash Sensors: Strategically placed around the vehicle (typically in the front, sides, and sometimes rear), these sensors detect sudden deceleration indicative of a collision. They are usually accelerometers, measuring the rate of change of speed.
• SRS Control Module (Airbag ECU): This is the "brain" of the system. It receives signals from the crash sensors, analyzes the data, and, if a collision is detected exceeding a certain threshold, triggers the airbag deployment. The SRS ECU also monitors the health of all SRS components, storing Diagnostic Trouble Codes (DTCs) if a fault is detected.
• Clock Spring: Located behind the steering wheel, the clock spring allows the steering wheel to rotate while maintaining an electrical connection to the airbag module and other steering wheel controls (horn, radio controls, etc.). It's essentially a coiled ribbon cable.
• Seatbelt Pretensioners: These devices tighten the seatbelts in a collision, holding occupants securely in their seats before the airbags deploy. They often use small explosive charges similar to those used in airbag inflators.
• Wiring Harness and Connectors: The SRS relies on a dedicated wiring harness and connectors, typically featuring yellow sheathing or markings to distinguish them from other vehicle wiring. These connectors often have shorting bars built-in to prevent accidental airbag deployment when disconnected.

Technical Breakdown: How the SRS Works

The SRS operates on a fairly straightforward principle: detect a collision, deploy the airbags. However, the execution is more nuanced. Here's a deeper look:

Collision Detection

When a crash sensor detects a significant deceleration, it sends a signal to the SRS Control Module. Modern systems use multiple sensors to verify the collision and determine its severity. The SRS ECU analyzes the sensor data to determine if the collision meets the deployment criteria. This involves comparing the deceleration rate and direction to pre-programmed thresholds.

Deployment Decision

If the SRS ECU determines that airbag deployment is necessary, it initiates the deployment sequence. This involves sending an electrical current to the inflator unit within the airbag module. The inflator contains a chemical propellant (typically sodium azide) that, when ignited, produces a large volume of nitrogen gas. This gas rapidly inflates the airbag. The entire process, from collision detection to full airbag inflation, happens in milliseconds.

Self-Diagnostics

Crucially, the SRS ECU constantly monitors the health of all SRS components through a series of self-diagnostic tests. It checks the resistance of airbag circuits, the functionality of crash sensors, and the integrity of the wiring harness. If it detects a fault – an open circuit, a short circuit, a low voltage, or any other anomaly – it stores a Diagnostic Trouble Code (DTC) in its memory and illuminates the airbag warning light on the dashboard. This light is a critical indicator that something is wrong with the SRS and needs to be addressed.

Reading Diagnostic Trouble Codes (DTCs)

The first step in diagnosing an airbag light is to retrieve the stored DTCs. This requires a specialized scan tool that is compatible with the SRS system. Generic OBD-II scanners often cannot access SRS-specific codes. You will need a scanner that supports CAN (Controller Area Network) protocol and is specifically designed to read airbag codes. Connect the scanner to the OBD-II port (typically located under the dashboard). Follow the scanner's instructions to access the SRS module and read the DTCs. Note down all the codes, as they provide valuable clues to the problem's location and nature.

Interpreting DTCs and Troubleshooting

Once you have the DTCs, consult a repair manual or online database to understand their meaning. Airbag DTCs are specific to the vehicle manufacturer and model year. Common DTCs relate to:

• Open Circuits: Indicate a break in the wiring or a disconnected connector.
• Short Circuits: Indicate an unintended electrical connection, often caused by damaged wiring.
• High Resistance: Can be caused by corroded connectors or faulty components.
• Low Voltage: Indicates a power supply problem.
• Faulty Crash Sensor: A malfunctioning crash sensor can trigger a DTC.
• Clock Spring Issues: Often accompanied by problems with the horn or steering wheel controls.
• Airbag Module Fault: A problem with the airbag module itself.
• Seatbelt Pretensioner Fault: Indicates a problem with the seatbelt pretensioner.

After identifying the possible causes based on the DTC, use a multimeter to check the continuity and resistance of the affected circuits. Consult the vehicle's wiring diagram to locate the specific wires and connectors to test. Inspect the connectors for corrosion or damage. Pay close attention to the clock spring, as it's a common source of problems. Gently wiggle the wires while monitoring the multimeter reading to check for intermittent connections.

Common Issues and Maintenance Concerns

Several factors can trigger the airbag light. Here are some common issues:

• Dead Battery: A low or dead battery can sometimes cause the SRS ECU to lose its settings and trigger the airbag light. Charging or replacing the battery and then clearing the DTCs may resolve the issue.
• Seat Removal/Replacement: Disconnecting the seat's electrical connectors (for airbags or seatbelt pretensioners) without properly disconnecting the battery can trigger the airbag light.
• Accidental Disconnection of Connectors: While working on other electrical systems, accidentally disconnecting an SRS connector can trigger the light.
• Clock Spring Failure: The clock spring is a wear item and can eventually fail, leading to airbag and steering wheel control problems.
• Water Damage: Water intrusion into the SRS ECU or connectors can cause corrosion and malfunctions.
• Previous Accident: Even a minor accident that didn't deploy the airbags can damage sensors or wiring and trigger the airbag light.

Do's and Don'ts / Best Practices

Working with SRS components requires caution and precision. Here are some essential do's and don'ts:

Do's:

• Disconnect the Battery: Always disconnect the negative battery terminal and wait at least 10 minutes before working on any SRS components. This allows the capacitors in the SRS ECU to discharge, reducing the risk of accidental airbag deployment.
• Use a Proper Scan Tool: Invest in or borrow a scan tool that is specifically designed to read and clear SRS codes.
• Consult a Wiring Diagram: Refer to the vehicle's wiring diagram to identify the correct wires and connectors to test.
• Use a Multimeter: Use a multimeter to check the continuity and resistance of circuits.
• Handle Components Carefully: Avoid dropping or subjecting SRS components to impact.
• Replace Faulty Components: If a component is found to be faulty, replace it with a new or known good part.
• Double-Check Connections: Ensure all connectors are properly seated and locked.
• Clear DTCs After Repair: After completing the repair, clear the DTCs using the scan tool.
• Verify System Function: After clearing the codes, start the vehicle and verify that the airbag light remains off.

Don'ts:

• Work on the SRS Without Disconnecting the Battery: This is extremely dangerous and can lead to accidental airbag deployment.
• Probe Airbag Connectors Directly: Probing the pins of an airbag connector with a multimeter can potentially trigger airbag deployment. Instead, use breakout boxes or backprobe connectors.
• Ignore Warning Signs: If you smell burning or see smoke, immediately disconnect the battery and evacuate the area.
• Attempt to Repair a Deployed Airbag: Deployed airbags should be replaced, not repaired.
• Use Aftermarket Airbag Components: Stick to OEM (Original Equipment Manufacturer) or reputable aftermarket parts specifically designed for your vehicle.
• Assume a DTC is the Definitive Answer: A DTC points to a *potential* problem. Further diagnosis is needed to pinpoint the root cause.
• Force Connectors: If a connector doesn't easily fit, don't force it. Check for proper alignment and damage.

Conclusion

Troubleshooting an airbag light can be a challenging but rewarding task for experienced DIYers. By understanding the SRS system's components, operation, and common issues, you can effectively diagnose and potentially resolve the problem. However, safety must be your top priority. If you are uncomfortable with any aspect of the repair, or if the problem involves a complex or potentially dangerous component, consult a qualified mechanic. Remember, a functional SRS is critical for your safety in the event of a collision. A persistent airbag light should never be ignored. While clearing the code might temporarily extinguish the light, the underlying problem still exists and needs to be addressed. If the light returns after clearing the code, this is a strong indicator of a recurring issue that requires professional attention. It is recommended to take your vehicle to a qualified mechanic if the airbag light persists or if you are unsure about any aspect of the repair process. Safety first!
