How To Take Off The Airbag Light

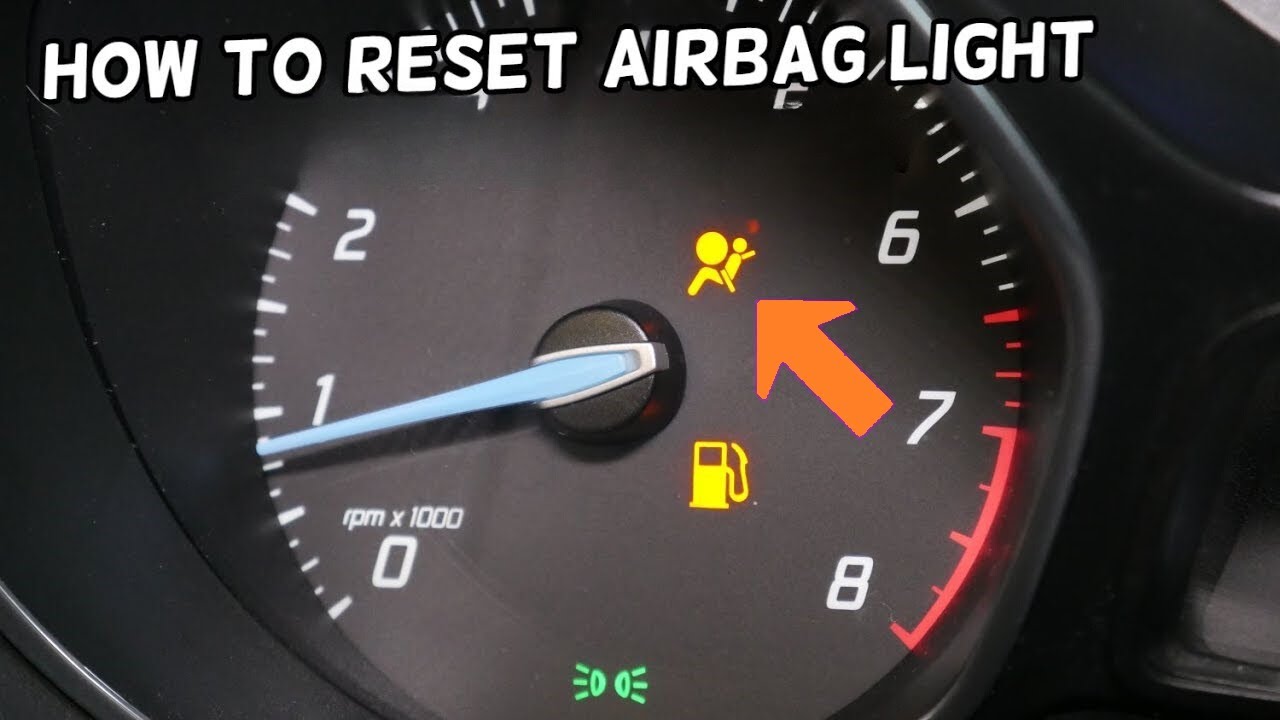

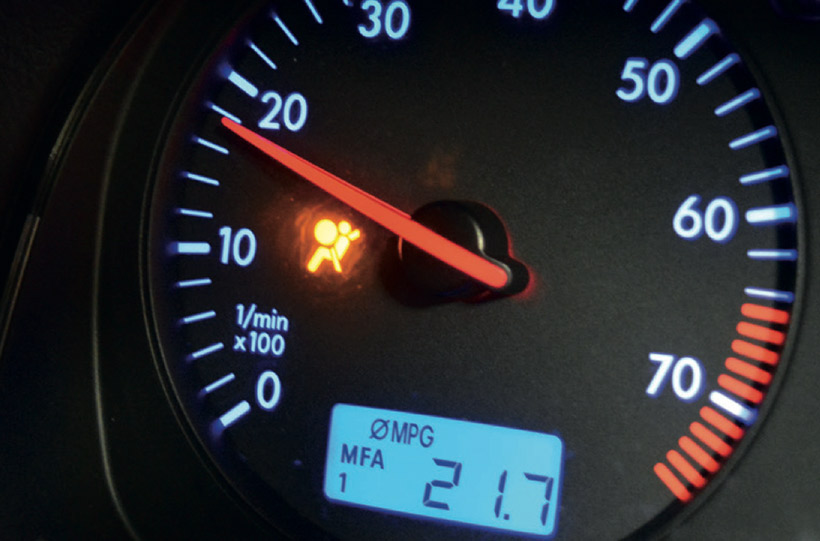

The dreaded airbag light. A constant, glaring reminder that something in your car's sophisticated safety system isn't quite right. For the curious mind, simply silencing the light isn't the goal; understanding *why* it's illuminated and how the system works is far more compelling. While we won't be advocating for simply clearing the light without addressing the root cause – that's a dangerous practice – this guide will provide an in-depth look at the airbag system, common culprits for the light, and diagnostic approaches.

Understanding the Airbag System: A Complex Symphony of Safety

Think of your car's airbag system as a complex orchestra, each instrument (sensor, wiring, airbag module) playing a crucial role. When all instruments are in tune, the performance is flawless – in this case, a safe and functional airbag system. However, if one instrument is out of tune, the entire performance suffers, and the airbag light illuminates, signaling a problem.

The core function of the airbag system is to deploy airbags during a collision to cushion occupants and minimize injuries. It's a remarkably fast and precise system, reacting within milliseconds of impact. This reaction is triggered by a network of sensors constantly monitoring the vehicle's deceleration. Let's delve into the components:

Key Components and Their Roles

Airbag Control Module (ACM): The brain of the operation. The ACM continuously monitors all the sensors and the system's integrity. It contains diagnostic logic, crash algorithms, and stores crash data. When a fault is detected, the ACM illuminates the airbag warning light and stores a Diagnostic Trouble Code (DTC).
Impact Sensors: These sensors, typically located in the front of the vehicle and sometimes on the sides, measure deceleration forces. When a collision occurs exceeding a predetermined threshold, they send a signal to the ACM.
Occupant Classification Sensors (OCS): These sensors, usually in the passenger seat, determine if the seat is occupied and, in some cases, the occupant's weight. This information helps the ACM decide whether to deploy the passenger-side airbag and at what force.
Clock Spring: Located within the steering wheel, the clock spring allows the steering wheel to rotate while maintaining electrical connection to the airbag and other steering wheel-mounted controls (horn, audio controls, etc.). It's essentially a coiled ribbon cable.
Airbags: Inflatable cushions strategically placed throughout the vehicle (steering wheel, dashboard, seats, side curtains) that rapidly inflate upon receiving a signal from the ACM.
Wiring Harness: A network of wires connecting all the components, transmitting signals and power throughout the system.

Common Causes for the Airbag Light: Pinpointing the Problem

The airbag light can illuminate for a variety of reasons, ranging from minor issues to more serious problems requiring professional attention. Here are some common culprits:

Faulty Impact Sensor: A damaged or malfunctioning impact sensor can send erroneous signals to the ACM or fail to report an actual impact.
Clock Spring Issues: The clock spring is a common point of failure, particularly in older vehicles. Repeated steering wheel movement can cause the ribbon cable to break or become frayed, interrupting the electrical connection to the driver's side airbag.
Seatbelt Pretensioner Malfunction: Seatbelt pretensioners tighten the seatbelt in the event of a collision, providing better restraint. A malfunctioning pretensioner can trigger the airbag light.
Low Battery Voltage: Surprisingly, low battery voltage can sometimes trigger the airbag light. The ACM requires a stable voltage to operate correctly, and a weak battery can cause intermittent errors.
Connector Issues: Loose, corroded, or damaged connectors can disrupt the electrical circuit, leading to airbag system faults. This is especially common in areas exposed to moisture or vibration.
SRS (Supplemental Restraint System) Module Failure: Though less common, the ACM itself can fail, requiring replacement.
Accident History: If the vehicle has been in an accident where the airbags deployed, the ACM will likely need to be reset or replaced. Some vehicles will require component replacement as well.
Occupant Classification System (OCS) Failure: Problems with the OCS can cause the airbag light to illuminate, especially if the system detects a fault with the passenger seat sensor.

The Diagnostic Process: Unraveling the Mystery

Diagnosing the airbag light requires a systematic approach. Here's a breakdown of the typical process:

Visual Inspection: Start with a visual inspection of all airbag system components, including wiring, connectors, and sensors. Look for obvious signs of damage, corrosion, or loose connections.
Scan Tool Diagnostic: The most crucial step is to use a diagnostic scan tool to read the DTCs stored in the ACM. These codes provide valuable information about the specific fault in the system. Generic OBDII scanners might not be able to access airbag-specific codes; a specialized scan tool is often required.
Code Interpretation: Once you have the DTCs, research their meaning. Automotive repair manuals, online databases, and manufacturer service information are valuable resources.
Component Testing: Based on the DTCs, you may need to test specific components using a multimeter or other specialized testing equipment. For example, you can test the continuity of the clock spring or the resistance of the impact sensors.
Wiring Diagram Analysis: Refer to the vehicle's wiring diagrams to trace the electrical circuits and identify potential shorts, opens, or ground faults.

Pros and Cons of DIY Airbag System Work

Working on the airbag system yourself can be tempting, but it's crucial to understand the risks and benefits.

Pros:

Cost Savings: Diagnosing and repairing airbag system problems at a shop can be expensive. DIY repairs can save you money, especially for minor issues.
Learning Experience: Working on your car's airbag system can be a valuable learning experience, deepening your understanding of automotive technology.
Control: You have complete control over the repair process, ensuring that the work is done to your standards.

Cons:

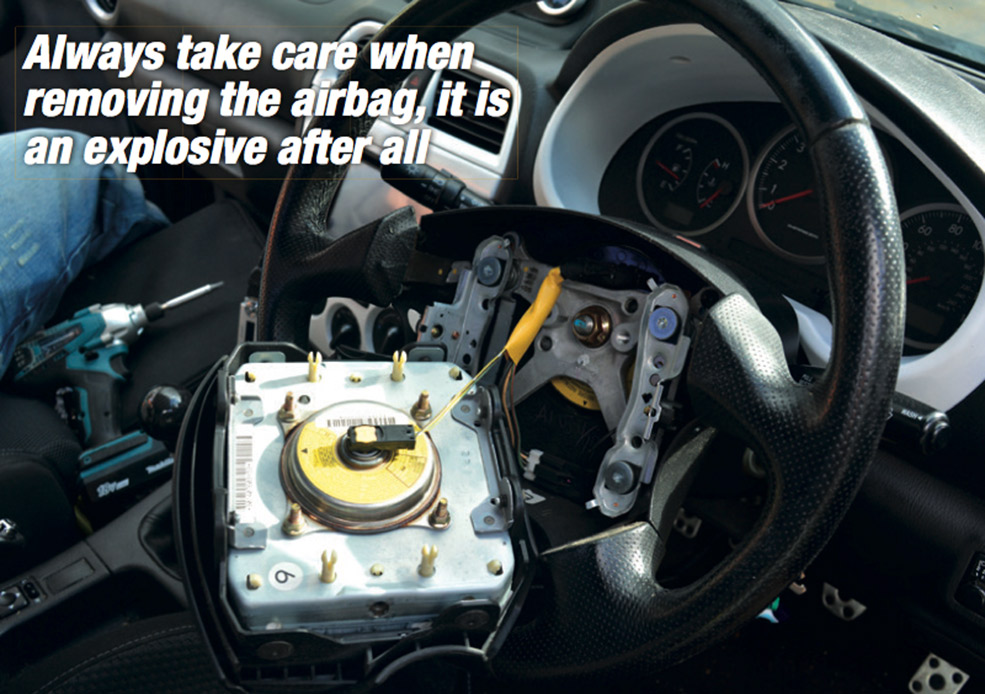

Safety Risks: Airbags contain explosive charges and can deploy unexpectedly if mishandled, causing serious injury.
Complexity: The airbag system is complex and requires specialized knowledge and tools for proper diagnosis and repair.
Potential for Damage: Incorrect repairs can damage the airbag system or other vehicle components.
Liability: If you make a mistake and the airbag system fails to function properly in an accident, you could be held liable for injuries.
Scan Tool Requirement: Clearing codes and properly diagnosing require an advanced scan tool that can interface with the SRS system.

Manufacturer Examples and Considerations

Different manufacturers use slightly different approaches to airbag system design and diagnostics. For example:

BMW: BMW's airbag system, often called MRS (Multiple Restraint System), is known for its sophisticated diagnostic capabilities and detailed error codes. BMW vehicles often require specialized diagnostic software for proper airbag system maintenance.
Toyota: Toyota's SRS systems are generally reliable but can be prone to clock spring issues, particularly in older models. Toyota vehicles often have specific diagnostic procedures for addressing airbag-related problems.
Ford: Ford's airbag systems are relatively straightforward, but certain models have been known to have issues with seatbelt pretensioners and impact sensors.

It's essential to consult the manufacturer's service information and technical bulletins for your specific vehicle model before attempting any airbag system repairs. This information will provide valuable insights into the system's design, diagnostic procedures, and recommended repair techniques.

Real-World Insights and Recommendations

While understanding the theory is crucial, real-world experience provides invaluable perspective. Here are some recommendations based on practical experience:

Never attempt to diagnose or repair the airbag system without disconnecting the battery and waiting at least 10 minutes. This allows the capacitors in the ACM to discharge, reducing the risk of accidental airbag deployment.
Always use the correct tools and follow proper safety procedures. Wear safety glasses and gloves, and avoid static electricity buildup.
If you're unsure about any aspect of the repair, consult a qualified technician. It's always better to be safe than sorry when dealing with potentially dangerous systems.
Pay close attention to connector integrity. Clean and reseat connectors to ensure good electrical contact. Use dielectric grease to protect connectors from corrosion.
Don't ignore the airbag light. It's a warning that something is wrong with your car's safety system. Address the issue promptly to ensure that the airbags will function correctly in the event of a collision.
Be wary of aftermarket airbag components. Stick with OEM parts or reputable aftermarket brands to ensure compatibility and reliability.
After completing repairs, verify that the airbag light is off and that there are no stored DTCs. Take the vehicle for a short test drive to ensure that the system is functioning correctly.

Ultimately, working on the airbag system requires a blend of technical knowledge, diagnostic skills, and a healthy dose of caution. While understanding the system is empowering, knowing your limits and seeking professional help when needed is paramount. The airbag light isn't just an annoyance; it's a critical safety indicator, and its proper diagnosis and resolution are crucial for your safety and the safety of others.
