How To Tell If 4 Wheel Drive Is Working

Is your 4-wheel drive (4WD) not engaging? Or maybe it *is* engaging, but doesn't feel quite right? A properly functioning 4WD system is crucial for off-road adventures, navigating snowy roads, and providing extra traction when you need it most. Ignoring 4WD issues can lead to getting stuck, causing further damage to your vehicle, and potentially compromising your safety. This article will help you diagnose common 4WD problems, understand their causes, and explore potential solutions to get you back on track (or off the beaten path!).

Symptoms of a Faulty 4WD System

Recognizing the symptoms early can save you time, money, and headaches. Here's a comprehensive list of things to look (and listen) for:

Difficulty Engaging 4WD: This is the most obvious symptom. You attempt to shift into 4WD (either with a lever, button, or dial), but the system doesn't engage. You might hear clicking or grinding noises, but no change in traction.
Loud Noises When Engaged: Grinding, popping, or clunking sounds coming from the drivetrain when in 4WD are red flags. These noises often indicate worn gears, damaged bearings, or a failing transfer case.
Vibrations: Excessive vibrations, especially at higher speeds while in 4WD, can point to problems with the driveshaft, U-joints, or a misaligned transfer case.
Warning Lights: Many modern vehicles have warning lights that illuminate when a 4WD system malfunctions. These lights might say "4WD," "Service 4WD," "Check 4WD System," or similar. Always consult your owner's manual to understand the specific meaning of the warning light.
Sticking or Binding: If the 4WD system engages, but the vehicle feels like it's binding or struggling, particularly when turning on pavement, it could indicate a problem with the transfer case or a faulty locking differential (if equipped). Never use 4WD on dry pavement for extended periods, as this can cause significant damage.
Inability to Disengage: Sometimes, the 4WD system will engage, but you can't get it to disengage. This can be due to a sticking shift motor, a malfunctioning transfer case, or vacuum line issues (on older systems).
Hesitation or Lag: A noticeable delay between when you engage the 4WD system and when it actually activates can indicate a problem with the electronic shift motor or a faulty sensor.
Poor Traction in 4WD: Even when engaged, the vehicle might not provide the expected level of traction. This could be due to a failing limited-slip differential, worn tires, or a problem with the transfer case sending power to the wrong axle.
Shifting Problems (Automatic Transmissions): Some 4WD systems are integrated with the automatic transmission. A failing 4WD system can sometimes cause erratic shifting or difficulty shifting into certain gears.

Root Causes of 4WD Problems

Understanding the underlying causes of 4WD issues is crucial for effective diagnosis and repair. Here are some common culprits:

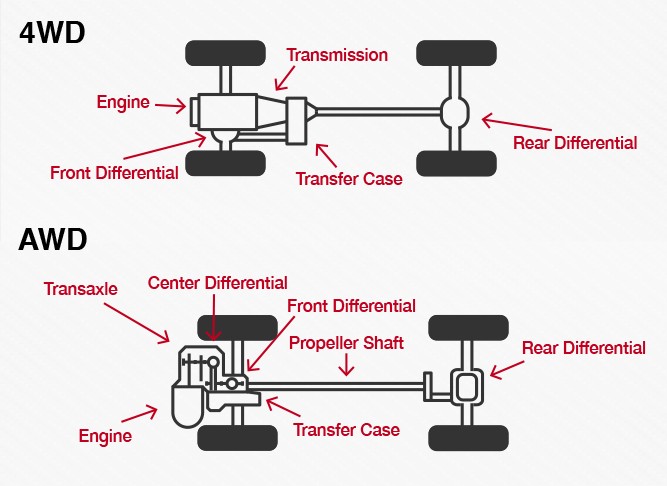

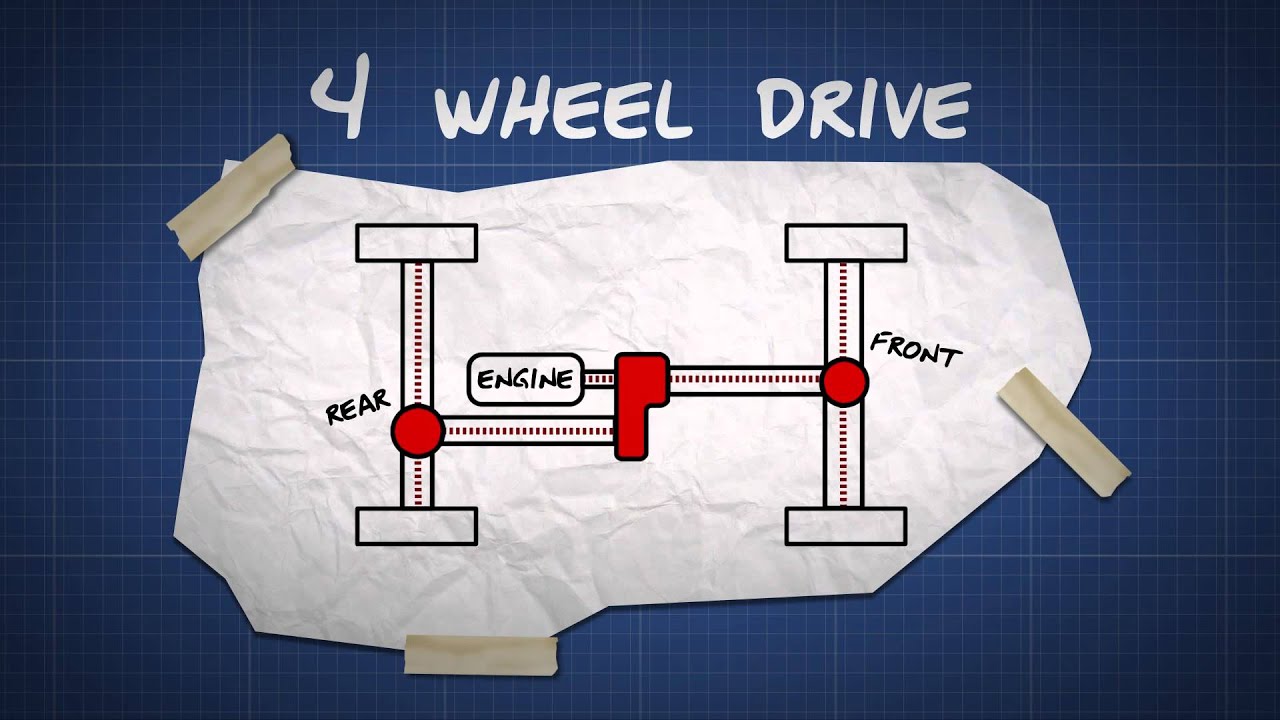

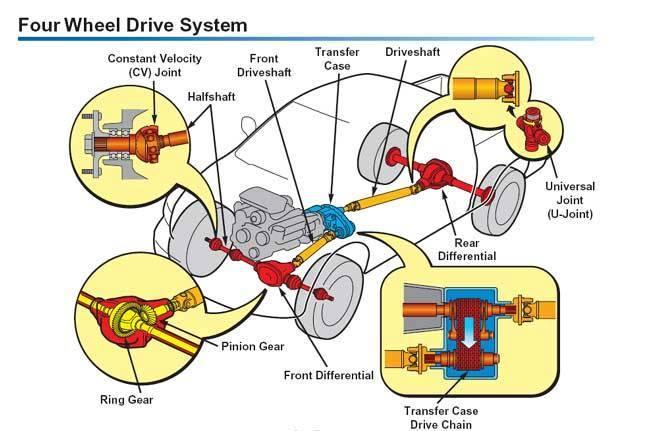

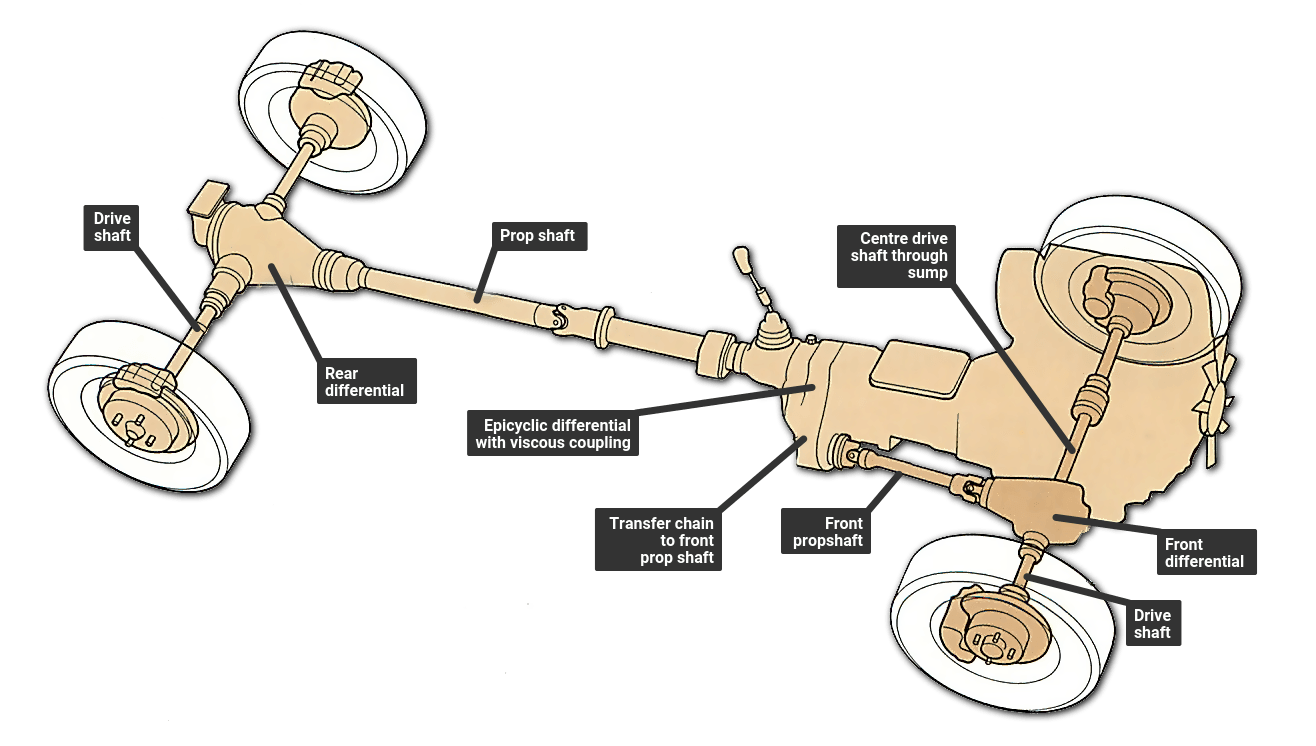

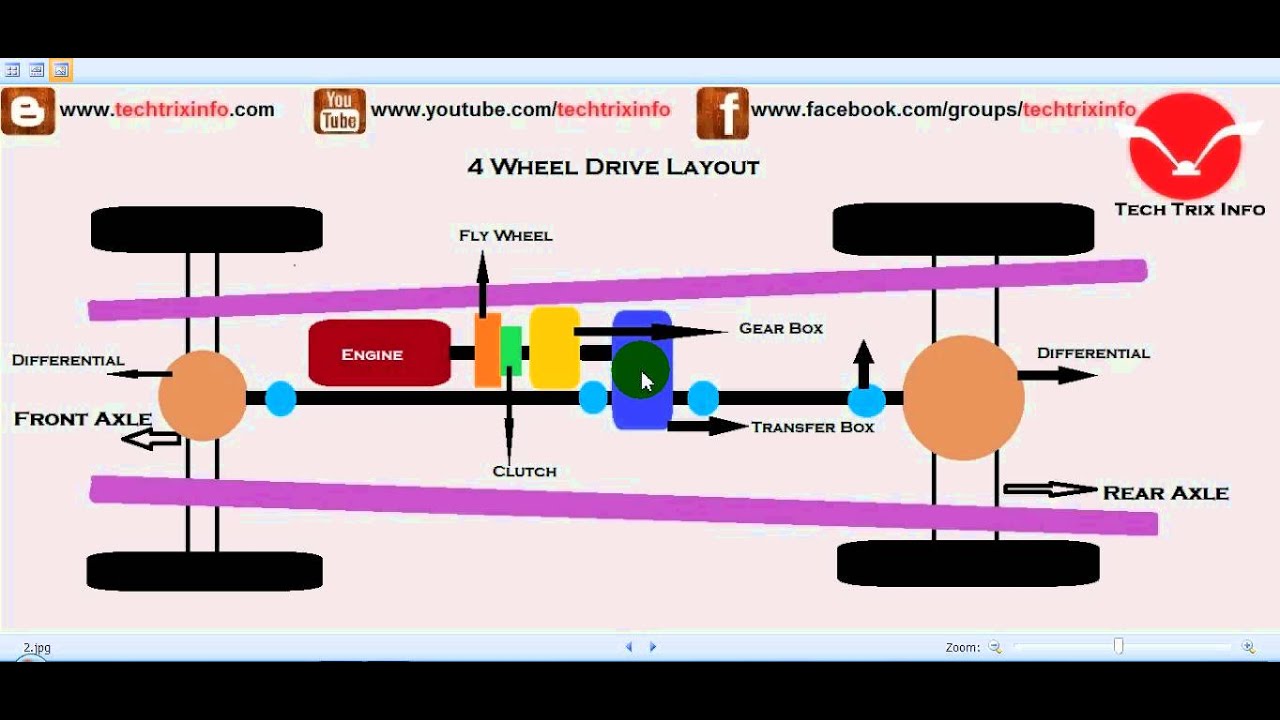

Transfer Case Issues: The transfer case is the heart of the 4WD system. It splits power from the transmission to both the front and rear axles. Common problems include:
- Low Fluid Level: Insufficient lubrication can lead to premature wear and tear on the gears and bearings inside the transfer case.
- Damaged or Worn Gears: Heavy use, lack of maintenance, or improper shifting can damage the gears inside the transfer case.
- Stretched or Broken Chain: Many transfer cases use a chain to transfer power. Over time, this chain can stretch or even break.
- Seal Leaks: Leaking seals can lead to fluid loss and contamination, causing significant damage.
Shift Motor Problems: Many modern 4WD systems use an electric shift motor to engage and disengage the transfer case. These motors can fail due to:
- Electrical Issues: Faulty wiring, corroded connectors, or a blown fuse can prevent the shift motor from functioning.
- Mechanical Failure: The motor itself can wear out or become damaged, preventing it from shifting the transfer case.
- Sensor Problems: Sensors provide feedback to the 4WD system about the position of the transfer case. Faulty sensors can lead to incorrect engagement or disengagement.
Vacuum Leaks (Older Systems): Some older 4WD systems use vacuum-actuated components to engage the front axle. Vacuum leaks can prevent the system from engaging properly. Look for cracked or disconnected vacuum lines.
Front Axle Disconnect (FAD) Issues: Some vehicles have a front axle disconnect (FAD) that engages and disengages the front axle. Problems with the FAD, such as a faulty actuator or worn components, can prevent the 4WD system from working.
Differential Problems: Both the front and rear differentials can cause 4WD issues if they are damaged or malfunctioning. Problems can include:
- Worn Gears: Just like the transfer case, the gears inside the differentials can wear out over time.
- Failed Bearings: Damaged bearings can cause noise and vibrations.
- Limited-Slip Differential Issues: If your vehicle has a limited-slip differential, it can fail, preventing it from distributing power effectively.
Wheel Speed Sensor Issues: Modern 4WD systems often rely on wheel speed sensors to detect wheel slippage and engage the 4WD system automatically. Faulty wheel speed sensors can cause the system to malfunction.
Computer/Control Module Issues: The 4WD system is controlled by a computer or control module. Problems with this module, such as software glitches or hardware failures, can lead to 4WD problems.

What Happens If You Ignore 4WD Problems?

Ignoring 4WD problems can have serious consequences:

Getting Stuck: The most immediate consequence is getting stuck in a situation where you need 4WD.
Further Damage: Continuing to drive with a faulty 4WD system can cause further damage to the transfer case, differentials, driveshafts, and other components.
Increased Repair Costs: Ignoring small problems can lead to bigger, more expensive repairs down the road. A simple seal leak can turn into a complete transfer case rebuild if left unattended.
Safety Concerns: In situations where 4WD is needed for traction and stability (e.g., snow, ice, mud), a malfunctioning system can compromise your safety and the safety of others.
Reduced Resale Value: A vehicle with a non-functional 4WD system will have a lower resale value.

Recommended Fixes

The specific fix will depend on the root cause of the problem. Here are some common solutions:

Fluid Change: A simple fluid change in the transfer case and differentials can often resolve minor issues and prevent future problems. Always use the correct type of fluid recommended by the manufacturer.
Vacuum Line Repair: For older systems with vacuum-actuated components, inspect and repair any cracked or disconnected vacuum lines.
Shift Motor Replacement: If the shift motor is faulty, it will need to be replaced.
Transfer Case Repair or Replacement: Depending on the severity of the damage, the transfer case may need to be repaired or replaced.
Differential Repair or Replacement: Similar to the transfer case, the differentials may need to be repaired or replaced if they are damaged.
Wheel Speed Sensor Replacement: A faulty wheel speed sensor is a relatively easy and inexpensive fix.
Computer Reprogramming or Replacement: In some cases, the 4WD control module may need to be reprogrammed or replaced. This is usually best left to a qualified technician.
FAD Repair/Replacement: If equipped, the front axle disconnect system needs repair or replacement.

Cost Estimates and Shop Advice

The cost of repairing 4WD problems can vary widely depending on the specific issue and the make and model of your vehicle. Here are some rough estimates:

Fluid Change (Transfer Case and Differentials): $150 - $300
Vacuum Line Repair: $50 - $200
Shift Motor Replacement: $300 - $800
Wheel Speed Sensor Replacement: $150 - $300
Transfer Case Repair: $500 - $1500 (depending on the extent of the damage)
Transfer Case Replacement: $1500 - $4000
Differential Repair: $500 - $1500 (depending on the extent of the damage)
Differential Replacement: $1500 - $4000

Shop Advice:

Get Multiple Quotes: Always get multiple quotes from different repair shops before authorizing any work.
Ask About Warranty: Make sure the repair shop offers a warranty on their work.
Check Online Reviews: Read online reviews to get an idea of the shop's reputation.
Ask About OEM vs. Aftermarket Parts: Discuss the pros and cons of using OEM (Original Equipment Manufacturer) vs. aftermarket parts with the mechanic.
Don't Be Afraid to Ask Questions: Ask the mechanic to explain the problem and the proposed solution in detail.

Technical Service Bulletins (TSBs) and Common Mileage for Failure:

Many 4WD problems are well-documented in Technical Service Bulletins (TSBs) issued by vehicle manufacturers. These bulletins provide repair procedures and diagnostic information for common issues. A quick search online for TSBs related to your vehicle's 4WD system can be helpful. For example, many GM trucks and SUVs with the Autotrac system are known to have issues with the shift motor around the 100,000-150,000 mile mark. Similarly, some Ford Explorers have known transfer case issues related to fluid leaks. Your local mechanic can also check for applicable TSBs.

By understanding the symptoms, causes, and potential solutions for 4WD problems, you can ensure that your vehicle is ready to tackle any terrain or weather condition. Regular maintenance and prompt attention to any issues will help keep your 4WD system in top working order for years to come.
