How To Tell If A Car Is All Wheel Drive

So, you're not quite sure if your vehicle is All Wheel Drive (AWD)? It's a common question, and it's more important than you might think. Knowing your vehicle's drivetrain is crucial for proper maintenance, diagnosing issues, and even safe driving in certain conditions. Mismatched tires or improper towing can seriously damage an AWD system, leading to costly repairs. Let's break down how to determine if your car, truck, or SUV sends power to all four wheels.

Is My Car Really All Wheel Drive?

The most straightforward way to confirm if your vehicle is AWD is to verify the vehicle's documentation (owner’s manual or original window sticker). You can also check for a manufacturer-specific badge on the vehicle, typically located on the rear or sides. However, these aren't always reliable, especially if the vehicle has been modified or rebadged. The best approach involves a combination of visual checks, practical tests, and VIN decoding.

Symptoms Suggesting Potential AWD Issues

If you're experiencing any of the following symptoms, it could indicate a problem with your AWD system, and confirming its presence becomes even more critical:

Unusual Noises: Clunking, grinding, or whining sounds, especially during turns or acceleration, could point to a failing transfer case, differential, or CV joints within the AWD system.
Vibrations: Excessive vibrations, particularly at higher speeds, might indicate an issue with the driveshaft or other components that transmit power to the rear wheels in an AWD system.
Poor Traction: If you notice wheel slippage in conditions where you expect AWD to provide better grip (snow, ice, gravel), there might be a problem with the system. This is especially concerning if other AWD vehicles perform better in the same conditions.
Burning Smell: A burning smell after driving, particularly after using the AWD system extensively, could indicate overheating in the transfer case or differential.
Difficulty Turning: A feeling of binding or resistance when making tight turns on dry pavement can be a sign of a malfunctioning AWD system, particularly in systems that are not designed for full-time engagement.
Warning Lights: The presence of an "AWD" or "4WD" warning light on the dashboard is a clear indication of a potential issue within the system. Ignoring this light could lead to further damage.
Uneven Tire Wear: Drastic differences in tire wear between the front and rear axles can suggest an issue with the AWD system's ability to distribute power correctly. This can also be caused by mismatched tire sizes, which is extremely detrimental to AWD systems.
Stalling or Hesitation: In rare cases, a malfunctioning AWD system can cause the engine to stall or hesitate, especially during acceleration from a stop.

Understanding the Root Cause: How AWD Systems Work

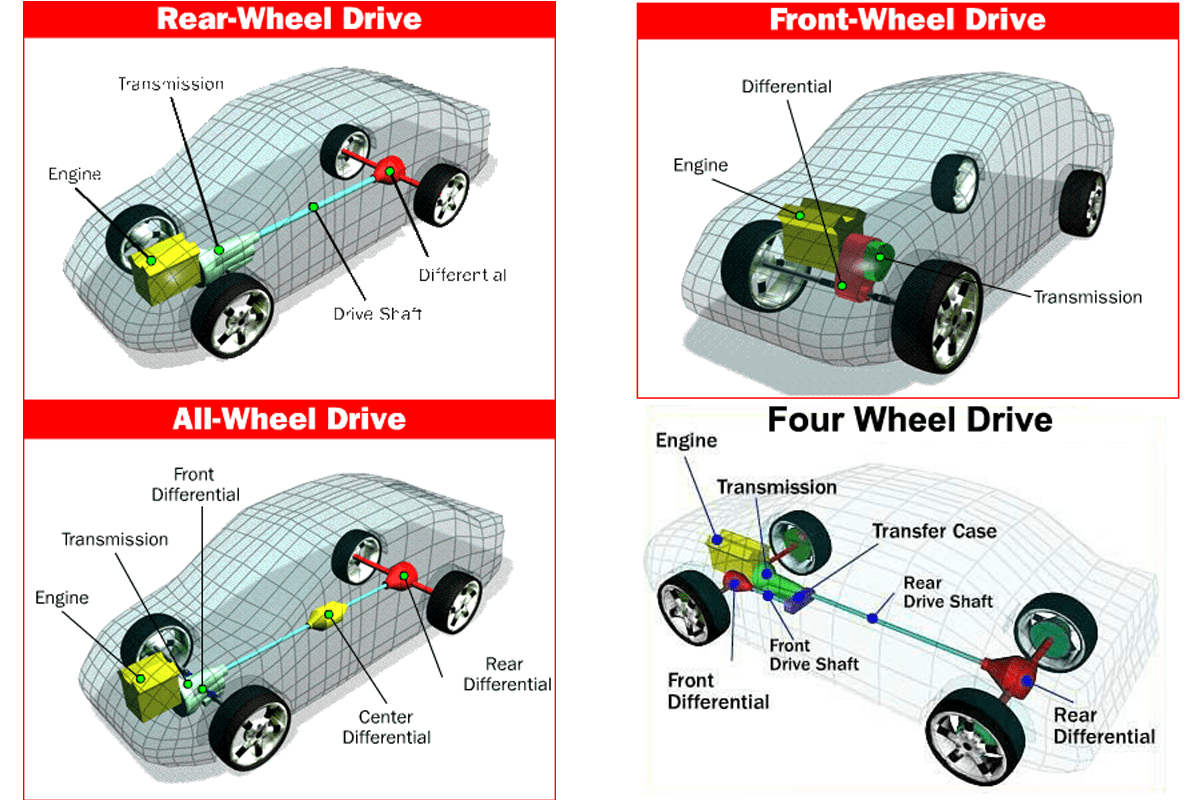

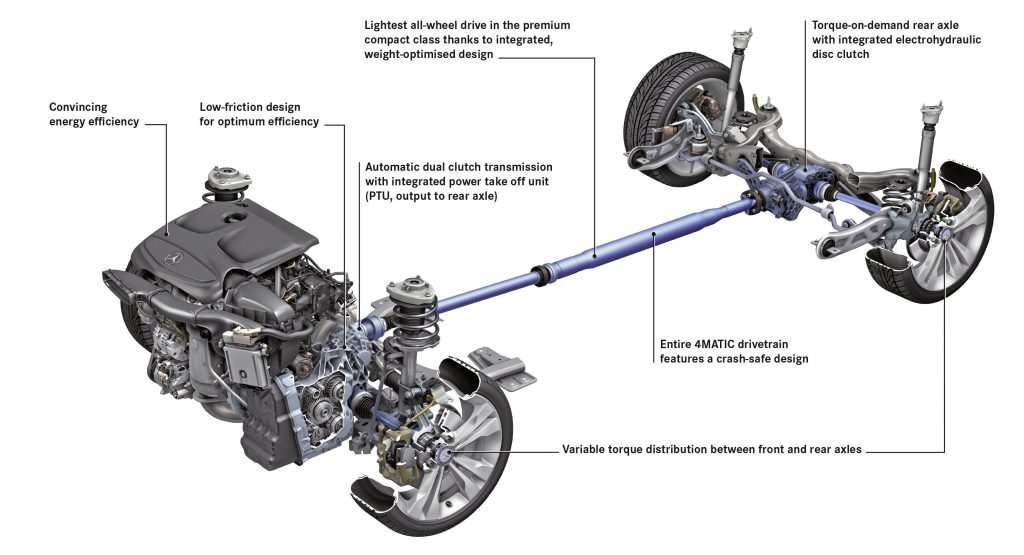

To understand why these symptoms occur, it's important to grasp the basics of how AWD systems function. AWD systems generally consist of the following key components:

Engine: The source of power.
Transmission: Modifies the engine's torque and speed to drive the wheels.
Transfer Case: This is the heart of the AWD system. It splits power from the transmission and sends it to both the front and rear axles. Some transfer cases are simple mechanical devices, while others are more sophisticated, using electronic controls and clutches to vary the amount of power sent to each axle.
Front and Rear Differentials: These allow the wheels on each axle to rotate at different speeds, which is necessary when turning.
Driveshafts: These connect the transfer case to the front and rear differentials, transmitting the power.
Axle Shafts: These connect the differentials to the wheels.

The specific operation of an AWD system varies depending on the vehicle's make and model. Some systems are full-time AWD, meaning that all four wheels are constantly receiving power. Others are part-time AWD or on-demand AWD, meaning that the system only engages the rear wheels when the front wheels lose traction. These systems typically use sensors and electronic controls to detect wheel slippage and automatically engage the rear axle.

The transfer case is often the weakest link in an AWD system. It's a complex unit with gears, chains (in some models), and clutches that are subjected to significant stress. Over time, these components can wear out or fail due to lack of maintenance, contamination of the fluid, or excessive use in harsh conditions.

Consequences of Ignoring AWD Problems

Ignoring problems with your AWD system can have serious consequences:

Increased Wear and Tear: A malfunctioning AWD system can put extra stress on other components, such as the transmission, differentials, and tires, leading to premature wear and tear.
Reduced Fuel Efficiency: A dragging or inefficient AWD system can increase fuel consumption.
Compromised Safety: A failing AWD system can reduce traction and stability, especially in slippery conditions, increasing the risk of accidents.
Costly Repairs: Small problems can quickly escalate into major repairs if left unaddressed. A failed transfer case, for example, can be a very expensive repair.
System Failure: Continued operation with a faulty component will inevitably lead to complete system failure, potentially stranding you.

Recommended Fixes and Diagnostic Steps

Here's a systematic approach to determining if you have AWD and what to do if you suspect a problem:

Check Your Vehicle's Documentation: As mentioned earlier, the owner's manual or original window sticker is the most reliable source of information.
Visual Inspection: Look for an AWD or 4WD badge on the vehicle. Inspect the undercarriage for a driveshaft running from the transfer case to the rear differential. If you only see a front differential and no driveshaft going to the rear, it's likely a Front Wheel Drive (FWD) vehicle.
The "Spin Test": This is a simple test you can perform on a flat surface. Put your vehicle in drive (or first gear for a manual transmission) and have a friend observe the wheels while you gently accelerate. If it's AWD, you should see all four wheels attempt to turn. However, many modern AWD systems are electronically controlled and may require some wheel slippage before engaging the rear axle. Never perform this test on a public road or in a way that could endanger yourself or others. Consider lifting the vehicle with a jack on each corner. Verify all wheels spin freely when in the air. Start the car while lifted in the air. If AWD, wheels will attempt to spin. Repeat with traction control on and off.
VIN Decoder: Use a VIN decoder website (many are available online for free) to look up your vehicle's specifications. The VIN will contain information about the vehicle's drivetrain.
Check for a Transfer Case: Look under the vehicle near the transmission. The transfer case is a separate unit that bolts to the transmission and has a driveshaft running to both the front and rear axles (if it's AWD).
Consult a Mechanic: If you're still unsure or suspect a problem, take your vehicle to a trusted mechanic for a professional inspection. They can perform diagnostic tests to verify the presence and functionality of the AWD system.

Cost Estimates and Shop Advice

The cost of repairing or replacing AWD components can vary significantly depending on the vehicle's make and model, the severity of the damage, and the shop's labor rates. Here's a general idea of what you can expect:

Transfer Case Repair: $500 - $1500+ (depending on the complexity and parts needed)
Transfer Case Replacement: $1500 - $4000+ (including labor)
Differential Repair: $400 - $1200+
Differential Replacement: $1000 - $3000+
Driveshaft Repair: $300 - $800+
Driveshaft Replacement: $500 - $1500+
AWD System Diagnosis: $100 - $200 (for initial inspection and diagnostic tests)

Shop Advice:

Choose a reputable mechanic with experience working on AWD systems. Ask for referrals and read online reviews.
Get a written estimate before any work is performed. The estimate should include a detailed breakdown of the parts and labor costs.
Ask about the warranty on the repair. Most reputable shops offer a warranty on their work.
Consider a second opinion if you're unsure about the diagnosis or the recommended repairs.

Credibility Boost: TSBs and Common Failures

Many AWD system issues are well-documented by manufacturers. Search online for Technical Service Bulletins (TSBs) related to your vehicle's make, model, and year, focusing on AWD-related symptoms. These TSBs often provide specific diagnostic procedures and repair recommendations. For example, certain Subaru models are known for transfer case leaks around the 100,000-mile mark, and specific GM trucks have had TSBs addressing issues with the electronic transfer case control module.

Additionally, online forums and communities dedicated to your vehicle model are invaluable resources. Other owners often share their experiences with AWD system failures, providing insights into common problems, typical mileage at failure, and effective repair strategies. These communities can help you identify potential issues early and prepare for necessary maintenance or repairs.

By understanding the signs of a potential AWD problem and taking prompt action, you can protect your investment and ensure that your vehicle continues to provide reliable traction and performance for years to come.
