How To Tell If A Fusible Link Is Bad

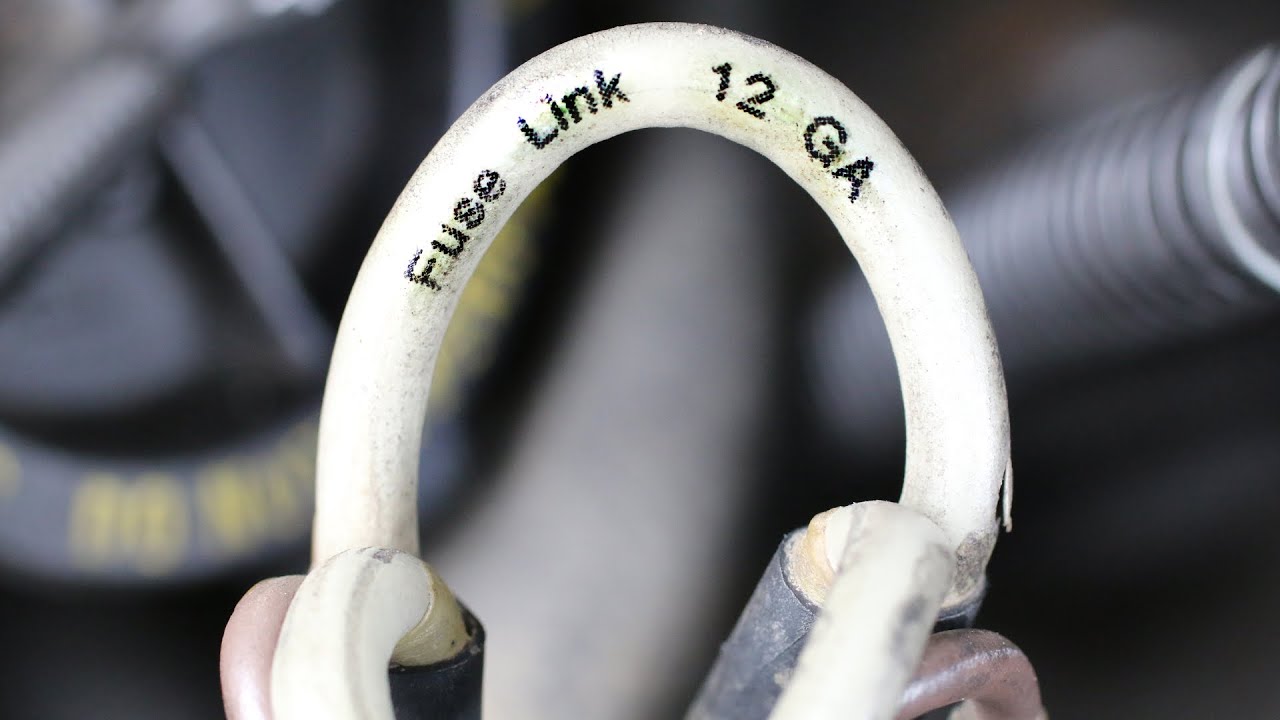

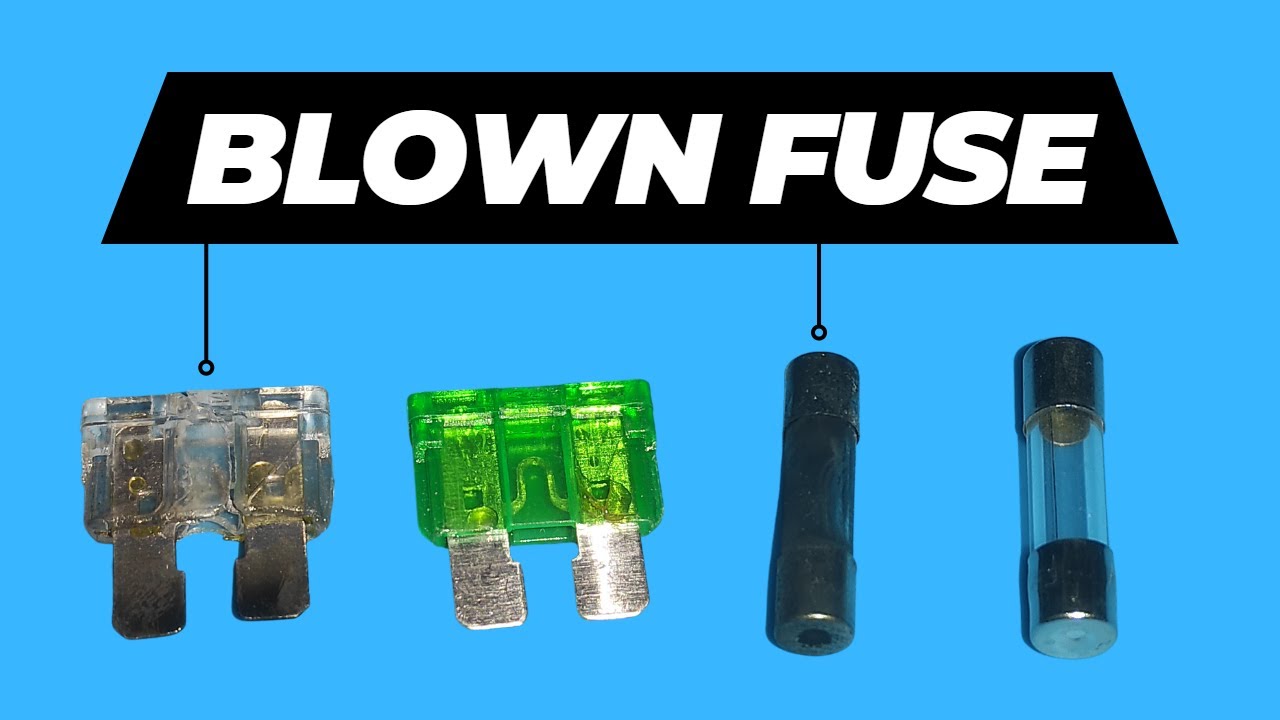

A fusible link is a safety device in an electrical circuit designed to protect components from overcurrent situations. Like a fuse, it's a sacrificial element that breaks the circuit when the current exceeds a safe level. But unlike easily replaceable fuses, fusible links are often integrated into wiring harnesses, making diagnosis and replacement slightly more involved. Knowing how to tell if a fusible link is bad is crucial for maintaining the electrical integrity and safety of your vehicle or appliance.
Why It Matters: Identifying a Faulty Fusible Link
Understanding how to diagnose a bad fusible link is important for several reasons:
- Preventing Further Damage: A blown fusible link indicates an overcurrent condition. Ignoring it and simply replacing it without addressing the underlying cause can lead to the new link blowing immediately, or worse, causing damage to other electrical components.
- Ensuring Safety: An overcurrent can generate excessive heat, potentially leading to fires. Identifying and fixing the problem quickly minimizes this risk.
- Restoring Functionality: A blown fusible link will cause a complete circuit failure. Knowing how to diagnose it allows you to restore power to the affected system quickly. This could be crucial for essential vehicle functions like starting, lighting, or critical safety systems.
- Saving Money: Identifying and replacing a blown fusible link can be a relatively inexpensive fix compared to replacing more expensive components damaged by an unchecked overcurrent.
Methods for Diagnosing a Bad Fusible Link
Several methods can be used to determine if a fusible link has failed. Here's a breakdown:
1. Visual Inspection

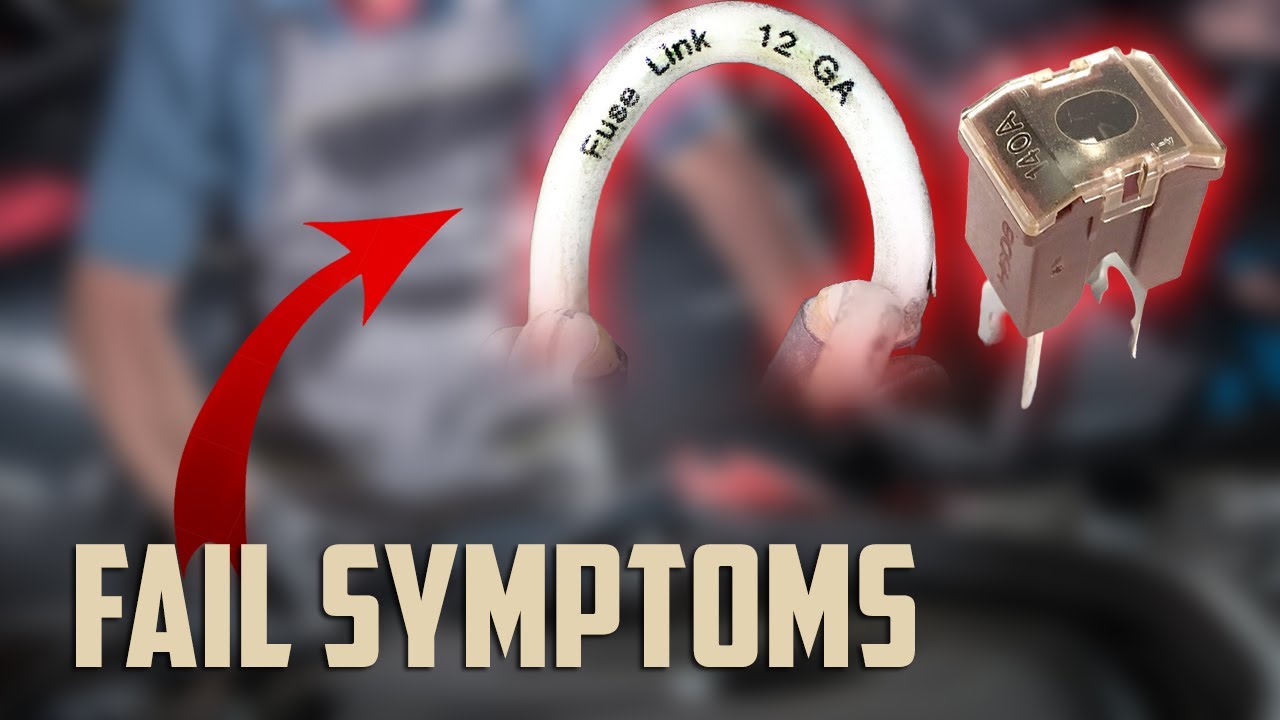

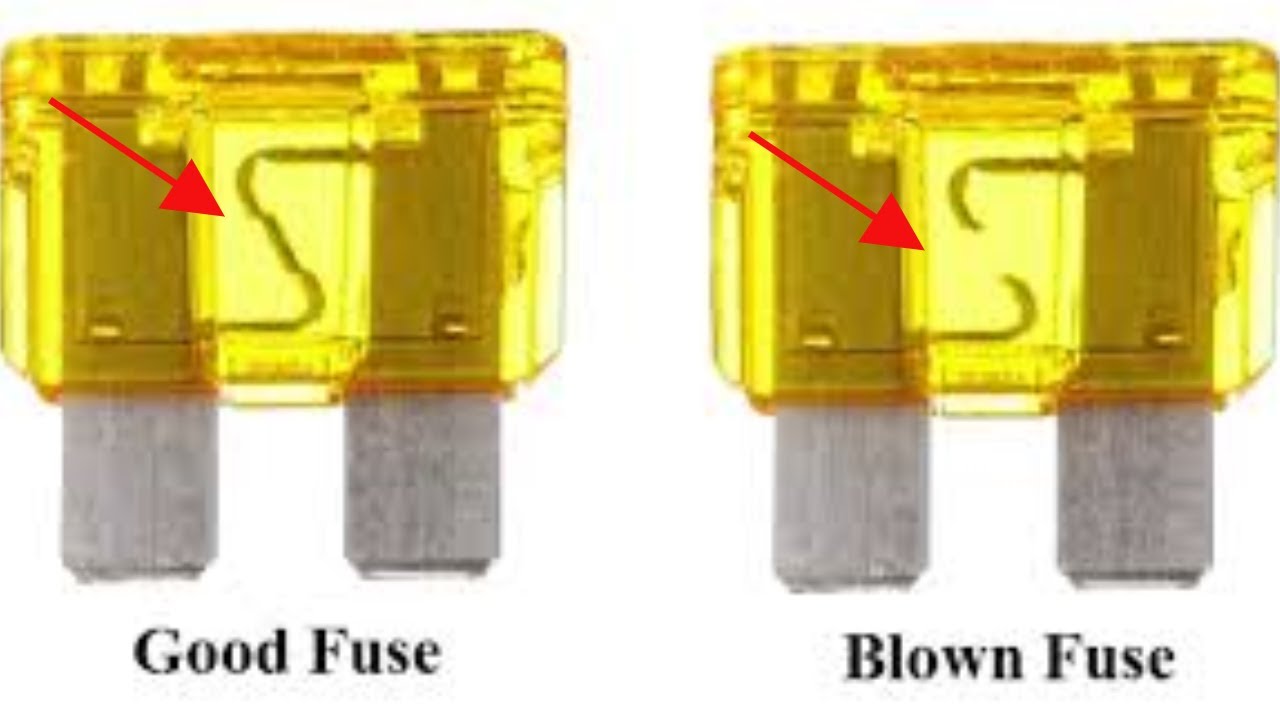

The simplest method is a visual inspection. Carefully examine the fusible link for signs of damage. Look for:
- Breaks or Cracks: The fusible link may have a visible break in the wire or casing.
- Burn Marks: Evidence of burning, melting, or discoloration indicates an overcurrent situation.
- Swelling or Bulging: The casing of the fusible link may be swollen or bulging, indicating internal damage.
However, visual inspection isn't always reliable, especially if the damage is internal. Don't rely on this method alone.
2. Using a Multimeter (Continuity Test)
A multimeter is the most reliable tool for testing a fusible link. Follow these steps:
- Safety First: Disconnect the power source to the circuit. This is crucial to prevent electrical shock and damage to the multimeter.
- Set the Multimeter: Set the multimeter to the continuity setting (often indicated by a diode symbol or an audible beep).
- Connect the Probes: Place one probe of the multimeter on each end of the fusible link. Ensure good contact.
- Interpret the Results:
- Continuity (Beep or Near-Zero Resistance): If the multimeter beeps or shows a resistance close to zero, the fusible link is good and the circuit is complete.
- No Continuity (No Beep or Infinite Resistance): If the multimeter doesn't beep or shows infinite resistance (usually indicated by "OL" or "1"), the fusible link is blown, and the circuit is open.
3. Voltage Drop Test
A voltage drop test can identify a fusible link that is deteriorating but hasn't completely failed. This test requires the circuit to be energized, so exercise extreme caution.
- Safety First: This test requires the circuit to be energized. Proceed with extreme caution and use appropriate safety gear.
- Connect the Multimeter: Set the multimeter to the DC voltage setting.
- Connect the Probes: Place one probe of the multimeter on each end of the fusible link while the circuit is operating.
- Interpret the Results:
- Low Voltage Drop (Near 0V): A healthy fusible link will have a very low voltage drop (typically less than 0.2V).
- Significant Voltage Drop (Higher than 0.2V): A significant voltage drop indicates that the fusible link is deteriorating and offering excessive resistance. It should be replaced.
How to Choose the Right Replacement Fusible Link
Selecting the correct replacement fusible link is critical. Using the wrong type or amperage rating can lead to further damage or create a safety hazard.
- Amperage Rating: The most important factor is the amperage rating, usually printed on the fusible link. Always use a replacement with the same amperage rating as the original. A higher rating will not provide adequate protection, and a lower rating will blow prematurely.
- Type: Fusible links come in various types and sizes. Match the physical characteristics of the original, including length, wire gauge, and terminal type.
- Quality: Purchase replacement fusible links from reputable suppliers. Avoid cheap imitations, as they may not meet safety standards.
- Proper Installation: Ensure the replacement fusible link is properly installed and securely connected to the wiring harness. Loose connections can cause resistance and overheating.
Real-World Owner Experiences
Many vehicle owners have encountered blown fusible links. Here are a few examples of common situations and lessons learned:
- Starter Motor Issues: A blown fusible link in the starter circuit is a common problem. Owners often report difficulty starting their vehicle and trace the issue back to a faulty fusible link. The underlying cause could be a worn starter motor drawing excessive current.
- Electrical Accessory Failures: Fusible links protect various electrical accessories, such as headlights, power windows, and radios. A blown link can cause these accessories to stop working. An owner might have added an aftermarket accessory incorrectly, overloading the circuit and blowing the link.
- Alternator Overload: A malfunctioning alternator can cause an overcurrent in the charging system, leading to a blown fusible link. This is often accompanied by a dead battery.
- Wiring Harness Damage: Damaged or corroded wiring can cause short circuits, resulting in blown fusible links. Rodents chewing on wires are a frequent culprit.
The common thread in these experiences is that simply replacing the fusible link is often a temporary fix. It's crucial to identify and address the underlying cause of the overcurrent to prevent future failures.
Frequently Asked Questions (FAQs)
Q: Can I bypass a fusible link?
A: Absolutely not. Bypassing a fusible link eliminates the safety protection it provides and can lead to severe electrical damage, fires, or even personal injury. Never bypass a fusible link. Always replace it with the correct type and amperage rating.

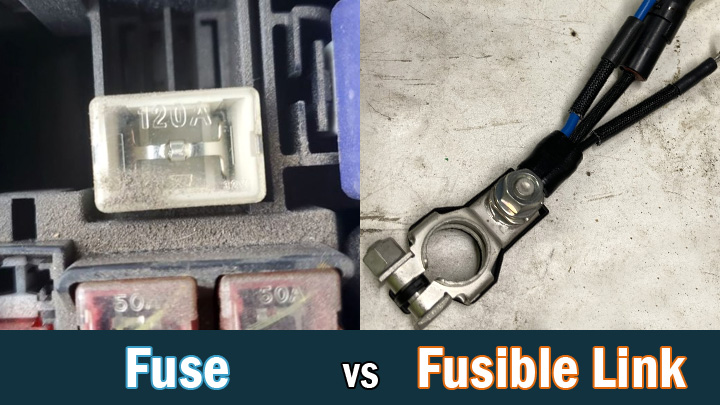

Q: Can I use a regular fuse instead of a fusible link?
A: In some cases, yes, but only if the fuse has the same amperage rating and physical characteristics as the fusible link. Fusible links are often designed to handle higher current surges than standard fuses. It's best to use a direct replacement fusible link whenever possible. Consult your vehicle's or appliance's service manual for guidance.
Q: How much does it cost to replace a fusible link?
A: The cost of replacing a fusible link varies depending on the type of link and the labor involved. A fusible link itself is relatively inexpensive, typically costing a few dollars. However, the labor cost can be significant if the fusible link is difficult to access or if diagnosing the underlying problem requires extensive troubleshooting. Expect to pay anywhere from $50 to $200 or more for a professional replacement, depending on the vehicle and the complexity of the repair.
Q: How can I prevent fusible links from blowing?
A: The best way to prevent fusible links from blowing is to maintain your electrical system properly and avoid overloading circuits. This includes:
- Regularly inspecting wiring for damage or corrosion.
- Avoiding adding too many electrical accessories to a single circuit.
- Ensuring that all electrical components are functioning correctly.
- Consulting a qualified technician for any electrical repairs.
Q: Where can I find fusible links in my car?
A: Fusible links are typically located in the engine compartment, often near the battery or in a fuse box. Consult your vehicle's owner's manual or service manual for the exact location of the fusible links in your specific model.
By understanding how to diagnose a bad fusible link and taking preventative measures, you can ensure the electrical safety and reliability of your vehicle or appliance.
