How To Tell If A Knock Sensor Is Bad

Knock sensors, often overlooked, play a critical role in your engine's health and performance. A faulty knock sensor can lead to reduced power, poor fuel economy, and potentially even engine damage. This article provides an in-depth guide on how to diagnose a bad knock sensor, equipping you with the knowledge to tackle this issue yourself.

Understanding the Engine Management System and Knock

Before diving into knock sensor diagnostics, it's essential to understand the broader context of engine management. Modern engines rely on sophisticated Engine Control Units (ECUs) to optimize performance and efficiency. The ECU uses a multitude of sensors, including the knock sensor, to monitor engine conditions and make real-time adjustments.

What is Knock?

Knock, also known as detonation or pre-ignition, is the uncontrolled combustion of the air-fuel mixture in the engine cylinder. Instead of a smooth, even burn initiated by the spark plug, the remaining mixture spontaneously ignites after the spark plug fires, creating a rapid pressure rise and a characteristic "knocking" or "pinging" sound. This uncontrolled combustion generates extreme heat and pressure that can damage pistons, connecting rods, and cylinder heads over time. It's like repeatedly hitting your engine's internal components with a tiny hammer – not a good long-term strategy.

The Role of the Knock Sensor

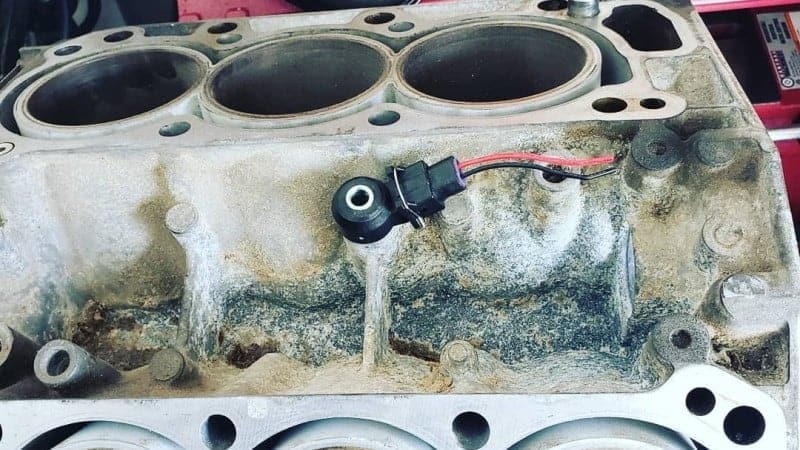

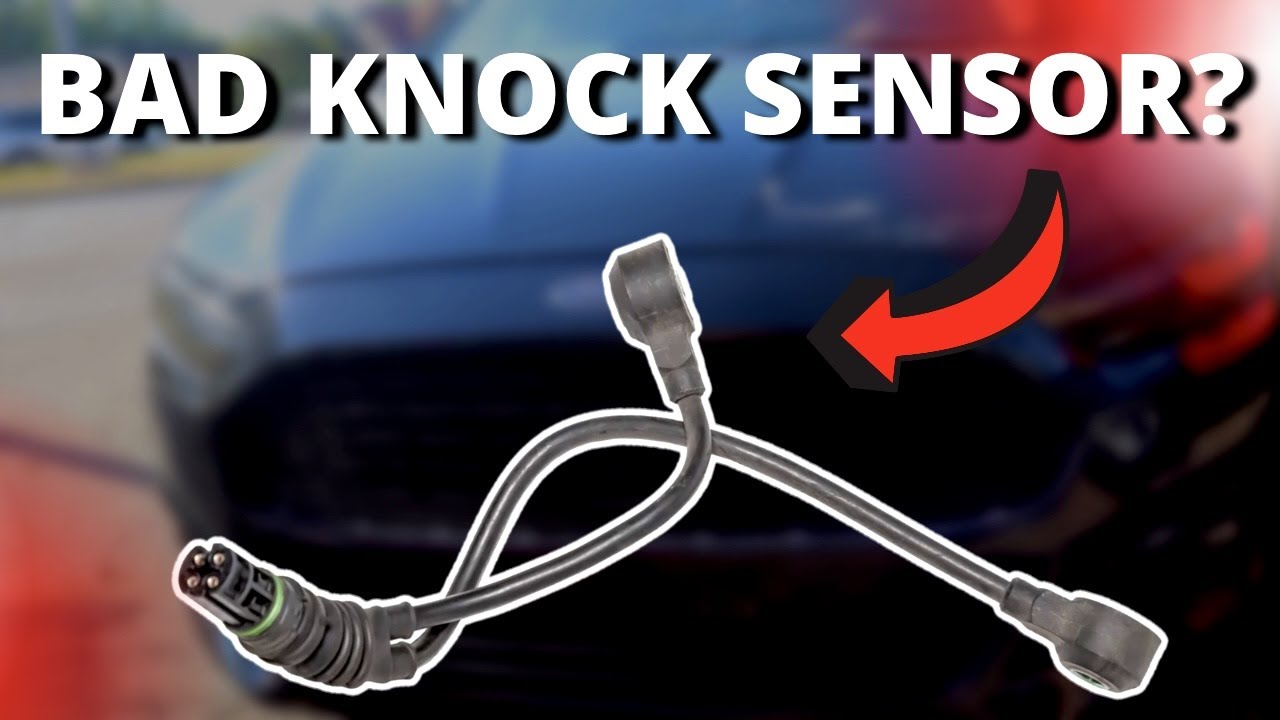

The knock sensor is designed to detect these abnormal vibrations caused by knock. It's typically mounted on the engine block, cylinder head, or intake manifold, strategically placed to pick up engine vibrations. When knock is detected, the sensor sends a signal to the ECU. The ECU then retards the ignition timing. Ignition timing is the point in the engine cycle when the spark plug fires. Retarding the timing means firing the spark plug slightly later in the cycle, which reduces cylinder pressure and temperature, suppressing knock. In some cases, the ECU may also adjust the air-fuel ratio to further mitigate knock.

Technical Breakdown: How a Knock Sensor Works

Knock sensors are typically piezoelectric sensors. Piezoelectric materials generate an electrical charge when subjected to mechanical stress or vibration. Here’s how it works:

1. Vibration Detection: When knock occurs, the engine block vibrates at specific frequencies.
2. Piezoelectric Effect: These vibrations are transmitted to the piezoelectric element within the sensor.
3. Voltage Generation: The piezoelectric element converts the mechanical vibration into a small AC voltage signal. The amplitude (strength) of this voltage is proportional to the intensity of the vibration.
4. Signal Transmission: The sensor sends this voltage signal to the ECU via a shielded wire to minimize interference.
5. ECU Interpretation: The ECU analyzes the frequency and amplitude of the signal. If the signal characteristics match the known signature of engine knock, the ECU initiates corrective actions.

There are generally two types of knock sensors: resonant and broadband. Resonant sensors are tuned to a specific frequency range associated with knock, making them more sensitive to knock but less sensitive to other engine noises. Broadband sensors detect a wider range of frequencies, providing a more comprehensive picture of engine vibrations, but they may also be more susceptible to false positives (detecting vibrations that aren't actually knock).

Diagnosing a Bad Knock Sensor

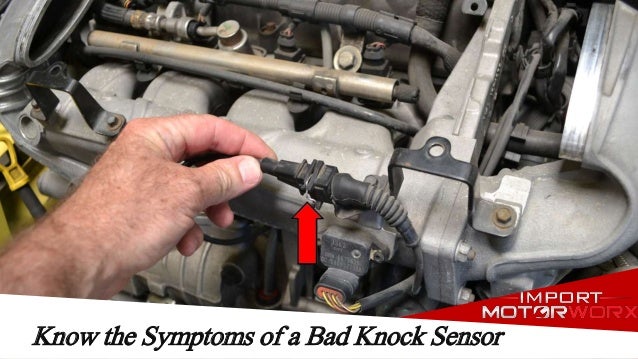

Several symptoms can indicate a faulty knock sensor:

• Check Engine Light (CEL): This is often the first sign. The ECU will store a Diagnostic Trouble Code (DTC) related to the knock sensor. Common codes include P0325 (Knock Sensor 1 Circuit) and related codes indicating circuit malfunction, low input, or high input.
• Reduced Engine Power: If the ECU detects a problem with the knock sensor, it may default to a conservative ignition timing map to prevent potential knock. This can result in noticeable power loss, especially during acceleration.
• Poor Fuel Economy: Retarded ignition timing, a consequence of a suspected knock issue, reduces combustion efficiency, leading to decreased fuel economy.
• Engine Hesitation or Stumbling: In some cases, a faulty knock sensor can cause the engine to hesitate or stumble, particularly under load.
• Audible Knocking or Pinging: While a knock sensor aims to prevent audible knocking, a completely failed sensor won't send any signal. This could lead to the engine actually knocking. *Note:* Hearing knocking does *not* automatically mean the knock sensor is bad. It could mean the engine is actually knocking, and the sensor isn't able to compensate effectively (possibly due to other engine issues).

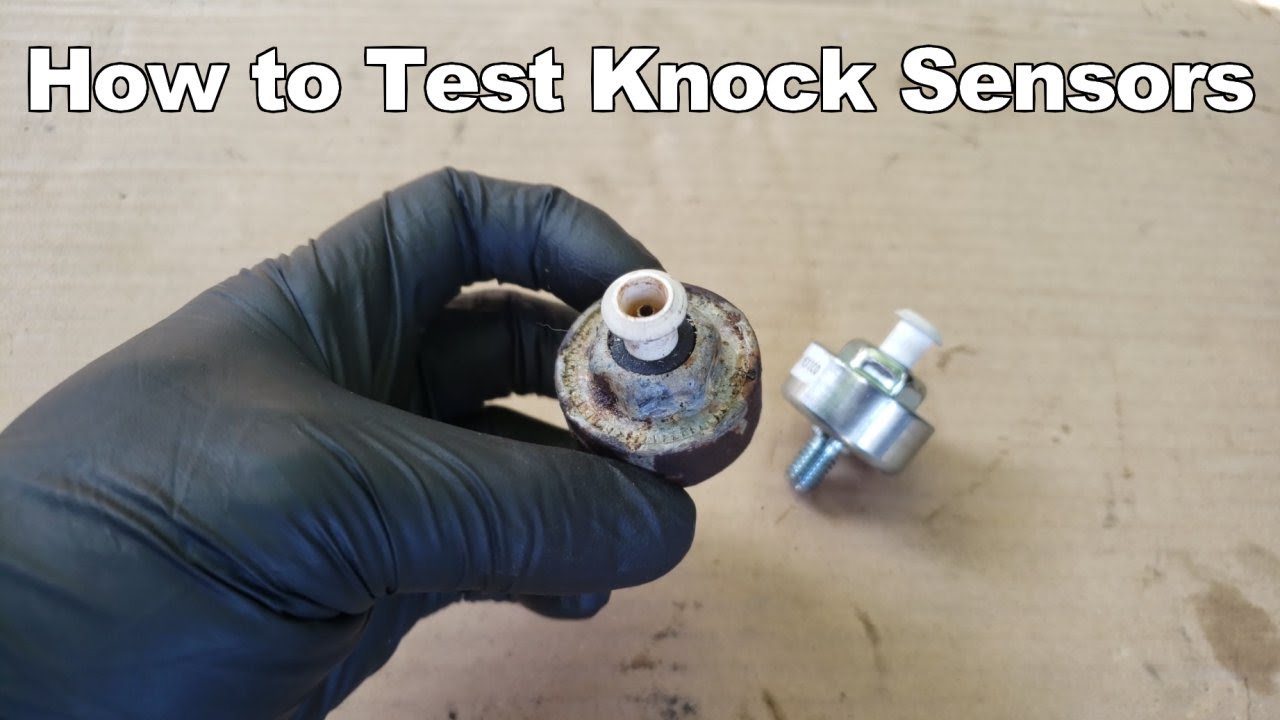

Testing Procedures

Here's a systematic approach to testing a knock sensor:

1. Scan for Diagnostic Trouble Codes (DTCs): Use an OBD-II scanner to retrieve any stored DTCs. This will provide valuable clues about the nature of the problem. Note the codes and clear them after initial diagnosis to see if they return.
2. Visual Inspection: Carefully inspect the knock sensor and its wiring harness. Look for signs of damage, corrosion, or loose connections. Pay close attention to the sensor's connector and the wiring insulation. A cracked or damaged sensor body can indicate internal failure.
3. Continuity Test: Disconnect the knock sensor connector. Use a multimeter set to the Ohms setting to check the resistance between the sensor terminals. A typical knock sensor should have a resistance value within a specified range (usually several megaohms). Consult your vehicle's service manual for the correct value. An open circuit (infinite resistance) or a short circuit (zero resistance) indicates a faulty sensor.
4. Voltage Test (Dynamic Test):
   • Reconnect the knock sensor connector.
   • Set your multimeter to AC voltage mode.
   • With the engine running, gently tap on the engine block near the knock sensor (use a rubber mallet).
   • You should observe a small AC voltage reading on the multimeter. The voltage should fluctuate slightly as you tap. A lack of voltage change suggests the sensor is not responding to vibrations. Caution: Do not strike the engine block too hard, as you could cause damage.
5. Oscilloscope Testing (Advanced): For a more detailed analysis, an oscilloscope can be used to visualize the knock sensor's output signal. A healthy sensor will produce a clear AC waveform with a distinct frequency and amplitude when subjected to vibration. A distorted or absent waveform indicates a problem. This requires more advanced equipment and expertise.
6. Wiring Harness Test: Use a multimeter to check the continuity and voltage of the wiring harness connecting the knock sensor to the ECU. Look for any breaks, shorts, or excessive resistance in the wires. Consult your vehicle's wiring diagram for the correct pin assignments and voltage values.

Common Issues and Maintenance Concerns

• Corrosion: Knock sensors are often exposed to harsh environments, making them susceptible to corrosion. Corrosion can damage the sensor element or the wiring connections.
• Wiring Damage: The wiring harness can be damaged by heat, vibration, or abrasion. Check for cracked insulation, frayed wires, or loose connectors.
• Over-Torquing: When replacing a knock sensor, it's crucial to torque it to the manufacturer's specified torque value. Over-torquing can damage the sensor element and affect its sensitivity.
• Heat Exposure: Prolonged exposure to high temperatures can degrade the piezoelectric material in the sensor.
• Incorrect Sensor Type: Using the wrong type of knock sensor for your vehicle can lead to inaccurate readings and performance problems. Always use a sensor that is specifically designed for your vehicle.

Do's and Don'ts / Best Practices

• DO use a high-quality replacement knock sensor from a reputable manufacturer.
• DO consult your vehicle's service manual for the correct torque specification when installing a new knock sensor.
• DO use a torque wrench to ensure proper tightening.
• DO apply dielectric grease to the sensor connector to prevent corrosion.
• DO carefully inspect the wiring harness for any damage or corrosion.
• DON'T over-torque the knock sensor.
• DON'T use excessive force when tapping on the engine block during testing.
• DON'T ignore a check engine light related to the knock sensor.
• DON'T assume a knocking sound is always caused by a bad knock sensor. Diagnose the underlying cause first.

Conclusion

Diagnosing a bad knock sensor requires a systematic approach, combining visual inspection, electrical testing, and a thorough understanding of the engine management system. If you're comfortable performing basic electrical tests and have access to a multimeter and OBD-II scanner, you can likely diagnose a faulty knock sensor yourself. However, if you're unsure about any of the procedures or if you suspect a more complex issue, it's always best to consult a qualified mechanic. Replacing a faulty knock sensor is relatively straightforward, but accurate diagnosis is key. By following the steps outlined in this article, you can ensure your engine is protected from damaging knock and operating at its optimal performance.
