How To Tell If Carrier Bearing Is Bad

Experiencing a strange vibration or clunking noise, especially when accelerating or decelerating? You might be dealing with a bad carrier bearing. Identifying and addressing this issue promptly is crucial for the longevity and performance of your vehicle. A worn-out carrier bearing can lead to more significant and costly drivetrain problems down the line. This article will walk you through the symptoms, causes, consequences, and solutions to help you determine if your carrier bearing is failing and what to do about it.

Recognizing the Symptoms of a Failing Carrier Bearing

Pinpointing a failing carrier bearing can be tricky, as some symptoms overlap with other drivetrain issues. However, paying close attention to these telltale signs can help you diagnose the problem accurately:

1. Vibration Under Acceleration or Deceleration

This is one of the most common and noticeable symptoms. You'll likely feel a vibration originating from under the center of the vehicle, particularly when accelerating or decelerating. The intensity of the vibration often correlates with the speed of the vehicle. It might be subtle at lower speeds and become more pronounced as you accelerate. Sometimes, the vibration feels like it's coming from the floorboard or seats.

2. Clunking or Thumping Noises

Clunking or thumping noises, especially when shifting gears, accelerating from a stop, or going over bumps, can indicate excessive play in the carrier bearing. This noise arises from the driveline’s movement due to the worn bearing, allowing the driveshaft to move more freely than it should. The sound can sometimes be intermittent, making it difficult to pinpoint initially.

3. Squeaking or Groaning Sounds

A squeaking or groaning sound, usually heard at lower speeds, can also be a sign of a failing carrier bearing. This noise is often caused by the bearing itself wearing out and losing its lubrication. As the internal components of the bearing grind against each other, they create this audible distress signal.

4. Excessive Driveshaft Play

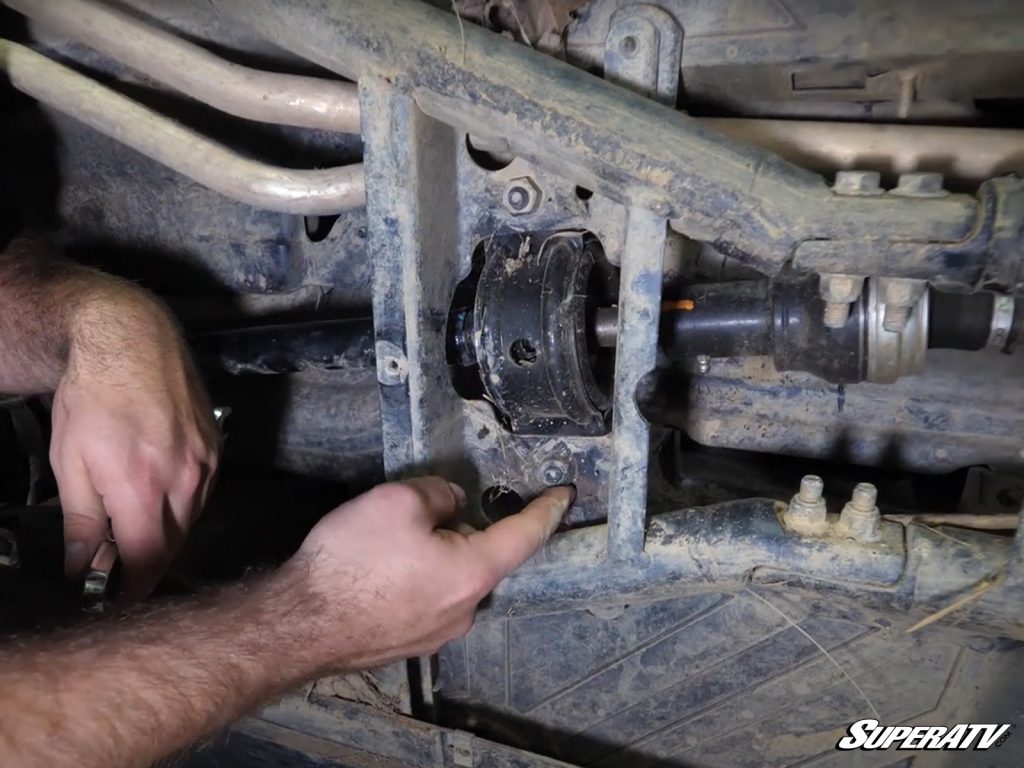

A visual inspection can reveal excessive play in the driveshaft around the carrier bearing. To check this, carefully (with the vehicle safely supported) attempt to move the driveshaft up and down or side to side near the bearing. A significant amount of movement beyond what seems normal indicates a worn bearing that's allowing the driveshaft too much freedom of movement.

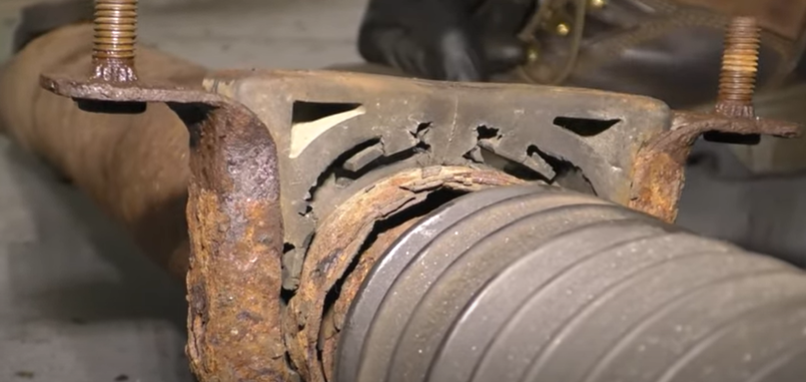

5. Worn or Damaged Bearing Rubber

Examine the rubber surrounding the carrier bearing. Cracks, tears, or general deterioration of the rubber are clear signs that the bearing is nearing the end of its life. The rubber mount is designed to dampen vibrations and keep the bearing stable. When the rubber fails, the bearing loses its support and can lead to increased vibrations and noise.

Understanding the Root Cause: How Carrier Bearings Fail

The carrier bearing, also known as a center support bearing, plays a crucial role in supporting the driveshaft in vehicles with a two-piece driveshaft. Its primary function is to reduce driveshaft vibration and prevent driveline deflection. However, several factors can lead to its failure:

• Normal Wear and Tear: Over time, the bearing and its surrounding rubber mount are subjected to constant stress and vibration. This natural wear and tear eventually leads to the bearing losing its lubrication, developing play, and the rubber mount deteriorating.
• Lack of Lubrication: Some carrier bearings are sealed, while others require periodic greasing. If the bearing isn't adequately lubricated, friction increases, leading to premature wear and failure.
• Damage from Road Debris: The carrier bearing is exposed to the elements and can be damaged by road debris, such as rocks, salt, and water. These elements can contaminate the bearing, causing corrosion and accelerated wear.
• Improper Installation: An improperly installed carrier bearing can be subjected to excessive stress, leading to premature failure. It’s crucial to ensure the bearing is properly aligned and torqued to the manufacturer's specifications.
• Increased Vehicle Load: Regularly overloading your vehicle, especially if it's a truck or SUV, can put extra strain on the driveline, including the carrier bearing, accelerating its wear.

The Consequences of Ignoring a Bad Carrier Bearing

Ignoring a failing carrier bearing can lead to a cascade of more serious and expensive problems. What starts as a minor vibration can quickly escalate into major drivetrain damage:

• Driveshaft Damage: A worn carrier bearing can cause excessive driveshaft vibration, leading to damage to the driveshaft itself. This can include bending, warping, or even cracking of the driveshaft.
• U-Joint Failure: The increased vibration from a bad carrier bearing can put excessive strain on the U-joints, leading to their premature failure. U-joints are critical components that connect the driveshaft sections, and their failure can result in a complete drivetrain breakdown.
• Transmission Damage: In severe cases, the vibrations from a failing carrier bearing can transmit to the transmission, potentially causing internal damage. Transmission repairs are often costly and time-consuming.
• Vehicle Instability: A severely damaged carrier bearing can cause excessive driveshaft movement, leading to vehicle instability, especially at higher speeds. This can compromise safety and make the vehicle difficult to control.
• Complete Drivetrain Failure: Ultimately, neglecting a bad carrier bearing can lead to a complete drivetrain failure, leaving you stranded and facing significant repair bills.

Recommended Fixes for a Failing Carrier Bearing

The primary solution for a failing carrier bearing is replacement. Here’s what the process typically entails:

1. Inspection: A thorough inspection is crucial to confirm the carrier bearing is indeed the problem and to identify any other related issues, such as worn U-joints or driveshaft damage.
2. Removal: The driveshaft must be carefully removed from the vehicle. This usually involves disconnecting it at the rear differential and the transmission.
3. Carrier Bearing Replacement: The old carrier bearing is removed from the driveshaft, and a new one is installed. This often requires specialized tools, such as a bearing press. It’s crucial to ensure the new bearing is properly aligned and seated.
4. Driveshaft Balancing: After replacing the carrier bearing, it's often recommended to have the driveshaft balanced. This ensures smooth and vibration-free operation.
5. Reinstallation: The driveshaft is reinstalled in the vehicle, ensuring all connections are properly torqued.
6. Test Drive: A test drive is essential to verify the repair and ensure the vibration or noise is gone.

Cost Estimates and Shop Advice

The cost of replacing a carrier bearing can vary depending on several factors, including the make and model of your vehicle, the cost of the parts, and the labor rate of the shop. Here's a general estimate:

• Parts: The carrier bearing itself can range from $50 to $200, depending on the brand and quality.
• Labor: Labor costs can range from $200 to $500, depending on the complexity of the job and the shop's hourly rate.
• Total Cost: The total cost for carrier bearing replacement can range from $250 to $700.

Shop Advice: It's advisable to seek out a reputable mechanic or auto repair shop with experience in drivetrain repairs. Ask for a detailed estimate before authorizing any work. Consider getting a second opinion if you're unsure about the diagnosis or estimate. Also, inquire about the warranty on the parts and labor.

Credibility and Additional Information

While there aren't always specific Technical Service Bulletins (TSBs) solely for carrier bearing failures, many manufacturers address driveline vibrations that can be related to worn carrier bearings in their TSBs. Checking for TSBs related to driveline issues for your specific vehicle make and model can provide valuable insights.

Online forums and owner communities are also great resources for gathering information. Many vehicle owners share their experiences with carrier bearing failures, including common mileage for failure and specific symptoms they encountered. Common mileage for carrier bearing failure often falls between 80,000 and 150,000 miles, but this can vary depending on driving conditions and vehicle usage. Some owners report failures earlier, while others experience them much later.

By understanding the symptoms, causes, and consequences of a failing carrier bearing, you can take proactive steps to address the issue and prevent more serious drivetrain problems. Regular inspection and maintenance of your vehicle's drivetrain components can help ensure its longevity and performance.
