How To Tell If Fusible Link Is Bad

A fusible link, often overlooked, is a crucial safety device in your car's electrical system. It's basically a specialized type of electrical fuse, designed to protect sensitive circuits from overcurrent situations. But how do you know if your fusible link has gone bad? This article provides a comprehensive guide to diagnosing a faulty fusible link, explaining why it matters, and offering tips on replacement.

How to Tell If a Fusible Link Is Bad

Identifying a bad fusible link involves a combination of visual inspection and testing. Here’s a breakdown of the steps:

1. Visual Inspection: The First Line of Defense

Begin with a thorough visual inspection. Look for the following signs:

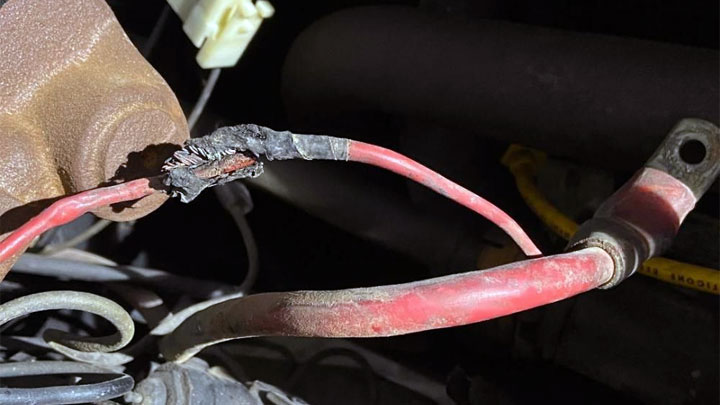

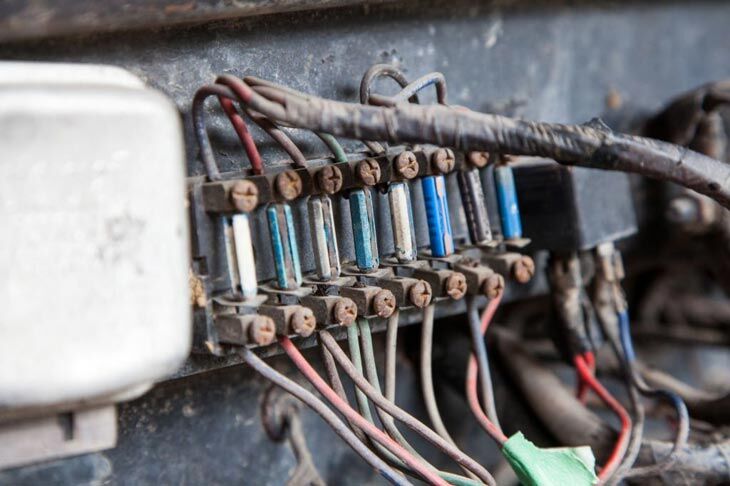

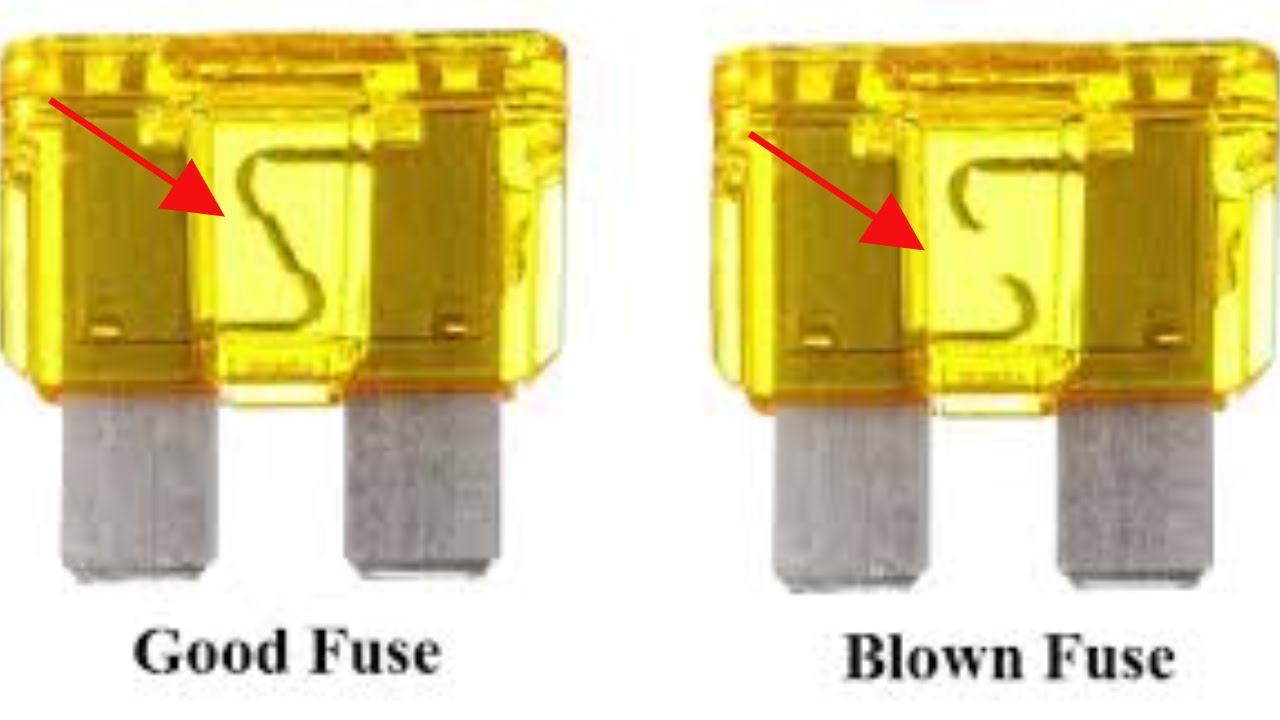

Blown or Burnt Appearance: This is the most obvious indicator. A blown fusible link often shows signs of melting, burning, or a visible break in the wire within the link's housing. The plastic housing itself might be discolored or warped.
Cracked or Damaged Housing: Even if the wire isn't visibly broken, a cracked or damaged housing can indicate that the link has been subjected to excessive heat or stress. Moisture can also penetrate a damaged housing, leading to corrosion and eventual failure.
Corrosion: Look for signs of corrosion on the terminals or the wire itself. Corrosion can increase resistance, leading to heat buildup and premature failure. A green or white powdery substance indicates corrosion.

Remember to disconnect the negative battery terminal before performing any visual inspection or electrical testing to prevent accidental shorts.

2. Electrical Testing: Confirming Your Suspicions

If the visual inspection is inconclusive, you'll need to perform electrical testing using a multimeter. Here's how:

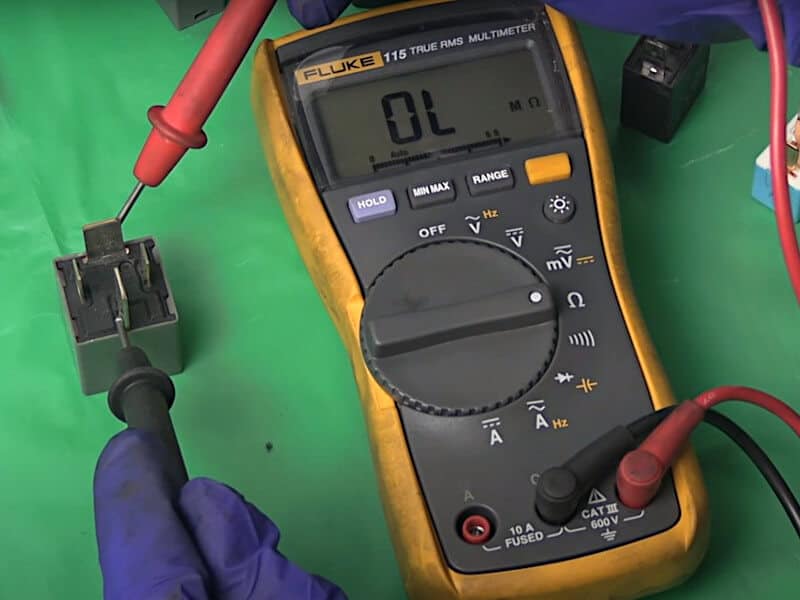

Continuity Test: This is the most common and straightforward method. Set your multimeter to the continuity setting (usually indicated by a diode symbol or an audible beep). Touch one probe to each terminal of the fusible link.
- Good Fusible Link: The multimeter should display a reading close to zero ohms (indicating very little resistance) and/or emit a beep, signifying continuity.
- Bad Fusible Link: The multimeter will display "OL" (Over Limit) or a very high resistance reading (usually in megaohms), indicating a break in the circuit and a bad fusible link.
Voltage Drop Test: This test is performed with the circuit energized. Connect the multimeter's positive lead to one end of the fusible link and the negative lead to the other end. A healthy fusible link should have a very small voltage drop (close to zero). A significant voltage drop indicates increased resistance within the link, suggesting it's failing and needs replacement. What constitutes a "significant" voltage drop depends on the circuit, but generally, anything over 0.5 volts should be investigated further.

3. Symptoms in the Car: Clues to a Failing Fusible Link

Sometimes, the symptoms in your car can point to a failing fusible link, even before you perform a visual inspection or electrical test. Look out for the following:

Complete Failure of a Circuit: This is the most common symptom. If a fusible link protecting a specific circuit blows, that circuit will stop working entirely. For example, if a fusible link protecting the headlights fails, the headlights will stop working.
Intermittent Electrical Problems: A partially failed fusible link might cause intermittent electrical problems. For instance, the headlights might flicker or the power windows might only work sometimes. This is often due to corrosion or a weak spot in the link.
Engine Starting Problems: Fusible links often protect critical engine management circuits. A blown link can prevent the engine from starting or cause it to run poorly.
Accessory Malfunctions: Accessories like the radio, power seats, or air conditioning might stop working if the fusible link protecting their circuits fails.

Why This Matters: The Importance of a Functioning Fusible Link

A functioning fusible link is critical for several reasons:

Protection from Electrical Fires: This is the primary function. A fusible link acts as a last line of defense against overcurrent situations, preventing wiring from overheating and potentially causing a fire.
Protection of Expensive Components: Fusible links protect sensitive and expensive components, such as the engine control unit (ECU), from damage caused by electrical surges or shorts. Replacing a fusible link is far cheaper than replacing an ECU.
Ensuring Proper Vehicle Operation: Many critical vehicle systems rely on fusible links for power. A blown link can disable essential functions, making the vehicle unsafe or inoperable.

How to Choose the Right Fusible Link

Selecting the correct replacement fusible link is crucial. Using the wrong amperage rating can lead to serious problems.

Amperage Rating: The most important factor. The replacement fusible link must have the same amperage rating as the original. This information is typically printed directly on the fusible link housing. Using a higher amperage rating defeats the purpose of the link and can allow excessive current to flow, potentially damaging other components or causing a fire. Using a lower amperage rating will cause the link to blow prematurely.
Type and Size: Fusible links come in various shapes and sizes. Ensure the replacement link is the correct physical size and type to fit properly in the fuse box or holder. Consult your vehicle's owner's manual or a wiring diagram for specific information.
Quality: Choose a reputable brand known for producing high-quality electrical components. Cheap, generic fusible links might not provide the same level of protection and could fail prematurely.
Material: Ensure the fusible link is made from corrosion-resistant materials, especially if it's located in an area prone to moisture or exposure to the elements.

Real-World Owner Experiences

Many car owners have encountered issues related to blown fusible links. Here are a few examples:

Scenario 1: "My car wouldn't start. I checked the battery and starter, but they were fine. After some research, I found a blown fusible link protecting the fuel pump circuit. Replacing it solved the problem instantly."
Scenario 2: "My headlights were flickering intermittently. I initially suspected a faulty headlight switch, but a mechanic found a corroded fusible link. Cleaning the corrosion and tightening the connection resolved the issue."
Scenario 3: "My air conditioning stopped working suddenly. I checked the fuses, but they were all good. Eventually, I discovered a blown fusible link located near the battery. Replacing it restored the AC function."

These experiences highlight the importance of checking fusible links when diagnosing electrical problems in your car.

FAQs About Fusible Links

Here are some frequently asked questions about fusible links:

What is the difference between a fuse and a fusible link? While both protect circuits from overcurrent, fusible links are generally designed to handle higher current loads than standard fuses. They are often used to protect main power feeds or circuits that supply multiple components. Fuses are usually smaller and designed for lower amperage circuits.
Can I replace a fusible link with a fuse? In most cases, no. Fusible links are designed to handle higher current loads than standard fuses. Replacing a fusible link with a fuse of the same amperage rating could lead to premature fuse failure or, worse, damage to the circuit.
Where are fusible links located in a car? Fusible links are typically located in the engine compartment, near the battery or in the main fuse box. Consult your vehicle's owner's manual or a wiring diagram to find the specific location of fusible links in your car.
Can I repair a blown fusible link? No. A blown fusible link should always be replaced with a new one of the correct amperage rating. Attempting to repair a blown link is dangerous and could lead to electrical fires or damage to other components.
How much does it cost to replace a fusible link? The cost of replacing a fusible link is relatively low. The fusible link itself typically costs only a few dollars. However, labor costs can vary depending on the location of the link and the complexity of the repair.

By understanding how to identify a bad fusible link, you can potentially save yourself time, money, and the risk of more serious electrical problems in your car. Remember to always consult your vehicle's owner's manual or a qualified mechanic if you're unsure about any aspect of electrical system diagnosis or repair.
