How To Tell If Knock Sensor Is Bad

That unsettling rattle under the hood – is it just age, or is something more sinister brewing? Often, drivers dismiss unusual engine noises, but ignoring them can lead to costly repairs. One often-overlooked culprit behind performance issues and potential engine damage is a faulty knock sensor. But how do you know if your knock sensor is the problem? This guide will help you diagnose the symptoms, understand how these sensors work, and take appropriate action.

The Case of the Hesitant Hatchback

Imagine this: You're driving up a steep hill in your trusty, but aging, hatchback. Normally, it handles inclines with ease, but today it's struggling. You notice a distinct lack of power, almost like the engine is holding back. A check engine light flickers ominously on the dashboard. This scenario isn't uncommon, and while numerous issues could be at play, a failing knock sensor is a prime suspect. To understand why, let's delve into the role of the knock sensor.

Understanding the Enemy: How Knock Sensors Work

Knock, also known as detonation or pre-ignition, is an uncontrolled combustion process in the engine cylinders. Instead of a smooth, even burn, the air-fuel mixture explodes violently, creating pressure waves that can damage pistons, connecting rods, and even the cylinder head. Think of it like hitting a drum with a hammer instead of a drumstick – the hammer creates a jarring, destructive sound. This "knocking" sound is what the sensor is designed to detect.

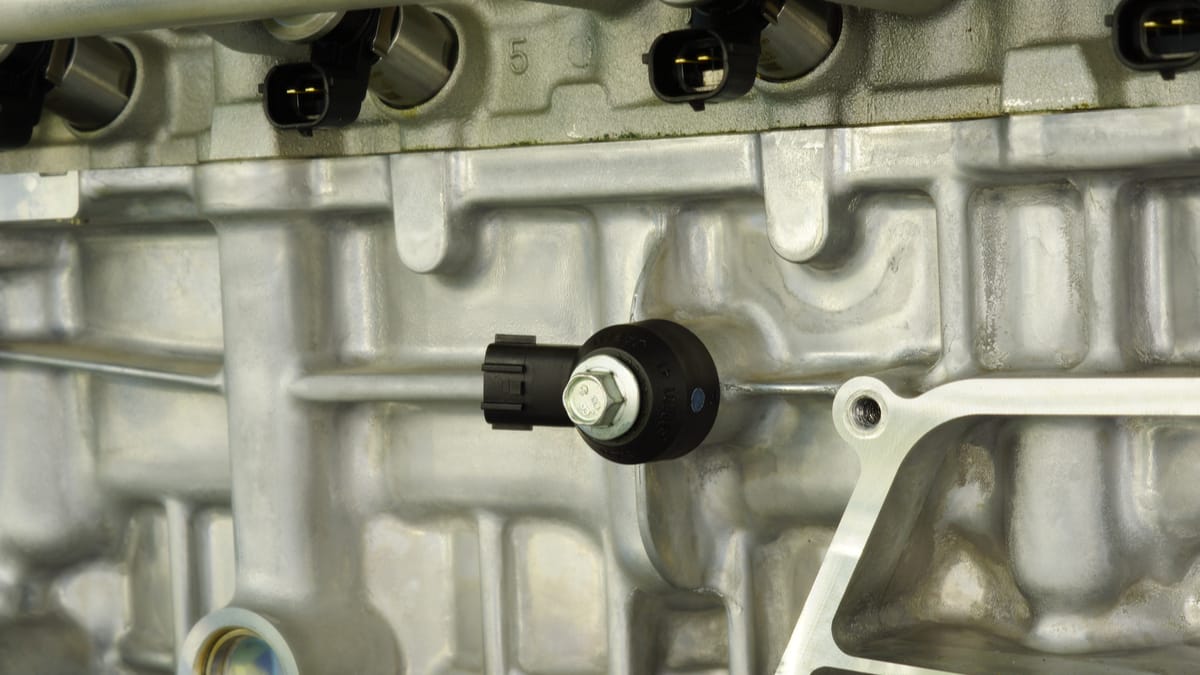

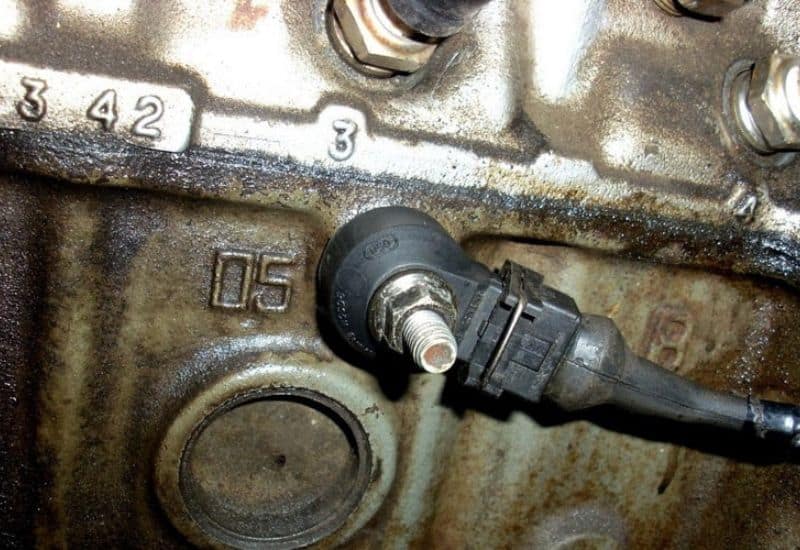

The knock sensor itself is typically a piezoelectric device. Piezoelectric materials generate an electrical charge when subjected to mechanical stress or vibration. The sensor is mounted on the engine block, specifically designed to "listen" for the telltale frequencies associated with engine knock. When knock occurs, the vibrations cause the piezoelectric element within the sensor to produce a small voltage. This voltage is then sent to the Engine Control Unit (ECU), also known as the engine computer.

The ECU is the brain of the engine. When it receives a signal from the knock sensor indicating knock, it takes immediate action. The most common response is to retard the ignition timing. Retarding the timing means firing the spark plug later in the combustion cycle, which reduces cylinder pressure and prevents further knocking. The ECU might also richen the air-fuel mixture, which also lowers combustion temperature.

Mechanical Breakdown: Sensor Construction

Knock sensors are relatively simple devices. They usually consist of:

• The Piezoelectric Element: This is the heart of the sensor, responsible for generating the voltage signal. It's a ceramic material carefully chosen for its piezoelectric properties.
• A Mass: Attached to the piezoelectric element, the mass amplifies the vibrations and focuses them onto the element. The size and shape of the mass are crucial for tuning the sensor to the specific frequencies of engine knock.
• A Housing: The housing protects the internal components and provides a mounting point to the engine block. It's typically made of metal to ensure good grounding.

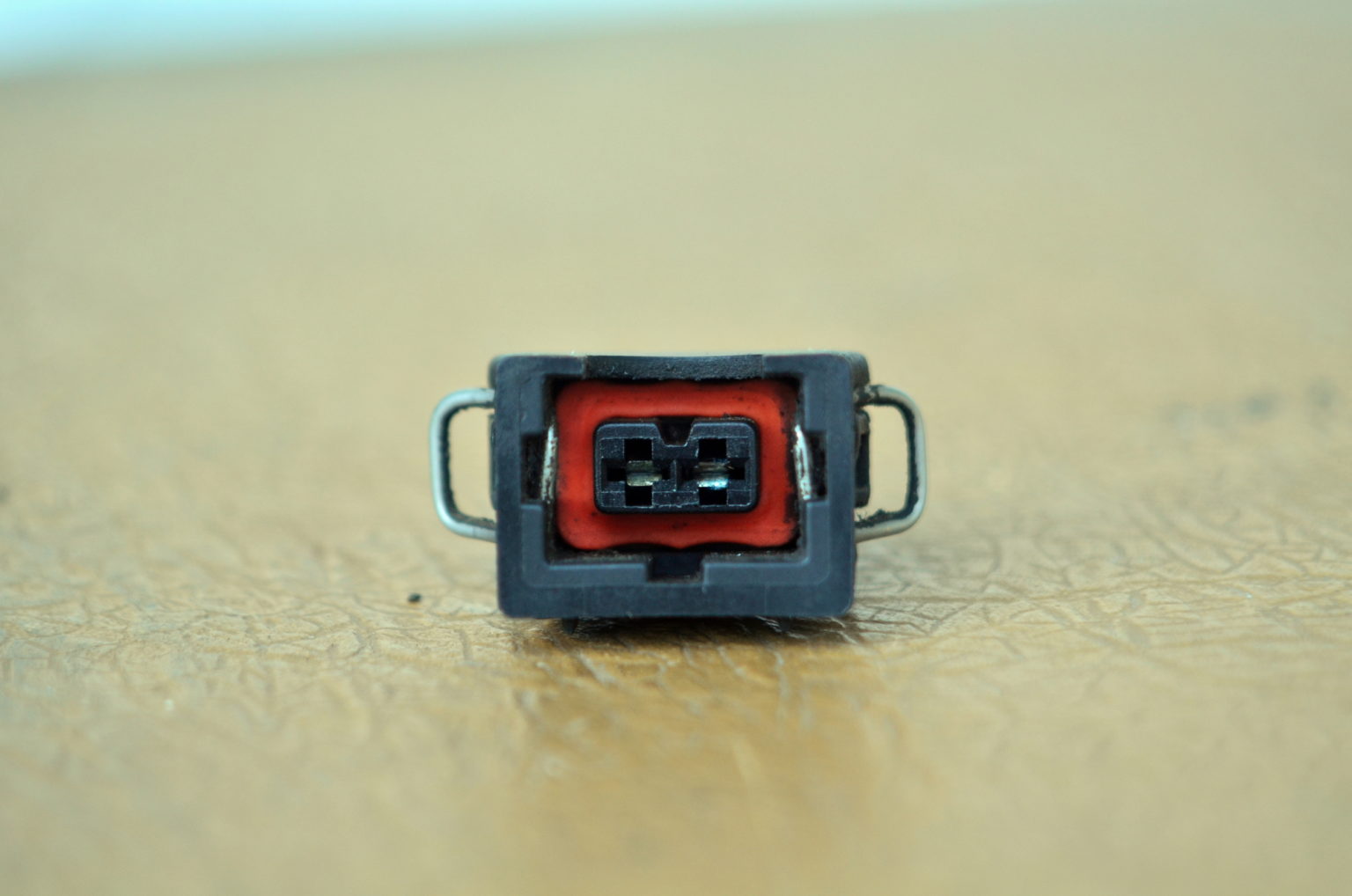

• Connector: The connector allows the sensor to transmit the voltage signal to the ECU.

Symptoms of a Failing Knock Sensor

Recognizing the signs of a bad knock sensor can save you a lot of trouble. Here are some common symptoms:

• Check Engine Light: This is the most obvious sign. The ECU detects an abnormal signal (or lack thereof) from the knock sensor and triggers the light. Diagnostic trouble codes (DTCs) related to the knock sensor, such as P0325 (Knock Sensor 1 Circuit Malfunction), will be stored.
• Reduced Engine Power: As mentioned in our hatchback example, the ECU retards timing when it detects knock. While this protects the engine, it also significantly reduces power, especially during acceleration or when climbing hills.
• Poor Fuel Economy: Retarding the timing also makes the engine less efficient, leading to a noticeable drop in fuel economy.
• Hesitation or Stumbling: The engine might hesitate or stumble during acceleration, especially at lower RPMs, as the ECU struggles to manage the ignition timing.
• Engine Knocking Noise (Sometimes): Ironically, a failing knock sensor might *not* detect actual engine knock. However, in some cases, especially if the sensor is completely dead, you might hear the knocking sound, as the ECU is not receiving information to prevent it.

Pros and Cons of Knock Sensor Systems

Pros:

• Engine Protection: The primary benefit is preventing engine damage from knock, extending engine life.
• Optimized Performance: By allowing the engine to run at the edge of detonation without actually knocking, the ECU can optimize performance and fuel economy.
• Tolerance for Lower Octane Fuel (Sometimes): Some vehicles can adapt to lower octane fuel due to the knock sensor's ability to detect and prevent knock. However, using the recommended fuel is always best.

Cons:

• False Positives: A sensitive knock sensor can sometimes misinterpret normal engine vibrations as knock, leading to unnecessary timing retardation and performance issues.
• Sensor Failure: Like any electronic component, knock sensors can fail due to age, heat, vibration, and corrosion.
• Diagnostic Challenges: Diagnosing knock sensor problems can be tricky, as the symptoms can overlap with other engine issues.

Use Cases and Manufacturer Examples

Knock sensors are ubiquitous in modern cars. Here are a few examples:

• Toyota: Toyota vehicles are known for their reliance on knock sensors for engine management and longevity. Their systems are generally reliable but can suffer from sensor degradation over time.
• Ford: Ford uses knock sensors extensively in their EcoBoost engines to allow for high compression ratios and turbocharging, which are more prone to knock.
• BMW: BMW's high-performance engines rely heavily on knock sensors to maximize power output while maintaining engine safety.

In each of these cases, the specific design and calibration of the knock sensor system will vary, but the fundamental principle remains the same: detect engine knock and prevent damage.

Diagnosis and Testing

If you suspect a bad knock sensor, here are some steps you can take to diagnose the issue:

1. Scan for Codes: Use an OBD-II scanner to retrieve any diagnostic trouble codes (DTCs) related to the knock sensor. Note down the codes and research their meaning.
2. Visual Inspection: Inspect the knock sensor and its wiring for any signs of damage, such as cracks, corrosion, or loose connections.
3. Voltage Test: With the engine running, use a multimeter to measure the voltage output of the knock sensor. The voltage should fluctuate slightly as the engine vibrates. A completely dead sensor will show no voltage. Consult your vehicle's service manual for the correct voltage specifications.
4. Resistance Test: With the engine off, disconnect the knock sensor and use a multimeter to measure its resistance. Again, consult your vehicle's service manual for the correct resistance range. An open circuit or a very high resistance reading indicates a faulty sensor.
5. Signal Verification with Oscilloscope: For a more in-depth test, an oscilloscope can be used to visualize the knock sensor's signal waveform. This can help identify subtle issues that might not be apparent with a multimeter.
6. Wire Harness Test: Check the wiring harness for shorts to ground, opens, or high resistance. Damaged wiring can mimic a faulty sensor.

Replacement and Maintenance

Replacing a knock sensor is usually a straightforward process, but it's important to follow these guidelines:

• Use the Correct Sensor: Ensure you purchase the correct knock sensor for your vehicle's make, model, and year.
• Tighten to the Correct Torque: Use a torque wrench to tighten the sensor to the manufacturer's specified torque. Over-tightening can damage the sensor or the engine block. Under-tightening can prevent the sensor from functioning properly.
• Clean the Mounting Surface: Ensure the mounting surface on the engine block is clean and free of debris before installing the new sensor.
• Check the Wiring: Before installing the new sensor, double-check the wiring harness for any damage or corrosion.

While knock sensors don't require regular maintenance, inspecting them periodically for damage and ensuring they are properly tightened can help prevent future problems.

Real-World Insights and Recommendations

Based on real-world experience, here are some additional insights:

• Aftermarket Sensors: While aftermarket knock sensors can be cheaper, their quality can vary significantly. It's often best to stick with OEM (Original Equipment Manufacturer) sensors for optimal performance and reliability.
• Knock Sensor Relocation: In some cases, mechanics relocate the knock sensor slightly to a less vibration-prone area to avoid false positives. However, this should only be done as a last resort and with careful consideration.
• Listen to Your Engine: Pay attention to any unusual noises coming from your engine. Early detection of engine knock can prevent serious damage, even if the knock sensor is still functioning.
• Consult a Professional: If you're unsure about diagnosing or replacing a knock sensor, it's always best to consult a qualified mechanic.

In conclusion, understanding how knock sensors work and recognizing the symptoms of a failing sensor can empower you to proactively address potential engine problems. By following the diagnostic steps outlined in this guide, you can determine if your knock sensor is the culprit and take appropriate action to protect your engine and maintain optimal performance.
