How To Tell If Tpms Sensor Is Bad

Tires: the unsung heroes connecting your car to the road. But have you ever considered the small but mighty guardians monitoring their pressure? We're talking about Tire Pressure Monitoring System (TPMS) sensors. These devices are crucial for safety, fuel efficiency, and preventing premature tire wear. But like any electronic component, they can fail. Figuring out if your TPMS sensor is faulty isn't always straightforward. Let's dive into the telltale signs, the inner workings, and how to diagnose a potentially bad sensor.

The Case of the Persistent TPMS Light

Imagine this: you're cruising down the highway, and suddenly, the dreaded TPMS light illuminates on your dashboard. You pull over, check your tire pressures, and they all seem perfectly fine. Yet, the light persists. This is a classic, albeit frustrating, scenario that often points to a malfunctioning TPMS sensor. Think of it like a doctor's visit: the symptom (the light) could indicate a simple cold (low pressure easily fixed), or a more complex underlying issue (a bad sensor).

Understanding the TPMS System

Before we diagnose individual sensors, let's understand how the entire TPMS works. There are primarily two types of TPMS:

• Direct TPMS: This system uses pressure sensors mounted inside each wheel, usually attached to the valve stem. These sensors directly measure tire pressure and transmit this data wirelessly to the vehicle's central computer (ECU).
• Indirect TPMS: This system doesn't actually measure tire pressure directly. Instead, it relies on the Anti-lock Braking System (ABS) wheel speed sensors. It detects pressure loss by comparing the rotational speeds of the wheels. A tire with lower pressure will have a slightly smaller rolling diameter, causing it to rotate faster than the other tires.

For this article, we will primarily focus on direct TPMS, as sensor failures are a more common and direct issue with this type of system.

Mechanical Breakdown of a Direct TPMS Sensor

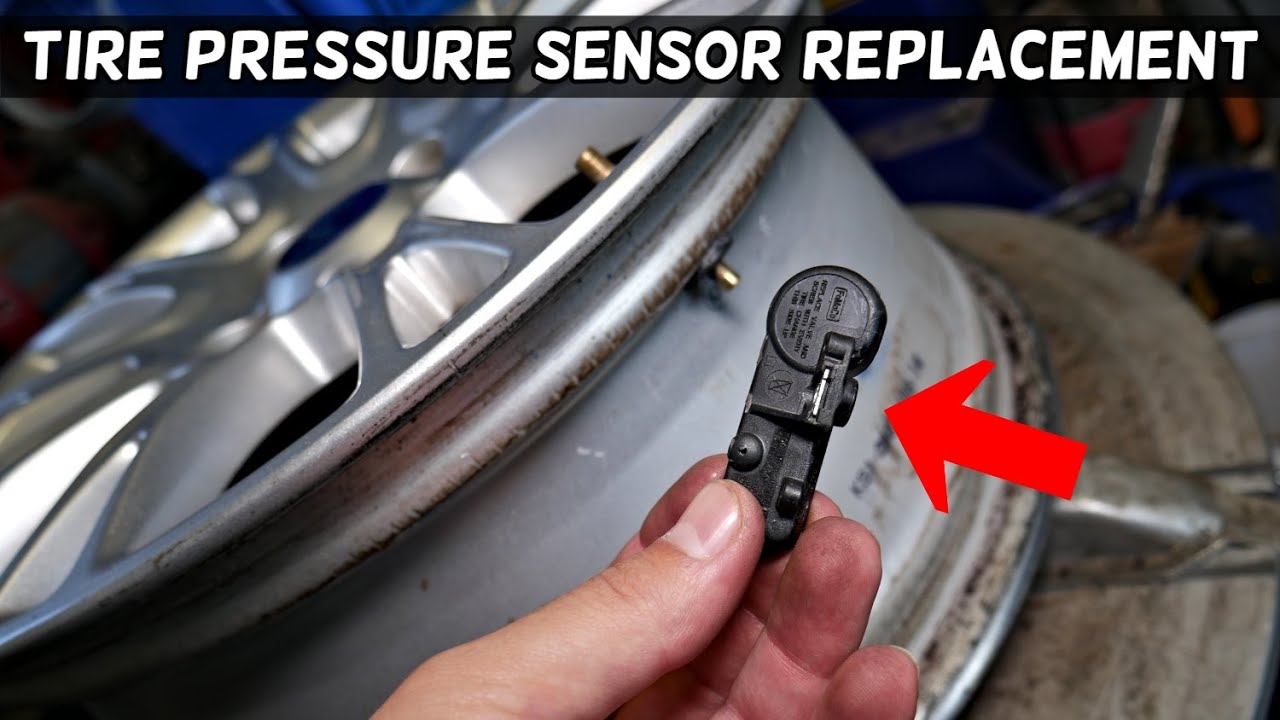

A direct TPMS sensor is a small, self-contained unit. Here's a closer look at its key components:

• Pressure Sensor: This is the heart of the system, responsible for measuring the actual air pressure inside the tire.
• Transmitter: This component transmits the pressure reading, along with a unique sensor ID, wirelessly to the vehicle's ECU. The frequency is usually 315 MHz or 433 MHz, depending on the vehicle manufacturer and region.
• Battery: TPMS sensors are powered by a small, non-replaceable lithium-ion battery. This battery typically lasts for 5-10 years, depending on usage and environmental factors.
• Valve Stem: The sensor is often integrated with the valve stem, which allows air to be added or removed from the tire. Valve stems can be made of rubber or metal (aluminum).
• Housing: A protective housing encases all the components, protecting them from harsh conditions inside the wheel.

Diagnosing a Faulty TPMS Sensor: The Investigation

So, how do you pinpoint a bad TPMS sensor? Here's a breakdown of the common symptoms and diagnostic methods:

Common Symptoms:

• Persistent TPMS Light: As mentioned earlier, this is the most common sign. The light may be constantly illuminated, or it may flash for a period before staying on. A flashing light usually indicates a system malfunction, including a potentially bad sensor.
• Inaccurate Pressure Readings: If one or more tires consistently display incorrect pressure readings on your dashboard, it could indicate a faulty sensor. Compare the readings to a reliable manual tire pressure gauge.
• Failure to Register: A sensor might completely fail to register with the vehicle's ECU. The dashboard display might show a "---" or "N/A" for that particular tire.
• Short Battery Life: If one sensor consistently dies much sooner than the others, it could indicate a premature battery failure.
• Physical Damage: Visible damage to the sensor, such as cracks or corrosion, can indicate a problem. This often happens after a tire change if the sensor isn't handled carefully.

Diagnostic Methods:

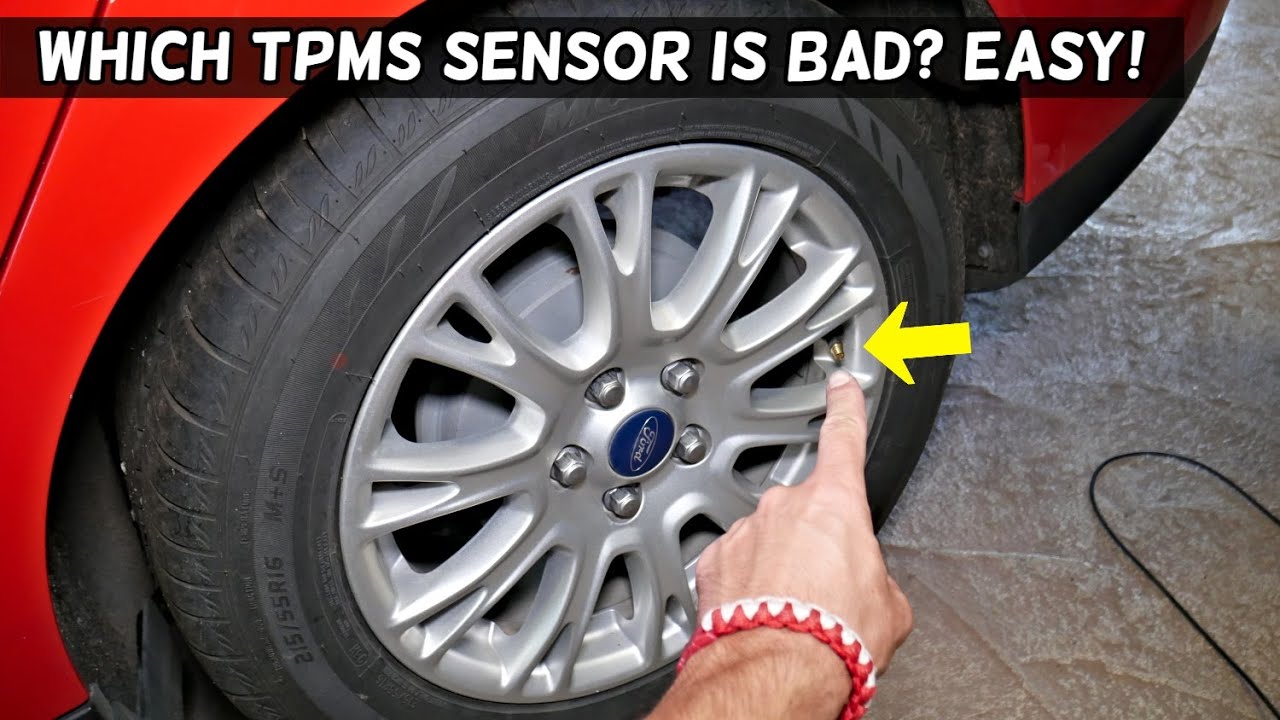

• Visual Inspection: Check the valve stems for any signs of damage, corrosion, or leaks. Look for any visible cracks or damage to the sensor housing.

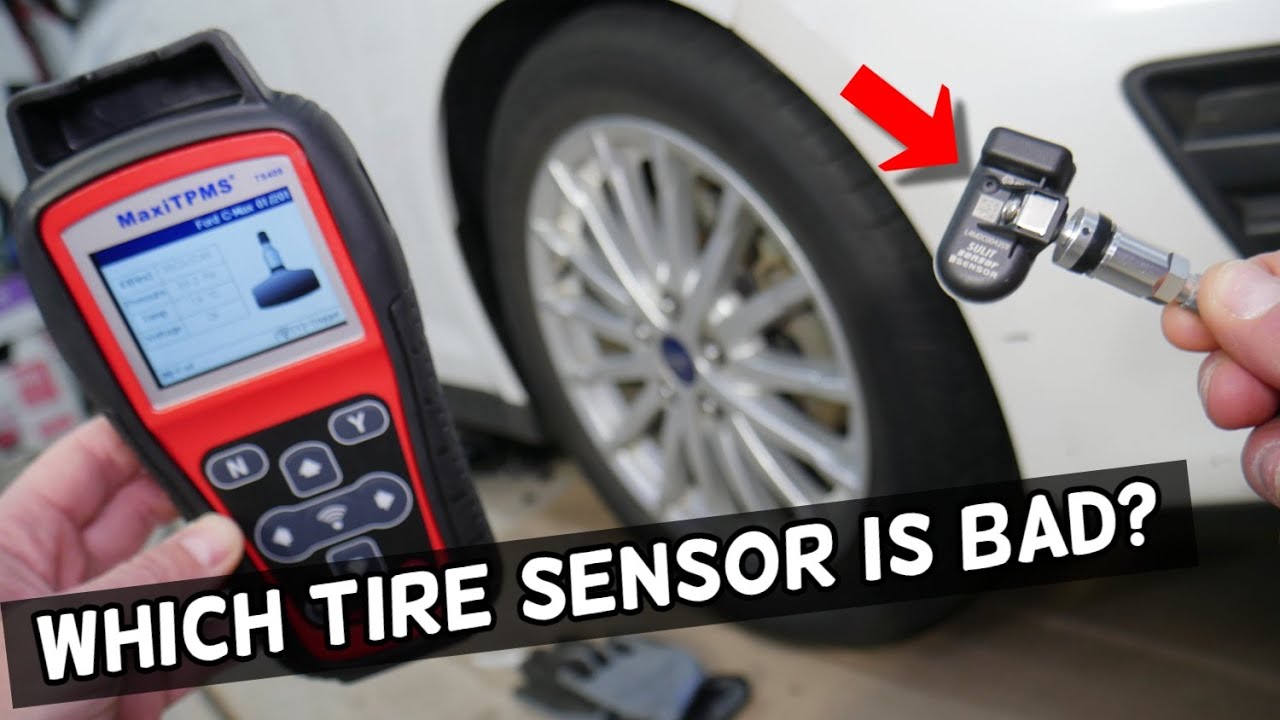

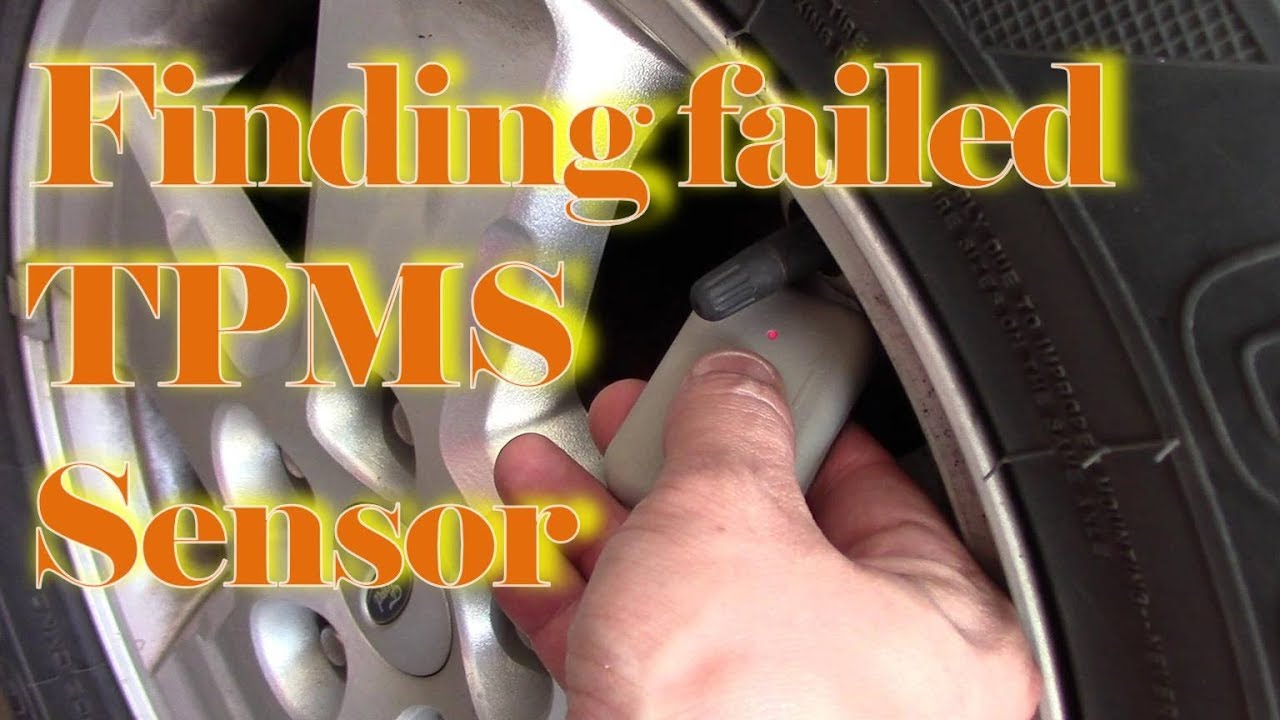

• TPMS Scan Tool: A TPMS scan tool is the most reliable way to diagnose sensor problems. These tools can read the sensor ID, pressure reading, battery status, and any error codes stored in the sensor. Professional tire shops and dealerships use these tools extensively. Some scan tools can even activate the sensors to ensure they are transmitting properly.
• Manual Pressure Gauge Comparison: Use a reliable manual tire pressure gauge to verify the accuracy of the readings displayed on your dashboard. If there's a significant discrepancy, it points to a sensor issue.
• Sensor Swapping (Advanced): If you suspect a particular sensor is faulty, you can try swapping it with a known good sensor from another wheel. If the problem moves to the new location, it confirms that the original sensor is indeed bad. *Note: This method requires re-programming the sensor IDs with the car's computer and should only be performed if you are experienced with automotive repairs.*
• Consult a Professional: If you're unsure about any of the diagnostic steps, it's always best to consult a qualified mechanic or tire technician. They have the experience and equipment to accurately diagnose and repair TPMS problems.

Pros and Cons of TPMS

Like any technology, TPMS comes with its own set of advantages and disadvantages.

Pros:

• Enhanced Safety: Maintaining proper tire pressure improves vehicle handling, braking performance, and reduces the risk of tire blowouts.
• Improved Fuel Efficiency: Underinflated tires increase rolling resistance, which reduces fuel economy. TPMS helps ensure optimal tire pressure for maximum efficiency.
• Extended Tire Life: Proper tire pressure promotes even wear, extending the lifespan of your tires.
• Early Warning System: TPMS alerts you to pressure loss before it becomes a major problem, allowing you to address it promptly.

Cons:

• Sensor Failures: TPMS sensors are electronic components and can fail over time, requiring replacement.
• Battery Life Limitations: The non-replaceable battery is a common point of failure.
• Cost: Replacing TPMS sensors can be expensive, especially if multiple sensors need to be replaced at the same time.
• Complexity: Diagnosing and repairing TPMS problems can require specialized tools and knowledge.

Use Cases and Manufacturer Examples

TPMS is now standard equipment on almost all passenger vehicles sold in North America and Europe, thanks to government regulations aimed at improving road safety. Different manufacturers may implement slightly different TPMS systems, but the core functionality remains the same.

Examples:

• GM (Chevrolet, GMC, Cadillac, Buick): GM vehicles typically use direct TPMS with sensors that transmit pressure readings and sensor IDs to the vehicle's ECU. The system can often display individual tire pressures on the driver information center.
• Ford: Ford also uses direct TPMS in most of its vehicles. Some newer Ford models use a "tire fill alert" feature, which uses the TPMS to detect when a tire has reached the correct pressure while being inflated, signaling with a horn sound.
• Toyota/Lexus: Toyota vehicles use both direct and indirect TPMS, depending on the model and year. Direct TPMS systems usually require sensor IDs to be programmed into the ECU after sensor replacement.
• BMW: BMW often displays tire pressure and temperature information on the iDrive system. Their TPMS systems are known for their sensitivity and accurate readings.

Real-World Insights and Recommendations

Based on real-world experience, here are some insights and recommendations regarding TPMS:

• Regular Tire Pressure Checks: Even with TPMS, it's still a good idea to manually check your tire pressure regularly, especially before long trips.
• Proper Tire Inflation: Inflate your tires to the recommended pressure specified on the tire placard (usually located on the driver's side doorjamb) rather than the maximum pressure printed on the tire sidewall.
• Use Quality TPMS Sensors: When replacing sensors, choose reputable brands known for their reliability and accuracy. Avoid cheap, generic sensors that may not perform as well or last as long. OEM (Original Equipment Manufacturer) sensors are generally the most reliable, but aftermarket options from well-known brands like Schrader or VDO can also be good choices.
• Professional Installation: Have TPMS sensors installed and programmed by a qualified technician to ensure proper functionality. Incorrect installation or programming can lead to system malfunctions.

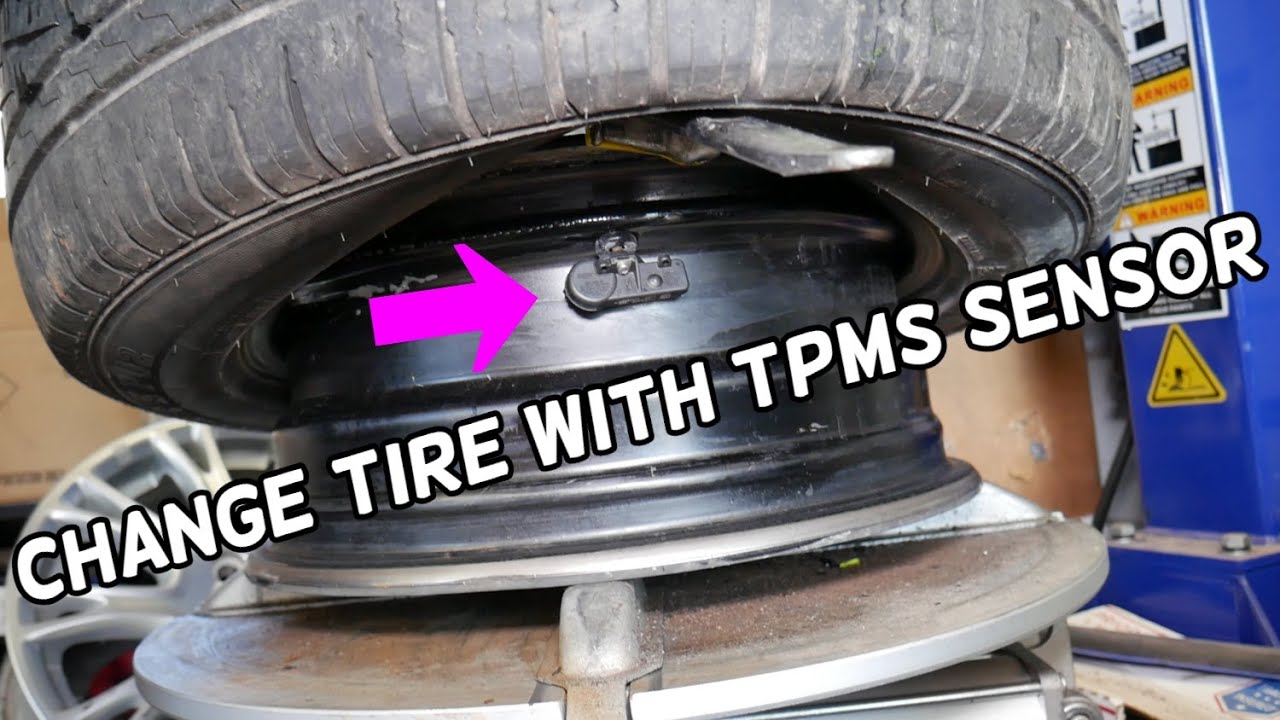

• Be Mindful During Tire Changes: Inform the tire technician that your vehicle has TPMS to avoid accidental damage to the sensors during tire removal and installation.
• Consider Sensor Rebuild Kits: If the sensor itself is still functioning, but the valve stem or other components are damaged, consider using a sensor rebuild kit. These kits are a cost-effective way to repair minor issues.

In conclusion, understanding the intricacies of your vehicle's TPMS is paramount to ensure optimum safety and performance. While the TPMS light can seem daunting, a methodical approach using the diagnostic tips shared above can help determine whether your TPMS sensor has reached the end of its life. With this knowledge, you are better prepared to navigate the complexities of your vehicle's TPMS, ensuring a safer and more efficient driving experience.
