How To Tell If Your Car Has Abs

Have you ever slammed on your brakes and felt a strange pulsing sensation? Or noticed a warning light illuminated on your dashboard? You might be wondering if your car is equipped with an Anti-lock Braking System (ABS). Knowing whether or not your car has ABS is crucial for understanding how it will behave in emergency braking situations. More importantly, knowing can help you identify potential brake system issues before they become dangerous. Let's delve into how to determine if your car has ABS and what to do if you suspect a problem.

Is My Car Equipped with ABS? Identifying ABS in Your Vehicle

The simple answer is that if your car was manufactured after the early 2000s, it's highly likely it has ABS. ABS became standard equipment on most vehicles sold in North America and Europe around that time. However, if you own an older vehicle, or are simply unsure, here's a breakdown of how to check:

Symptoms That Indicate Possible ABS Issues:

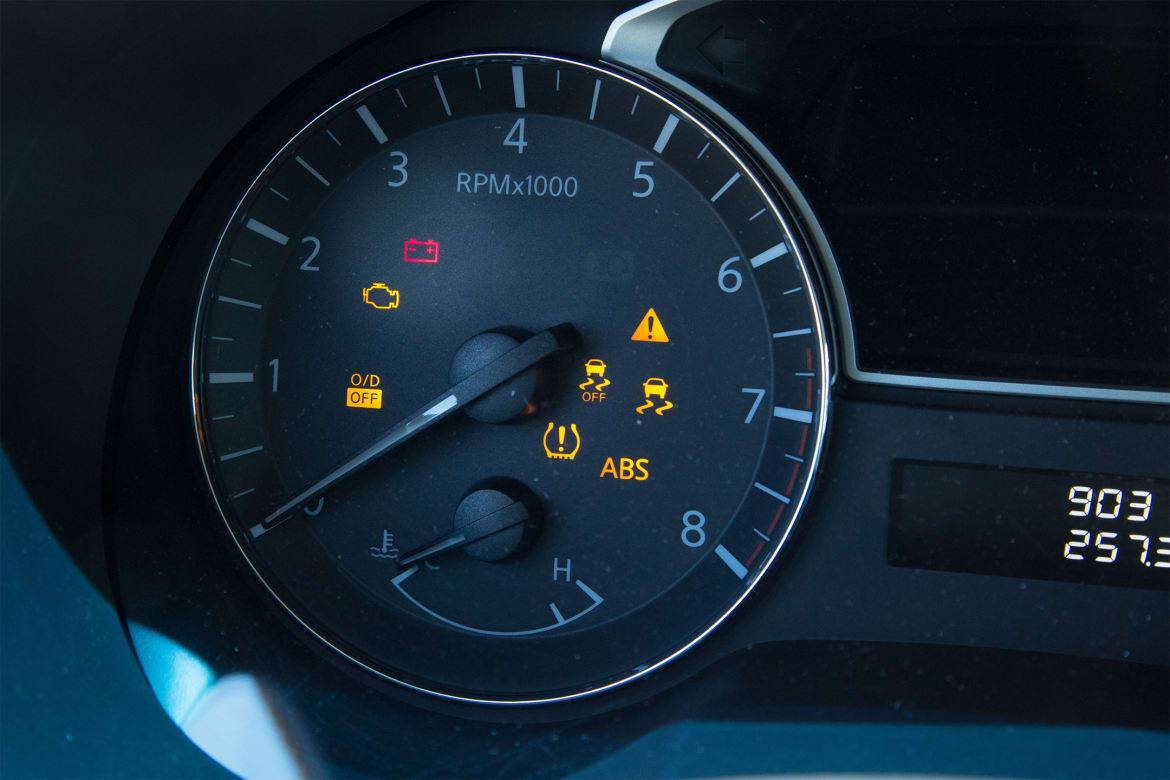

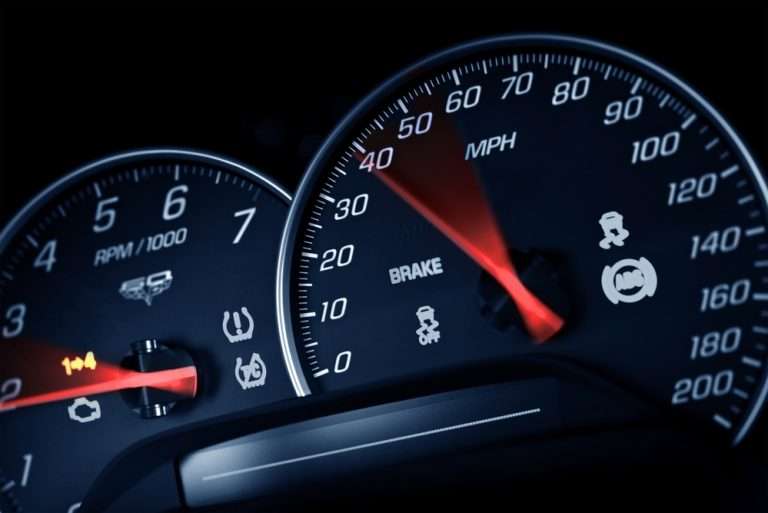

• ABS Warning Light: This is the most obvious sign. A dedicated "ABS" or "Brake" warning light on your dashboard illuminates when the system detects a problem. The light might be continuously on, or it might only come on intermittently.
• Pulsing Brake Pedal: During hard braking, especially on slippery surfaces, you should feel a distinct pulsing or vibrating sensation in the brake pedal. This indicates the ABS is actively working to prevent wheel lockup. This pulse is not the same as general brake pedal shudder from warped rotors, which is usually less intense and not necessarily triggered by hard braking.
• Increased Stopping Distance: While ABS is designed to improve braking performance, a malfunctioning ABS system can ironically increase stopping distance. If you notice your car taking longer to stop than usual, especially on wet or icy roads, there could be an issue with the ABS.
• Unusual Noises During Braking: Grinding, clicking, or other unusual noises during braking can sometimes indicate an ABS malfunction. These sounds may be subtle, but they should prompt further investigation.
• Wheel Lockup Despite ABS: In a true ABS system, wheels should not lock up under heavy braking. If you experience wheel lockup on a slick surface while feeling the ABS pulsation, the system may not be functioning correctly on one or more wheels.
• Trouble Codes: Using an OBD-II scanner (available at auto parts stores or from online retailers) you can check if your car is registering any trouble codes relating to the ABS system. Codes like C0031, C0034, C0265 or other "C" prefix codes often relate to ABS.

Understanding the Root Cause: How ABS Works

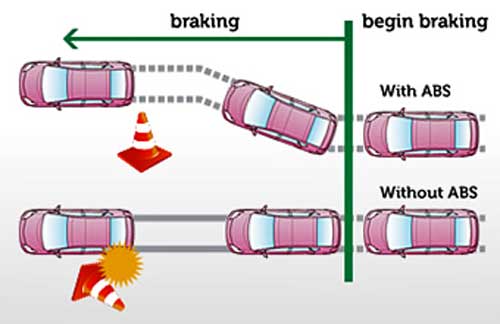

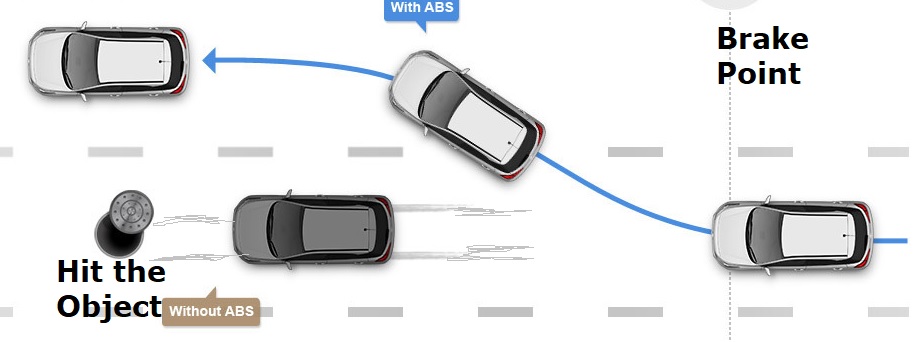

ABS works by preventing wheel lockup during hard braking. When a wheel locks up, it loses traction and the driver loses steering control. The ABS system uses wheel speed sensors to monitor the rotation of each wheel. If a sensor detects that a wheel is decelerating rapidly (indicating impending lockup), the ABS module rapidly modulates the brake pressure to that wheel. This modulation involves rapidly applying and releasing the brakes in short bursts – this is the "pulsing" sensation you feel in the brake pedal. By preventing wheel lockup, ABS allows the driver to maintain steering control and potentially shorten stopping distances, especially on slippery surfaces. The main components of an ABS system include:

• Wheel Speed Sensors: These sensors monitor the rotational speed of each wheel.
• ABS Control Module: This "brain" of the system receives data from the wheel speed sensors and determines when to activate the ABS.
• Hydraulic Control Unit (HCU): This unit contains valves and a pump that control the brake pressure to each wheel.

Common causes of ABS problems include:

• Faulty Wheel Speed Sensors: These sensors can become damaged by road debris, corrosion, or wiring issues.
• ABS Control Module Failure: While less common, the ABS module itself can fail due to electrical problems or internal component failure.
• Hydraulic Control Unit (HCU) Problems: The HCU can experience internal leaks or valve failures.
• Low Brake Fluid: Low brake fluid can affect the entire braking system, including the ABS.
• Air in the Brake Lines: Air in the brake lines can also interfere with ABS function.

The Consequences of Ignoring ABS Issues

Ignoring ABS problems can have serious consequences. While you can still brake without a functioning ABS, you lose the key benefits of the system. In emergency braking situations, you are more likely to experience wheel lockup, which can lead to:

• Loss of Steering Control: Locked wheels cannot steer, making it difficult to avoid obstacles.
• Increased Stopping Distance: Without ABS, stopping distances, especially on slippery surfaces, can be significantly longer.
• Potential Accidents: The combination of loss of steering control and increased stopping distance increases the risk of accidents.

Furthermore, driving with a malfunctioning ABS system can be illegal in some jurisdictions. Many states require that safety systems like ABS be in proper working order.

Recommended Fixes and Solutions

The appropriate fix for an ABS problem depends on the underlying cause. Here's a breakdown of common solutions:

• Wheel Speed Sensor Replacement: If a wheel speed sensor is faulty, it needs to be replaced. This usually involves removing the wheel, disconnecting the old sensor, and installing a new one. This is a fairly straightforward repair for a DIY enthusiast with some mechanical experience and the right tools.
• ABS Control Module Repair or Replacement: ABS module problems are often more complex. In some cases, the module can be repaired by a specialized repair shop. However, in other cases, the module may need to be replaced. Replacing an ABS module often requires coding or programming the new module to the vehicle.
• Hydraulic Control Unit (HCU) Repair or Replacement: HCU repairs can be very involved. Often, replacement is the most cost-effective solution.
• Brake Fluid Flush and Bleed: If the brake fluid is low or contaminated, or if there is air in the brake lines, a brake fluid flush and bleed is necessary. This involves removing the old brake fluid and replacing it with fresh fluid, while also bleeding the brake lines to remove any trapped air.
• Check and Repair Wiring: Damaged or corroded wiring to the ABS components can also cause problems. Inspecting and repairing the wiring is crucial.

Important Note: Working on brake systems can be dangerous. If you are not comfortable performing these repairs yourself, it's best to take your car to a qualified mechanic. Improperly repaired brakes can lead to serious accidents.

Cost Estimates and Shop Advice

The cost of repairing ABS problems can vary widely depending on the specific issue and the make and model of your car. Here's a general idea of what you can expect:

• Wheel Speed Sensor Replacement: $150 - $400 per sensor (parts and labor).
• ABS Control Module Repair: $300 - $800 (if repairable).
• ABS Control Module Replacement: $500 - $1500 (parts, labor, and programming).
• Hydraulic Control Unit (HCU) Replacement: $800 - $2000 (parts and labor).
• Brake Fluid Flush and Bleed: $80 - $200.

When choosing a repair shop, look for one with experience in working on ABS systems. Ask about their diagnostic procedures and whether they use OEM (Original Equipment Manufacturer) or aftermarket parts. A reputable shop will be able to provide you with a detailed estimate before starting any work.

Credibility and Additional Resources

Technical Service Bulletins (TSBs) from your car manufacturer can provide valuable information about common ABS problems and recommended solutions. Websites like Alldata and Mitchell1 (subscription-based) compile TSBs and repair information. Also, online forums dedicated to your car's make and model can be a great resource for learning about common ABS issues and how other owners have resolved them. For example, if you own a Toyota Camry, searching for "Toyota Camry ABS problems forum" can provide valuable insights. Keep in mind that anecdotal evidence should be considered alongside professional diagnosis.

Many ABS problems are related to wheel speed sensors, especially as vehicles age. It's not uncommon to see wheel speed sensors fail after 80,000 - 120,000 miles due to wear and tear. Some common issues, such as corroded sensor rings or damaged wiring harnesses, are well-documented in TSBs for specific vehicle makes and models.

By understanding the signs of ABS problems, the underlying causes, and the recommended solutions, you can take proactive steps to ensure the safety and reliability of your car's braking system. Don't hesitate to seek professional help if you are unsure about any aspect of ABS repair. Your safety on the road depends on it!
