How To Tell If Your Knock Sensor Is Bad

A knock sensor, also known as a detonation sensor, is a crucial component in your vehicle's engine management system. Its primary function is to detect engine knocking, or detonation, which is an uncontrolled and damaging combustion process. A malfunctioning knock sensor can lead to reduced engine performance, decreased fuel efficiency, and potentially severe engine damage. So, how do you tell if your knock sensor is bad?

Why a Functioning Knock Sensor Matters

Before diving into the symptoms of a failing knock sensor, it's important to understand why it's so vital to your engine's health.

• Protecting the Engine: Engine knocking occurs when the air-fuel mixture in the cylinders ignites unevenly or prematurely. This creates pressure waves that collide within the cylinder, causing a knocking or pinging sound. If left unchecked, prolonged knocking can damage pistons, connecting rods, bearings, and even the cylinder head. The knock sensor detects these vibrations and signals the engine control unit (ECU).
• Optimizing Performance: When the ECU receives a signal from the knock sensor indicating knocking, it retards the ignition timing. Retarding the timing means the spark plugs fire later in the combustion cycle, which reduces cylinder pressure and eliminates the knock. While this protects the engine, it also reduces power output. A properly functioning knock sensor allows the ECU to run the engine with the most advanced timing possible without causing harmful knocking, maximizing power and fuel efficiency.
• Maintaining Fuel Efficiency: As mentioned, retarding the ignition timing to prevent knocking decreases engine efficiency. If a knock sensor is constantly reporting a false positive (indicating knocking even when it's not occurring), the ECU will continuously retard the timing, leading to a significant drop in fuel economy.
• Preventing Costly Repairs: Ignoring a faulty knock sensor can ultimately result in major engine damage. Replacing damaged pistons, connecting rods, or a cylinder head is far more expensive than replacing a relatively inexpensive knock sensor.

Symptoms of a Bad Knock Sensor

Recognizing the symptoms of a failing knock sensor early can save you time, money, and potential headaches down the road. Here are some common indicators:

1. Check Engine Light (CEL)

This is often the first and most obvious sign. The CEL will illuminate on your dashboard, and a diagnostic scan will likely reveal a code related to the knock sensor, such as P0325 (Knock Sensor 1 Circuit Malfunction) or similar. However, it's crucial to remember that a CEL can indicate a variety of issues, so a proper diagnosis is essential.

2. Reduced Engine Performance

A failing knock sensor, especially one that's constantly sending a signal to the ECU, can cause a noticeable decrease in engine power. You might experience sluggish acceleration, difficulty climbing hills, or a general feeling that the engine is not performing as it should. This is because the ECU is constantly retarding the ignition timing to protect the engine, even when knocking isn't actually present.

3. Decreased Fuel Efficiency

As the ECU retards the timing to compensate for a perceived knocking issue, fuel efficiency often suffers. You may notice that you're filling up your gas tank more frequently or that your miles per gallon (MPG) have decreased significantly.

4. Engine Knocking or Pinging Noises

Ironically, a bad knock sensor can sometimes lead to more audible knocking or pinging. If the sensor isn't detecting knocking effectively, the ECU won't retard the timing, allowing the knocking to continue unchecked. Listen for a metallic pinging or rattling sound, especially under acceleration or when the engine is under load.

5. Rough Idling

In some cases, a faulty knock sensor can contribute to a rough or unstable idle. This may be accompanied by vibrations or a feeling that the engine is misfiring.

6. Failed Emissions Test

A malfunctioning knock sensor can affect the engine's combustion process, leading to increased emissions. This could result in failing an emissions test, which is required in many areas.

Diagnosing a Knock Sensor Problem

If you suspect your knock sensor is bad, follow these steps to properly diagnose the issue:

1. Read the Diagnostic Trouble Codes (DTCs): Use an OBD-II scanner to retrieve any stored DTCs. Pay close attention to codes related to the knock sensor or engine knocking.
2. Inspect the Wiring and Connector: Visually inspect the knock sensor wiring and connector for any signs of damage, corrosion, or loose connections. Repair or replace any damaged wiring or connectors.

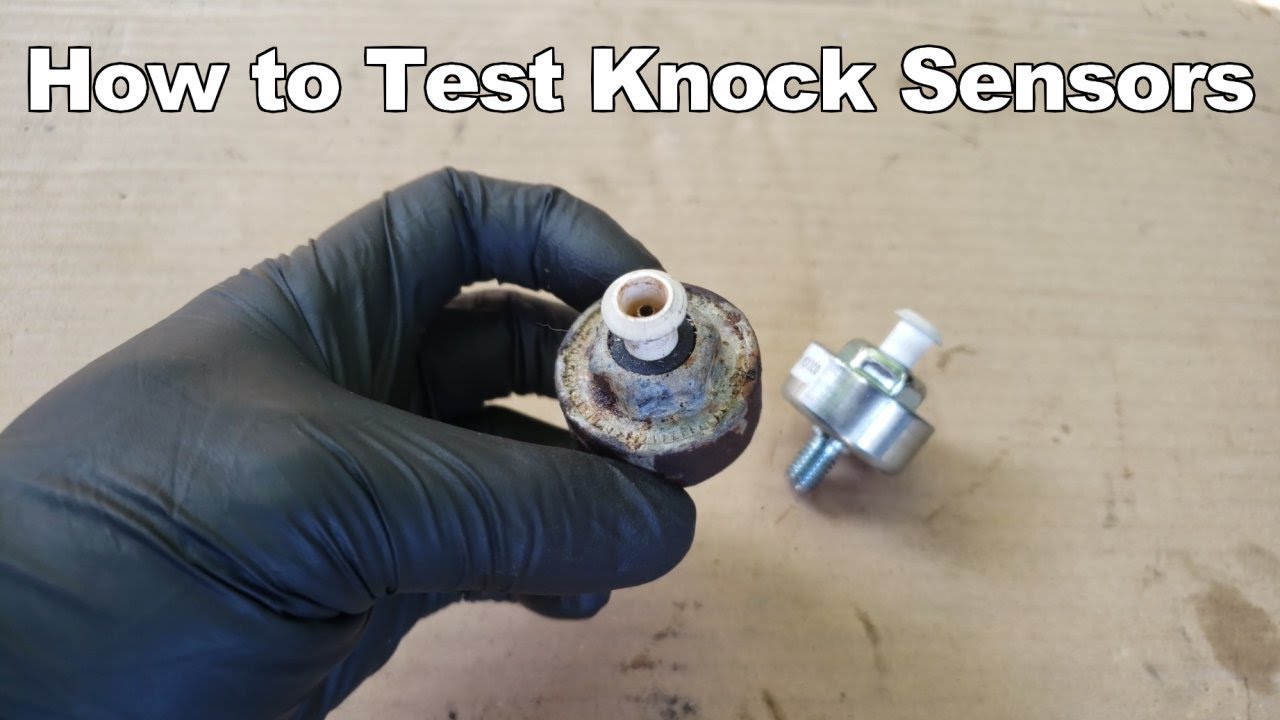

3. Test the Knock Sensor: Use a multimeter to test the knock sensor's resistance. Consult your vehicle's repair manual for the correct resistance specifications. An incorrect resistance reading may indicate a faulty sensor.
4. Check for Voltage: Some knock sensors generate a voltage signal when they detect vibrations. Use a multimeter to check for this voltage signal while tapping gently on the engine block near the sensor.
5. Listen with a Mechanic's Stethoscope: Use a mechanic's stethoscope to listen for knocking noises coming from the engine. This can help confirm whether the engine is actually knocking or if the sensor is providing a false reading.
6. Consider Professional Diagnosis: If you're not comfortable performing these tests yourself, or if you're unsure of the results, it's always best to take your vehicle to a qualified mechanic for a professional diagnosis.

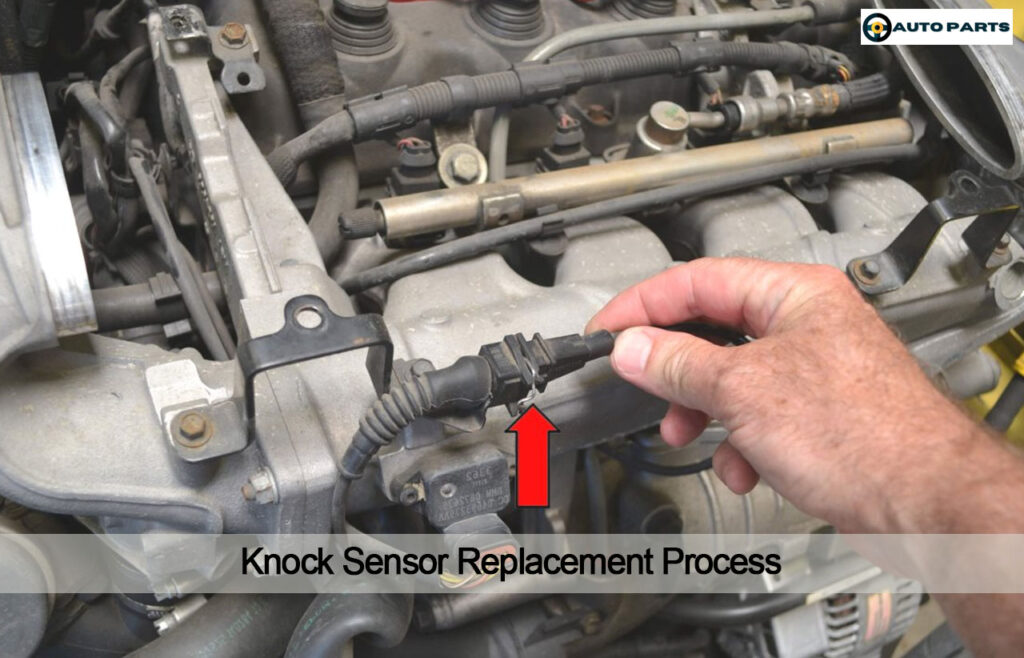

Replacing a Knock Sensor

Replacing a knock sensor is generally a straightforward repair, but it's important to follow the correct procedure. Here's a general overview:

1. Locate the Knock Sensor: Knock sensors are typically located on the engine block, cylinder head, or intake manifold. Consult your vehicle's repair manual for the exact location.
2. Disconnect the Electrical Connector: Disconnect the electrical connector from the knock sensor.
3. Remove the Old Sensor: Use a wrench or socket to remove the old knock sensor. Be careful not to damage the surrounding components.
4. Install the New Sensor: Install the new knock sensor, tightening it to the specified torque.
5. Reconnect the Electrical Connector: Reconnect the electrical connector to the knock sensor.
6. Clear the DTCs: Use an OBD-II scanner to clear any DTCs that were stored in the ECU.
7. Test the Engine: Start the engine and test drive the vehicle to ensure the knock sensor is functioning properly.

Real-World Owner Experiences

Many car owners have shared their experiences with bad knock sensors online. Common themes include:

• Difficulty Diagnosing: Some owners reported that the symptoms of a bad knock sensor were subtle and easily mistaken for other engine problems.
• Improved Performance After Replacement: After replacing a faulty knock sensor, many owners noticed a significant improvement in engine performance and fuel efficiency.
• Importance of Using Quality Parts: Several owners cautioned against using cheap aftermarket knock sensors, as they may not be as reliable as OEM or reputable aftermarket brands.
• DIY vs. Professional Repair: While some owners successfully replaced the knock sensor themselves, others preferred to have a mechanic perform the repair, especially if they lacked the necessary tools or experience.

FAQs About Knock Sensors

Q: Can I drive with a bad knock sensor?

A: While you can drive with a bad knock sensor, it's not recommended. A faulty sensor can lead to reduced engine performance, decreased fuel efficiency, and potentially severe engine damage. It's best to address the issue as soon as possible.

Q: How much does it cost to replace a knock sensor?

A: The cost to replace a knock sensor can vary depending on the vehicle make and model, the location of the sensor, and whether you choose to replace it yourself or have a mechanic do it. Generally, you can expect to pay between $100 and $400 for parts and labor.

Q: Are there different types of knock sensors?

A: Yes, there are two main types of knock sensors: resonant and broadband. Resonant sensors are tuned to a specific frequency and are more sensitive to knocking at that frequency. Broadband sensors are more versatile and can detect a wider range of knocking frequencies.

Q: Can a bad knock sensor cause a misfire?

A: While not a direct cause, a bad knock sensor can indirectly contribute to misfires. If the ECU is constantly retarding the timing due to a faulty sensor, it can negatively affect the combustion process and potentially lead to misfires.

Q: How often should I replace my knock sensor?

A: There's no set replacement interval for knock sensors. They typically last for the life of the vehicle. However, if you experience any of the symptoms described above, it's important to have the sensor inspected and replaced if necessary.

By understanding the function of a knock sensor, recognizing the symptoms of a failure, and following the diagnostic steps outlined above, you can ensure your engine is protected and operating at peak performance. Don't hesitate to consult a qualified mechanic if you're unsure about any aspect of the diagnosis or repair process.
