How To Tell If Your Transmission Fluid Is Low

Maintaining your vehicle's transmission is crucial for its longevity and performance. One of the most important aspects of transmission maintenance is ensuring the correct fluid level. Low transmission fluid can lead to serious damage and costly repairs. This article will guide you through the process of checking your transmission fluid level, interpreting the results, and understanding the implications.

Understanding Your Transmission

Before diving into checking the fluid, let's cover some background on the transmission itself. The transmission is a complex system responsible for transferring power from the engine to the wheels. It achieves this by using a series of gears that allow the engine to operate within its optimal RPM range while providing varying levels of torque and speed to the drive wheels.

There are primarily two types of transmissions: automatic and manual. While both serve the same core purpose, their operation and fluid requirements differ significantly. This article will primarily focus on automatic transmissions, as they are more common and more susceptible to fluid-related issues.

Automatic Transmission Operation

Automatic transmissions rely on hydraulic pressure to engage and disengage clutches and bands, which in turn select different gear ratios. This hydraulic pressure is generated by a pump within the transmission, and the transmission fluid is the lifeblood of this system. It serves multiple critical functions:

• Hydraulic Fluid: It transmits power to operate the clutches and bands.
• Lubricant: It reduces friction between moving parts, preventing wear and tear.
• Coolant: It dissipates heat generated by the transmission's operation.
• Cleaning Agent: It carries away debris and contaminants that could damage the transmission.

Because of these critical functions, maintaining the proper fluid level and condition is paramount. Low fluid levels can lead to a variety of problems, including:

• Slipping Gears: Insufficient hydraulic pressure can cause the clutches and bands to slip, resulting in delayed or erratic shifts.
• Overheating: Low fluid levels reduce the transmission's ability to dissipate heat, potentially leading to overheating and damage to internal components.
• Shuddering or Jerking: Inconsistent fluid pressure can cause the transmission to shudder or jerk during shifts.
• Complete Transmission Failure: Prolonged operation with low fluid can lead to catastrophic damage requiring a complete transmission rebuild or replacement.

Checking Your Transmission Fluid: The Technical Breakdown

The process of checking your transmission fluid varies slightly depending on your vehicle's make and model. However, the general steps are as follows:

1. Locate the Dipstick

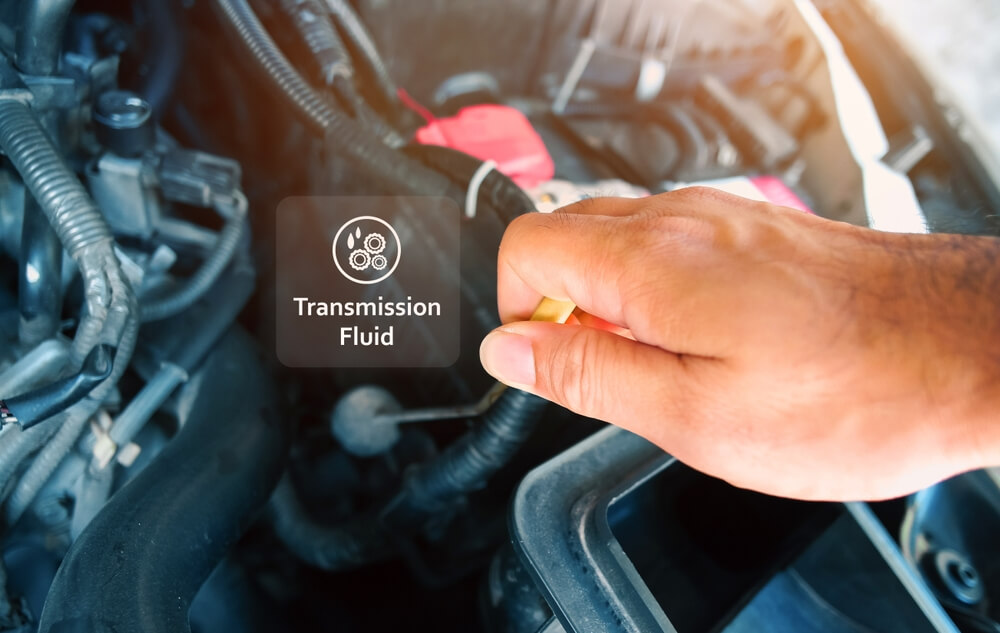

The first step is to locate the transmission fluid dipstick. In most vehicles, it is located under the hood, near the engine. It is typically marked with a distinct color (often red or orange) and labeled with "Transmission" or "ATF" (Automatic Transmission Fluid). Refer to your vehicle's owner's manual if you are unsure of its location.

Important Note: Some newer vehicles do not have a traditional dipstick. Instead, they may have a sealed transmission that requires a specialized tool and procedure to check the fluid level. If your vehicle falls into this category, consult your owner's manual or a qualified mechanic.

2. Prepare the Vehicle

For an accurate reading, the engine should be warm, and the transmission should be at its operating temperature. This usually means letting the engine run for a few minutes after it has reached its normal operating temperature. Refer to your vehicle's owner’s manual for specific instructions regarding whether to check the fluid with the engine running or off.

Crucially, the vehicle must be on a level surface. An uneven surface will skew the fluid level reading.

3. Remove and Clean the Dipstick

Carefully remove the dipstick from its tube. Wipe it clean with a lint-free rag. This is important to remove any old fluid residue and ensure an accurate reading.

4. Re-insert and Remove the Dipstick

Fully re-insert the dipstick into its tube, ensuring it is seated properly. Then, carefully remove it again.

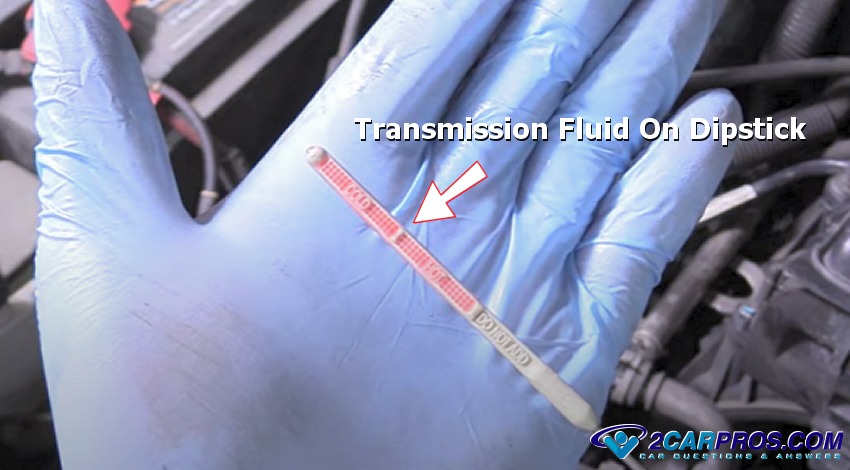

5. Check the Fluid Level

Observe the fluid level on the dipstick. Most dipsticks have markings indicating the "Full" and "Add" or "Low" levels. The fluid level should be between these markings. If the fluid level is below the "Add" or "Low" mark, you need to add transmission fluid.

6. Inspect the Fluid Condition

While checking the fluid level, also inspect its condition. Transmission fluid should be a clear, reddish color. Dark brown or black fluid, or fluid with a burnt odor, indicates that it is old, contaminated, or overheated and needs to be changed. The presence of metal shavings or debris in the fluid is a sign of serious internal transmission damage.

Common Issues and Maintenance Concerns

Several factors can contribute to low transmission fluid levels:

• Leaks: Leaks are the most common cause of low transmission fluid. They can occur at various locations, including seals, gaskets, and the transmission pan.
• Normal Consumption: Over time, some transmission fluid may be lost due to evaporation or seepage.
• Overfilling: While less common, overfilling the transmission can also cause problems. Excess fluid can be forced out through the vent, leading to fluid loss.

Regular transmission fluid changes are essential for maintaining optimal transmission performance and longevity. The recommended interval for fluid changes varies depending on the vehicle and driving conditions. Consult your owner's manual or a qualified mechanic for specific recommendations.

When adding or changing transmission fluid, it is crucial to use the correct type of fluid specified for your vehicle. Using the wrong fluid can damage the transmission. Again, refer to your owner's manual.

Do's and Don'ts / Best Practices

Do's:

• Do check your transmission fluid regularly, especially if you notice any symptoms of transmission problems.
• Do use the correct type of transmission fluid for your vehicle.
• Do clean the dipstick thoroughly before each reading.
• Do check the fluid level on a level surface.
• Do address any leaks promptly.
• Do consult a qualified mechanic if you are unsure about any aspect of transmission maintenance.

Don'ts:

• Don't overfill the transmission.
• Don't ignore low fluid levels.
• Don't use contaminated or old transmission fluid.
• Don't attempt to check the fluid level on a sealed transmission without the proper tools and knowledge.
• Don't drive the vehicle if you suspect serious transmission damage.

Conclusion

Checking your transmission fluid level is a simple but essential maintenance task that can help prevent costly repairs and extend the life of your vehicle. By understanding the function of transmission fluid, following the proper checking procedure, and adhering to best practices, you can ensure your transmission remains in good working order. If you are uncomfortable performing this task yourself, or if you suspect any transmission problems, it is always best to consult a qualified mechanic. Regular inspections and fluid changes are key to a healthy transmission and a reliable vehicle.
