How To Tell If Your Wheel Bearing Is Going Out

Wheel bearings are a critical component of your vehicle's suspension and drivetrain. They allow your wheels to rotate smoothly and efficiently, handling substantial loads and the constant rigors of the road. Recognizing the early signs of a failing wheel bearing can save you from more extensive and costly repairs down the line. This article provides a detailed guide for the experienced DIYer on how to diagnose a potentially failing wheel bearing, covering everything from the underlying mechanics to practical troubleshooting tips.

Background: Wheel Bearings and Their Role

Before diving into diagnostics, it's crucial to understand the role and construction of a wheel bearing. Wheel bearings are essentially sets of steel balls or tapered rollers held together by a metal ring called a race. These bearings reside within the wheel hub, the central part of the wheel that attaches to the axle. Their primary function is to reduce friction, enabling the wheel to spin freely while supporting the vehicle's weight. Different types of wheel bearings exist, primarily:

• Ball Bearings: Common in lighter vehicles, they use spherical balls to minimize contact area and rotational friction.
• Tapered Roller Bearings: Found in heavier vehicles and those with higher load requirements (like trucks and SUVs), these bearings use tapered rollers for increased load-bearing capacity. They're typically adjustable.

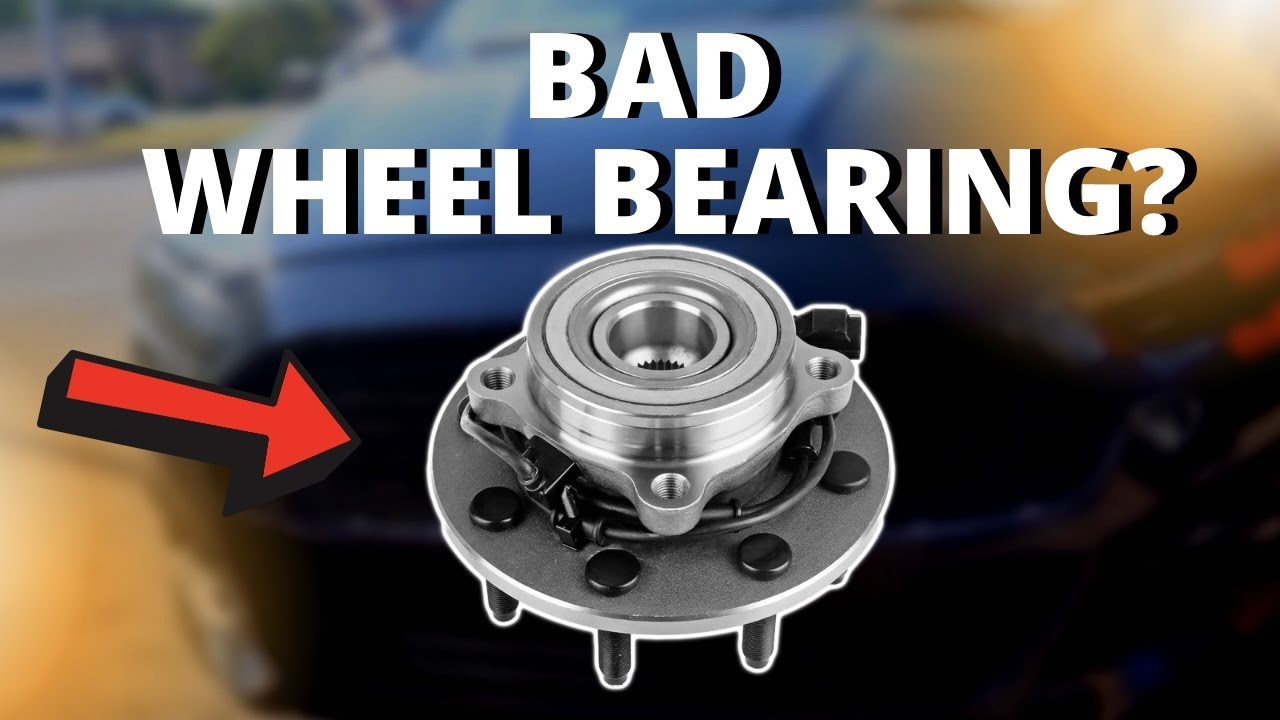

• Hub Assemblies: These are pre-assembled units containing the bearing, hub, and sometimes even the ABS sensor. They're becoming increasingly common in modern vehicles for ease of replacement.

Regardless of the type, all wheel bearings are designed to last for a significant period, often exceeding 100,000 miles under normal driving conditions. However, factors such as poor road conditions, aggressive driving, improper installation, and contamination can significantly shorten their lifespan.

Technical Breakdown: How Wheel Bearings Work

The operation of a wheel bearing is relatively straightforward, but the precision engineering required for its function is substantial. When the wheel rotates, the bearing allows the hub to spin smoothly around the axle. The rollers or balls within the bearing carry the vehicle's weight, distributing the load evenly. A thin layer of grease lubricates the bearing, further reducing friction and preventing wear.

The key is the rolling friction versus sliding friction. Bearings are designed to replace sliding friction with rolling friction. Sliding friction generates significantly more heat and wear. As a wheel bearing begins to fail, the internal components can become worn, pitted, or contaminated, leading to increased friction and heat. This, in turn, can damage the bearing races, rollers, or balls, eventually causing complete failure.

Understanding the forces acting on a wheel bearing is also important. These include:

• Radial Load: The vertical force from the vehicle's weight.
• Axial Load (Thrust Load): Force applied along the axis of rotation, such as when cornering.
• Impact Load: Sudden forces from potholes or other road imperfections.

A healthy wheel bearing can withstand these forces effectively. However, a worn or damaged bearing will struggle, leading to noticeable symptoms.

Identifying the Symptoms: A Diagnostic Guide

Here's a detailed guide on identifying the telltale signs of a failing wheel bearing. It's important to note that these symptoms can sometimes mimic other issues, such as tire noise or suspension problems. Therefore, a thorough inspection is crucial.

1. Noise

This is usually the first and most obvious symptom. The noise typically manifests as a humming, roaring, or grinding sound that changes with vehicle speed. The sound may become louder and more pronounced as the vehicle accelerates. Here's how to pinpoint the source:

• Speed Dependence: Does the noise increase or decrease with speed? A failing wheel bearing will generally produce a noise directly correlated to vehicle speed.
• Cornering Test: Gently swerve the vehicle from side to side (safely, in an open area). If the noise diminishes or disappears when turning in one direction, but becomes louder when turning in the opposite direction, it suggests the failing bearing is on the side that gets loaded during the louder turn. For example, if the noise is louder when turning left, the right wheel bearing is likely the culprit. This happens because turning shifts the weight of the vehicle.
• Loaded vs. Unloaded: The side bearing that's *loaded* during a turn is the one being stressed. A failing bearing will often be louder under load.

2. Vibration

As a wheel bearing deteriorates, it can cause vibrations that are felt in the steering wheel, floorboard, or seat. The intensity of the vibration may vary depending on the severity of the bearing damage and the vehicle speed. You might feel a pulsating sensation in the steering wheel.

3. Play in the Wheel

This test requires safely lifting the vehicle (using jack stands!) and checking for excessive play in the wheel. Grasp the wheel at the 12 o'clock and 6 o'clock positions, and try to rock it back and forth. Repeat the process at the 3 o'clock and 9 o'clock positions. A small amount of play is normal, especially in older vehicles with adjustable bearings. However, excessive play (more than a few millimeters) indicates a potential bearing issue. This test is best performed with the wheel off the ground to eliminate tire flex or suspension play.

4. Uneven Tire Wear

A failing wheel bearing can cause the wheel to wobble or vibrate, leading to uneven tire wear. Pay attention to the tire tread. If one tire is wearing significantly faster than the others, and other causes (like misalignment or improper inflation) have been ruled out, a worn wheel bearing could be the culprit. Specifically, look for cupping or scalloping of the tire tread.

5. ABS Issues

Some modern vehicles have ABS sensors integrated into the wheel hub assembly. A failing wheel bearing can interfere with the ABS sensor's ability to accurately read wheel speed, potentially triggering the ABS warning light. You might also experience erratic ABS activation during braking.

6. Heat

A failing wheel bearing generates excessive friction, leading to heat buildup. After driving, carefully touch the wheel hub. If one hub is significantly hotter than the others, it could indicate a problem with the bearing. Caution: Brakes can also generate heat, so be careful not to burn yourself and compare the temperatures of all wheels.

Common Issues and Maintenance Concerns

Several factors contribute to wheel bearing failure:

• Lack of Lubrication: Over time, the grease inside the bearing can dry out or become contaminated, leading to increased friction and wear.
• Impact Damage: Hitting potholes or curbs can damage the bearing races or rollers.

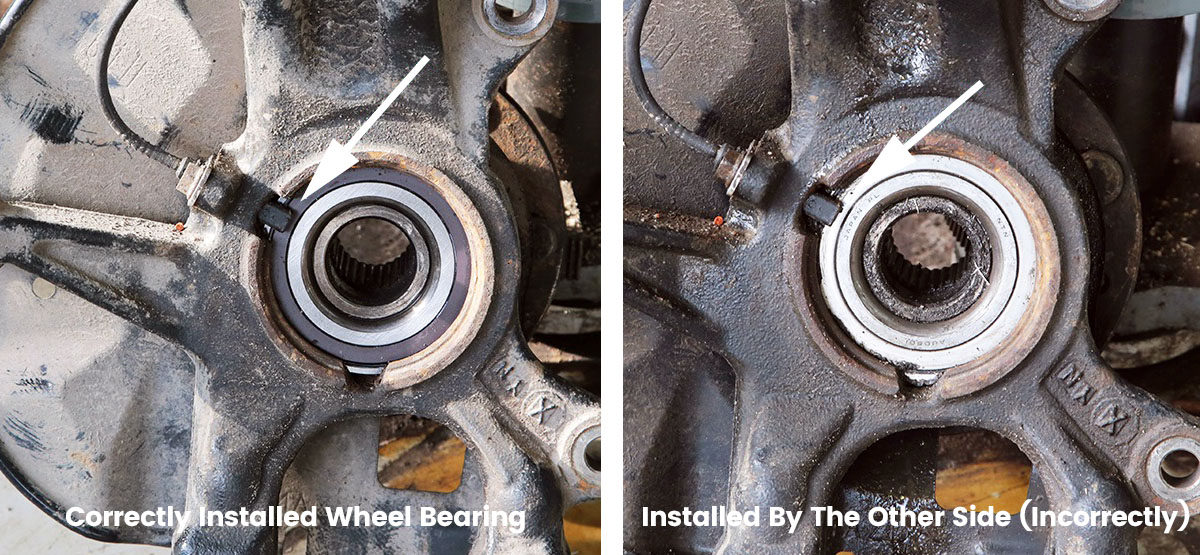

• Improper Installation: Incorrect installation techniques, such as using excessive force or failing to properly torque the axle nut, can damage the bearing.
• Contamination: Water, dirt, and debris can enter the bearing, accelerating wear.

Preventative maintenance can help extend the life of your wheel bearings. This includes:

• Regular Inspections: Check for signs of wear or damage during routine maintenance.
• Proper Tire Inflation: Maintaining proper tire pressure helps distribute the vehicle's weight evenly, reducing stress on the bearings.
• Avoiding Harsh Driving: Minimize aggressive driving maneuvers that put excessive stress on the suspension.
• Wheel Alignment: Proper alignment ensures even weight distribution and minimizes stress on the bearings.

Do's and Don'ts / Best Practices

When diagnosing or replacing wheel bearings, keep the following in mind:

Do's:

• Do use high-quality replacement bearings from reputable manufacturers.
• Do use a torque wrench to properly tighten the axle nut to the manufacturer's specifications.
• Do use appropriate tools, such as a wheel bearing press, to avoid damaging the new bearing during installation.
• Do clean all mating surfaces before installing the new bearing.
• Do replace wheel bearings in pairs, even if only one side is showing signs of failure. This ensures even handling and braking.

Don'ts:

• Don't use excessive force when installing a bearing. If it doesn't fit easily, recheck the installation procedure.
• Don't reuse old seals or other components.
• Don't overtighten the axle nut, as this can damage the bearing.
• Don't ignore the symptoms of a failing wheel bearing. Addressing the issue early can prevent more serious damage.
• Don't forget to grease the new bearing according to the manufacturer's instructions.

Conclusion

Diagnosing a failing wheel bearing requires a systematic approach, combining careful observation, hands-on inspection, and a solid understanding of the component's function. By paying attention to the warning signs – unusual noises, vibrations, wheel play, and uneven tire wear – you can identify a potential problem early and prevent further damage. While some DIYers may be comfortable replacing wheel bearings themselves, especially hub assemblies, it's often a job best left to experienced mechanics, particularly if it requires specialized tools or presses. If you suspect a wheel bearing issue, it's crucial to have it inspected promptly to ensure your vehicle's safety and prevent more costly repairs down the road. Always prioritize safety and consult your vehicle's repair manual for specific instructions and torque specifications.
