How To Tell Positive From Negative Wires

Distinguishing between positive and negative wires is a fundamental skill in electronics, automotive repair, and even basic household electrical projects. While seemingly simple, incorrectly identifying polarity can lead to damaged components, blown fuses, or even dangerous situations. This guide provides an in-depth look at the methods, tools, and knowledge necessary to confidently and accurately determine the polarity of electrical wires.

The Problem: Why Polarity Matters

Imagine trying to install a new car battery. You excitedly hook up the cables, only to see sparks fly and smell burning plastic. What went wrong? Most likely, you connected the positive cable to the negative terminal and vice versa. This reverse polarity can fry sensitive electronics in your car. This scenario highlights the critical importance of understanding and correctly identifying positive and negative wires.

The issue stems from the direction of electrical current flow. By convention, we define current as flowing from a positive (+) terminal to a negative (-) terminal. Components are designed to operate based on this specific flow. Reversing the flow can overwhelm internal diodes and transistors, causing them to overheat and fail. In simpler circuits like light bulbs, incorrect polarity might simply prevent the bulb from lighting. However, in complex circuits with electronic control units (ECUs) and delicate sensors, the consequences can be much more severe.

Understanding Electrical Systems: A Water Analogy

To visualize how polarity affects electrical circuits, think of water flowing through a pipe system. The battery or power source is like a pump, pushing water (electrons) through the pipes (wires). Components, such as resistors or lights, are like water wheels that convert the flow of water into useful work (light or heat). The pump only works effectively when pushing water in the intended direction. If you try to reverse the pump, it may not function or could even damage the system.

In a direct current (DC) electrical system, the flow of electrons is unidirectional – always from positive to negative. Alternating current (AC) systems, used in household wiring, have a constantly changing polarity, making positive and negative identification less relevant (but understanding the live, neutral, and ground wires is crucial for safety). We'll primarily focus on DC systems here, as they are most commonly encountered in vehicles, portable devices, and other low-voltage applications.

Methods for Identifying Polarity

Several methods can be employed to determine which wire is positive and which is negative. The best method often depends on the specific situation and available tools.

1. Color Coding: The Standard, But Not Always Reliable

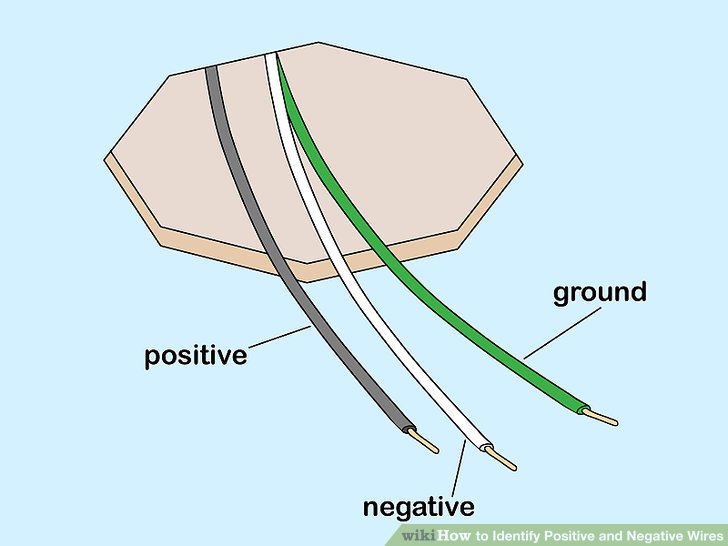

One of the most common methods is to rely on color coding. In most DC electrical systems, the standard convention is:

• Red: Typically indicates the positive (+) wire.
• Black: Typically indicates the negative (-) or ground wire.

Pros: Quick and easy if the color coding is consistent and visible.

Cons: Not always reliable. Color coding can vary depending on the manufacturer, the age of the wiring, or previous repairs. Sunlight can also fade the colors over time, making them difficult to distinguish. Never assume polarity based solely on color!

Use Case: Useful for initial assessment, but always confirm with other methods.

Manufacturer Example: Most automotive manufacturers adhere to the red/black convention for primary power wires, but accessory wiring might use different colors.

2. Visual Inspection: Looking for Markings and Symbols

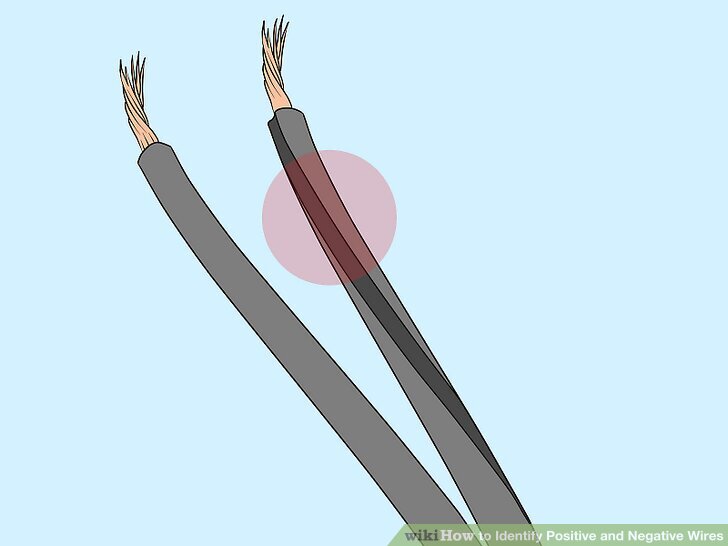

Examine the wires and surrounding components for markings or symbols. Some wires have a raised ridge or stripe on one side to indicate polarity. Others may have printed labels (+) or (-) directly on the wire insulation.

Pros: Non-invasive and doesn't require any special tools.

Cons: Markings can be faded, obscured, or missing altogether. Only works if the original markings are present.

Use Case: Good for identifying polarity on speaker wires, which often have a ridge on the positive wire.

Manufacturer Example: Speaker wire manufacturers often use this method.

3. Multimeter: The Definitive Test

A multimeter is the most reliable tool for determining polarity. Here's how to use one:

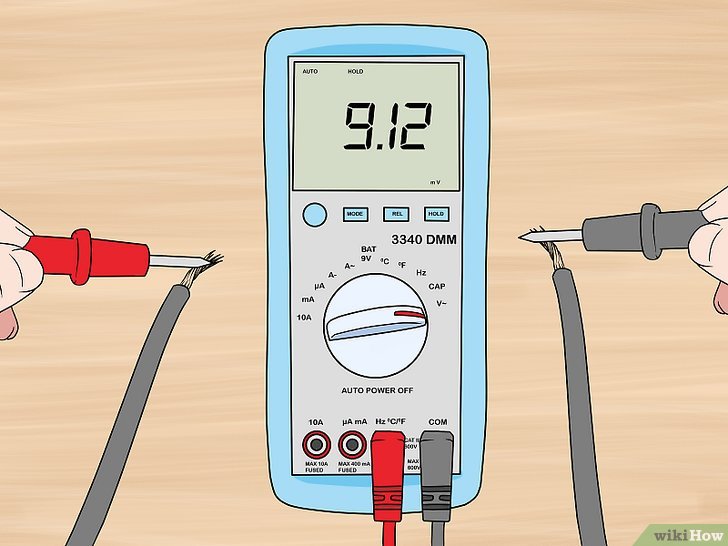

1. Set the multimeter to DC voltage mode (usually indicated by "V" with a straight line above it). Select a voltage range appropriate for the circuit you're testing.
2. Connect the black lead of the multimeter to a known or suspected ground point (e.g., the car chassis).
3. Touch the red lead of the multimeter to the wire you want to test.
4. Observe the reading on the multimeter display.
• Positive Reading: If the reading is positive, the wire you're testing is positive.
• Negative Reading: If the reading is negative, the wire you're testing is negative (or you have the leads reversed).
• Zero Reading: If the reading is zero, there is no voltage present.

Pros: Highly accurate and reliable. Can also measure the voltage of the circuit.

Cons: Requires a multimeter and some basic understanding of electrical measurements.

Use Case: Ideal for any situation where accurate polarity identification is critical, such as wiring automotive accessories or troubleshooting electrical problems.

Manufacturer Example: Automotive technicians rely heavily on multimeters for diagnosing electrical faults.

4. Test Light: A Simple Visual Indicator

A test light is a simple tool that illuminates when a voltage is present. Here's how to use one:

1. Connect the clip of the test light to a known ground point.
2. Probe the wire you want to test with the test light's probe.
3. If the test light illuminates, the wire is positive. If it doesn't, the wire is either negative or has no voltage.

Pros: Simple to use and relatively inexpensive.

Cons: Doesn't provide voltage readings and can be less accurate than a multimeter. Some test lights can draw too much current, potentially damaging sensitive circuits.

Use Case: Suitable for quickly checking for the presence of voltage in a circuit.

Manufacturer Example: Mechanics sometimes use test lights for quick voltage checks, especially when diagnosing blown fuses.

5. Component Functionality (Use with Caution)

In some cases, you can infer polarity by observing the functionality of a connected component. For example, an LED (light-emitting diode) will only light up when connected with the correct polarity. However, never rely on this method without knowing the component's specific polarity requirements and voltage tolerance. Incorrect polarity can damage the component.

Pros: Can be useful in specific situations when other methods are unavailable.

Cons: Risky and should only be used as a last resort, with extreme caution.

Use Case: When connecting an LED, observe if it lights up; if not, reverse the polarity.

Manufacturer Example: Electronic hobbyists might use this method when experimenting with simple circuits.

Safety Considerations

Working with electrical systems can be dangerous. Always take the following precautions:

• Disconnect Power: Whenever possible, disconnect the power source before working on electrical wiring.
• Use Insulated Tools: Use tools with insulated handles to prevent electric shock.
• Wear Safety Glasses: Protect your eyes from sparks or debris.
• Work in a Dry Environment: Avoid working with electricity in wet or damp conditions.
• When in doubt, consult a qualified electrician.

Real-World Insights and Recommendations

While color coding can be a helpful starting point, relying solely on it can lead to costly mistakes. A multimeter is your best friend when it comes to definitively identifying positive and negative wires. Practice using it in a safe environment (e.g., on a known battery) to become familiar with its operation. Always double-check your connections, especially when working with sensitive electronics. For automotive work, consider investing in a quality automotive multimeter with features like continuity testing and diode testing. Finally, remember that if you're ever unsure about the polarity of a wire, it's always best to err on the side of caution and consult a qualified electrician.

In conclusion, correctly identifying positive and negative wires is an essential skill for anyone working with electrical systems. By understanding the principles of polarity, utilizing the appropriate tools, and following safety precautions, you can confidently tackle electrical projects and avoid potentially damaging mistakes.
