How To Tell Which Tire Pressure Sensor Is Bad

The dreaded tire pressure warning light. It's a small icon, but it can trigger a disproportionately large amount of frustration. While a low tire is the most obvious culprit, sometimes the problem lies deeper: a malfunctioning Tire Pressure Monitoring System (TPMS) sensor. But how do you pinpoint which sensor is the troublemaker? This guide delves into the diagnostic process, explaining the inner workings of TPMS and equipping you with the knowledge to isolate the faulty component.

The Mystery of the Persistent TPMS Light

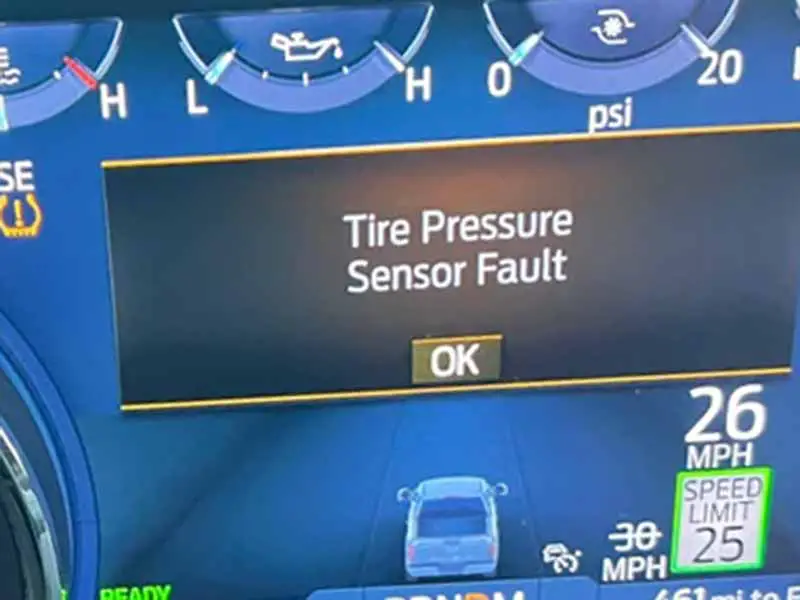

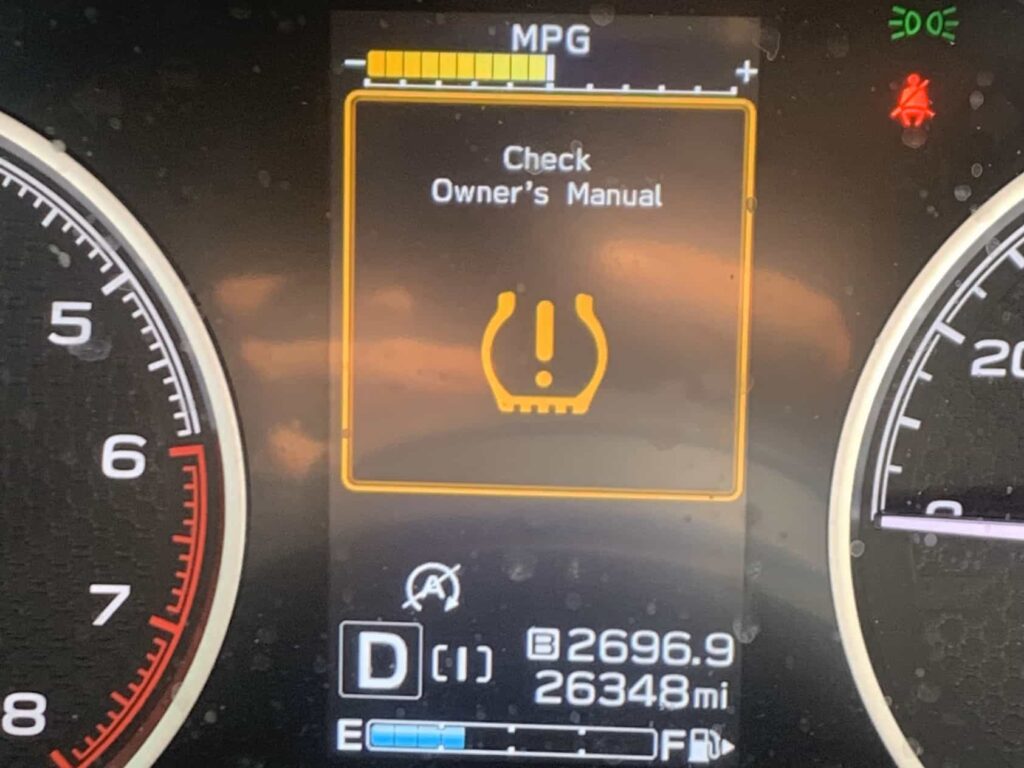

Imagine this: You've checked all your tires, confirmed they're inflated to the recommended pressure, and even reset the TPMS system. Yet, the warning light stubbornly persists. This is where things get interesting. It's no longer a simple matter of low pressure; it's a sign that one of your TPMS sensors is likely sending incorrect data or has completely failed. Think of it like a team of reporters sending data, if one sends bad information, the whole report is now suspect. Finding the faulty sensor among the four is the goal.

Understanding TPMS: A Deeper Dive

To effectively diagnose a faulty sensor, understanding how TPMS works is crucial. There are two main types of TPMS: direct and indirect.

Direct TPMS: Individual Sensors in Each Wheel

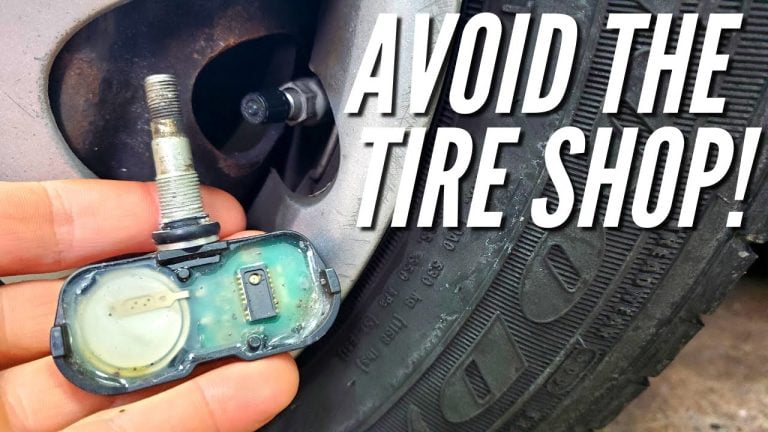

Direct TPMS is the most common type. Each wheel has a sensor mounted inside, typically attached to the valve stem. This sensor directly measures the tire pressure and temperature. It then transmits this data wirelessly to the vehicle's central control unit (ECU). The ECU compares the readings from each sensor to pre-set thresholds. If a tire's pressure falls below or rises above the threshold, the warning light illuminates.

How it Works (Mechanically):

• Pressure Sensing: A small pressure transducer within the sensor converts the tire pressure into an electrical signal.
• Temperature Sensing: A thermistor measures the tire's internal temperature.
• Microcontroller: A tiny microcontroller processes the sensor data and prepares it for transmission.
• Radio Transmitter: A small radio transmitter sends the data wirelessly to the vehicle's receiver.
• Battery: A non-replaceable battery powers the sensor. This is often the point of failure.

Pros of Direct TPMS:

• Highly accurate pressure readings.
• Provides real-time pressure information for each tire.
• Can detect slow leaks more effectively.
• Some systems can display individual tire pressures on the dashboard.

Cons of Direct TPMS:

• Sensors can be expensive to replace.
• Battery life is limited (typically 5-10 years).
• Requires specialized tools for installation and programming.
• Sensors can be damaged during tire changes.

Manufacturer Examples: Most major automakers, including Toyota, Honda, Ford, and GM, utilize direct TPMS systems.

Indirect TPMS: Using the ABS System

Indirect TPMS, on the other hand, doesn't use dedicated pressure sensors. Instead, it leverages the vehicle's Anti-lock Braking System (ABS) wheel speed sensors. The system monitors the rotational speed of each wheel. A deflated tire has a smaller circumference and therefore rotates faster than a properly inflated tire. The ECU interprets this difference in rotational speed as a low-pressure condition and triggers the warning light.

How it Works (Mechanically):

• ABS Wheel Speed Sensors: These sensors already exist to monitor wheel speed for ABS functionality.
• ECU Calculation: The ECU constantly compares the rotational speeds of all four wheels.
• Threshold Comparison: If one wheel's speed deviates significantly from the others, the system assumes a low tire.

Pros of Indirect TPMS:

• Less expensive than direct TPMS.
• No individual sensors to replace.
• Less susceptible to damage during tire changes.

Cons of Indirect TPMS:

• Less accurate than direct TPMS.
• Can be affected by factors other than tire pressure, such as road conditions or worn tires.
• Requires recalibration after tire rotation or replacement.
• Not as effective at detecting slow leaks.

Manufacturer Examples: Audi and Volkswagen have historically used indirect TPMS in some of their models.

Identifying the Culprit: Diagnostic Techniques

Now, let's get to the core of the problem: pinpointing the faulty sensor in a direct TPMS system. Here are several methods you can use:

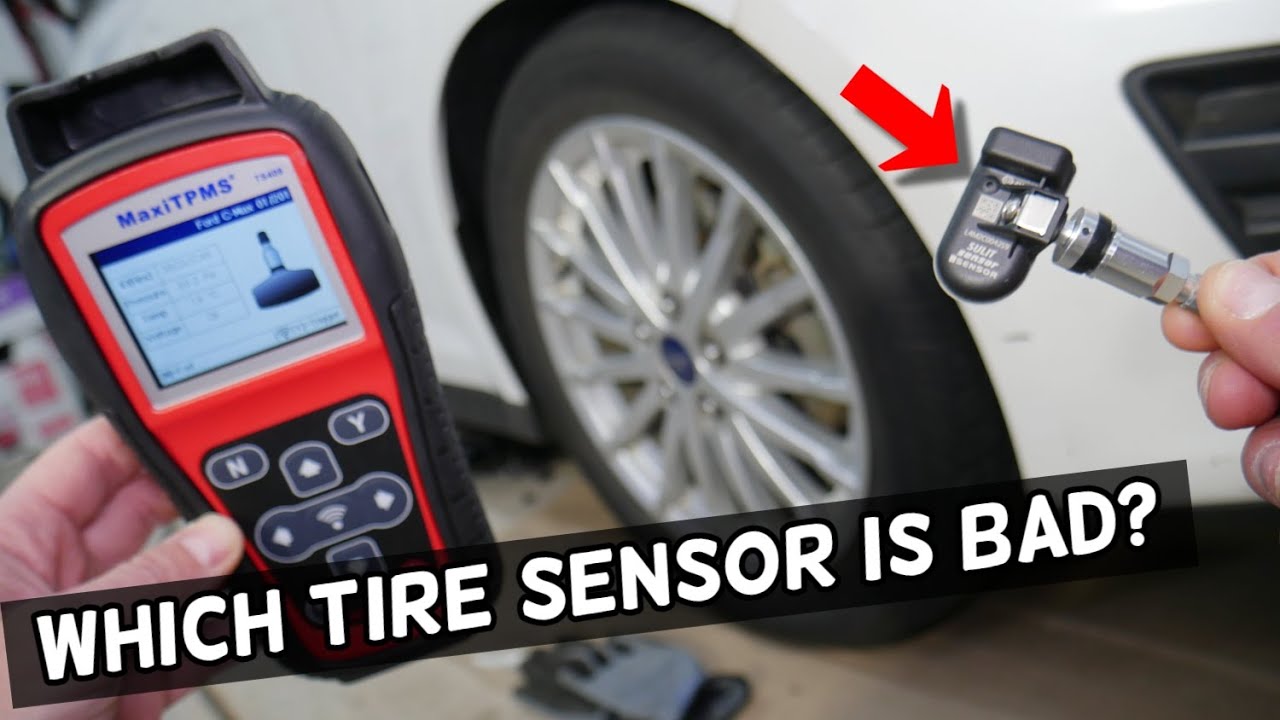

1. The TPMS Scan Tool: The Professional's Choice

A TPMS scan tool is the most reliable and efficient way to diagnose TPMS issues. These tools communicate directly with the sensors, reading their individual IDs, pressure readings, temperature readings, and battery status. Many tools can also activate the sensors, forcing them to transmit data, which can be helpful for diagnosing intermittent problems. The tool can display error codes that directly pinpoint the sensor or system failure.

Use Case: A mechanic uses a TPMS scan tool to quickly identify a sensor with a low battery. The tool also reveals that the sensor is not transmitting data correctly.

Pros: Fastest and most accurate method. Provides detailed sensor information.

Cons: Requires purchasing or renting a specialized tool. Can be more expensive than other methods.

2. The Deflate-and-Inflate Method: A DIY Approach

This method involves systematically deflating each tire slightly and observing the TPMS system's response. You'll need an accurate tire pressure gauge for this. Start by deflating one tire by a few PSI (e.g., 5 PSI). Drive the vehicle for a short distance (usually a few minutes) to allow the TPMS to register the pressure change. If the warning light indicates the correct tire that was deflated, the system is working correctly for that sensor. Repeat this process for each tire. If deflating a particular tire doesn't trigger the warning light or the display shows the wrong tire, that sensor is likely the problem.

Analogy: Like testing each lightbulb in a circuit individually by switching them on and off.

Pros: Free (assuming you have a tire pressure gauge). Doesn't require specialized tools.

Cons: Time-consuming. Less accurate than a scan tool. Can be difficult to differentiate between multiple sensors with marginal performance. Can be inaccurate depending on the TPMS systems sensitivity.

3. The Visual Inspection: A First Step

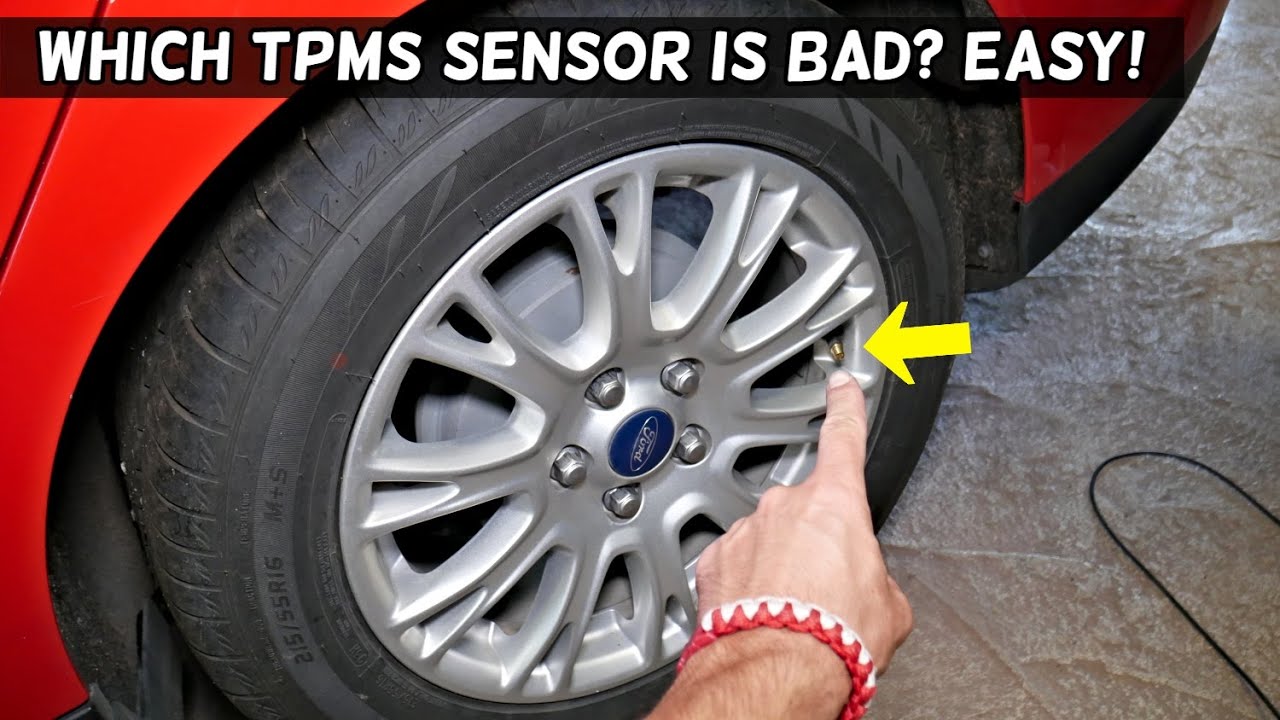

Before diving into more complex methods, perform a visual inspection of the valve stems and sensor housings. Look for any signs of damage, corrosion, or leaks. A cracked valve stem or a damaged sensor housing could indicate a problem. Also, check the tire pressure and make sure that the valve stem core is not loose or damaged.

Pros: Easy and free. Can identify obvious physical damage.

Cons: Doesn't provide specific sensor data. May not reveal internal sensor failures.

4. Using the Vehicle's Display (If Available): Interpreting the Data

Some vehicles with direct TPMS display individual tire pressures on the dashboard. This can be incredibly helpful for troubleshooting. If one tire consistently shows an inaccurate pressure reading compared to the other tires (even after verifying with a manual gauge), that sensor is suspect.

Example: All tires are inflated to 35 PSI according to a manual gauge, but the dashboard display shows one tire consistently reading 28 PSI. This suggests a faulty sensor on that wheel.

Pros: Easy to use if your vehicle has the feature. Provides direct pressure readings.

Cons: Not all vehicles have this feature. May not be accurate if the system is not properly calibrated.

Real-World Considerations and Recommendations

Battery Life: TPMS sensor batteries typically last 5-10 years. If your vehicle is in this age range, consider replacing all the sensors at the same time, as the other batteries are likely nearing the end of their lifespan. This can save you time and money in the long run, as you'll avoid repeat visits to the tire shop.

Sensor Compatibility: When replacing a TPMS sensor, ensure it's compatible with your vehicle's make, model, and year. Using an incorrect sensor can lead to communication problems or system malfunctions.

Professional Assistance: If you're unsure about diagnosing or replacing a TPMS sensor, it's best to consult a qualified tire technician. They have the tools, expertise, and training to accurately diagnose and repair TPMS issues.

Aftermarket vs. OEM: Aftermarket sensors are typically cheaper than OEM sensors. However, OEM sensors are designed specifically for your vehicle and may offer better performance and reliability. Choose a reputable brand, and do your research before purchasing aftermarket sensors.

Calibration: After replacing a TPMS sensor, the system may need to be recalibrated. This typically involves using a TPMS scan tool to program the new sensor's ID into the vehicle's ECU. Some vehicles can automatically learn the new sensor IDs after a short drive.

Conclusion: Becoming a TPMS Troubleshooter

Diagnosing a faulty TPMS sensor can seem daunting, but by understanding how the system works and utilizing the diagnostic techniques outlined above, you can effectively pinpoint the problem. While a TPMS scan tool offers the most accurate and efficient solution, the deflate-and-inflate method and visual inspection can be useful for DIY troubleshooting. Remember to prioritize safety and consult a professional if you're uncomfortable performing any of these procedures. With a little knowledge and effort, you can keep your tires properly inflated and your TPMS light off, ensuring a safe and efficient driving experience.
