How To Tell Which Tpms Sensor Is Bad

Experiencing issues with your Tire Pressure Monitoring System (TPMS)? Seeing a warning light illuminate on your dashboard can be frustrating, especially when you're unsure which tire is the culprit. Accurately identifying the faulty TPMS sensor is crucial for maintaining proper tire inflation, ensuring safe driving conditions, and avoiding costly repairs. In this article, we'll guide you through the process of diagnosing a bad TPMS sensor, explain the importance of a functioning system, and provide solutions to get you back on the road with confidence.

Symptoms of a Faulty TPMS Sensor

Recognizing the symptoms of a failing TPMS sensor is the first step in pinpointing the problem. Here's what to look for:

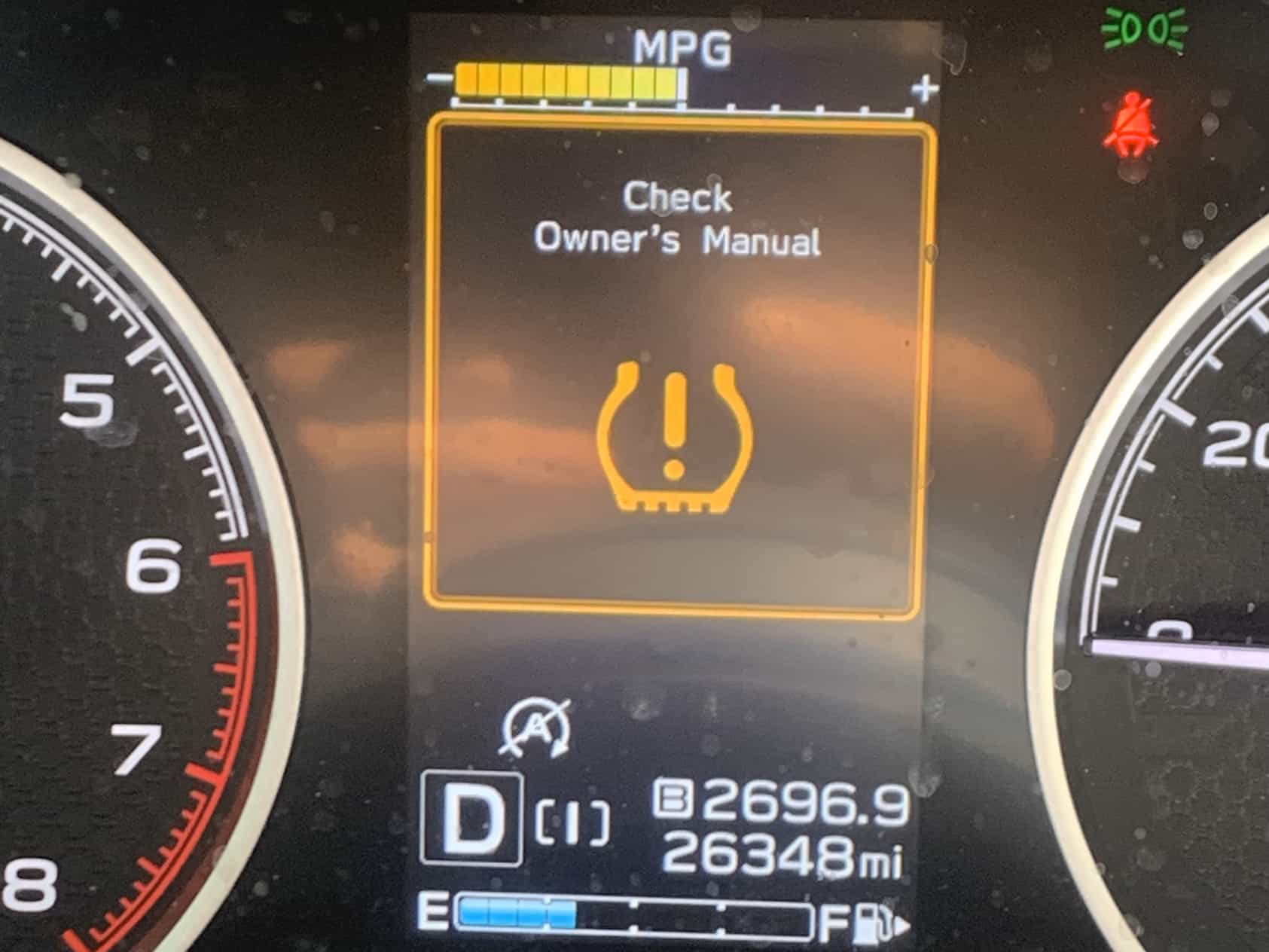

Constant TPMS Warning Light: This is the most common indicator. The light may be solid or flashing. A solid light often indicates that one or more tires have incorrect pressure. A flashing light, however, typically signals a malfunction within the TPMS system itself, potentially a faulty sensor.
Inaccurate Tire Pressure Readings: If your vehicle displays individual tire pressures, compare the readings against a reliable gauge. A significant discrepancy between the displayed pressure and the actual pressure (verified with a manual gauge) suggests a sensor issue.
No Tire Pressure Reading for a Specific Tire: If one tire consistently shows "--" or "0" on the display, while the others show normal readings, the sensor for that tire is likely malfunctioning.
TPMS Light Illuminates Only After Driving: A sensor's internal battery might be weakening. It works when cold but fails when the tire warms up and pressure changes.
Randomly Activating TPMS Light: Intermittent or random illumination of the TPMS light, without any apparent reason (like a change in temperature affecting tire pressure), can indicate a sensor problem.
Difficulty Relearning TPMS Sensors: After a tire rotation or replacement, your vehicle might require a TPMS relearn procedure. If the system fails to relearn a specific sensor, it could be defective.

Understanding the Root Cause of TPMS Sensor Failure

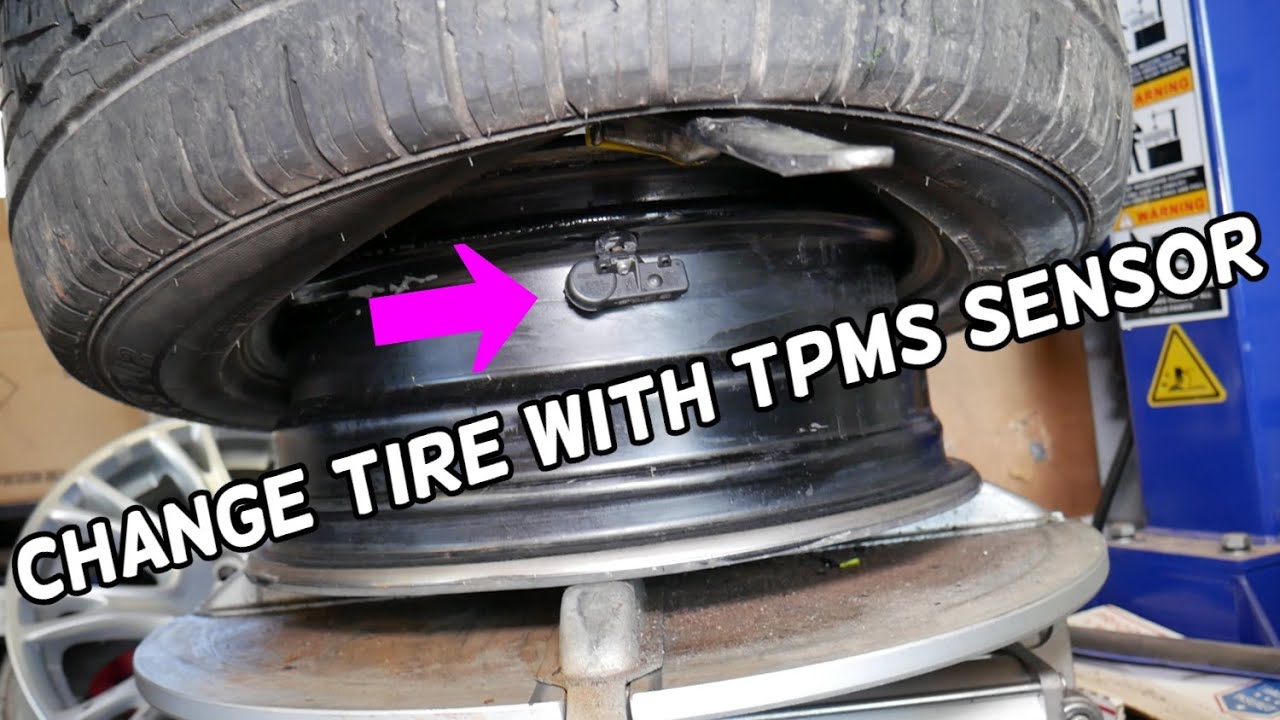

TPMS sensors are small, battery-powered devices located inside your tire. They transmit pressure data to your vehicle's computer. Several factors can contribute to their failure:

Battery Depletion: TPMS sensors have a limited lifespan, typically 5-10 years, due to battery degradation. Once the battery is drained, the sensor stops functioning.
Corrosion: Exposure to road salt, moisture, and other contaminants can corrode the sensor's internal components, leading to malfunction.
Physical Damage: Impacts from potholes, curbs, or improper tire installation can physically damage the sensor.
Valve Stem Issues: The valve stem, often integrated with the sensor, can corrode or break, causing air leaks and sensor failure.
Sensor Compatibility: If sensors are replaced with incorrect or incompatible models, they may not communicate properly with your vehicle's system.
Environmental Factors: Extreme temperatures can affect the sensor's performance and shorten its lifespan.

It's also worth noting that some vehicles have direct TPMS systems (sensors inside the tires) and others have indirect systems (using the ABS to detect tire pressure changes). This article focuses on the direct TPMS type, which is much more common.

Consequences of Ignoring a Faulty TPMS Sensor

While a faulty TPMS sensor might seem like a minor issue, ignoring it can have serious consequences:

Compromised Safety: Underinflated tires can lead to reduced handling, increased braking distance, and a higher risk of tire blowouts, especially at high speeds.
Reduced Fuel Efficiency: Underinflated tires increase rolling resistance, requiring your engine to work harder and consume more fuel.
Uneven Tire Wear: Incorrect tire pressure can cause uneven wear patterns, shortening the lifespan of your tires.
Potential for Accidents: As mentioned above, blowouts due to underinflation can cause accidents.
Failed Inspections: In some regions, a properly functioning TPMS is required for vehicle inspections.

Recommended Fixes: Diagnosing and Replacing a Bad Sensor

Here's a step-by-step approach to identifying and resolving TPMS sensor issues:

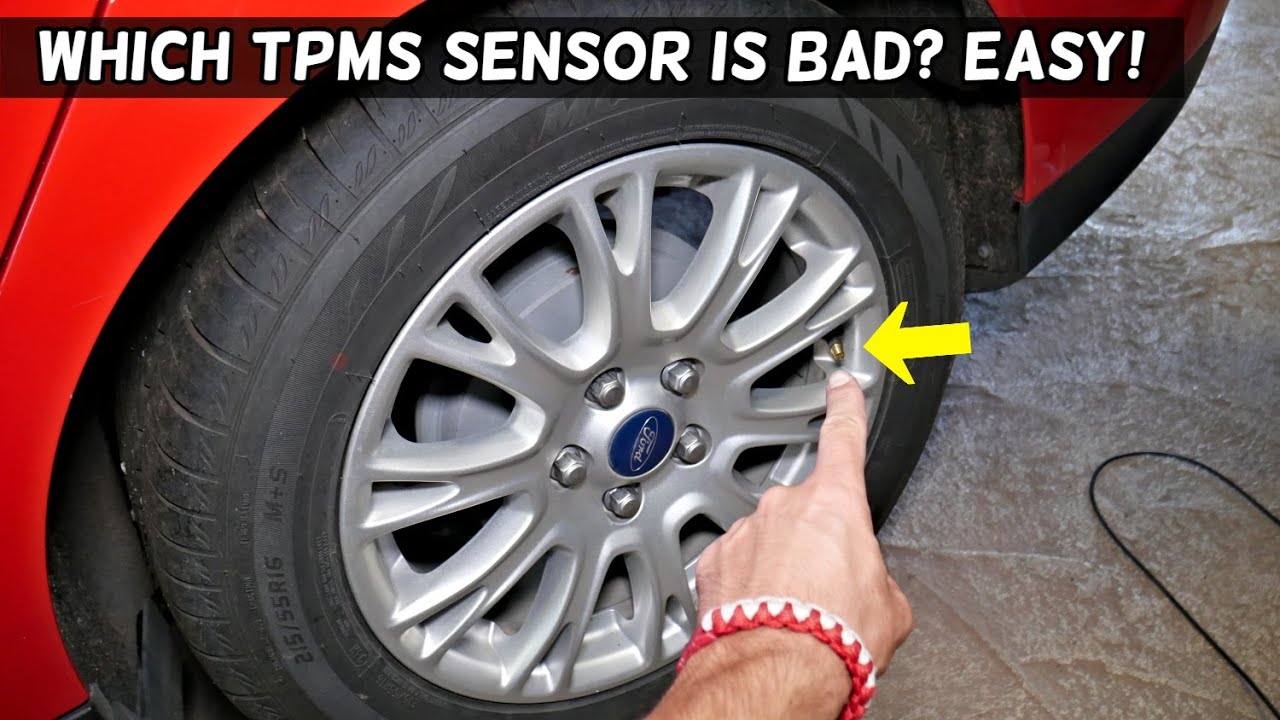

Visual Inspection: Examine each tire for signs of damage, such as punctures, bulges, or uneven wear. Check the valve stems for corrosion or leaks.
Tire Pressure Check: Use a reliable tire pressure gauge to check the pressure in all four tires. Compare the readings to the recommended pressure listed on the sticker inside your driver's side door. Inflate or deflate tires as needed. Remember, temperature affects tire pressure, so check when tires are cold.
TPMS Relearn Procedure: Consult your owner's manual for the specific TPMS relearn procedure for your vehicle. Follow the instructions carefully. Sometimes, a simple relearn can resolve minor communication issues.

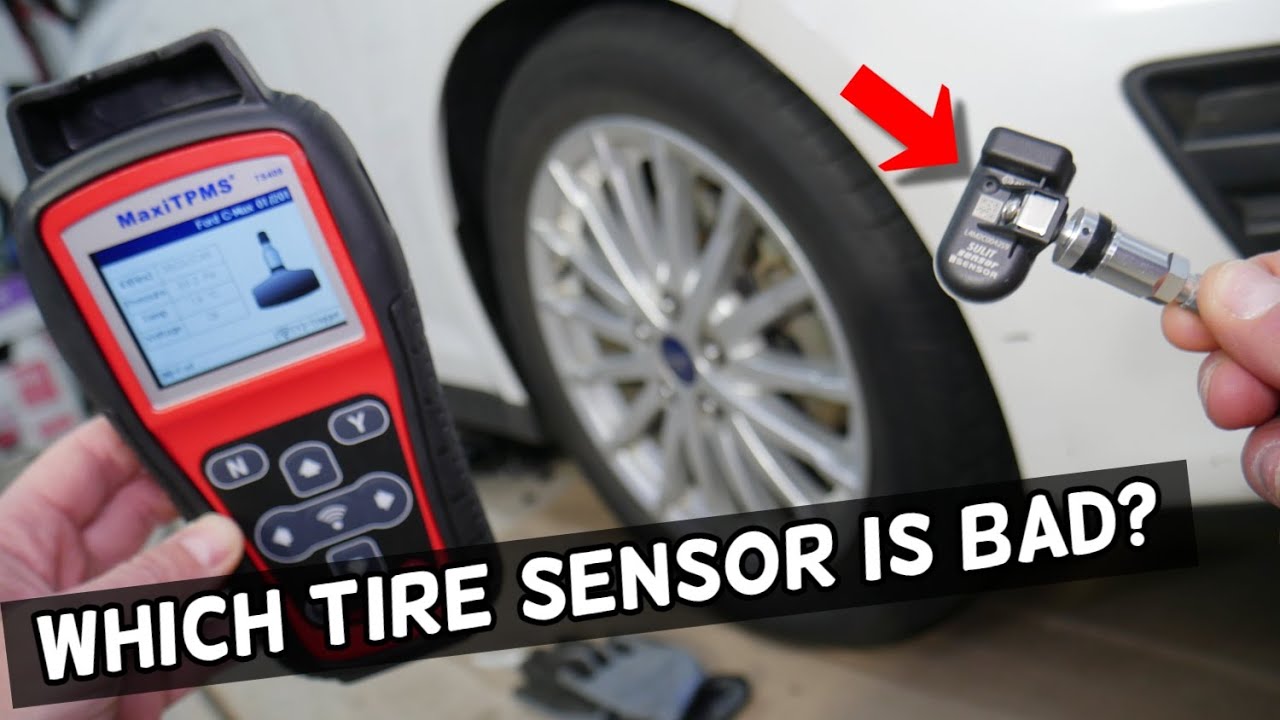

Use a TPMS Diagnostic Tool: A TPMS scan tool can read the sensor data, including battery life, pressure readings, and sensor IDs. This tool can pinpoint the faulty sensor. Many tire shops and mechanics have these tools.
Professional Diagnosis: If you're unsure about performing the diagnosis yourself, take your vehicle to a qualified mechanic or tire shop. They have the expertise and equipment to accurately diagnose the problem and recommend the appropriate solution.

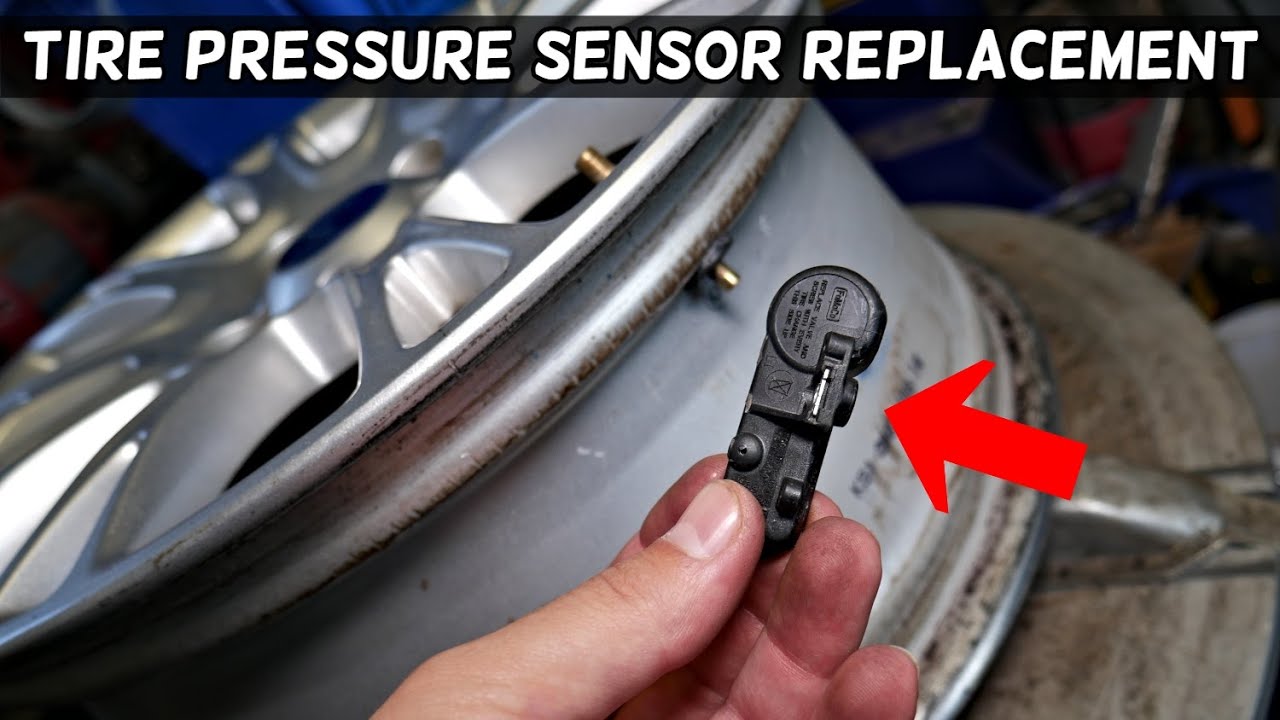

Sensor Replacement: Once you've identified the faulty sensor, it needs to be replaced. Ensure the replacement sensor is compatible with your vehicle's make and model. After installation, the new sensor will need to be programmed or relearned to the vehicle's system.

Important Considerations Before Replacement:

Sensor Type: There are different types of TPMS sensors (frequency, protocol). Ensure the replacement is compatible with your car.
Cloning vs. Programming: Some sensors need to be "cloned" (programmed with the ID of the old sensor), while others need to be programmed to the car's computer. Check your vehicle's requirements.
Valve Stem Condition: Always replace the valve stem when replacing a TPMS sensor, as it's a common source of leaks.

Cost Estimates and Shop Advice

The cost of replacing a TPMS sensor can vary depending on several factors, including:

Vehicle Make and Model: Some vehicles require more specialized sensors.
Sensor Type: Aftermarket sensors can be cheaper than OEM (Original Equipment Manufacturer) sensors, but ensure compatibility.
Labor Costs: Labor rates vary from shop to shop.
Location: Costs can vary depending on your geographic location.

Typically, you can expect to pay between $50 and $250 per sensor, including parts and labor. It's always a good idea to get quotes from multiple shops before committing to a repair. Ask if the quote includes the sensor, installation, and TPMS relearn procedure.

Shop Advice:

Read Online Reviews: Find a reputable tire shop or mechanic with good reviews.
Ask for a Written Estimate: Get a detailed written estimate before any work is performed.
Inquire About Warranty: Check if the replacement sensor comes with a warranty.
Consider Replacing All Sensors: If one sensor is failing due to age, the others may be nearing the end of their lifespan. Replacing all four sensors at once can save you time and money in the long run. While more expensive upfront, this preventative measure can avoid future issues and additional trips to the shop.

Credibility and Further Resources

While not strictly mandated, manufacturers often issue Technical Service Bulletins (TSBs) regarding TPMS issues. Searching online for "[Your Vehicle Make] TPMS TSB" can reveal known problems and recommended fixes. Additionally, online forums dedicated to your specific vehicle model often contain valuable information shared by other owners who have experienced similar TPMS issues. Many report sensor failures around the 7-year mark or after 100,000 miles, aligning with typical battery lifespans.

By following these steps and seeking professional assistance when needed, you can effectively diagnose and resolve TPMS sensor issues, ensuring the safety and performance of your vehicle. Remember, a functioning TPMS is more than just a warning light; it's a critical safety system that deserves attention.
