How To Tell Which Tpms Sensor Is Bad Without Scanner

Tire Pressure Monitoring Systems (TPMS) are a crucial safety feature in modern vehicles, designed to alert you when your tire pressure drops below a safe level. But what happens when the TPMS light comes on, and you suspect a sensor is faulty? More specifically, how can you pinpoint *which* sensor is the culprit without relying on an expensive diagnostic scanner? That's exactly what we'll cover in this guide. Identifying the failing sensor quickly saves you time, money, and potential headaches down the road. This is important because driving with underinflated tires can reduce fuel efficiency, cause premature tire wear, and, most importantly, compromise your vehicle's handling and braking performance, increasing the risk of accidents.

Recognizing the Symptoms of a Faulty TPMS Sensor

Before diving into diagnostic methods, it's essential to recognize the telltale signs of a failing TPMS sensor. Here's a detailed list of symptoms to watch out for:

TPMS Light Illuminated: This is the most obvious sign. However, a solid TPMS light typically indicates low tire pressure in one or more tires, while a flashing TPMS light usually signals a system malfunction, often a faulty sensor. Make sure all tires are properly inflated before assuming a sensor issue.
Inaccurate Tire Pressure Readings: If your vehicle displays individual tire pressure readings, compare them to the actual pressure using a reliable manual gauge. A significant discrepancy (e.g., the system reads 25 PSI when the actual pressure is 35 PSI) points towards a faulty sensor.
Intermittent TPMS Light: The TPMS light comes and goes, seemingly at random. This can be due to a sensor sending sporadic or weak signals as it starts to fail.
TPMS Light Stays On Even After Inflating Tires: You've checked and inflated all tires to the correct pressure, but the TPMS light remains stubbornly illuminated.
TPMS System Not Registering a Tire: Your display shows dashes (--) or a blank space instead of a pressure reading for one particular tire.
Difficulty Pairing or Resetting the TPMS: After rotating tires or replacing a tire, you're unable to successfully reset or relearn the TPMS system, particularly for one specific tire.
Sensor Battery Life Expectancy: Most TPMS sensors have a battery life of 5-10 years. If your vehicle is within this range, the sensor batteries might be nearing the end of their lifespan.

Understanding the Root Cause: Why TPMS Sensors Fail

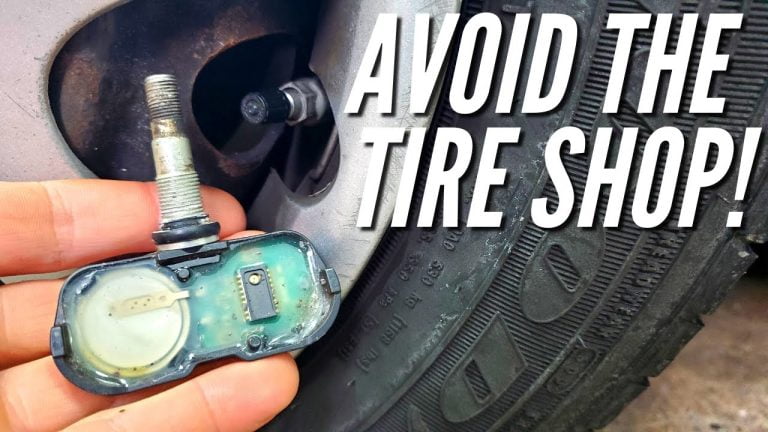

TPMS sensors are small, battery-powered devices mounted inside your tires, typically attached to the valve stem. They measure tire pressure and temperature and transmit this data wirelessly to your vehicle's computer. Several factors can contribute to their failure:

Battery Depletion: This is the most common reason. TPMS sensors run on non-replaceable batteries that eventually run out of power.
Corrosion: Exposure to road salt, moisture, and other contaminants can corrode the sensor's internal components, leading to malfunction.

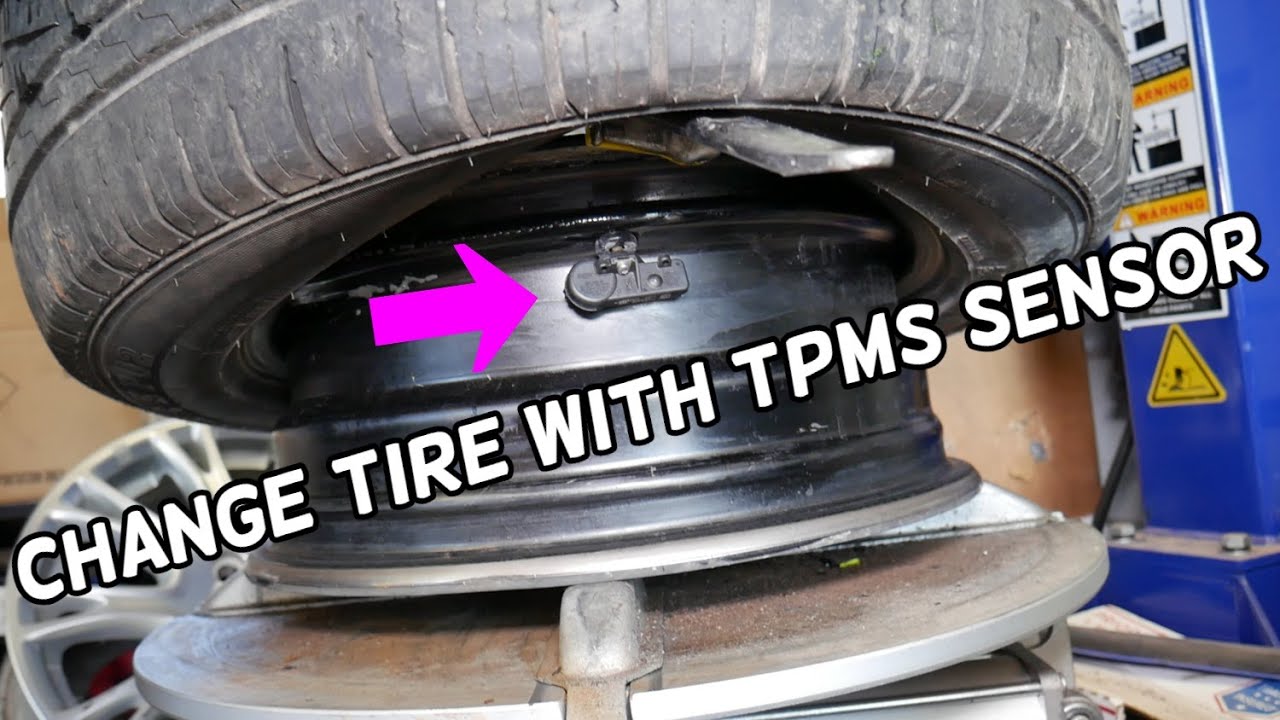

Physical Damage: Impacts from potholes, curbs, or tire changes can damage the sensor's housing or internal circuitry. Improper tire mounting or dismounting can easily damage a sensor.
Valve Stem Issues: The valve stem itself can corrode or become damaged, leading to air leaks and sensor failure.
Signal Interference: In rare cases, strong radio frequency interference can disrupt the sensor's signal, causing false readings or communication failures.

The Consequences of Ignoring a Faulty TPMS Sensor

Ignoring a faulty TPMS sensor might seem like a minor inconvenience, but it can lead to significant consequences:

Compromised Safety: Underinflated tires increase the risk of tire blowouts, especially at high speeds. They also affect braking distance and vehicle handling, making it harder to control your car in emergency situations.
Reduced Fuel Efficiency: Underinflated tires increase rolling resistance, forcing your engine to work harder and consume more fuel.
Premature Tire Wear: Underinflation causes uneven tire wear, shortening the lifespan of your tires and requiring more frequent replacements.
Failed Inspections: In many states, a functioning TPMS is required to pass vehicle inspections. A faulty sensor will result in a failed inspection.

Recommended Fixes: Troubleshooting Without a Scanner

While a diagnostic scanner provides the most definitive answer, you can try these troubleshooting steps to narrow down the possibilities without one:

Visual Inspection: Carefully examine each tire and valve stem for signs of damage, corrosion, or leaks. Look for cracks, bulges, or other abnormalities.
Manual Pressure Check: Use a reliable manual tire pressure gauge to check the pressure in each tire. Compare these readings to the values displayed by your TPMS. Note any significant discrepancies.
The "Relearn" Procedure: Your vehicle's owner's manual will outline the TPMS relearn procedure. Some vehicles automatically relearn after driving a short distance, while others require a specific sequence of steps (e.g., inflating/deflating tires in a certain order). Try performing the relearn procedure to see if the system resets.
The "Swap Test" (Proceed with Caution): *This method requires some mechanical aptitude and access to tools.* Carefully swap the front and rear tires on the same side of the vehicle. Drive for a short distance (10-20 miles) and observe if the problematic TPMS reading moves from the front to the rear or vice versa. If the problem follows the tire, the sensor in that tire is likely faulty. Important Note: Only attempt this if you are comfortable with changing tires and ensuring proper wheel torque. Incorrect torque can lead to serious safety issues.
Consider Sensor Age: If your vehicle is 5-10 years old, it's likely that the original TPMS sensor batteries are nearing the end of their lifespan. If multiple sensors are acting erratically, consider replacing all of them simultaneously.
Check the Spare Tire: Some vehicles have a TPMS sensor in the spare tire. Ensure the spare tire is properly inflated. A low spare tire can sometimes trigger the TPMS light.

Important Safety Note: When working with tires, always use proper safety precautions, including wearing safety glasses and using a jack stand to support the vehicle.

Cost Estimates and Shop Advice

If your troubleshooting efforts are unsuccessful, or you're uncomfortable performing the "swap test," it's best to consult with a qualified mechanic. They can use a diagnostic scanner to pinpoint the faulty sensor and replace it.

Here's a general cost breakdown:

TPMS Sensor Replacement: The cost of a TPMS sensor typically ranges from $30 to $100 per sensor, depending on the vehicle make and model and the brand of sensor.
Labor: Labor costs for TPMS sensor replacement can range from $50 to $150 per tire, depending on the shop's hourly rate and the complexity of the job. This often includes tire mounting, dismounting, and balancing.
Total Cost: The total cost to replace a TPMS sensor can range from $80 to $250 per tire.

Shop Advice: When choosing a mechanic, ask if they have experience working with TPMS systems. Ensure they use quality replacement sensors and properly program them to your vehicle's computer. It's often recommended to replace all four sensors at the same time if one fails, especially if your vehicle is approaching the 5-10 year mark. This prevents future failures and saves on labor costs in the long run.

TSB and Community Data: While specific Technical Service Bulletins (TSBs) related to TPMS sensor failures vary widely depending on the vehicle make and model, searching online forums and communities dedicated to your car can provide valuable insights. Many owners share their experiences with TPMS issues, including common failure points, recommended replacement brands, and DIY repair tips. The National Highway Traffic Safety Administration (NHTSA) website (nhtsa.gov) is another resource for checking for recalls or TSBs related to your vehicle's TPMS system. General consensus in the automotive community points to sensor battery life of 5-7 years or 75,000-100,000 miles as common failure points, especially in regions with extreme temperature fluctuations.
