How To Test A Throttle Position Sensor

Is your car hesitating, idling erratically, or lacking power? These could be symptoms of a failing Throttle Position Sensor (TPS). This article explains how to test your TPS, saving you time and money, and potentially preventing more serious engine problems. The TPS is a crucial component; properly diagnosing it can restore your vehicle's performance and fuel efficiency.

Symptoms of a Failing Throttle Position Sensor

A faulty TPS can manifest in a variety of ways. Recognizing these symptoms is the first step in determining if your sensor needs testing or replacement. Here are some common indicators:

Erratic Idling: Your engine may idle too high, too low, or surge up and down erratically. This is often one of the earliest signs of a problem.
Hesitation or Stalling: When you accelerate, the engine might hesitate, stumble, or even stall. This is especially noticeable when accelerating from a stop or low speed.
Poor Acceleration: Your car may feel sluggish and lack power, even when you press the accelerator pedal firmly.
Jerky Shifting (Automatic Transmissions): The transmission might shift harshly or at the wrong times, making for an uncomfortable driving experience.
Check Engine Light: The Check Engine Light will often illuminate, accompanied by diagnostic trouble codes (DTCs) related to the TPS, such as P0121, P0122, or P0123.
Fuel Economy Issues: A faulty TPS can cause the engine control unit (ECU) to miscalculate fuel delivery, leading to decreased fuel economy.
Surging: The car might surge forward unexpectedly, especially at steady speeds.
Cruise Control Problems: The cruise control system might not engage or disengage erratically.

Root Cause: How the TPS Works and Why It Fails

The Throttle Position Sensor is mounted on the throttle body and directly connected to the throttle plate shaft. Its primary function is to monitor the position of the throttle plate and send this information to the Engine Control Unit (ECU), also known as the Powertrain Control Module (PCM). The TPS is essentially a potentiometer, a type of variable resistor. As the throttle plate opens and closes, the resistance value changes. This change in resistance is translated into a voltage signal that the ECU interprets as the throttle position.

The ECU uses the throttle position data, along with information from other sensors (like the mass airflow sensor, MAP sensor, and engine coolant temperature sensor), to calculate the correct amount of fuel to inject and the optimal ignition timing. This ensures efficient combustion and smooth engine operation.

Several factors can cause a TPS to fail:

Wear and Tear: Over time, the internal components of the TPS, particularly the wiper arm that contacts the resistive strip, can wear down due to constant friction.
Contamination: Dirt, debris, and oil can accumulate inside the TPS, interfering with the electrical contact and causing inaccurate readings.
Vibration: Constant engine vibration can damage the internal wiring and connections within the sensor.
Electrical Problems: Wiring issues, such as short circuits, open circuits, or corrosion in the connector, can disrupt the signal from the TPS to the ECU.
Moisture: Exposure to moisture can corrode the internal components and electrical connections, leading to failure.

What Happens If You Ignore a Failing TPS?

Ignoring the symptoms of a faulty TPS can lead to several problems:

Reduced Engine Performance: The engine will continue to run poorly, with hesitation, stalling, and lack of power.
Decreased Fuel Economy: The ECU will not be able to accurately control fuel delivery, resulting in wasted fuel.
Catalytic Converter Damage: A malfunctioning TPS can cause the engine to run rich (too much fuel), which can overheat and damage the catalytic converter. Replacing a catalytic converter is a significant expense.
Transmission Problems (Automatic Transmissions): Incorrect throttle position data can cause the transmission to shift improperly, potentially leading to premature wear and tear.
Safety Hazard: Hesitation or stalling during acceleration can be dangerous, especially in heavy traffic or when merging onto a highway.
Increased Emissions: A poorly running engine produces more harmful emissions, contributing to air pollution.
Further Component Damage: Continuing to drive with a faulty TPS could put undue stress on other engine components, such as the fuel injectors and ignition system.

Recommended Fixes: Testing and Replacement

The following steps will guide you through testing your TPS. Always consult your vehicle's repair manual for specific instructions and wiring diagrams related to your make and model.

Tools You'll Need:

Multimeter
Wiring Diagram (for your specific vehicle)
Screwdrivers or Wrenches (to access the TPS)
Safety Glasses
Gloves

Testing the TPS:

Safety First: Disconnect the negative battery cable before starting any electrical work. Wear safety glasses and gloves.

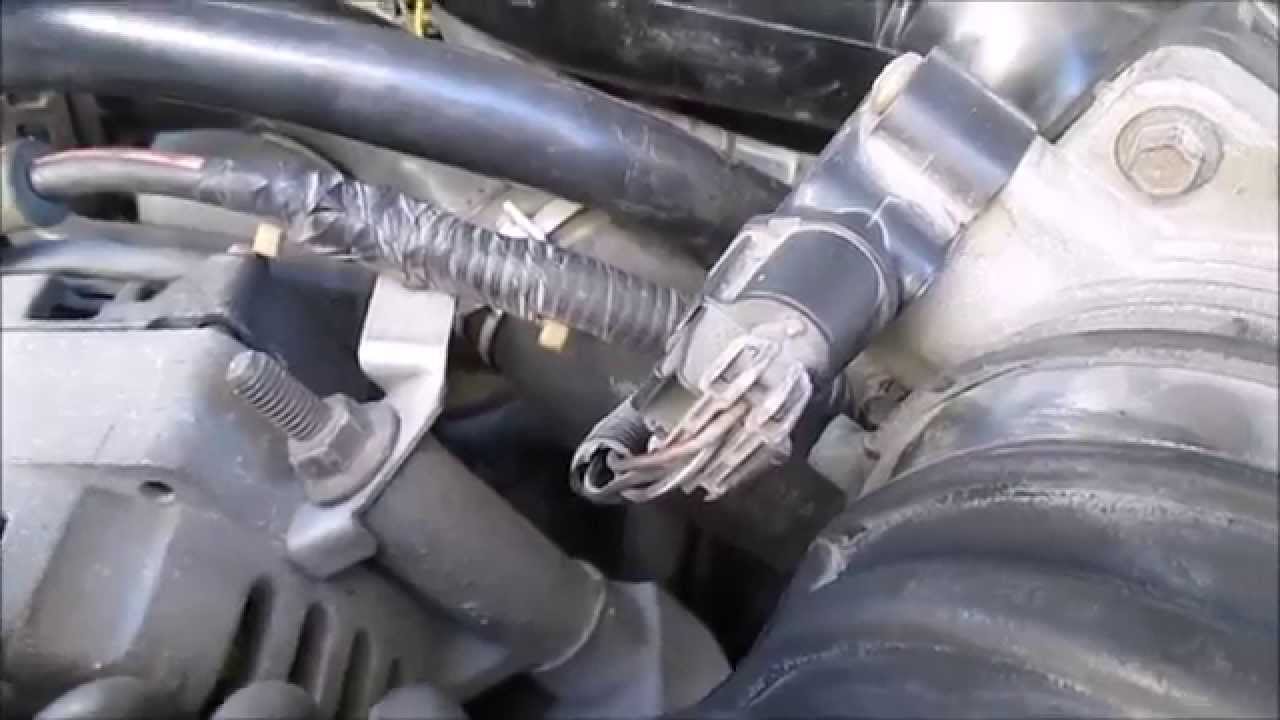

Locate the TPS: Refer to your vehicle's repair manual to find the location of the TPS on the throttle body.
Identify the TPS Terminals: Consult the wiring diagram to identify the ground, signal, and power terminals on the TPS connector.
Backprobe the Connector: With the TPS connector still plugged in, use backprobes (thin wires or pins) to access the terminals on the connector without disconnecting it. This allows you to measure the voltage while the sensor is connected and operating.
Set Up the Multimeter: Set your multimeter to measure DC voltage.

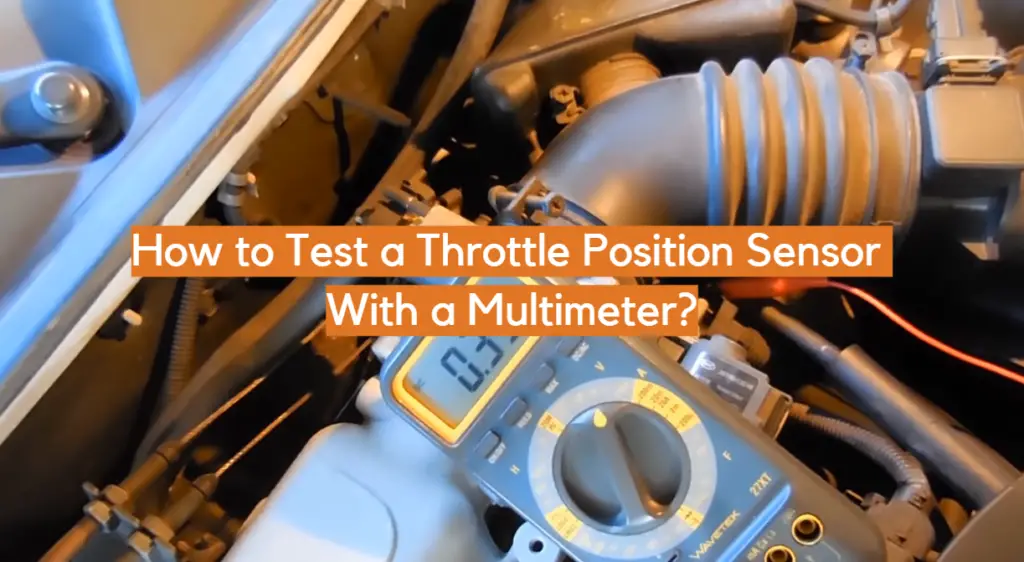

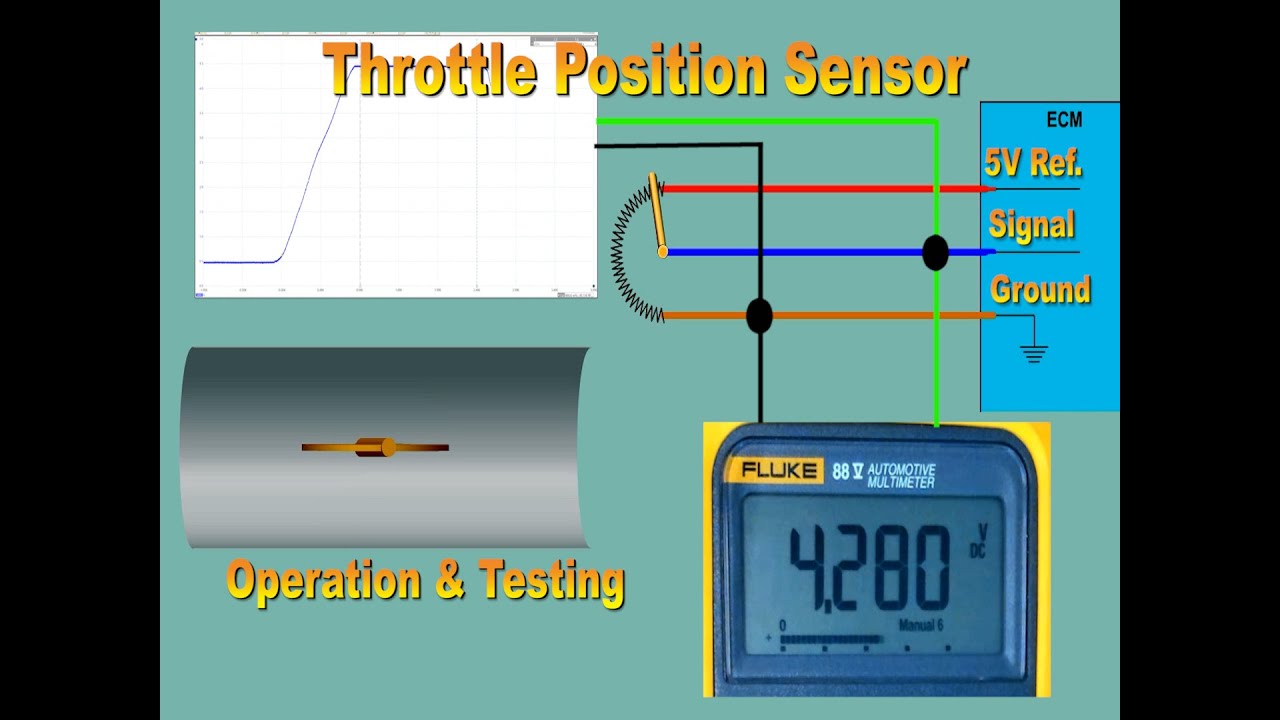

Measure the Reference Voltage: Connect the multimeter's black lead to the ground terminal and the red lead to the power terminal. Turn the ignition key to the "ON" position (but don't start the engine). You should see a reference voltage of approximately 5 volts. If you don't see this voltage, there may be a problem with the wiring or the ECU.
Measure the Signal Voltage (Static Test): Move the red lead to the signal terminal. With the throttle plate closed (idle position), you should see a voltage reading between 0.5 and 1.0 volts (check your vehicle's specifications). If the voltage is outside of this range, the TPS might be misadjusted or faulty.
Measure the Signal Voltage (Dynamic Test): Slowly open the throttle plate by hand, while observing the signal voltage on the multimeter. The voltage should increase smoothly and linearly as the throttle plate opens, up to approximately 4.5-5.0 volts when the throttle is fully open. Any sudden jumps, dropouts, or flat spots in the voltage signal indicate a faulty TPS.
Check for Continuity: Turn off the ignition and disconnect the TPS connector. Use the multimeter to check for continuity between the sensor terminals. Refer to your vehicle's repair manual for the correct resistance values.

Replacing the TPS:

If the TPS fails any of the tests, it needs to be replaced. Here's a general outline of the replacement process:

Disconnect the Battery: As always, disconnect the negative battery cable.
Disconnect the TPS Connector: Carefully disconnect the electrical connector from the TPS.

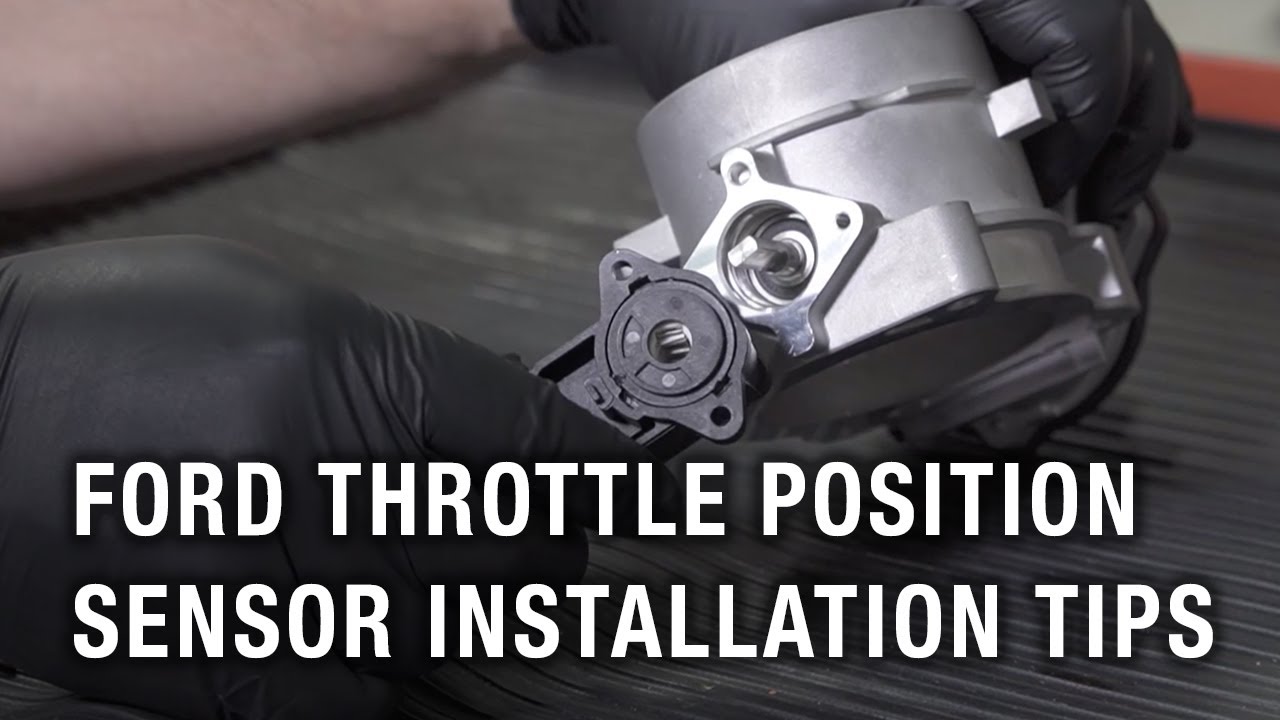

Remove the Old TPS: Use the appropriate screwdrivers or wrenches to remove the screws or bolts holding the TPS to the throttle body. Note the orientation of the sensor for proper installation of the new one.
Install the New TPS: Install the new TPS in the same orientation as the old one. Tighten the screws or bolts to the specified torque (refer to your repair manual).
Reconnect the Connector: Reconnect the electrical connector to the TPS.
Reconnect the Battery: Reconnect the negative battery cable.
Reset the ECU (if necessary): Some vehicles require you to reset the ECU after replacing the TPS. This can often be done by disconnecting the battery for a period of time or using a scan tool. Refer to your vehicle's repair manual.
Test Drive: Take the vehicle for a test drive to ensure that the new TPS is working properly and that the engine is running smoothly.

Cost Estimates and Shop Advice

The cost of a new TPS can range from $30 to $150, depending on the vehicle make and model, and the brand of the sensor. Aftermarket sensors are generally less expensive than OEM (Original Equipment Manufacturer) sensors.

If you choose to have a professional mechanic replace the TPS, labor costs can range from $50 to $200, depending on the shop's hourly rate and the complexity of the job. The total cost (parts and labor) could therefore be between $80 and $350.

When choosing a mechanic, look for a shop with a good reputation and experienced technicians. Ask for a written estimate before authorizing any work. Also, inquire about the warranty on the parts and labor.

If you are not comfortable working on your car's electrical system, it's best to take it to a qualified mechanic. Improper installation or testing can damage the sensor or the ECU.

Credibility: TSBs, Community Data, and Common Failure Mileage

Many manufacturers have issued Technical Service Bulletins (TSBs) related to TPS failures on specific vehicle models. These TSBs often provide diagnostic procedures, repair instructions, and information about common problems. Searching for TSBs related to your vehicle can provide valuable insights.

Online forums and automotive communities are another great resource for information about TPS failures. Many owners share their experiences and solutions, providing valuable data on common symptoms, failure mileage, and repair tips. For example, common failure mileage for a TPS can range from 80,000 to 150,000 miles, but this can vary greatly depending on driving conditions and maintenance practices. Some community data indicates that certain car brands TPS tend to fail more often than others.

By combining the information in this article with specific data related to your vehicle, you can effectively diagnose and repair TPS issues, restoring your vehicle's performance and saving money on costly repairs.
