The Throttle Position Sensor (TPS) is a critical component in your car's engine management system. Knowing how to test it with a multimeter is a valuable skill for any DIY mechanic. A faulty TPS can cause a range of drivability problems, from rough idling and stalling to poor acceleration and even transmission shifting issues. By understanding how to diagnose a TPS, you can potentially save yourself money on expensive mechanic bills and ensure your car runs smoothly.

Understanding the Engine Management System and the TPS Role

Modern cars rely on a complex engine management system, also known as the Engine Control Unit (ECU) or Powertrain Control Module (PCM). This system uses various sensors to gather information about engine operating conditions, process that data, and then adjust actuators like fuel injectors and ignition timing to optimize performance and efficiency. The TPS is one of these crucial sensors.

The TPS directly monitors the position of the throttle plate, which controls the amount of air entering the engine. It's typically mounted on the throttle body, directly connected to the throttle shaft. As you press the accelerator pedal, the throttle plate opens, and the TPS sends a corresponding voltage signal to the ECU. The ECU uses this signal, along with inputs from other sensors like the Mass Airflow (MAF) sensor and the Oxygen (O2) sensors, to determine the correct amount of fuel to inject into the cylinders.

Think of it like this: the accelerator pedal is your request for more power. The TPS translates that request into a quantifiable signal for the ECU. Without an accurate signal from the TPS, the ECU won't know how much fuel to deliver, resulting in poor performance or even engine damage.

Technical Breakdown: How a TPS Works and How to Test It

Most TPS sensors are potentiometers. A potentiometer is a simple electrical device with three terminals: a power input, a ground, and a signal output. Inside the TPS, a resistive strip is connected between the power and ground terminals. A wiper arm, mechanically linked to the throttle shaft, moves along this resistive strip as the throttle plate opens and closes. As the wiper arm moves, the voltage at the signal output changes proportionally to the throttle position.

Testing the TPS with a Multimeter: Steps and Procedures

Before you begin, you'll need a digital multimeter (DMM). A DMM measures voltage, resistance, and current. Make sure your DMM is set to the appropriate setting for each test. Also, it is important to consult your vehicle's service manual for the specific voltage ranges expected for your TPS. These ranges can vary depending on the make, model, and year of your vehicle.

1. Identifying the Terminals

The first step is to identify the three terminals on the TPS. The easiest way to do this is to consult your vehicle's wiring diagram, which should be available in your service manual or online. However, if you don't have a wiring diagram, you can often identify the terminals through trial and error or by inspecting the connector for markings.

Typically, one terminal will be the 5V power supply from the ECU, one will be ground, and the third will be the signal output. You can usually identify the power and ground terminals by probing them with the multimeter set to DC voltage with the ignition on (but engine off). You should see approximately 5V between the power and ground terminals.

2. Testing the Voltage Sweep

This is the most common and important test. It checks whether the TPS is providing a smooth and proportional voltage signal as the throttle plate opens and closes.

  1. Set your multimeter to DC voltage mode, typically in the 20V range.
  2. Connect the black lead (negative) of the multimeter to a good ground point on the vehicle's chassis or the battery's negative terminal.
  3. Connect the red lead (positive) of the multimeter to the signal output terminal of the TPS.
  4. Turn the ignition on, but do not start the engine.
  5. Slowly open the throttle plate by hand, from fully closed to fully open. Observe the voltage reading on the multimeter.

What to look for: The voltage reading should increase smoothly and steadily as the throttle plate opens. There should be no sudden jumps, drops, or flat spots in the voltage signal. Ideally, the voltage should start around 0.5V to 1.0V with the throttle closed and increase to approximately 4.5V to 5.0V with the throttle fully open. These values are approximate and may vary depending on the vehicle.

Interpreting the results:

  • Smooth and steady increase: The TPS is likely functioning correctly.
  • Sudden jumps or drops: The TPS likely has a dead spot or worn spot. This is a sign of failure and the TPS should be replaced.
  • No voltage change: The TPS is likely not receiving power or ground, or the signal output is faulty. Check the wiring and connections.
  • Voltage reading is out of range: The TPS may be misadjusted or faulty. Consult your service manual for the correct voltage range and adjustment procedure.

3. Testing the TPS Resistance

This test checks the overall resistance of the TPS and can help identify internal shorts or opens. Before performing this test, make sure the ignition is off and the TPS connector is disconnected.

  1. Set your multimeter to resistance mode (Ohms).
  2. Connect the multimeter leads to the power and ground terminals of the TPS.
  3. Observe the resistance reading.

Consult your service manual for the expected resistance range for your TPS. A reading that is significantly higher or lower than the specified range indicates a faulty TPS.

4. Testing for Shorts to Ground

This test checks if the TPS signal wire is shorted to ground, which can cause inaccurate readings and driveability issues. Before performing this test, make sure the ignition is off and the TPS connector is disconnected.

  1. Set your multimeter to resistance mode (Ohms).
  2. Connect one multimeter lead to the signal output terminal of the TPS.
  3. Connect the other multimeter lead to a known good ground point on the vehicle chassis.
  4. Observe the resistance reading.

Ideally, the reading should be infinite resistance (or very high). A low resistance reading (close to zero Ohms) indicates a short circuit to ground, indicating a faulty TPS or wiring.

Common Issues and Maintenance Concerns

TPS sensors are exposed to harsh under-hood conditions, including heat, vibration, and moisture. Over time, these factors can cause the sensor to degrade and fail. Common issues include:

  • Worn resistive strip: This is the most common cause of TPS failure. As the wiper arm moves back and forth, it can wear down the resistive strip, creating dead spots or erratic voltage signals.
  • Corroded connectors: Corrosion can build up on the TPS connector terminals, causing poor electrical connections.
  • Broken wires: The wires leading to the TPS can become brittle and break due to age and vibration.
  • Internal shorts or opens: These can occur due to damage or degradation of the internal components of the TPS.

Regular inspection of the TPS and its wiring is recommended. Clean any corroded connectors with electrical contact cleaner. If you suspect a faulty TPS, replace it with a new, high-quality sensor. Avoid using cheap aftermarket sensors, as they may not be as reliable as OEM or reputable aftermarket brands.

Do's and Don'ts / Best Practices

  • DO consult your vehicle's service manual for the correct testing procedures and voltage ranges.
  • DO use a high-quality digital multimeter.
  • DO ensure that the TPS connector is clean and free of corrosion.
  • DO disconnect the negative battery terminal before working on any electrical components.
  • DO replace the TPS if you suspect it is faulty.
  • DON'T use a test light to test the TPS, as this can damage the sensor.
  • DON'T try to adjust the TPS without proper tools and knowledge.
  • DON'T overtighten the TPS mounting screws, as this can damage the sensor.
  • DON'T buy cheap, unreliable aftermarket sensors.
  • DO double check your work! Verify proper connections and test again after replacing the TPS.

Conclusion

Testing a TPS with a multimeter is a straightforward process that can save you time and money. By understanding how the TPS works and following the steps outlined in this article, you can diagnose and troubleshoot many common drivability problems. Remember to consult your vehicle's service manual for specific instructions and voltage ranges. While a multimeter can give you valuable insight, it is not a perfect tool. If your tests are inconclusive or you are still experiencing issues, it might be best to consult with a qualified mechanic. However, with a little knowledge and the right tools, you can confidently tackle this task yourself. Replacing a faulty TPS can restore your car's performance and ensure years of reliable driving. Always prioritize safety and double check your work before hitting the road.

How To Test A Tps Sensor With A Multimeter Test a Throttle Position Sensor using a Multimeter or OBD II Scanner
www.youtube.com

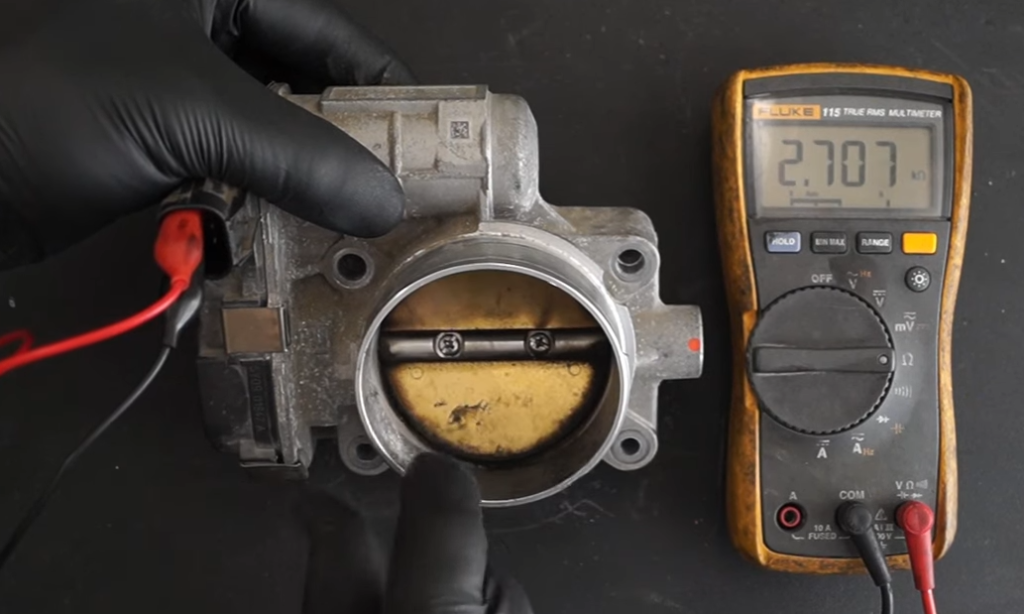

How To Test A Tps Sensor With A Multimeter How to Test a Throttle Position Sensor With a Multimeter
electronicshacks.com

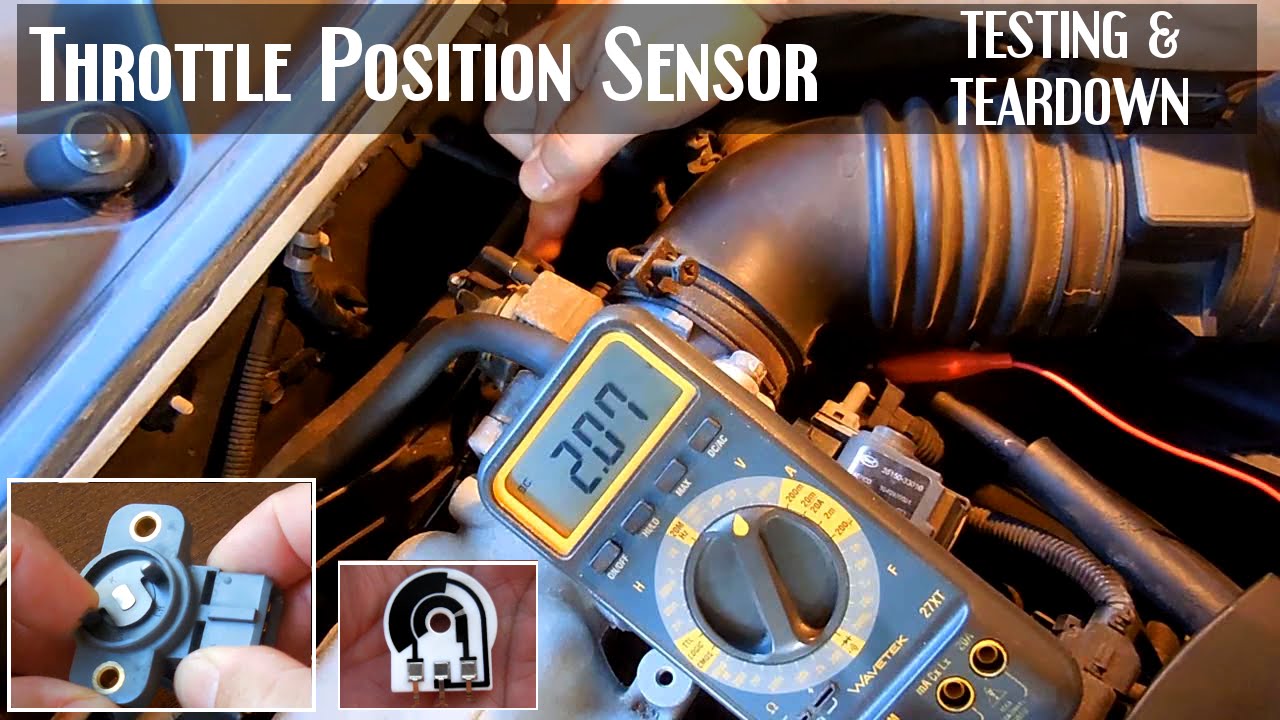

How To Test A Tps Sensor With A Multimeter How To Test A Throttle Position Sensor (TPS) - YouTube
