How To Test Air Flow Sensor

The Mass Air Flow (MAF) sensor is a critical component in modern internal combustion engines. A malfunctioning MAF sensor can lead to a host of performance problems, from poor fuel economy to rough idling and even a complete failure to start. Knowing how to test your MAF sensor is a valuable skill for any car owner looking to save money on repairs and maintain their vehicle's performance. This article will guide you through the process of testing your MAF sensor, empowering you to diagnose issues and potentially resolve them yourself.

Understanding the Engine Management System and the MAF Sensor's Role

To understand why the MAF sensor is so important, we need to look at the basics of engine management. Modern engines rely on an Engine Control Unit (ECU), sometimes also called an Engine Control Module (ECM). This electronic brain monitors various engine parameters and adjusts fuel delivery and ignition timing to optimize performance and efficiency. One of the most crucial parameters the ECU needs to know is how much air is entering the engine. This is where the MAF sensor comes in.

The MAF sensor sits in the intake tract, typically between the air filter and the throttle body. Its primary function is to measure the mass of air flowing into the engine. This isn't just about volume; it's about the actual mass, accounting for air density changes due to temperature and altitude. The ECU uses this mass airflow data, along with inputs from other sensors like the oxygen sensors (O2 sensors) and the engine coolant temperature sensor (ECT), to calculate the correct amount of fuel to inject. This ensures the engine runs with the ideal air-fuel ratio (AFR), which is typically around 14.7:1 for gasoline engines (14.7 parts air to 1 part fuel) during stoichiometric combustion. Deviations from this ratio, whether lean (too much air) or rich (too much fuel), can significantly impact engine performance and emissions.

Different Types of MAF Sensors

While the function remains the same, there are a couple of common types of MAF sensors. The two most prevalent are:

• Hot-Wire MAF Sensors: These use a heated wire or film placed in the airflow. The ECU maintains a constant temperature on the wire. As air flows past the wire, it cools down. The amount of electrical current needed to maintain the wire's temperature is directly proportional to the mass of air flowing through the sensor. This current value is then converted into a voltage signal that the ECU reads.
• Vane Meter MAF Sensors: These use a mechanical vane that pivots in the airstream. As air flows, it pushes against the vane. The degree of vane movement is measured by a potentiometer, which translates the mechanical movement into an electrical signal that represents the airflow. These are older technology and are less common in modern vehicles.

This article will primarily focus on testing hot-wire MAF sensors, as they are the most common type found in modern vehicles.

Technical Breakdown: How to Test a MAF Sensor

Testing a MAF sensor requires a few basic tools and a little patience. Here's a step-by-step guide:

1. Gather Your Tools: You will need a digital multimeter (DMM), basic hand tools (screwdrivers, socket set), and potentially a scan tool (OBD2 scanner). A wiring diagram for your vehicle can also be helpful.
2. Locate the MAF Sensor: As mentioned earlier, it's typically located in the intake duct between the air filter and the throttle body. Disconnect the electrical connector from the MAF sensor.
3. Visual Inspection: Inspect the MAF sensor for any obvious damage, such as cracks, broken wires, or debris. Check the connector and wiring harness for corrosion or damage. Important: Do not physically touch the hot-wire element if you can see it. They are very sensitive and can easily be damaged.

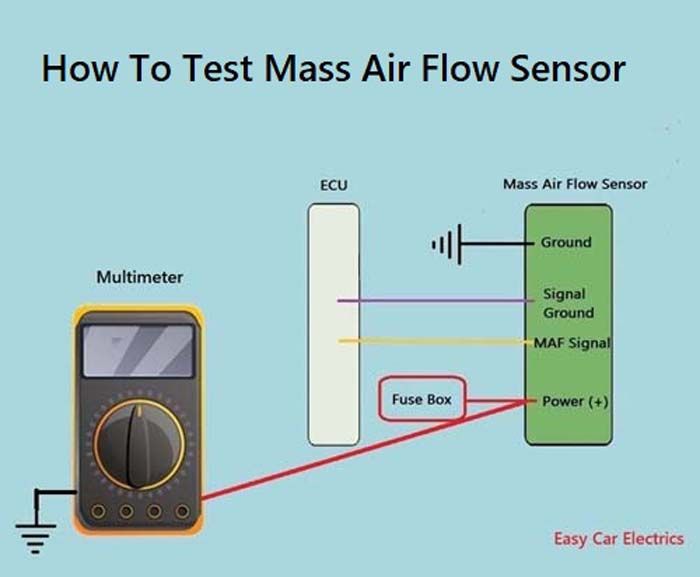

4. Check for Power and Ground: Using your DMM, check for power and ground at the MAF sensor connector with the ignition key in the "on" position (engine off). Consult your vehicle's wiring diagram to identify the correct pins. You should typically find 12V on the power wire and a solid ground connection.
5. Voltage Testing (Engine Idle): Reconnect the MAF sensor connector. Set your DMM to read DC voltage. With the engine running at idle, backprobe the signal wire (again, consult your wiring diagram to identify the correct wire). Backprobing means inserting the DMM probe into the back of the connector without disconnecting it, allowing you to measure the voltage while the sensor is connected and functioning. A healthy MAF sensor should typically read between 0.5V and 1.5V at idle. The exact voltage will vary depending on the vehicle.
6. Voltage Testing (Throttle Response): With the engine still running, slowly increase the engine speed by opening the throttle. The voltage on the signal wire should increase smoothly and proportionally with the engine speed. A significant jump in voltage or no change at all indicates a potential problem with the MAF sensor. The voltage should generally increase to 4.0 - 5.0V at or near wide open throttle.
7. Frequency Testing (Alternative Method): Some MAF sensors output a frequency signal instead of a voltage signal. In this case, you'll need to use a DMM that can measure frequency. The frequency should increase proportionally with engine speed. Consult your vehicle's repair manual for the expected frequency range.
8. Using an OBD2 Scanner: A scan tool can read the MAF sensor data directly from the ECU. Look for the "MAF sensor reading" parameter, which is usually expressed in grams per second (g/s). Compare the reading to the specifications in your vehicle's repair manual. A significant deviation from the expected values indicates a potential issue.
9. Cleaning the MAF Sensor (Proceed with Caution): If the sensor appears to be functioning but the readings are slightly off, you can try cleaning it. Important: Only use a MAF sensor cleaner specifically designed for this purpose. Do not use carburetor cleaner or other solvents, as they can damage the sensor. Follow the instructions on the cleaner. Spray the hot-wire element lightly and allow it to air dry completely before reinstalling the sensor.

Common Issues and Maintenance Concerns

Several factors can contribute to MAF sensor failure or malfunction:

• Contamination: Dust, dirt, oil, and other debris can accumulate on the hot-wire element, affecting its accuracy. This is a common cause of MAF sensor problems.
• Electrical Problems: Faulty wiring, corroded connectors, or a weak ground connection can also cause MAF sensor malfunctions.
• Physical Damage: Impact or improper handling can damage the sensor internally.
• Aftermarket Air Filters: Oiled aftermarket air filters can sometimes deposit oil on the MAF sensor, leading to inaccurate readings.

Regular maintenance can help prevent MAF sensor problems. Ensure your air filter is clean and properly installed. Avoid over-oiling aftermarket air filters. Inspect the MAF sensor connector and wiring regularly for any signs of damage or corrosion.

Do’s and Don’ts / Best Practices

• Do use a digital multimeter (DMM) for accurate measurements.
• Do consult your vehicle's wiring diagram before testing.
• Do use a MAF sensor cleaner specifically designed for the sensor.
• Do disconnect the battery before cleaning the MAF sensor (optional, but recommended).
• Do allow the MAF sensor to air dry completely after cleaning.
• Do research the typical voltage or frequency range for your vehicle's MAF sensor.

• Don’t touch the hot-wire element with your fingers or any tools.
• Don’t use carburetor cleaner or other solvents to clean the MAF sensor.
• Don’t over-oil aftermarket air filters.
• Don’t assume the MAF sensor is faulty without proper testing.
• Don’t replace the MAF sensor without first checking for other potential problems, such as vacuum leaks or faulty wiring.

Conclusion

Testing a MAF sensor is a relatively straightforward process that can save you time and money. By understanding how the MAF sensor works and following the steps outlined in this article, you can effectively diagnose potential issues and determine whether the sensor needs cleaning or replacement. If you are unsure about any aspect of the testing procedure, consult a qualified mechanic. Before replacing the MAF sensor, carefully consider all the testing results, clean the sensor if appropriate, and double-check all connections. A faulty MAF sensor can cause significant performance problems, so addressing it promptly is crucial for maintaining your vehicle's efficiency and reliability.
