How To Test Air Mass Flow Sensor

The Mass Air Flow (MAF) sensor is a crucial component in modern vehicles, directly impacting engine performance, fuel efficiency, and emissions. If your car is exhibiting symptoms like poor acceleration, rough idling, or a check engine light, a faulty MAF sensor could be the culprit. This article will guide you through the process of testing your MAF sensor, empowering you to diagnose the issue yourself, potentially saving you time and money. This guide assumes you have a basic understanding of automotive systems and tools, such as a multimeter.

Background: The Engine and Its Air Intake

To understand the MAF sensor's importance, let's review the basics of how an internal combustion engine works. The engine needs a precise air-fuel mixture to burn efficiently. This mixture is defined by the stoichiometric ratio, which is approximately 14.7:1 (air to fuel by mass). Deviations from this ratio can lead to various problems. Too much fuel (rich mixture) results in poor fuel economy and increased emissions. Too little fuel (lean mixture) can cause hesitation, misfires, and even engine damage.

The engine's Engine Control Unit (ECU), often also called Powertrain Control Module (PCM), is the brain that manages this air-fuel mixture. The ECU relies on various sensors to gather data, including:

• MAF sensor: Measures the mass of air entering the engine.
• Throttle Position Sensor (TPS): Indicates how far the throttle plate is open.
• Oxygen sensors (O2 sensors): Monitor the oxygen content in the exhaust, providing feedback on the combustion process.
• Engine coolant temperature sensor (ECT): Measures the engine's temperature.

Using this information, the ECU calculates the correct amount of fuel to inject, ensuring optimal combustion.

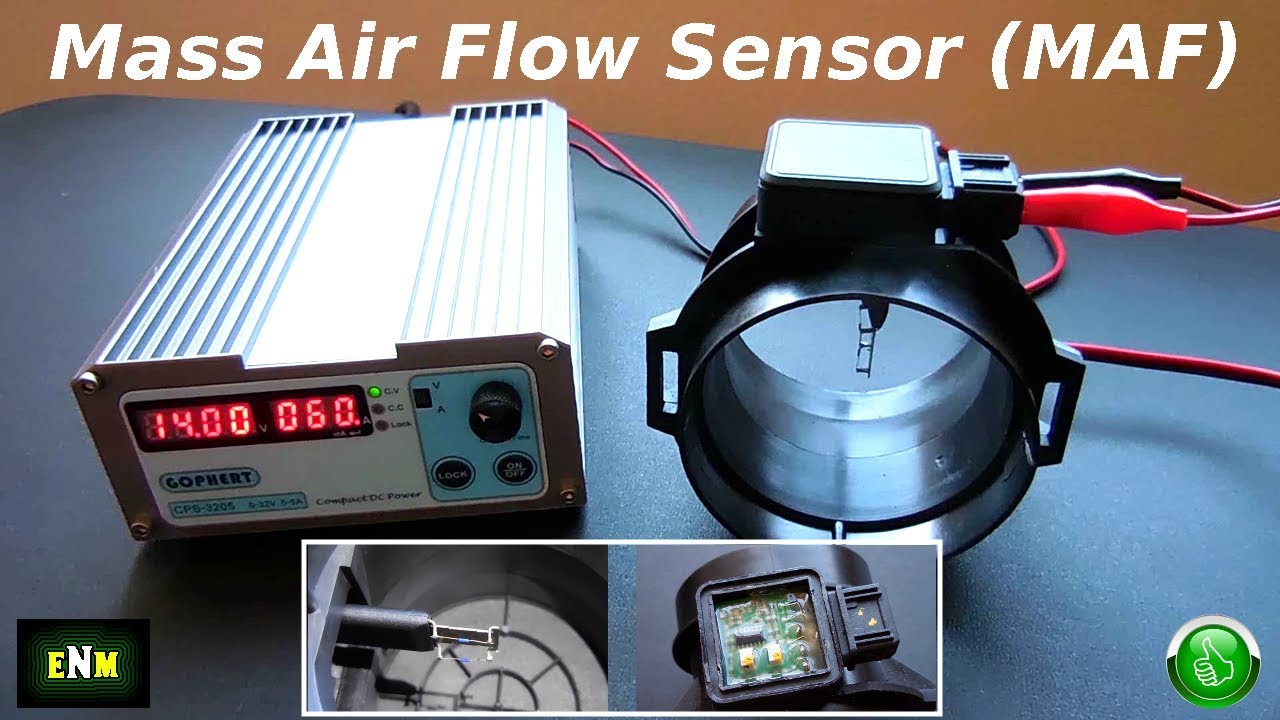

Technical Breakdown: How the MAF Sensor Works

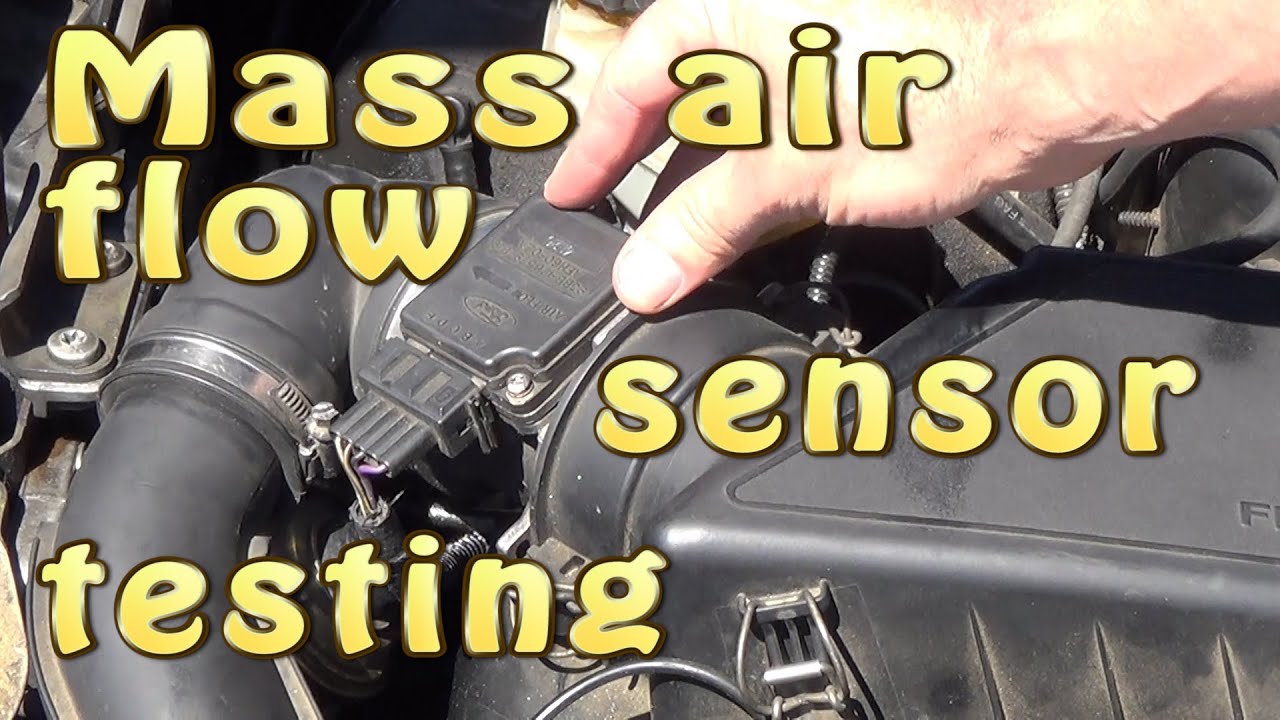

The MAF sensor is located in the air intake tract, typically between the air filter box and the throttle body. Its primary function is to measure the mass flow rate of the air entering the engine. There are two main types of MAF sensors:

1. Hot-Wire MAF Sensor

This is the most common type. It utilizes a heated wire or element (often platinum) exposed to the incoming airflow. The sensor works on the principle of heat transfer. Here's how it works:

1. The hot wire is heated to a constant temperature, typically a set amount above the incoming air temperature (e.g., 200°C above ambient).
2. As air flows past the wire, it cools the wire.
3. The ECU monitors the current required to maintain the wire's constant temperature.
4. The higher the airflow, the more current is needed to keep the wire hot.
5. The ECU correlates the current with the mass of the air flowing into the engine.

Some hot-wire MAF sensors also include an Intake Air Temperature (IAT) sensor, which measures the temperature of the incoming air. This allows the ECU to compensate for air density variations caused by temperature changes.

2. Hot-Film MAF Sensor

A hot-film MAF sensor operates similarly to the hot-wire type, but instead of a wire, it uses a thin, heated film resistor. The film is typically made of platinum or a similar material. The advantage of a hot-film sensor is its faster response time and greater durability compared to a hot-wire sensor.

MAF Sensor Signal

The MAF sensor outputs a signal to the ECU that represents the mass airflow rate. This signal can be an analog voltage signal (typically 0-5 volts) or a digital frequency signal. The voltage or frequency increases with increasing airflow. The ECU uses this signal to calculate the required fuel injection duration.

Testing the MAF Sensor

Testing a MAF sensor involves both visual inspection and electrical testing using a multimeter. Here's a step-by-step guide:

1. Visual Inspection

• Check for damage: Inspect the sensor for any physical damage, such as cracks or broken wires.
• Cleanliness: Examine the sensor for dirt, debris, or oil contamination. A dirty MAF sensor can provide inaccurate readings. Use a dedicated MAF sensor cleaner to carefully clean the sensing element if needed. Do not use carburetor cleaner or other harsh chemicals.
• Wiring and connectors: Check the wiring harness and connector for any signs of damage, corrosion, or loose connections.

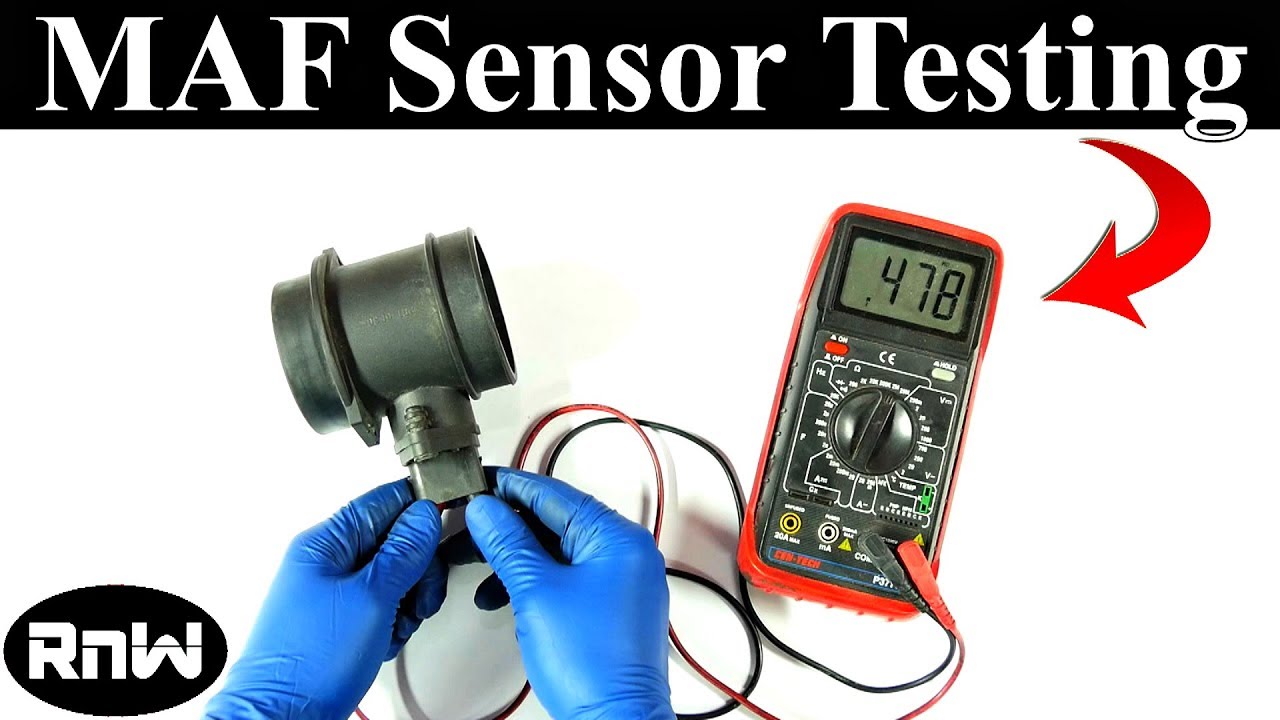

2. Electrical Testing (Key On, Engine Off - KOEO)

This test verifies the sensor's power and ground connections.

1. Locate the MAF sensor connector. Refer to your vehicle's repair manual for the exact location and wiring diagram.
2. Identify the power and ground wires. The wiring diagram will specify which pins correspond to power and ground.
3. Set your multimeter to DC voltage mode.
4. Connect the black lead of the multimeter to a good ground (e.g., the vehicle's chassis).
5. Turn the ignition key to the "ON" position, but do not start the engine.

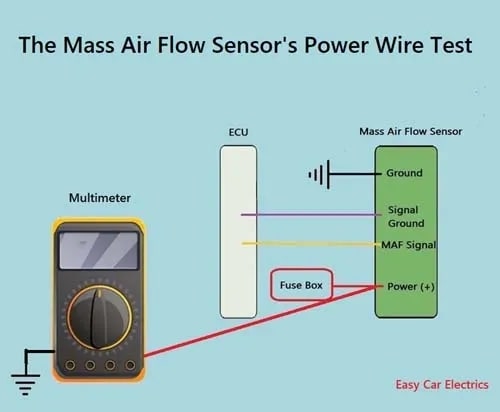

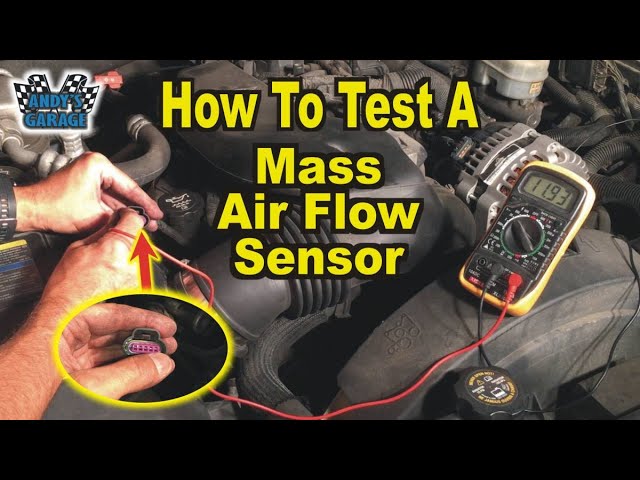

6. Probe the power wire with the red lead of the multimeter. You should see a voltage close to battery voltage (typically around 12 volts).
7. Test for ground continuity. Set your multimeter to continuity mode. Probe the ground wire with one lead of the multimeter and a known good ground with the other lead. You should hear a beep, indicating a good connection.

If you do not find power or ground, investigate the wiring and fuse associated with the MAF sensor.

3. Electrical Testing (Key On, Engine Running - KOER)

This test measures the MAF sensor's output signal while the engine is running.

1. Reconnect the MAF sensor connector.
2. Start the engine and let it idle.
3. Backprobe the signal wire. *Backprobing* involves inserting the multimeter probe into the back of the connector while it's still connected to the sensor. This allows you to measure the signal without disconnecting the sensor. Special backprobing pins can be purchased for this purpose. If you don't have these, a thin paperclip can be used carefully, but avoid damaging the connector or wires.
4. Observe the voltage reading at idle. A typical MAF sensor voltage at idle ranges from 0.5 to 1.5 volts, but this can vary depending on the vehicle. Consult your vehicle's repair manual for the specific expected range.
5. Increase the engine RPM gradually. As you increase the RPM, the MAF sensor voltage should also increase smoothly and proportionally. Any sudden jumps, drops, or flat spots in the voltage reading indicate a potential problem with the sensor.

4. Using a Scan Tool

A scan tool (OBDII scanner) can provide valuable information about the MAF sensor's performance. Here's how to use a scan tool to diagnose MAF sensor issues:

1. Connect the scan tool to the vehicle's OBDII port.
2. Turn the ignition key to the "ON" position.
3. Select "Live Data" or "Data Stream" on the scan tool.
4. Look for the MAF sensor parameter. This parameter is typically labeled as "MAF," "MAF Sensor," or "Air Flow Rate."
5. Observe the MAF reading at idle. Compare the reading to the expected range specified in your vehicle's repair manual.
6. Monitor the MAF reading as you increase the engine RPM. The reading should increase smoothly and proportionally with the RPM.
7. Check for any Diagnostic Trouble Codes (DTCs) related to the MAF sensor. Common codes include P0100, P0101, P0102, and P0103. These codes can provide clues about the nature of the problem.

Common Issues and Maintenance Concerns

• Contamination: The most common cause of MAF sensor failure is contamination from dirt, dust, oil, or other debris. Regularly replacing the air filter can help prevent contamination.
• Electrical failures: Damaged wiring, corroded connectors, or internal sensor failures can also cause MAF sensor problems.
• Sensor aging: Over time, the MAF sensor's accuracy can degrade due to wear and tear.
• Aftermarket air filters: Some oiled aftermarket air filters can deposit oil onto the MAF sensor, causing inaccurate readings.

Do's and Don'ts / Best Practices

• Do use a dedicated MAF sensor cleaner to clean the sensor.
• Don't use carburetor cleaner or other harsh chemicals, as they can damage the sensing element.
• Do handle the MAF sensor carefully to avoid damaging the delicate sensing element.
• Don't touch the sensing element with your fingers.
• Do replace the air filter regularly.
• Do use a scan tool to monitor the MAF sensor's performance.
• Don't ignore symptoms of a faulty MAF sensor, such as poor performance or a check engine light.
• Do consult your vehicle's repair manual for specific testing procedures and specifications.

Conclusion

Testing your MAF sensor is a straightforward process that can help you diagnose engine performance issues and potentially save money on repairs. By following the steps outlined in this article, you can determine whether your MAF sensor is functioning correctly and take appropriate action. If you suspect a faulty MAF sensor based on your testing, replacing it is generally recommended. While cleaning can sometimes temporarily improve performance, a faulty sensor will eventually need replacement. Remember to consult your vehicle's repair manual for specific instructions and specifications. If you are uncomfortable performing these tests yourself, it's always best to consult a qualified mechanic.
