How To Test Spark Plug Coil Pack
Spark plug coil packs are critical components of modern internal combustion engines, responsible for delivering the high-voltage spark needed to ignite the air-fuel mixture in each cylinder. A failing coil pack can lead to a range of performance issues, from a subtle misfire to a complete engine stall. Diagnosing and testing these coil packs is a skill that can save you time, money, and the frustration of being stranded on the side of the road. This article will guide you through the process, providing a detailed understanding of coil pack function, common issues, and various testing methods.
Background: Ignition Systems and Coil Packs
To understand coil pack testing, it's essential to grasp the basics of the ignition system. In older vehicles, a single ignition coil and a distributor system were used to generate and distribute the high-voltage spark. Modern engines, however, generally utilize a coil-on-plug (COP) or a coil pack system. These systems offer several advantages, including improved spark control, increased energy output, and reduced maintenance.
Coil-on-plug (COP) systems have a dedicated coil mounted directly atop each spark plug. This eliminates the need for spark plug wires, minimizing voltage loss and improving ignition efficiency. Coil packs, on the other hand, typically consist of multiple coils integrated into a single unit, serving two or more cylinders. While spark plug wires may still be present in coil pack systems, they are generally shorter than in distributor-based systems.
The Role of the Coil
At its core, a coil is a simple electrical transformer. It consists of two windings – a primary winding and a secondary winding – wrapped around an iron core. The primary winding has relatively few turns of thick wire, while the secondary winding has many turns of thin wire. When the engine control unit (ECU) triggers the primary winding, a magnetic field is created. When the ECU cuts off the current to the primary winding, the magnetic field collapses rapidly. This collapsing field induces a high-voltage current in the secondary winding, which is then discharged across the spark plug gap, igniting the air-fuel mixture.
Technical Breakdown: How Coil Packs Work
The coil pack's operation is intrinsically linked to the engine control unit (ECU) and its sensors. The ECU monitors various parameters, such as engine speed (RPM), throttle position, and engine load, to determine the optimal ignition timing. Based on this data, the ECU sends a signal to the coil pack to initiate the spark event.
The signal from the ECU is typically a ground signal. When the ECU grounds the primary winding, current flows through it, building up a magnetic field. When the ECU removes the ground, the magnetic field collapses, generating the high-voltage spark. This precise control over ignition timing is crucial for maximizing engine performance and fuel efficiency.
Dwell time is a critical concept related to coil pack operation. Dwell time refers to the amount of time the primary winding is energized before the spark event. Insufficient dwell time can result in a weak spark, while excessive dwell time can overheat the coil. The ECU dynamically adjusts the dwell time based on engine conditions.
The high voltage generated by the secondary winding is channeled to the spark plug via a connector in COP systems or through spark plug wires in coil pack systems. The spark plug gap must be within the manufacturer's specified range for proper ignition. An excessively wide gap may require more voltage than the coil can produce, leading to misfires. A gap that is too narrow can result in a weak or inconsistent spark.
Common Coil Pack Issues and Maintenance Concerns
Coil packs are subjected to high temperatures, vibrations, and electrical stress, making them prone to failure over time. Common symptoms of a failing coil pack include:
* Misfires: This is the most common symptom. A misfire occurs when one or more cylinders fail to ignite the air-fuel mixture properly. Misfires can cause rough idling, reduced power, and poor fuel economy. * Check Engine Light (CEL): A failing coil pack often triggers the CEL, and the ECU will store diagnostic trouble codes (DTCs) related to the misfiring cylinder (e.g., P0301 for a misfire in cylinder 1). * Rough Idling: The engine may shake or vibrate excessively when idling due to inconsistent combustion. * Reduced Power: The engine may lack its usual power, especially during acceleration. * Poor Fuel Economy: Misfires can lead to incomplete combustion, resulting in wasted fuel. * Engine Stalling: In severe cases, a failing coil pack can cause the engine to stall completely.Common Causes of Coil Pack Failure:
* Heat: Excessive heat can degrade the coil's insulation, leading to shorts and failures. * Vibration: Constant vibration can damage the coil's internal components. * Moisture: Moisture can corrode electrical connections and cause short circuits. * Worn Spark Plugs: Worn or improperly gapped spark plugs can place excessive strain on the coil pack. * Voltage Spikes: Electrical surges can damage the coil's internal circuitry.Preventative Maintenance:
* Regular Spark Plug Replacement: Replacing spark plugs at the manufacturer's recommended intervals is crucial for maintaining optimal ignition system performance and preventing coil pack stress. * Visual Inspection: Regularly inspect the coil packs and spark plug wires for signs of damage, such as cracks, corrosion, or oil leaks. * Proper Gapping: Ensure spark plugs are gapped according to the manufacturer's specifications. * Keep Engine Bay Clean: A clean engine bay helps prevent dirt and moisture from accumulating on the coil packs.Testing Methods: Pinpointing the Problem
Several methods can be used to test coil packs and diagnose ignition system issues. Here are some of the most common techniques:

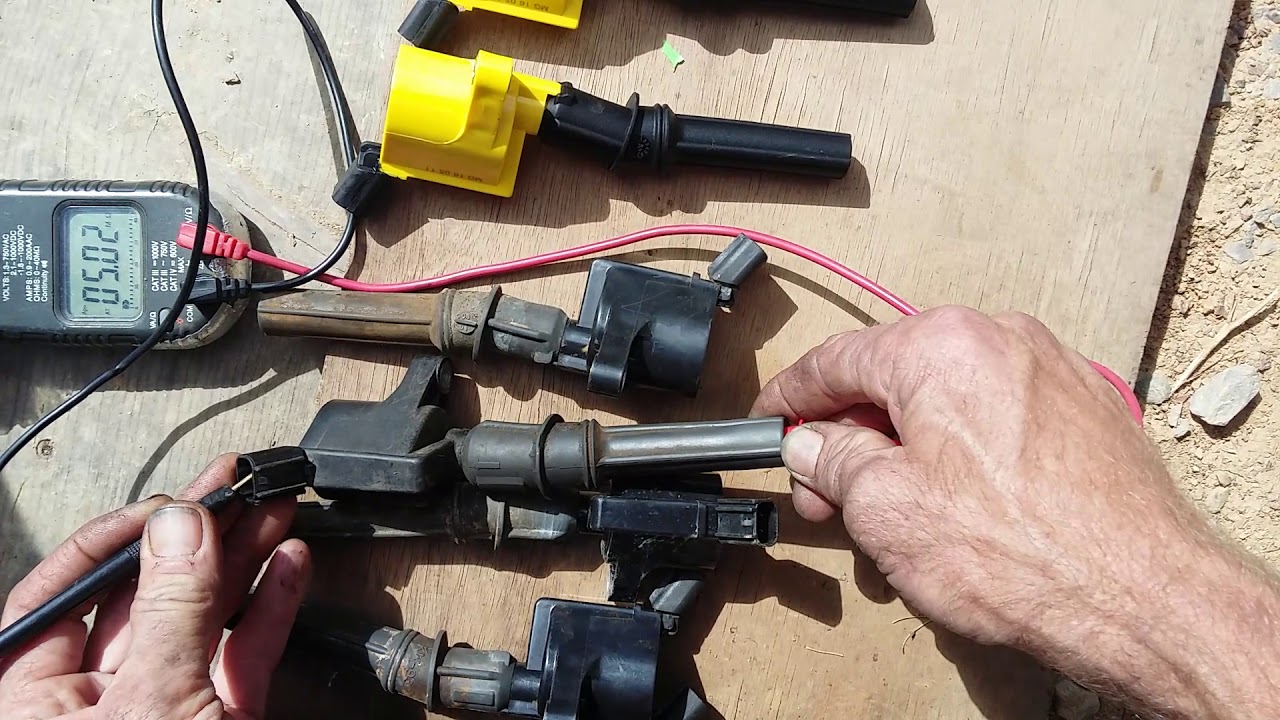

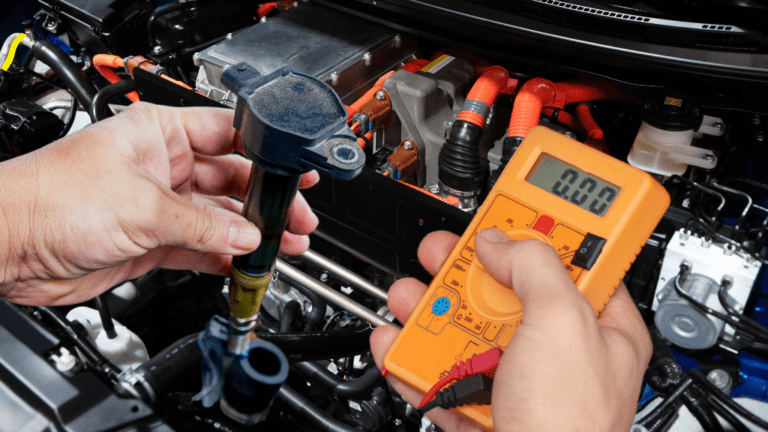

* Visual Inspection: Begin with a thorough visual inspection. Look for cracks, burn marks, or other signs of physical damage. Check the electrical connectors for corrosion or loose connections. * Spark Tester: A spark tester is a simple tool that can be used to verify whether a coil pack is producing a spark. Connect the tester between the coil pack and the spark plug. Crank the engine and observe whether a spark jumps across the tester's gap. A strong, consistent spark indicates a functioning coil. A weak or absent spark suggests a faulty coil. * Multimeter Resistance Test: A multimeter can be used to measure the resistance of the primary and secondary windings. Refer to the manufacturer's specifications for the acceptable resistance ranges. Deviations from these ranges indicate a potential coil failure. To perform this test, disconnect the coil pack connector and set the multimeter to the ohms setting. Measure the resistance between the appropriate terminals for the primary and secondary windings. * Voltage Drop Test: This test measures the voltage drop across the coil pack's power and ground circuits. Excessive voltage drop indicates a poor connection or a wiring problem. To perform this test, connect the positive lead of the multimeter to the power supply terminal of the coil pack and the negative lead to the battery positive terminal. With the engine running, measure the voltage drop. Repeat the process for the ground circuit, connecting the positive lead to the battery negative terminal and the negative lead to the coil pack's ground terminal. * Coil Swapping: If you suspect a specific coil pack is failing, you can try swapping it with a known good coil from another cylinder. If the misfire follows the coil to the new cylinder, this confirms that the coil is faulty. * OBD-II Scanner: An OBD-II scanner can be used to read diagnostic trouble codes (DTCs) stored by the ECU. These codes can provide valuable clues about the location and nature of the ignition system problem. Pay particular attention to misfire codes (P0300-P030n) and coil-related codes. Some advanced scanners can also perform coil activation tests.Do's and Don'ts / Best Practices
Do's: * Consult the Service Manual: Always refer to the vehicle's service manual for specific testing procedures and specifications. * Use Quality Parts: When replacing coil packs, use high-quality parts from reputable manufacturers. * Disconnect the Battery: Disconnect the negative battery terminal before working on the ignition system to prevent electrical shock. * Inspect Spark Plug Wires: If your vehicle has spark plug wires, inspect them for damage and replace them if necessary. * Use Dielectric Grease: Apply dielectric grease to the coil pack connectors and spark plug boots to prevent corrosion and improve electrical contact. * Document Your Work: Take pictures and notes during the testing process to help you remember what you've done. Don'ts: * Touch Live Wires: Never touch the spark plug wires or coil packs while the engine is running. The high voltage can be dangerous. * Use a Test Light: Avoid using a traditional test light on modern ignition systems. Test lights can draw excessive current and damage sensitive electronic components. * Ignore Other Potential Causes: Don't assume that a coil pack is the only possible cause of a misfire. Other potential causes include faulty spark plugs, fuel injectors, or vacuum leaks. * Over-Tighten Fasteners: Avoid over-tightening the coil pack mounting bolts. Over-tightening can damage the coil pack or the engine.Conclusion
Testing spark plug coil packs is a valuable skill for any DIY mechanic. By understanding how these components work, recognizing common symptoms of failure, and employing appropriate testing methods, you can accurately diagnose ignition system problems and save yourself time and money. Remember to always consult the service manual, use quality parts, and follow safety precautions. While some advanced diagnostic procedures may require specialized equipment, the basic testing methods outlined in this article can empower you to tackle many coil pack issues with confidence. If you are uncomfortable performing these tests, it's always best to consult a qualified mechanic. Properly diagnosing and maintaining your ignition system will ensure smooth engine operation, optimal fuel efficiency, and a reliable driving experience.
