How To Test Throttle Position Sensor Without Multimeter

So, your car's acting up, and you suspect the throttle position sensor (TPS) might be the culprit. You're probably wondering, "How can I test this thing without a multimeter?" The good news is, while a multimeter offers the most precise readings, there are some alternative methods you can use to get a general idea of your TPS's functionality.

Why Testing Your TPS Matters

The throttle position sensor plays a vital role in your engine's performance. It tells the engine control unit (ECU) how far open the throttle plate is. This information is crucial for the ECU to determine the correct air-fuel mixture and ignition timing. A faulty TPS can lead to a host of problems, including:

• Poor fuel economy: The engine might be running too rich or too lean.
• Rough idling: The engine might stall or idle erratically.
• Hesitation or stalling during acceleration: The engine might not respond properly when you step on the gas.
• Check engine light: The ECU will often detect a problem with the TPS and trigger the check engine light.
• Surging: The engine speed might fluctuate unexpectedly.

Diagnosing a TPS issue early can save you money on fuel and prevent further damage to your engine. While a professional mechanic with specialized tools can pinpoint the problem with accuracy, understanding your car's symptoms and attempting basic troubleshooting can be a valuable first step.

How to Test Your TPS Without a Multimeter: Alternative Methods

While not as precise as using a multimeter, these methods can help you identify potential TPS issues:

1. The Observation Method: Look and Listen

This is the simplest method and involves carefully observing your car's behavior and listening for unusual sounds. Pay close attention to these symptoms:

• Rough idle: Is the engine idling smoothly, or is it fluctuating up and down? A consistently high or low idle, or an idle that hunts around, can indicate a TPS problem.
• Hesitation on acceleration: When you press the accelerator pedal, does the engine respond immediately, or is there a noticeable delay? A hesitating engine may have a failing TPS.
• Stalling: Does the engine stall frequently, especially when coming to a stop or during acceleration?
• Surging: Does the engine speed randomly increase or decrease without you changing the throttle position?
• Check Engine Light: If the check engine light is on, read the diagnostic codes (see below). While not specific to the TPS, it may point you in the right direction.

Listen carefully to the engine: Are there any unusual noises coming from the throttle body area? Sometimes, a faulty TPS can cause the throttle plate to flutter or vibrate, creating a rattling or buzzing sound.

2. The Wiggle Test: Check the Wiring and Connections

A loose or corroded connection can cause intermittent TPS problems. Carefully inspect the TPS wiring harness and connector:

• Visual Inspection: Look for any signs of damage, such as frayed wires, cracked insulation, or corroded terminals.
• Connection Check: Make sure the connector is securely attached to the TPS. Gently wiggle the connector and wiring while the engine is running. If the engine's behavior changes or the check engine light flickers, this indicates a potential problem with the wiring or connector.

Important: Be gentle when wiggling the wiring, as excessive force can damage the connector or wires. Disconnect the battery if you feel uncomfortable working around electrical components.

3. The Code Reader Method: Read Diagnostic Trouble Codes (DTCs)

While a code reader doesn't directly test the TPS, it can provide valuable clues. Use an OBD-II code reader to check for diagnostic trouble codes (DTCs):

• P0120 - Throttle/Pedal Position Sensor/Switch A Circuit Malfunction
• P0121 - Throttle/Pedal Position Sensor/Switch A Circuit Range/Performance Problem
• P0122 - Throttle/Pedal Position Sensor/Switch A Circuit Low Input
• P0123 - Throttle/Pedal Position Sensor/Switch A Circuit High Input
• P0124 - Throttle/Pedal Position Sensor/Switch A Circuit Intermittent

These codes are strong indicators of a TPS issue. However, keep in mind that these codes can sometimes be triggered by other problems, such as a faulty accelerator pedal position sensor or a wiring issue. It's important to investigate further to confirm the diagnosis.

Even if you don't see these specific codes, other codes related to idle speed or fuel trim can also indirectly point to a potential TPS problem.

4. The Pedal Test (Limited Applicability): Observing Initial Response

This method is very rudimentary and only provides a general idea of functionality. With the engine off but the ignition on (do not start the engine), slowly depress the accelerator pedal and listen for any clicking or grinding sounds coming from the throttle body. Also, carefully observe the movement of the throttle plate. It should move smoothly and without hesitation. If you feel any resistance or hear any unusual sounds, it could indicate a problem with the TPS or the throttle body itself.

Important Safety Note: Do not attempt to perform any tests that require you to touch or manipulate the throttle body while the engine is running. This can be extremely dangerous and could result in serious injury.

How to Choose the Right Method for You

The best method for testing your TPS depends on your mechanical skills, available tools, and the severity of the symptoms. If you're just experiencing minor symptoms, such as a slightly rough idle, starting with the observation method and the wiggle test might be sufficient. If you have access to a code reader, checking for DTCs can provide valuable information.

However, if you're experiencing more serious symptoms, such as stalling or significant hesitation, or if you're not comfortable performing any of these tests, it's best to take your car to a qualified mechanic for a professional diagnosis. A mechanic will have the necessary tools and expertise to accurately diagnose the problem and recommend the appropriate repairs.

Real-World Owner Experiences

Many car owners have shared their experiences with TPS issues online. Some common scenarios include:

• "My car was stalling every time I came to a stop. I wiggled the TPS connector, and it seemed to help temporarily. Eventually, I replaced the TPS, and the problem was solved." - This highlights the importance of checking the wiring and connections.
• "I had a check engine light and a code for the TPS. I replaced the sensor, but the problem persisted. Turns out, the wiring harness was damaged." - This emphasizes the need to thoroughly inspect all related components.
• "My mechanic used a multimeter to test the TPS and found that it wasn't providing a smooth signal. He replaced the sensor, and my car runs much better now." - This underscores the accuracy and reliability of using a multimeter for diagnosis.

These experiences illustrate that TPS problems can manifest in various ways and that a systematic approach to diagnosis is crucial.

FAQs About Testing Throttle Position Sensors

Q: Can I clean my TPS instead of replacing it?

A: While some people have had success cleaning their TPS, it's generally not recommended. The TPS is a precision electronic component, and cleaning it can sometimes damage it. It's usually best to replace the TPS if it's suspected to be faulty.

Q: How much does it cost to replace a TPS?

A: The cost of replacing a TPS can vary depending on the make and model of your car, as well as the labor rate of your mechanic. Generally, you can expect to pay between $100 and $300 for parts and labor.

Q: Can a bad TPS affect my transmission?

A: Yes, a bad TPS can affect your transmission. The ECU uses the TPS signal to determine when to shift gears. A faulty TPS can cause the transmission to shift erratically or not shift at all.

Q: How often should I replace my TPS?

A: There's no specific maintenance schedule for replacing the TPS. It should only be replaced if it's showing signs of failure or if a diagnostic test indicates a problem.

Q: What tools do I need to test a TPS with a multimeter?

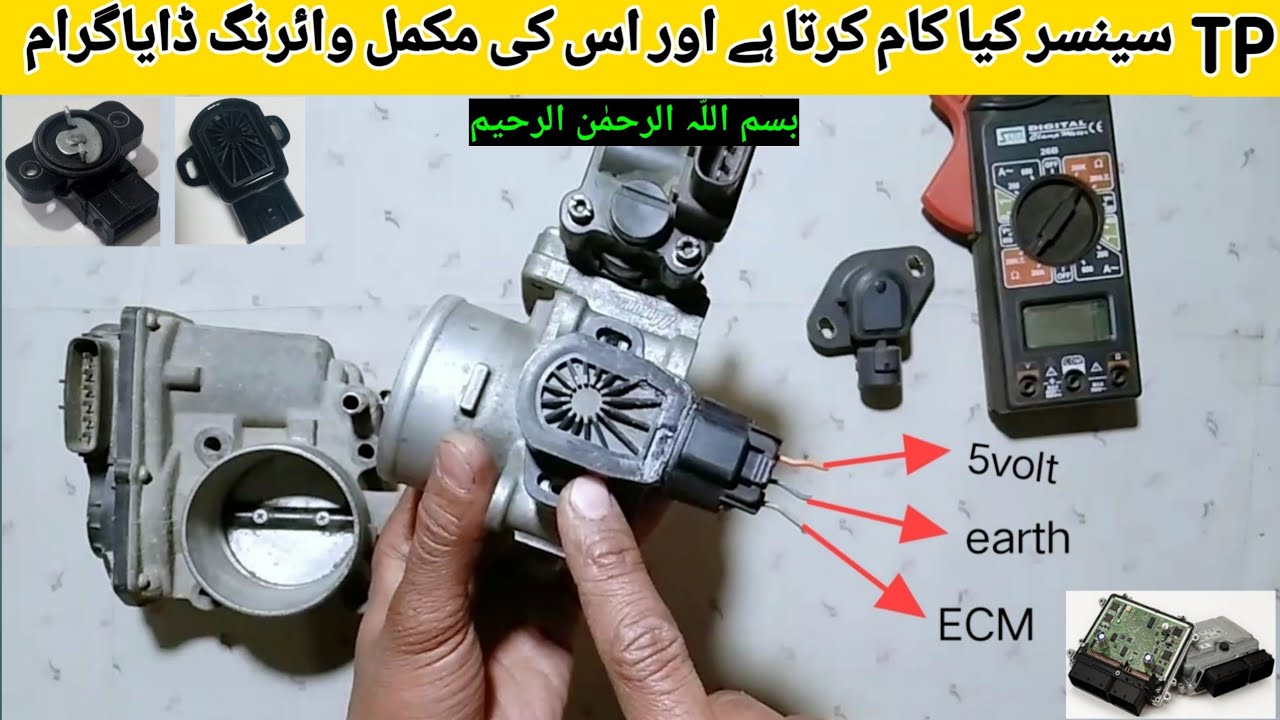

A: To test a TPS with a multimeter, you'll need a digital multimeter, a wiring diagram for your car's TPS, and some basic electrical knowledge. You'll need to identify the signal, ground, and power wires on the TPS connector and then measure the voltage output of the signal wire as you slowly move the throttle plate. A smooth, linear voltage change indicates a good TPS, while erratic or dead spots indicate a faulty TPS.

While these methods offer an alternative to using a multimeter, remember they provide less precise results. For accurate diagnosis and reliable repairs, consulting a qualified mechanic is always recommended.
