How To Turn Od On In Car

The question, "How do I turn OD on in my car?" sounds deceptively simple. In reality, it's a gateway to understanding a crucial aspect of modern automotive transmissions: the overdrive gear. This isn't a switch you simply flip; it's a function that engages or disengages a specific gear ratio within your car's gearbox. This article delves into the mechanics, electronics, and practical implications of overdrive systems.

The Need for Speed (and Efficiency): Introducing Overdrive

Imagine cycling uphill. You use a low gear for easier pedaling, sacrificing speed. Now, imagine you're on a flat road. A higher gear allows you to cover more distance with each pedal stroke, increasing speed and reducing effort. Overdrive in a car performs a similar function.

Before overdrive, cars typically had three or four forward gears. At higher speeds, the engine would be running at a relatively high RPM (revolutions per minute), consuming significant fuel and creating more engine wear. Overdrive introduced a gear ratio *lower* than 1:1. A 1:1 ratio means the output shaft of the transmission rotates at the same speed as the input shaft. An overdrive ratio, say 0.8:1, means the output shaft rotates 1.25 times for every rotation of the input shaft. This allows the engine to turn slower at the same vehicle speed, improving fuel economy and reducing engine stress.

How Overdrive Works: A Mechanical Deep Dive

Overdrive systems have evolved significantly. Early systems were often separate, bolt-on units added to the existing transmission. Modern systems integrate the overdrive gear directly into the main transmission housing. Here's a simplified look at the workings of a modern automatic transmission with overdrive:

Planetary Gear Sets: The Heart of the Matter

Automatic transmissions use planetary gear sets. These consist of a sun gear, a ring gear, planet gears, and a planet carrier. By selectively holding or driving different elements of this gear set, different gear ratios can be achieved.

Engaging Overdrive: Clutch Packs and Solenoids

To engage overdrive, the transmission control module (TCM), essentially a small computer, activates a solenoid. This solenoid controls hydraulic fluid flow within the transmission. This fluid pressure engages a specific clutch pack. When this clutch pack is engaged, it locks certain components of the planetary gear set together, creating the overdrive ratio.

Disengaging Overdrive: The Reverse Process

Disengaging overdrive involves reversing this process. The TCM deactivates the solenoid, releasing the hydraulic pressure. The clutch pack disengages, and the transmission reverts to a lower gear ratio.

In older vehicles, the overdrive function might be controlled by a simple switch or a vacuum-operated mechanism, offering less precise control than the modern electronic systems.

Pros and Cons of Using Overdrive

Pros:

• Improved Fuel Economy: The primary benefit. Lower engine RPMs at cruising speeds translate directly to less fuel consumption.
• Reduced Engine Wear: Lower RPMs also mean less wear and tear on engine components.
• Quieter Cruising: Lower engine speeds result in a quieter and more comfortable driving experience, especially on the highway.
• Extended Engine Life: By reducing stress, overdrive can contribute to a longer engine lifespan.

Cons:

• Reduced Acceleration: Overdrive ratios reduce the engine's torque at the wheels, resulting in slower acceleration.
• Downshifting on Hills: The transmission may need to downshift frequently on hills to maintain speed, negating some of the fuel economy benefits.
• Not Suitable for Towing: When towing heavy loads, overdrive can strain the transmission and reduce performance. It's often recommended to disable overdrive when towing.
• Potential for "Hunting": In some situations, the transmission might repeatedly shift between overdrive and a lower gear, a phenomenon known as "hunting," which can be annoying and inefficient.

Use Cases and Manufacturer Examples

Overdrive is almost universally present in modern automatic transmissions. Manual transmissions often feature a higher gear that functions as an overdrive as well.

Everyday Driving:

In most situations, overdrive should be left engaged. The TCM is designed to automatically engage and disengage overdrive as needed to optimize fuel economy and performance. Modern transmissions are very sophisticated in their gear selection algorithms.

Towing:

As mentioned before, disabling overdrive is often recommended when towing. This prevents the transmission from constantly shifting between overdrive and a lower gear, which can generate excessive heat and damage the transmission. Many trucks and SUVs have a dedicated "Tow/Haul" mode that automatically disables overdrive and adjusts shift points.

Hill Climbing:

If you find your vehicle constantly downshifting on a hilly road, manually shifting out of overdrive might improve the driving experience and prevent the transmission from "hunting." However, modern transmissions are typically very good at managing this situation automatically.

Manufacturer Examples:

• Ford: Ford's "SelectShift" transmissions often have a button or switch to manually disable overdrive.
• GM: GM vehicles similarly often feature a Tow/Haul mode that disables overdrive, among other functions.
• Toyota: Toyota vehicles usually allow the driver to select a lower gear using the gear selector, effectively taking the transmission out of overdrive.

So, How *Do* You Turn OD On (or Off)?

In most modern vehicles, you don't explicitly "turn OD on." It's typically enabled by default, and the transmission control system manages its engagement and disengagement automatically. The more relevant question is: How do you turn OD *off*?

Here are common methods to disable overdrive:

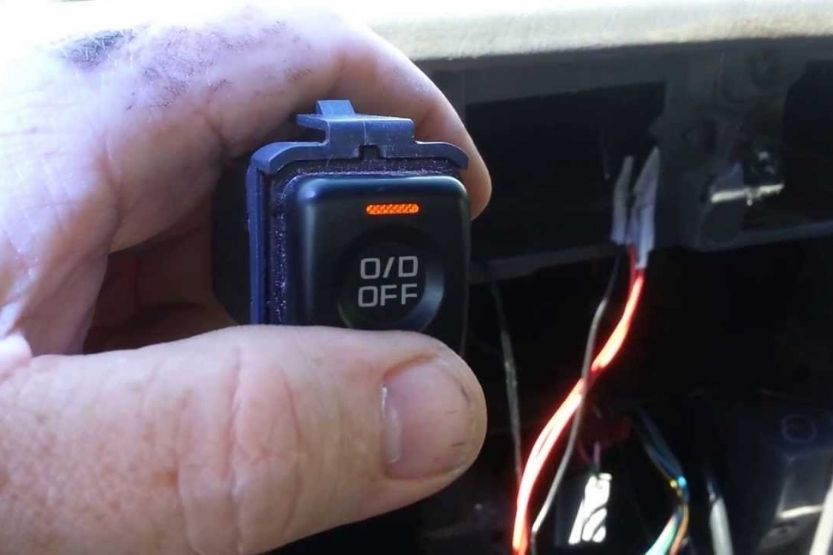

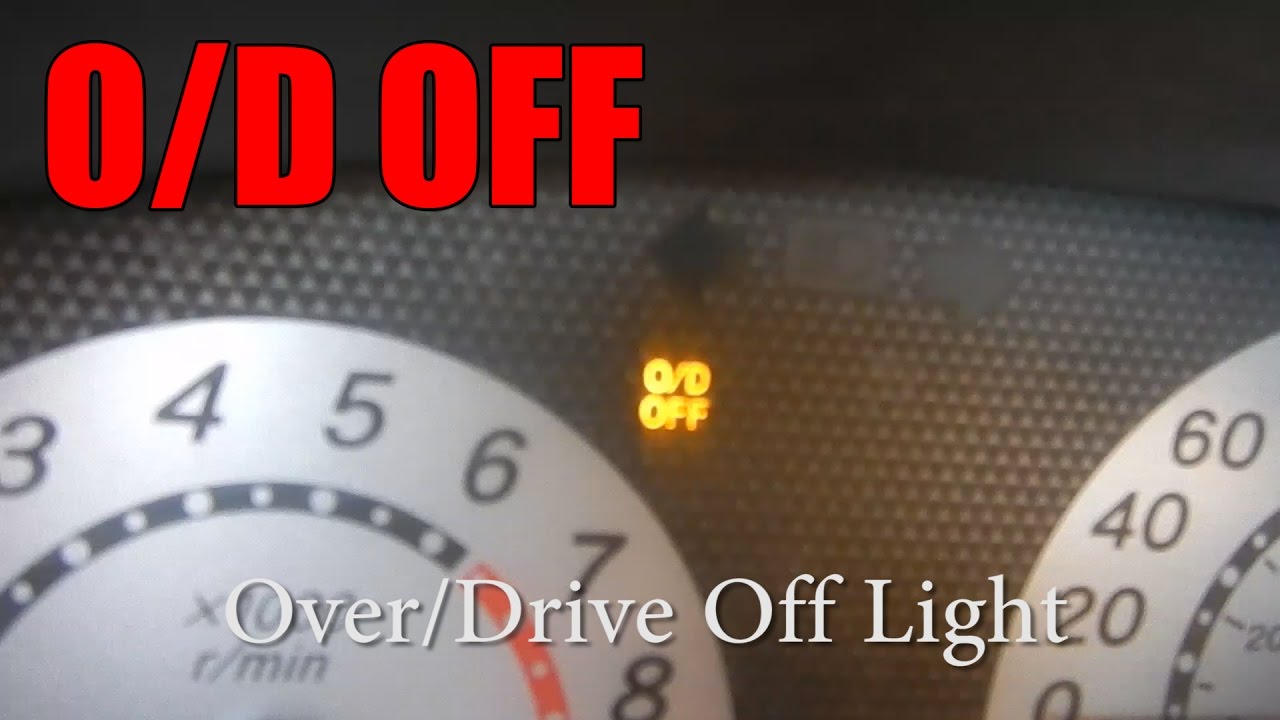

• "O/D Off" Button: Many older vehicles have a dedicated "O/D Off" button, typically located on the gear shift lever or on the dashboard. Pressing this button disables overdrive. The instrument cluster will usually illuminate an "O/D Off" indicator.
• Tow/Haul Mode: In trucks and SUVs designed for towing, engaging "Tow/Haul" mode will often disable overdrive as part of a suite of performance-enhancing features.
• Gear Selector: You can often manually shift the transmission into a lower gear (e.g., "3" or "D") to prevent it from shifting into overdrive. This is a less precise method, but it can be effective in certain situations.

Important Note: Always consult your vehicle's owner's manual for specific instructions on how to disable overdrive. Different manufacturers may use different methods.

Real-World Insights and Recommendations

Overdrive is an invaluable technology that significantly improves fuel economy and reduces engine wear. In the vast majority of driving situations, you should leave overdrive enabled and allow the transmission to manage its engagement automatically.

However, there are specific scenarios where disabling overdrive can be beneficial:

• Towing Heavy Loads: As mentioned, disabling overdrive when towing is highly recommended to prevent transmission strain and overheating.
• Driving in Hilly Terrain: If your transmission is constantly "hunting" between gears on a hilly road, disabling overdrive might improve the driving experience.
• Aggressive Driving: If you need maximum acceleration, disabling overdrive can provide a more responsive feel. However, this will come at the expense of fuel economy.

Ultimately, understanding how overdrive works empowers you to make informed decisions about when to enable or disable it, optimizing your vehicle's performance and fuel efficiency. Remember to always prioritize safe driving practices and consult your owner's manual for specific recommendations regarding overdrive usage in your vehicle. Newer vehicles equipped with 8, 9, or even 10-speed transmissions manage gear selection so effectively that manual intervention is rarely necessary.
