How To Turn Off Dash Warning Lights

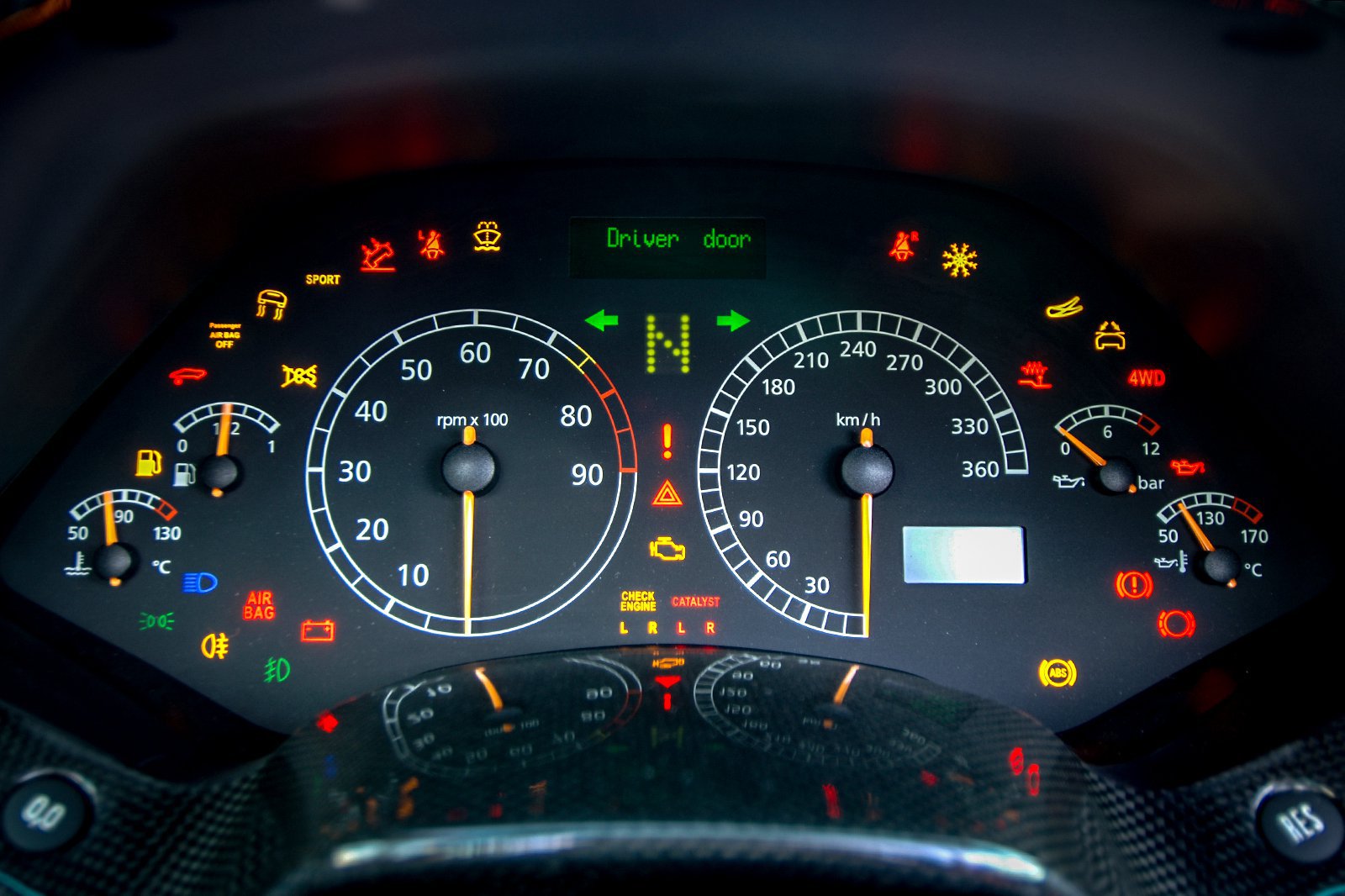

Dashboard warning lights. Those illuminated symbols that can range from a minor annoyance to a major source of anxiety. While they're designed to alert you to potential problems with your vehicle, sometimes you might find yourself wanting to turn them off, whether it's due to a faulty sensor, a persistent (but seemingly benign) issue, or as part of a troubleshooting process. This article will guide you through the process of diagnosing and, in some cases, turning off dash warning lights, focusing on the technical aspects and best practices.

Understanding the Engine Management System

Before we dive into the specifics, it's crucial to understand the core system responsible for triggering these lights: the Engine Management System (EMS), also known as the Powertrain Control Module (PCM) or Engine Control Unit (ECU). The EMS is essentially the brain of your engine. It constantly monitors a multitude of sensors throughout the vehicle, analyzing data related to engine performance, emissions, and safety. These sensors include:

Oxygen (O2) Sensors: Measure the amount of oxygen in the exhaust stream, crucial for air-fuel mixture control.
Mass Airflow (MAF) Sensor: Measures the amount of air entering the engine.
Crankshaft Position Sensor (CKP): Monitors the position and speed of the crankshaft, essential for timing.
Camshaft Position Sensor (CMP): Monitors the position of the camshaft, also vital for timing.
Throttle Position Sensor (TPS): Indicates the position of the throttle plate, related to driver input.
Coolant Temperature Sensor (CTS): Measures the temperature of the engine coolant.
Manifold Absolute Pressure (MAP) Sensor: Measures the pressure in the intake manifold.

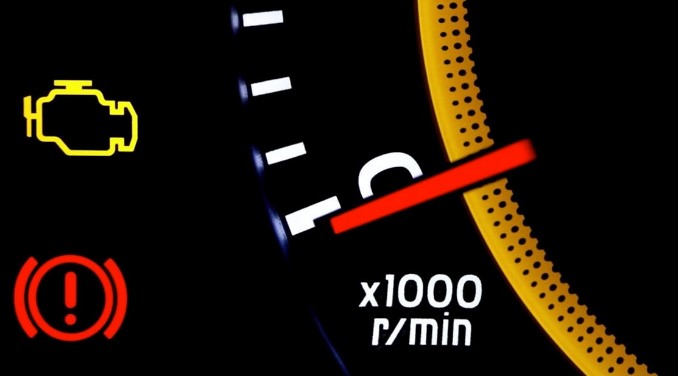

The EMS uses this data to make adjustments to engine parameters like fuel injection timing, ignition timing, and idle speed to optimize performance, fuel efficiency, and emissions. When a sensor reading falls outside the acceptable range defined in the ECU's programming, it triggers a Diagnostic Trouble Code (DTC), which in turn illuminates a warning light on your dashboard. The most common of these lights is the Check Engine Light (CEL), also known as the Malfunction Indicator Lamp (MIL).

Technical Breakdown: How Warning Lights Work

The illumination process is relatively straightforward. The ECU monitors sensor data and compares it to pre-programmed thresholds. If a sensor reading deviates significantly from the expected value, or if a component fails to respond correctly to a command from the ECU (e.g., a fuel injector not firing), the ECU registers a DTC. This DTC is stored in the ECU's memory.

Simultaneously, the ECU activates a specific circuit that powers the corresponding warning light on the dashboard. This circuit typically involves a transistor or relay controlled by the ECU. When the ECU triggers the circuit, the transistor switches on, allowing current to flow to the warning light, causing it to illuminate.

The severity of the issue is often indicated by the behavior of the light. A solid CEL typically indicates a less severe problem, while a flashing CEL usually signifies a more critical issue that could potentially damage the engine or emissions system. Some vehicles also use different colored lights (e.g., yellow for warning, red for critical) to further indicate the severity of the issue.

Clearing Codes vs. Fixing the Problem

It's important to distinguish between clearing the code that triggers the light and actually fixing the underlying problem. Clearing the code simply tells the ECU to stop illuminating the light. It doesn't address the root cause of the issue. If the underlying problem persists, the code will eventually return, and the light will illuminate again.

Clearing a code without fixing the problem is generally not recommended. It can mask potentially serious issues and lead to further damage to your vehicle. Furthermore, deliberately disabling or bypassing warning lights can be illegal, particularly if it involves tampering with emissions control systems.

Methods for Clearing Codes (And Why They Might Not Work)

There are several methods for clearing DTCs, each with its own pros and cons:

Using an OBD-II Scanner: This is the most common and recommended method. An OBD-II (On-Board Diagnostics II) scanner plugs into the diagnostic port (usually located under the dashboard). These scanners can read stored DTCs and clear them. Basic scanners can only read and clear codes, while more advanced scanners can provide live data, perform component testing, and even reprogram the ECU. To clear a code, you typically select the "Clear Codes" or "Erase Codes" function on the scanner. Note: Some scanners require you to turn the ignition off and then back on after clearing the codes.
Disconnecting the Battery: Disconnecting the negative battery terminal for a period of time (typically 15-30 minutes) can sometimes clear the ECU's memory and reset the warning lights. However, this method is not always reliable and can also reset other electronic systems in the car, such as the radio and alarm. It may also erase learned engine parameters, which can affect performance until the ECU relearns them. This method is generally not recommended as it can have unintended consequences.
Using a Code Clearing App: There are numerous smartphone apps that can connect to your car's OBD-II port via a Bluetooth or Wi-Fi adapter and perform the same functions as a dedicated OBD-II scanner. These apps can be convenient and often less expensive than buying a separate scanner. However, the quality and reliability of these apps can vary.

Why clearing codes might not work:

The underlying problem is still present: The code will simply return.
The code is a "permanent" code: Some codes, particularly those related to emissions, are designated as "permanent" codes and cannot be cleared until the underlying problem is resolved and the vehicle has passed a specific drive cycle.
The scanner is not compatible with your vehicle: Older vehicles may require a different type of scanner or adapter.

Common Issues and Maintenance Concerns

Several common issues can trigger dashboard warning lights. These include:

Faulty O2 Sensors: These sensors are prone to failure due to exposure to heat and exhaust gases.
Loose Gas Cap: A loose gas cap can allow fuel vapors to escape, triggering an emissions-related code.
Catalytic Converter Failure: A failing catalytic converter can significantly increase emissions, triggering the CEL.
Spark Plug or Ignition Coil Issues: Misfires caused by faulty spark plugs or ignition coils can trigger the CEL and potentially damage the catalytic converter.
Vacuum Leaks: Vacuum leaks can disrupt the air-fuel mixture and cause various engine problems.
Faulty Sensors: Any sensor can fail due to age, corrosion, or physical damage.

Regular maintenance, such as changing spark plugs, air filters, and fuel filters, can help prevent many of these issues. Inspecting vacuum hoses and electrical connectors for damage is also a good preventative measure.

Do's and Don'ts / Best Practices

Do's:

Read the DTCs with an OBD-II scanner before clearing them. This will give you a valuable clue as to the nature of the problem. Write down the codes and research them online.
Address the underlying problem. Don't just clear the codes and hope the problem goes away.
Consult a qualified mechanic if you're unsure about how to diagnose or repair the problem.
Document your troubleshooting steps. This will help you track your progress and avoid repeating mistakes.
Use a quality OBD-II scanner. A cheap scanner may not provide accurate information or may not be compatible with your vehicle.

Don'ts:

Ignore dashboard warning lights. They are there for a reason.
Tamper with emissions control systems. This is illegal and can harm the environment.
Drive the vehicle if a flashing CEL is illuminated. This indicates a serious problem that could damage the engine.
Disconnect the battery as a primary method for clearing codes. It's unreliable and can have unintended consequences.
Assume that clearing a code will fix the problem. It won't.

Conclusion

Turning off dash warning lights is a temporary solution. The true path to resolving the issue lies in understanding the underlying problem that triggered the light in the first place. Invest in a good quality OBD-II scanner, learn how to interpret the DTCs, and systematically troubleshoot the issue. Remember, ignoring warning lights can lead to more serious and costly repairs down the road. While clearing a code might seem like a quick fix, always prioritize diagnosing and repairing the root cause of the problem for the long-term health and performance of your vehicle. If you're not comfortable performing the necessary repairs yourself, don't hesitate to seek the help of a qualified mechanic.
