How To Turn Off Dashboard Lights

Let's talk about those dashboard lights, those glowing symbols of automotive concern (or sometimes, just reminders). While they're crucial for alerting you to potential problems, there are scenarios where you might want to temporarily disable them – think about diagnosing electrical gremlins, prepping a car for a track day (where some lights are distracting), or even verifying that the lights themselves are functioning correctly during a repair. This article will provide a technically detailed breakdown of how to approach this task, safely and effectively. We'll cover the underlying systems, common methods, potential pitfalls, and best practices to ensure you're not causing more harm than good. This is for informational purposes only, disabling safety systems is illegal and extremely dangerous in normal driving conditions.

Background: The OBD-II System and Dashboard Illumination

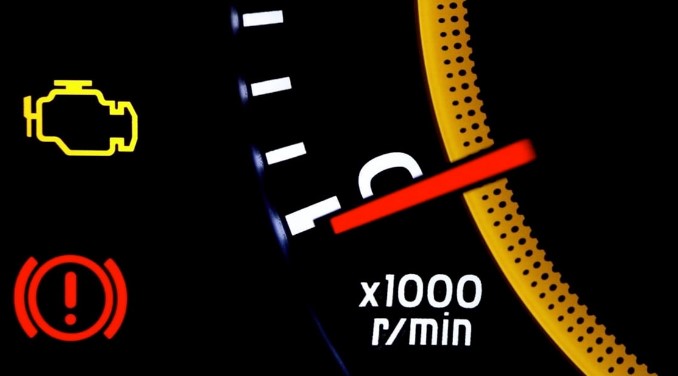

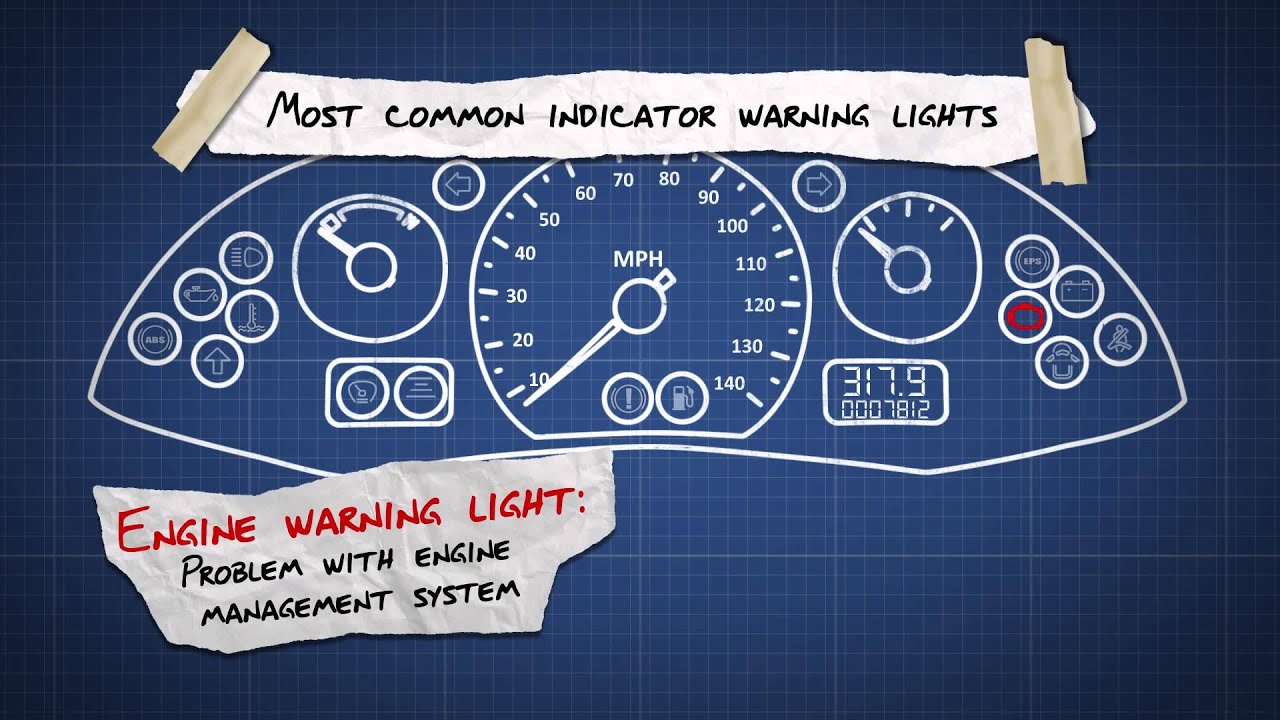

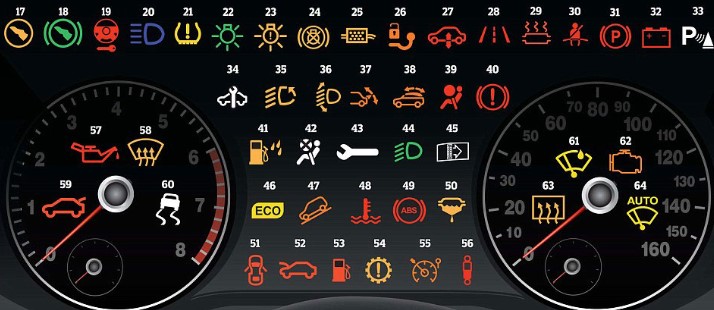

Modern vehicles rely heavily on the On-Board Diagnostics II (OBD-II) system. This is a standardized system implemented in most vehicles sold in the US since 1996 (and globally, with variations). The OBD-II system monitors various engine and vehicle parameters using a network of sensors. When a parameter falls outside of a pre-defined acceptable range, the system logs a Diagnostic Trouble Code (DTC). This DTC is then stored in the vehicle's computer (typically the Powertrain Control Module - PCM) and often triggers the illumination of a dashboard warning light. The most common warning lights are the Check Engine Light (CEL), the ABS light, the Airbag light, and the Traction Control light, but many others exist for various systems.

The lights themselves are illuminated through a variety of methods. Older vehicles used dedicated circuits directly wired from the sensor to the light bulb on the dashboard. Modern vehicles, however, often use a Controller Area Network (CAN) bus. The CAN bus is a communication network that allows various electronic control units (ECUs) to communicate with each other. In this scenario, the PCM sends a message over the CAN bus to the instrument cluster, instructing it to illuminate a specific light. This allows for greater flexibility and complexity in displaying information.

Understanding the Instrument Cluster

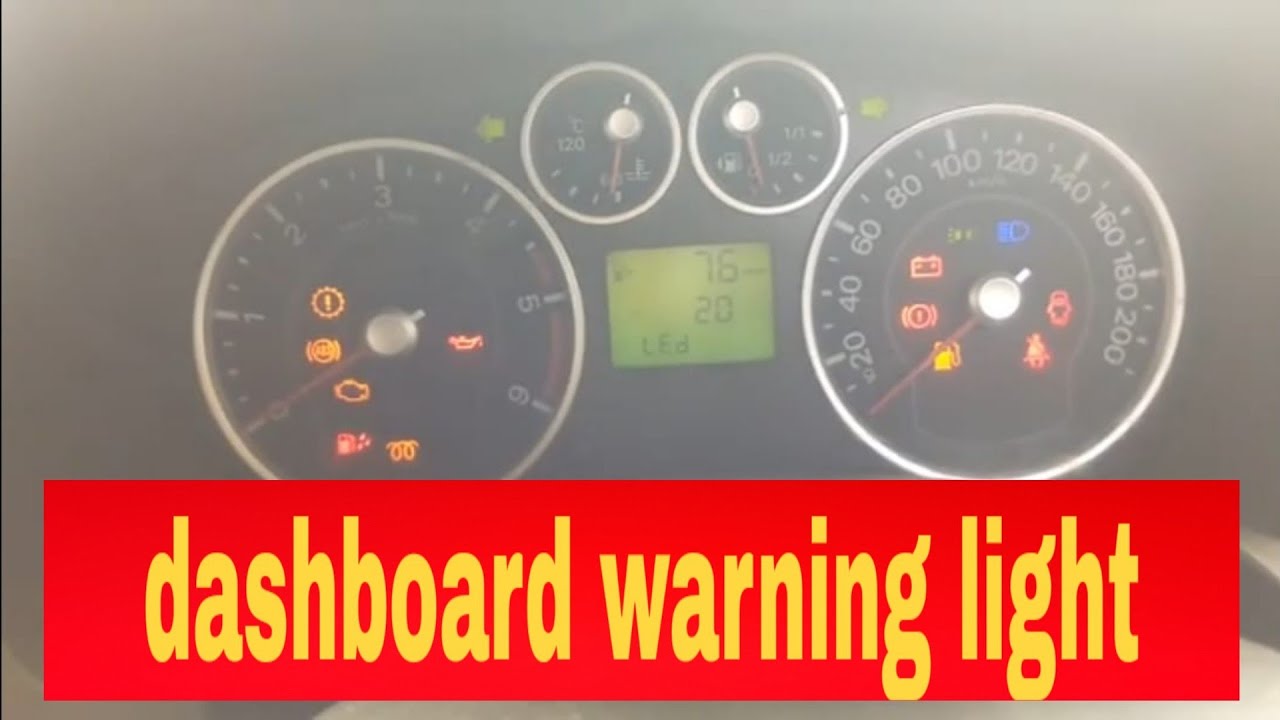

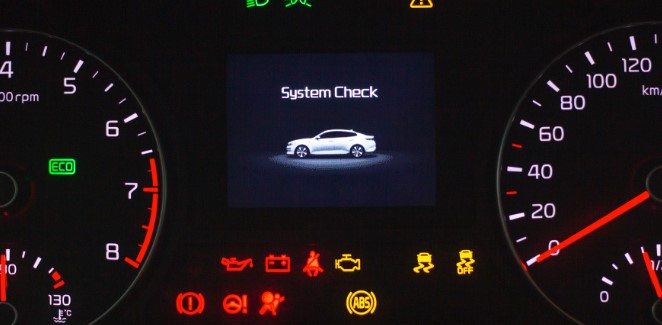

The instrument cluster (also sometimes called the dashboard or gauge cluster) is the physical assembly that houses the speedometer, tachometer, fuel gauge, and, critically, the warning lights. It’s essentially a self-contained computer in many modern vehicles. It receives data over the CAN bus and uses that data to drive the gauges and illuminate the appropriate warning lights. Because it communicates digitally, the instrument cluster can interpret different messages from the PCM and other modules. This modularity is why some vehicles can display custom warnings or information based on driving conditions or specific vehicle options.

Technical Breakdown: Methods to Turn Off Dashboard Lights

Now, let's explore different methods you might use to turn off dashboard lights. It's crucial to understand that simply turning off the light doesn't fix the underlying problem. This is a temporary measure for specific diagnostic or testing scenarios.

1. Clearing DTCs with an OBD-II Scanner

The most common and recommended (for temporary silencing of a nuisance code after addressing its underlying cause) method is to use an OBD-II scanner. This tool connects to the OBD-II port, typically located under the dashboard on the driver's side. The scanner allows you to read the stored DTCs and then clear them. Clearing the DTCs effectively tells the PCM that you're aware of the issue and that it should stop illuminating the corresponding light. However, if the underlying problem persists, the DTC and the light will likely reappear after a short driving cycle.

Procedure:

1. Connect the OBD-II scanner to the OBD-II port.
2. Turn the ignition to the "ON" position (without starting the engine).
3. Navigate the scanner's menu to "Read Codes" or "Diagnostic Codes."
4. Note down all the DTCs that are displayed. This is crucial for later diagnosis.
5. Navigate the scanner's menu to "Clear Codes" or "Erase Codes."
6. Confirm that you want to clear the codes.
7. Turn the ignition off and then back on. Check if the light is off.

Important Note: Use a reputable OBD-II scanner. Cheap scanners might not accurately read or clear codes, and some may even corrupt the vehicle's ECU data. Also, clearing codes should only be done after you've noted down the codes and researched their meaning. This will allow you to later diagnose the underlying issue.

2. Disconnecting the Battery (Not Recommended)

Disconnecting the vehicle's battery can clear DTCs in some vehicles, as it effectively resets the PCM. However, this method is not recommended because it can also erase other important data, such as radio presets, seat memory settings, and adaptive learning parameters stored in the PCM. This can lead to a temporary decrease in performance and require relearning of engine parameters.

If you must disconnect the battery:

1. Ensure you know your radio code before disconnecting the battery.
2. Disconnect the negative (-) terminal first, followed by the positive (+) terminal.
3. Wait at least 15 minutes to allow the capacitors in the PCM to discharge.
4. Reconnect the positive (+) terminal first, followed by the negative (-) terminal.

Note: After reconnecting the battery, you might need to perform an idle relearn procedure to ensure the engine idles correctly. Consult your vehicle's service manual for specific instructions.

3. Physically Removing the Bulb (Highly Discouraged and Often Impossible)

In older vehicles, it might be possible to physically remove the bulb from the instrument cluster. However, this is strongly discouraged in modern vehicles. Modern instrument clusters are often integrated circuits, meaning the "bulbs" are actually LEDs soldered onto a circuit board. Removing them requires soldering skills and can easily damage the instrument cluster.

Even if you can access and remove a bulb, it's important to consider the consequences. The vehicle's system is still expecting the bulb to be there, and removing it might trigger a different error code or even cause the instrument cluster to malfunction. Furthermore, you are now driving without a potentially critical warning indicator.

4. Using Software (Advanced)

For experienced users with access to advanced diagnostic software (e.g., VCDS, FORScan, Diagbox), it might be possible to directly modify the instrument cluster's configuration to disable specific warning lights. This requires in-depth knowledge of the vehicle's electrical system and software architecture and carries a significant risk of causing irreversible damage if not performed correctly. This is only recommended for experts.

Common Issues and Maintenance Concerns

* Persistent Lights: If a dashboard light keeps coming back on after clearing the DTCs, it means the underlying problem is still present. Further diagnosis is required. * Incorrect Codes: If the OBD-II scanner reports incorrect or ambiguous DTCs, try using a different scanner or consult a professional mechanic. * Instrument Cluster Malfunctions: Tampering with the instrument cluster can lead to malfunctions, requiring expensive repairs or replacement. * Battery Drain: In some cases, a faulty sensor or module can cause a constant drain on the battery, even when the vehicle is turned off. Diagnosing and repairing this issue is crucial to prevent battery damage.

Do's and Don'ts / Best Practices

Do's:

• Do always record DTCs before clearing them.
• Do research the meaning of DTCs before attempting any repairs.
• Do use a reputable OBD-II scanner.
• Do consult a professional mechanic if you're unsure about any procedure.
• Do address the underlying problem that's causing the light to illuminate. Turning off the light is not a fix!

Don'ts:

• Don't disconnect the battery unless absolutely necessary.
• Don't physically remove bulbs from the instrument cluster in modern vehicles.
• Don't attempt to modify the instrument cluster's software unless you're an expert.
• Don't ignore dashboard warning lights. They're there for a reason.
• Don't drive with disabled safety systems on public roads.

Conclusion

Turning off dashboard lights is a task that should be approached with caution and a thorough understanding of the underlying systems. The preferred method is to use an OBD-II scanner to clear DTCs, but only after properly diagnosing and addressing the underlying issue. Disconnecting the battery is generally discouraged, and physically removing bulbs or modifying the instrument cluster's software should only be attempted by experienced professionals. Remember, silencing a warning light without fixing the problem can lead to more serious (and expensive) damage in the long run. If you are not comfortable performing these procedures yourself, consult a qualified mechanic. They have the expertise and tools to properly diagnose and repair any issues with your vehicle.
