How To Turn Off O/d Off

The “O/D Off” button. A seemingly innocuous switch nestled somewhere on your gear shifter, often adorned with a tiny indicator light on your dashboard. It's a feature many drivers use without fully understanding its purpose. Turning it off, ironically, can sometimes improve performance or fuel economy in specific situations. So, how do you effectively turn off O/D, and more importantly, why would you want to?

Understanding Overdrive

Let's start with the basics: what *is* overdrive? Think of it as the automotive equivalent of shifting into a higher gear on a bicycle. At a certain point, pedaling faster in your current gear becomes inefficient. You need a 'taller' gear ratio to maintain speed with less effort. Overdrive in a car performs the same function.

Imagine driving down a highway at a constant 65 mph. Without overdrive, your engine might be spinning at, say, 2500 RPM. This means the pistons are firing rapidly, consuming fuel. Engaging overdrive effectively changes the gear ratio in your transmission, dropping the engine RPM to perhaps 1800 RPM at the same 65 mph. This lower RPM translates directly to reduced fuel consumption and less engine wear.

The Mechanics of Overdrive

Mechanically, overdrive is achieved through a gear ratio less than 1:1. In a typical 1:1 gear ratio, one complete rotation of the input shaft (connected to the engine) results in one complete rotation of the output shaft (connected to the driveshaft and wheels). In overdrive, one rotation of the input shaft results in more than one rotation of the output shaft. This 'over-driving' effect allows the car to travel further with each engine revolution.

In older, fully mechanical transmissions, overdrive was often a separate unit bolted onto the main gearbox. These units typically used planetary gearsets controlled by hydraulics or even mechanical levers. Modern automatic transmissions integrate overdrive directly into the main transmission housing, often using electronically controlled clutches to engage and disengage the overdrive gears.

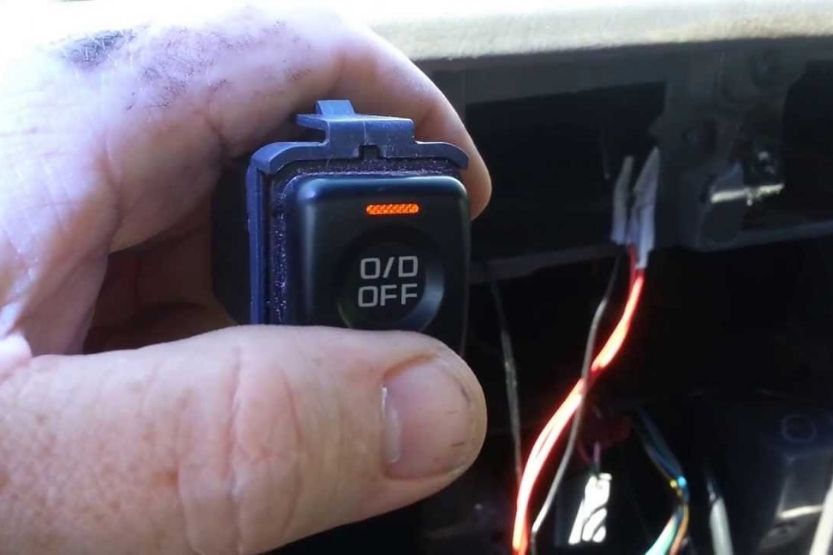

The O/D Off Switch: Controlling the Overdrive

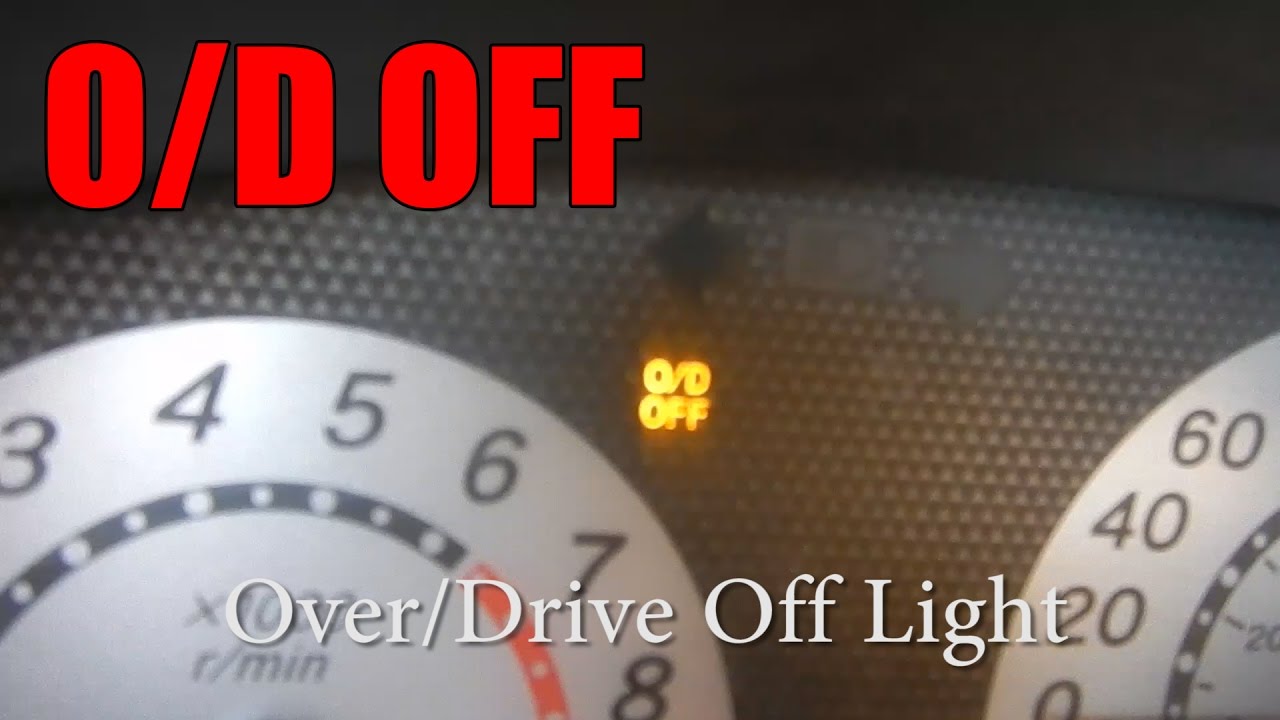

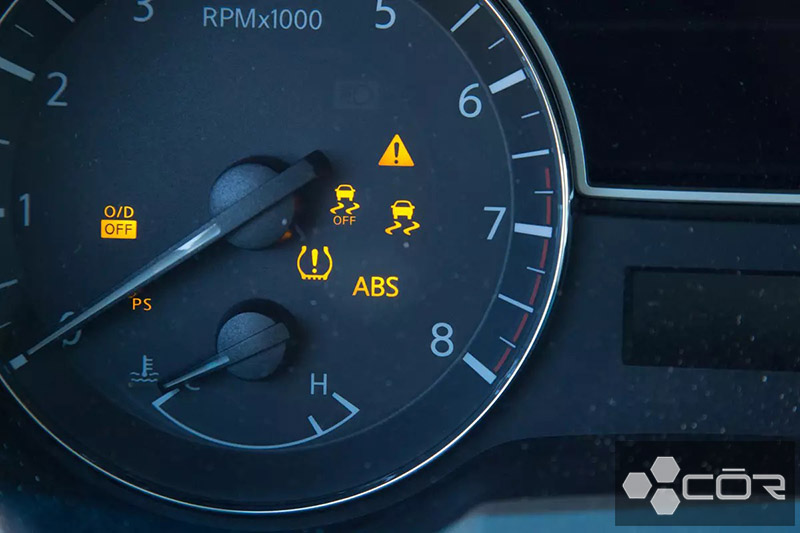

The O/D Off switch (or button) gives the driver manual control over engaging or disengaging the overdrive gear. When the O/D Off light is illuminated on your dashboard, it signifies that the overdrive gear is disabled. The transmission will shift through all other gears but will not shift into overdrive. This is the crucial step to "turning off" overdrive.

Most modern vehicles automatically engage overdrive when the vehicle reaches a certain speed and the engine load is relatively low. The transmission control unit (TCU) monitors various parameters like vehicle speed, throttle position, engine load, and brake input to determine the optimal time to shift into and out of overdrive. The O/D Off switch essentially overrides the TCU's decision regarding overdrive engagement.

Practical Scenarios and Use Cases

So, when would you *want* to disable overdrive? There are several scenarios where it can be beneficial:

Towing: When towing a trailer or hauling a heavy load, your engine needs to work harder to maintain speed. Engaging overdrive in these situations can cause the transmission to constantly shift between overdrive and a lower gear, as the engine struggles to maintain speed in overdrive. This "hunting" behavior can generate excessive heat in the transmission and accelerate wear. Disabling overdrive locks out the top gear, preventing this constant shifting and allowing the engine to operate in its more optimal power range.
Hilly Terrain: Similar to towing, driving on hilly roads can cause the transmission to constantly shift in and out of overdrive. Disabling it provides more consistent power and prevents unnecessary shifting. Imagine climbing a long, gradual hill. With overdrive engaged, the transmission might shift into it, only to quickly downshift again as the engine bogs down. Keeping it off avoids this frustrating back-and-forth.
Engine Braking: In certain situations, you might want to use engine braking to help slow the vehicle, such as descending a steep hill. Disabling overdrive can increase engine braking by keeping the engine at a higher RPM. This reduces the need to constantly apply the brakes, preventing brake fade and improving control.
Improved Acceleration: While not a primary reason, disabling overdrive can provide slightly improved acceleration in certain situations. By keeping the engine in a lower gear, it can access more of its available power. This is particularly noticeable at highway speeds where downshifting from overdrive can provide a more immediate surge of acceleration for passing.

Pros and Cons of Disabling Overdrive

Pros:

Reduced transmission "hunting" when towing or driving in hilly terrain.
Improved engine braking.
Potentially improved acceleration in certain situations.
Reduced transmission heat buildup under heavy load.

Cons:

Reduced fuel economy (engine operates at higher RPMs).
Increased engine wear over long periods of continuous use.
Potentially increased noise levels inside the cabin.

Manufacturer Examples and Variations

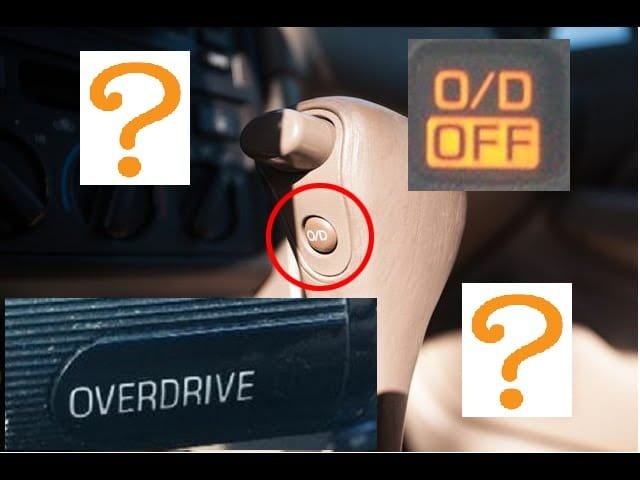

The implementation of the O/D Off switch can vary slightly between manufacturers. Some vehicles use a physical button on the gear shifter, while others integrate the function into the vehicle's information system. Some manufacturers label it as "Tow/Haul" mode, which often incorporates other features like shift point adjustments in addition to disabling overdrive. For example:

Ford: Often utilizes a button on the end of the gear shifter, clearly labeled "O/D Off."
Toyota: Can feature a similar button or integrate the function into the transmission shift lever itself.
General Motors (GM): Often incorporates the function into the "Tow/Haul" mode button.

Regardless of the specific implementation, the underlying principle remains the same: the switch allows the driver to manually disable the overdrive gear to optimize performance or protect the transmission in specific driving conditions. Always consult your vehicle's owner's manual for specific instructions and recommendations.

Real-World Considerations and Recommendations

Using the O/D Off switch effectively requires understanding when it is appropriate and when it is not. As a general rule, only disable overdrive when necessary. Prolonged use of the O/D Off function will negatively impact fuel economy. For everyday driving on flat terrain, leave overdrive engaged.

Before towing a trailer, consult your vehicle's owner's manual for specific towing recommendations. Most manuals will explicitly recommend disabling overdrive under certain towing conditions. Pay close attention to the recommended weight limits and tongue weight to ensure safe and efficient towing.

When descending steep hills, experiment with disabling overdrive to see if it provides sufficient engine braking. If you still need to apply the brakes frequently, consider shifting into a lower gear to further increase engine braking. Remember to monitor your engine temperature, especially when towing or driving in hilly terrain. Overheating can damage your engine and transmission.

Ultimately, the O/D Off switch is a valuable tool for optimizing your vehicle's performance and protecting its drivetrain. By understanding its purpose and using it judiciously, you can enhance your driving experience and extend the lifespan of your vehicle.
