How To Turn Off Pioneer Radio

So, you're looking to figure out how to turn off your Pioneer radio. Seems simple, right? Sometimes it is, but depending on the model, wiring, and aftermarket modifications, it can get a little more complex than just hitting the power button. We'll dive into the different methods and potential issues you might encounter. Knowing this stuff can save you a headache and potentially prevent electrical problems down the road, especially if you're working on other aspects of your car's electrical system.

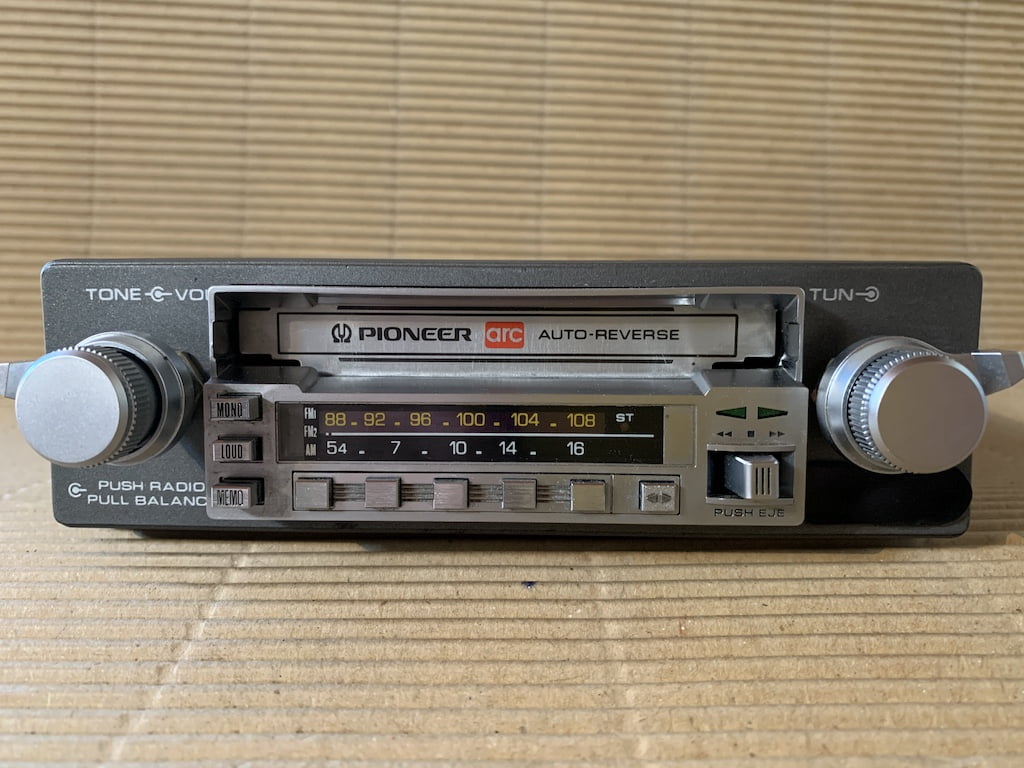

Understanding Your Pioneer Radio and the Car's Electrical System

Before we get into the nitty-gritty of turning the radio off, let's quickly cover the basics of how your car's electrical system and the radio interact. Your car uses a 12-volt DC (Direct Current) system. The battery provides the initial power to start the car and run accessories when the engine isn't running. The alternator, driven by the engine, recharges the battery and powers the electrical system while the engine is running. The Pioneer radio, like any other electrical component, needs power (typically 12V) and a ground (0V) to operate.

The crucial connection here is the ignition switch. This switch controls the flow of electricity to various circuits in the car, including the radio. Typically, the radio receives power through two main wires:

Constant 12V (B+): This wire provides continuous power from the battery, even when the ignition is off. It's used for memory functions like storing radio presets and clock settings.
Switched 12V (ACC or Ignition): This wire receives power only when the ignition switch is in the ACC (Accessory) or ON position. This is what typically triggers the radio to turn on and off.

Understanding these connections is critical for troubleshooting issues where the radio doesn't turn off or behaves erratically.

Turning Off a Pioneer Radio: The Technical Breakdown

The primary method for turning off a Pioneer radio is, of course, the power button. However, the way this works internally can vary depending on the model and installation.

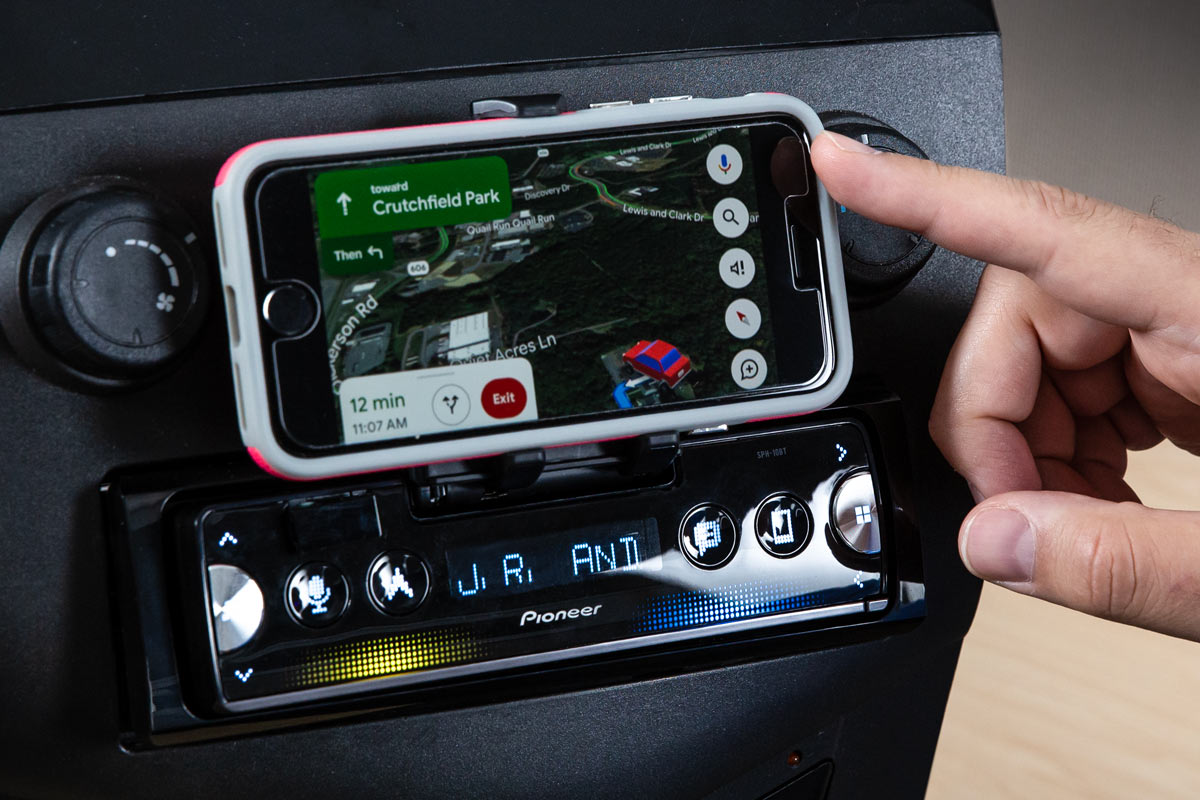

The Standard Power Button Method

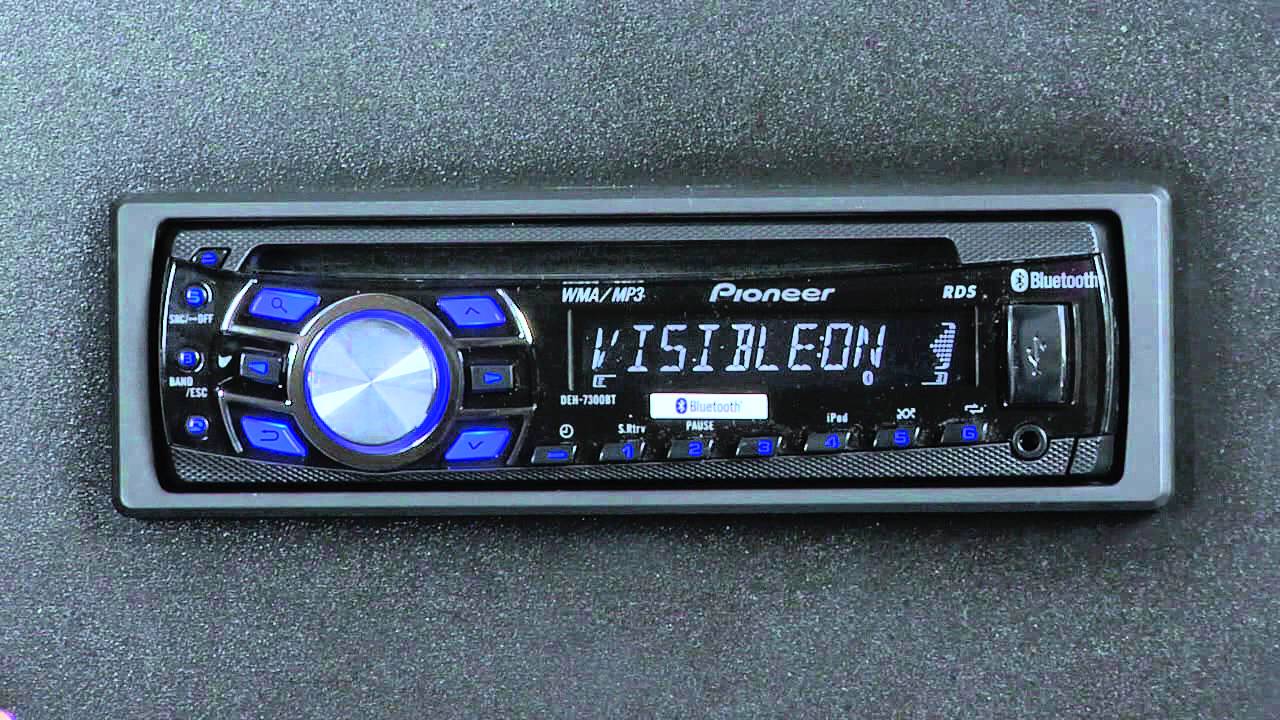

Most Pioneer radios have a dedicated power button, usually located on the front panel. Pressing this button (typically a short press) sends a signal to the radio's internal microcontroller. The microcontroller then performs a shutdown sequence, which involves:

Muting the audio output.
Turning off the amplifier stage (which is what actually drives the speakers).
Dimming or turning off the display.
Entering a low-power standby mode.

In this mode, the radio still draws a small amount of current to maintain memory and be ready to power on quickly. The switched 12V signal from the ignition wire usually plays a key role here; if the ignition is turned off, the microcontroller senses the loss of voltage and initiates the shutdown sequence regardless of whether the power button was pressed.

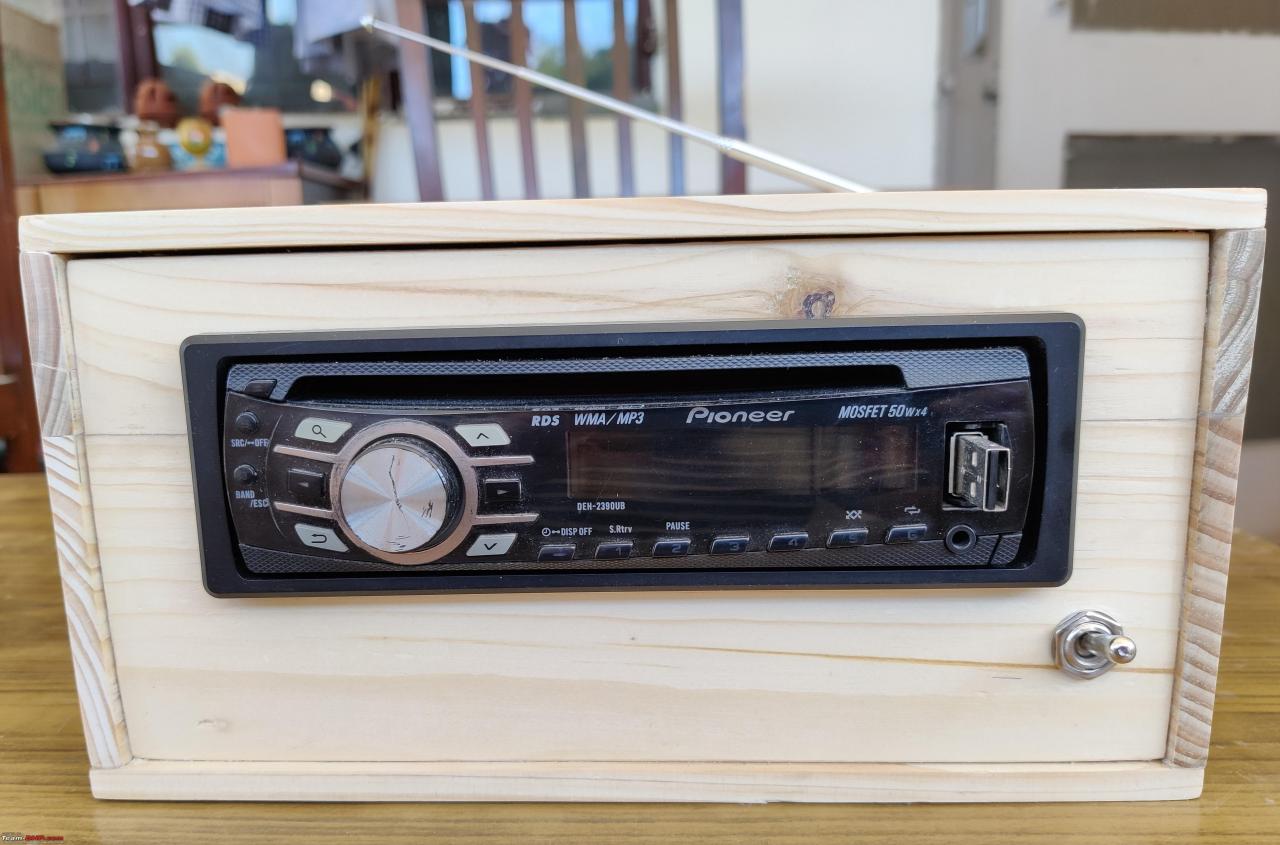

The Automatic Shut-Off via Ignition Wire

In a properly wired system, the radio *should* turn off automatically when you turn off the ignition. This is because the switched 12V (ACC) wire loses power. The microcontroller in the radio detects this voltage drop and initiates the shutdown sequence, as described above.

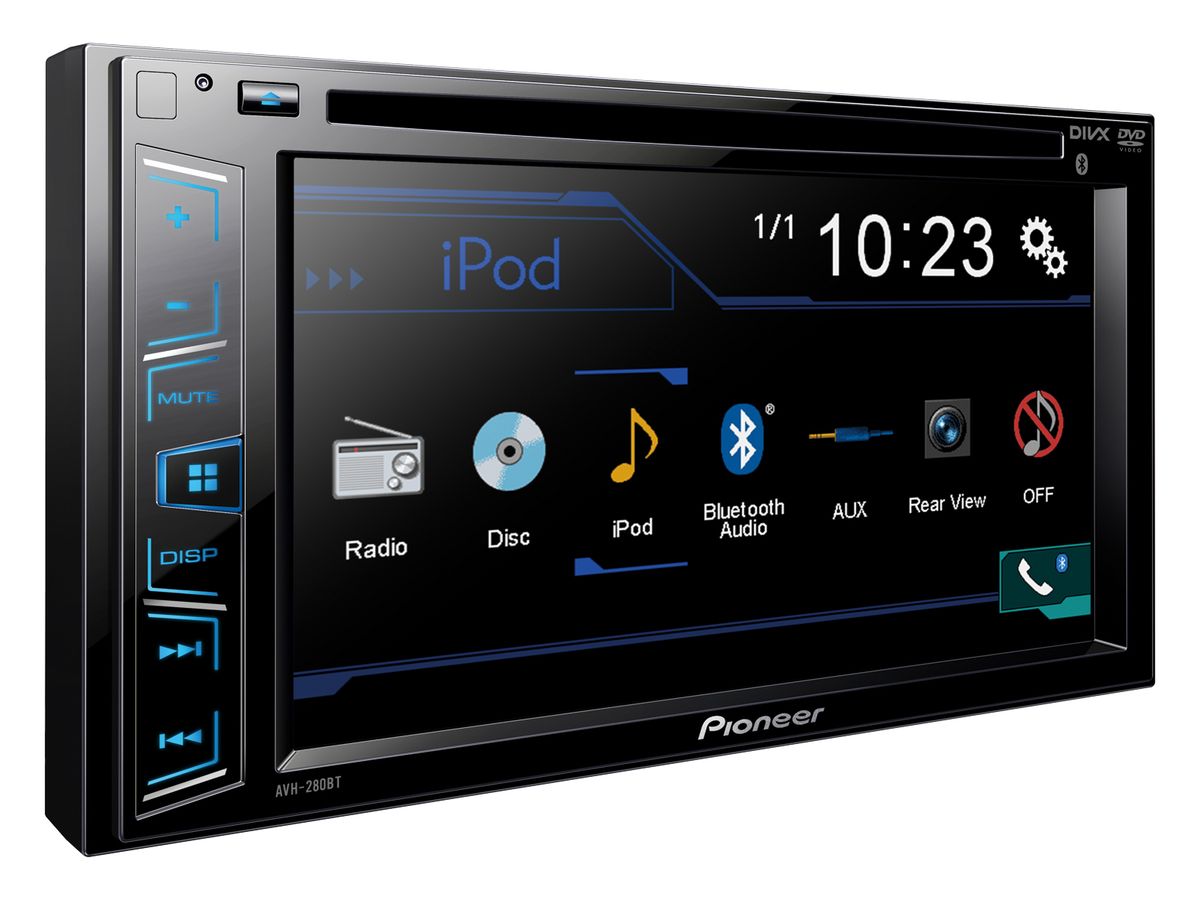

Double DIN and Touchscreen Models

For larger double DIN units, especially those with touchscreens, the power-off process might involve a more sophisticated software routine. The touchscreen acts as an interface to the radio’s operating system. The power button press typically activates a menu that presents options like “Turn Off Display,” “Power Off,” or sometimes even “Sleep Mode.” These options control different aspects of the power management. A “Turn Off Display” option might simply dim or black out the screen while the radio continues playing in the background. "Sleep Mode" might disable certain features while still keeping the radio responsive. A full "Power Off" should initiate a complete shutdown, although some memory functions will always be retained.

Aftermarket Considerations and Wiring Issues

Things get trickier when we consider aftermarket installations. Here are some common issues that can prevent the radio from turning off correctly:

Incorrect Wiring: The most common problem is improper wiring of the constant 12V and switched 12V wires. If both wires are connected to a constant 12V source, the radio will never turn off. This often happens when DIY installers mistakenly connect the ACC wire to a constant 12V to bypass a missing ACC signal or for testing purposes and then forget to correct it.
Faulty Ignition Switch: A malfunctioning ignition switch might not properly cut power to the switched 12V wire when the key is turned off. This can cause the radio to stay on even when the ignition is off.
Chassis Ground Issues: A poor or missing ground connection can cause erratic behavior, including the radio not turning off. The radio needs a solid, reliable ground to function correctly. A poor ground can introduce noise and voltage drops, confusing the internal electronics.
Aftermarket Accessories: Other aftermarket accessories, such as amplifiers or security systems, can sometimes interfere with the radio's power supply. They might introduce voltage drops or signal noise that prevents the radio from shutting down properly.
Can-Bus Adapters: Modern cars often use a CAN-Bus (Controller Area Network) system to communicate between different modules. In some installations, a CAN-Bus adapter is used to provide the necessary signals to the radio, including the ignition signal. A faulty or incorrectly configured CAN-Bus adapter can cause power-off issues.

Common Issues and Maintenance Concerns

Besides the wiring problems, here are some other things to watch out for:

Battery Drain: If the radio isn't turning off completely, it will continue to draw power from the battery, potentially draining it overnight. This is a serious issue that needs to be addressed promptly.
Overheating: A radio that's constantly powered on can overheat, especially if it's an older model or has a faulty amplifier stage. This can damage the radio and potentially create a fire hazard.
Software Glitches: On more advanced models, software glitches can sometimes cause the radio to malfunction and not turn off correctly. A firmware update might be required to fix these issues.
Fuses: Always check the fuses related to the radio. A blown fuse can sometimes cause the radio to behave erratically, including not turning off.

Do’s and Don’ts / Best Practices

Do’s:

Verify Wiring: Always double-check the wiring diagram and ensure that the constant 12V, switched 12V, and ground wires are connected correctly. Use a multimeter to verify the voltage at each wire with the ignition on and off.
Use a Multimeter: A multimeter is your best friend when troubleshooting electrical issues. Use it to check for voltage, continuity, and shorts.
Check Fuses: Make sure all the fuses related to the radio are in good condition and of the correct amperage.
Secure Connections: Ensure that all wire connections are secure and properly insulated. Use crimp connectors or solder and heat shrink tubing for reliable connections.
Consult the Manual: Refer to the Pioneer radio's user manual for specific instructions and troubleshooting tips.
Test After Installation: After any wiring changes, thoroughly test the radio to ensure it turns on and off correctly.

Don’ts:

Force It: Don't try to force the power button or other controls if the radio isn't responding. This could damage the unit.
Ignore the Problem: Don't ignore a radio that's not turning off. Address the issue promptly to prevent battery drain and potential damage.
Overlook Grounding: Don't underestimate the importance of a good ground connection. A poor ground can cause a wide range of electrical problems.
Cut Wires Without Knowing: Never cut or modify wires without understanding their function. This can create more problems than it solves.

Conclusion

Turning off a Pioneer radio should be a straightforward process, but as we've seen, various factors can complicate things. The most common culprit is incorrect wiring, especially in aftermarket installations. Therefore, the first step in troubleshooting any power-off issue is to carefully verify the wiring connections using a multimeter. If the wiring is correct and the problem persists, consider checking the ignition switch, ground connections, and other aftermarket accessories. If you're not comfortable working with electrical systems, it's always best to consult a qualified car audio technician. Remember, a little bit of knowledge and careful troubleshooting can save you a lot of time, money, and frustration in the long run.
