How To Turn Off The Abs Light

The dreaded ABS light. Seeing it illuminate on your dashboard can range from a minor annoyance to a source of genuine concern. While it *always* warrants investigation, sometimes you might need to temporarily disable the Anti-lock Braking System (ABS) for diagnostic purposes, during specific off-road situations (although rarely recommended on public roads), or perhaps as a last resort if the system is malfunctioning severely and causing braking issues. This article will guide you through the technical aspects of disabling the ABS, potential pitfalls, and important considerations before you even think about touching anything.

ABS: A Quick Background

The Anti-lock Braking System (ABS) is a crucial safety feature in modern vehicles. Its primary function is to prevent wheel lockup during hard braking, allowing the driver to maintain steering control. Wheel lockup happens when the wheels stop rotating while the vehicle is still in motion. This causes the tires to skid, significantly reducing braking efficiency and making steering nearly impossible. ABS mitigates this by rapidly and repeatedly applying and releasing the brakes (pulsing), preventing any single wheel from locking up. This allows you to steer around obstacles even during emergency braking. Early systems were rudimentary, but modern ABS is often integrated with other stability control systems like Electronic Stability Control (ESC) or Traction Control System (TCS).

How ABS Works: A Technical Breakdown

The ABS relies on a network of sensors, a control module (ECU or ABS module), and hydraulic actuators to perform its function. Here’s a breakdown of the key components and their roles:

1. Wheel Speed Sensors:

Each wheel has a wheel speed sensor, typically an inductive or Hall-effect sensor. These sensors monitor the rotational speed of each wheel and send this information to the ABS control module. Inductive sensors work by generating an AC signal as a toothed tone ring rotates past the sensor. The frequency of the AC signal corresponds to the wheel speed. Hall-effect sensors, on the other hand, use a magnetic field and a semiconductor to generate a voltage signal that varies with wheel speed. These sensors are incredibly important, and a faulty sensor is a common cause of ABS light illumination.

2. ABS Control Module (ECU):

The ABS control module, also known as the ECU, is the "brain" of the system. It receives data from the wheel speed sensors and compares the speeds of all four wheels. If one or more wheels are slowing down significantly faster than the others (indicating impending lockup), the ECU activates the hydraulic actuators.

3. Hydraulic Actuators:

The hydraulic actuators consist of a pump, valves, and accumulators. These components modulate the brake pressure to each wheel independently. When the ECU detects a potential wheel lockup, it instructs the hydraulic actuators to reduce pressure to the affected wheel. This allows the wheel to regain traction and continue rotating. Then, the pressure is reapplied, and the cycle repeats rapidly, creating the characteristic pulsing sensation you feel during ABS activation. The valves are typically solenoid-operated, allowing for precise and rapid control of brake fluid flow.

4. Brake Pressure Sensors:

Some advanced ABS systems also incorporate brake pressure sensors, which provide feedback to the ECU about the actual pressure being applied to the brakes. This allows the ECU to fine-tune the braking process even further.

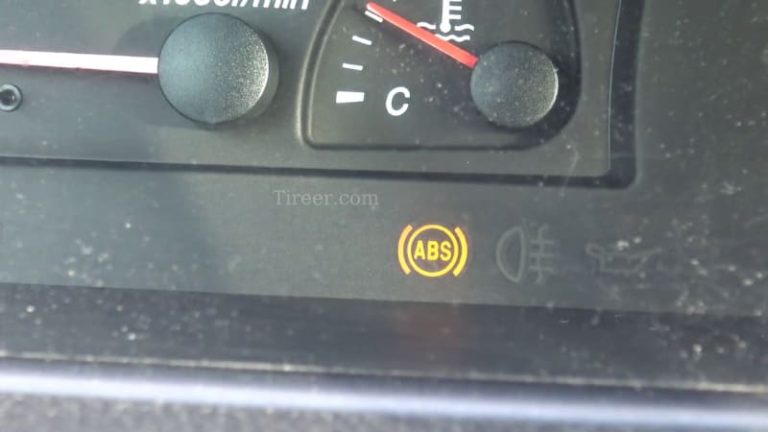

The system is designed to be self-monitoring. If the ECU detects a fault in any component of the ABS, it will illuminate the ABS warning light on the dashboard. This light indicates that the ABS is disabled and that the vehicle will revert to conventional braking. It's crucial to understand that even with the ABS disabled, the standard braking system still functions. However, you will no longer have the benefit of anti-lock braking and must be prepared for potential wheel lockup during hard braking.

Methods for Disabling ABS (and Considerations)

Now, let's discuss how to disable the ABS. Before proceeding, understand that disabling your ABS on public roads is generally not recommended and may even be illegal depending on your local laws. This information is provided for diagnostic and controlled-environment purposes only.

1. Pulling the ABS Fuse:

The simplest and most common method is to remove the ABS fuse. Locate the fuse box (usually under the dashboard or in the engine compartment) and consult your owner's manual to identify the ABS fuse. Pulling this fuse will disable the ABS system. The ABS warning light will illuminate, confirming that the system is no longer active. Important Considerations:

• Safety: Removing the fuse completely disables the ABS. Be aware that you will lose anti-lock braking capability.
• Check Engine Light: Pulling the ABS fuse may trigger other warning lights or fault codes.
• Reversibility: Reinstalling the fuse will typically restore ABS functionality, but you may need to clear any stored fault codes with an OBD-II scanner.

2. Disconnecting the ABS Module:

Another method is to disconnect the electrical connector from the ABS control module. The ABS module is usually located near the master cylinder or the ABS hydraulic unit. Disconnecting the connector will effectively disable the system. Important Considerations:

• Accessibility: Accessing the ABS module can sometimes be difficult, requiring the removal of other components.
• Wiring Damage: Be careful not to damage the connector or the wiring harness when disconnecting it.
• Potential for Corrosion: Disconnecting the connector can expose the terminals to corrosion, which can lead to future problems. Use dielectric grease upon reassembly.

3. Disconnecting Wheel Speed Sensors: (NOT RECOMMENDED FOR STANDARD USE)

While technically possible, disconnecting individual wheel speed sensors is generally NOT recommended. It can lead to unpredictable braking behavior and potential damage to the ABS system. Furthermore, it might trigger more complex error codes that are harder to diagnose and clear. Doing so might put the car into a limp mode or cause unpredictable braking behaviour.

• Complexity: Very difficult to isolate the issue.
• Potential for Damage: High chance of damaging the sensors or wiring.
• Unpredictable Behaviour: Braking might become very erratic.

4. Using an OBD-II Scanner to Disable ABS (If Available):

Some advanced OBD-II scanners have the capability to temporarily disable the ABS through software. This method is less common but can be useful for diagnostic purposes, especially when testing specific ABS components. This capability depends heavily on the vehicle manufacturer and the capabilities of the OBD-II scanner.

• Scanner Compatibility: Requires a scanner with advanced diagnostic functions.
• Technical Expertise: Requires a good understanding of the ABS system and the scanner's software.
• Risk of Software Errors: Incorrectly using the scanner can cause serious problems with the vehicle's electronic systems.

Common Issues and Maintenance Concerns

The ABS is a complex system, and several issues can cause the ABS light to illuminate. Here are some common problems:

• Faulty Wheel Speed Sensors: This is the most common cause. A damaged or contaminated sensor can send incorrect data to the ECU. Check the sensor wiring and the tone ring for damage.
• ABS Module Failure: The ABS module itself can fail due to electrical or internal component issues.
• Hydraulic Actuator Problems: The hydraulic actuators can develop leaks, clogs, or electrical faults.
• Low Brake Fluid: A low brake fluid level can sometimes trigger the ABS light. Always check the brake fluid reservoir.
• Air in the Brake Lines: Air in the brake lines can interfere with the ABS function. Bleeding the brakes may be necessary.
• Corrosion in Connectors: Corrosion on electrical connectors can cause poor communication between the ABS components. Clean and protect connectors with dielectric grease.

Regular maintenance, such as checking brake fluid levels, inspecting brake lines, and cleaning wheel speed sensors, can help prevent ABS problems. Also, ensure that your tires are properly inflated and in good condition, as tire pressure can affect ABS performance.

Do's and Don'ts

Do's:

• Do consult your vehicle's service manual for specific troubleshooting procedures.
• Do use a high-quality OBD-II scanner to read fault codes and diagnose ABS problems.
• Do inspect wheel speed sensors and tone rings for damage or contamination.
• Do check brake fluid levels and bleed the brakes if necessary.
• Do use dielectric grease on electrical connectors to prevent corrosion.
• Do fully understand the implications before disabling the ABS.

Don'ts:

• Don't drive with the ABS disabled on public roads unless it's absolutely necessary and you're aware of the risks.
• Don't ignore the ABS warning light. Have the system diagnosed and repaired as soon as possible.
• Don't attempt to repair the ABS system without proper knowledge and tools.
• Don't disconnect wheel speed sensors as a primary diagnostic method.
• Don't assume that pulling the ABS fuse is a permanent solution. It's only a temporary measure for specific situations.

Conclusion

Disabling the ABS should be approached with caution and a clear understanding of the potential consequences. While it may be necessary for diagnostic purposes or in very specific controlled environments, it's generally not recommended for regular driving. Always prioritize safety and have any ABS problems diagnosed and repaired by a qualified mechanic as soon as possible. If you are an experienced DIYer, you can troubleshoot the system yourself using the information provided above, but always proceed with caution and double-check your work. If you are unsure, seek professional help. Remember that your safety and the safety of others depend on it.
