How To Turn On All Wheel Drive Nissan Rogue

The Nissan Rogue is a popular compact SUV known for its practicality and fuel efficiency. A key feature for many Rogue owners, especially those living in areas with inclement weather, is its available All-Wheel Drive (AWD) system. Understanding how to engage and utilize this system effectively can significantly improve traction and handling in challenging conditions. This article will provide a detailed breakdown of how the Rogue's AWD system works, how to engage it, and best practices for its maintenance and usage.

Background: The Nissan Rogue's Intelligent AWD System

The Rogue doesn't utilize a traditional, mechanically-linked 4-wheel drive system like you'd find in a truck. Instead, it uses an Intelligent AWD system, also sometimes referred to as All-Mode AWD by Nissan. This system is primarily front-wheel drive (FWD) but can automatically engage the rear wheels when it detects slippage or a need for additional traction. This on-demand system offers a balance between fuel efficiency and enhanced capability.

The core components of the Intelligent AWD system include:

Wheel Speed Sensors: Located at each wheel, these sensors constantly monitor the rotational speed of each wheel.
Yaw Rate Sensor: This sensor measures the vehicle's rotation around its vertical axis, helping the system detect oversteer or understeer.
Electronic Control Unit (ECU): The "brain" of the system, the ECU receives data from all the sensors and determines when and how much torque to send to the rear wheels.
Electromagnetic Coupling: This coupling, located in the rear differential, controls the amount of torque transferred to the rear wheels. It uses an electromagnetic field to engage and disengage the rear axle.
Rear Differential: This gear system divides torque between the rear wheels, similar to how the front differential divides torque between the front wheels.

Technical Breakdown: How the Rogue's AWD System Works

The Nissan Rogue's Intelligent AWD system operates automatically and seamlessly, requiring minimal driver input. Here's a step-by-step explanation of how it works:

Normal Driving Conditions (FWD Mode): Under normal driving conditions on dry pavement, the system operates primarily in FWD mode. The electromagnetic coupling in the rear differential is disengaged, meaning no torque is sent to the rear wheels. This maximizes fuel efficiency.
Sensor Data Acquisition: The wheel speed sensors constantly monitor the rotational speed of each wheel. If one or more front wheels begin to spin faster than the rear wheels (indicating slippage), the sensors send this information to the ECU. The yaw rate sensor also contributes data to help the ECU understand the vehicle's stability.
ECU Analysis and Activation: The ECU analyzes the sensor data and determines if AWD is needed. Factors considered include wheel slip, throttle input, and steering angle. If the ECU determines that AWD is necessary, it activates the electromagnetic coupling in the rear differential.
Torque Transfer to Rear Wheels: When activated, the electromagnetic coupling applies a magnetic field to a set of clutch plates within the differential. The strength of the magnetic field determines the amount of engagement of the clutch plates. The more the clutch plates engage, the more torque is transferred to the rear wheels.
Variable Torque Distribution: The ECU can precisely control the amount of torque sent to the rear wheels, ranging from a small percentage to a maximum of 50%. This variable torque distribution helps optimize traction and stability in various driving conditions.
Automatic Disengagement: Once the slippage is resolved and traction is regained, the ECU gradually reduces the engagement of the electromagnetic coupling, eventually returning the system to FWD mode. This transition is seamless and generally unnoticeable to the driver.

AWD Lock Mode

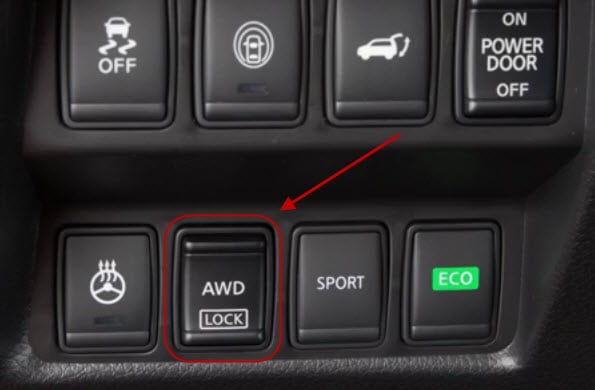

Many Nissan Rogue models equipped with AWD also feature an "AWD Lock" button. This button, when engaged, forces the AWD system to send a fixed amount of torque to the rear wheels (typically around 50/50 split front/rear). This mode is designed for low-speed, low-traction situations, such as driving through deep snow or mud. It is not intended for use on dry pavement at higher speeds. The AWD Lock mode will typically disengage automatically at higher speeds (usually around 25 mph), reverting back to the automatic AWD mode.

Common Issues and Maintenance Concerns

While the Nissan Rogue's AWD system is generally reliable, there are a few potential issues to be aware of:

Electromagnetic Coupling Failure: This is perhaps the most common issue. The electromagnetic coupling can wear out or fail over time, resulting in a loss of AWD functionality. Symptoms include a warning light on the dashboard, a grinding noise from the rear differential, or a noticeable decrease in traction in slippery conditions.
Wheel Speed Sensor Issues: Damaged or faulty wheel speed sensors can send inaccurate data to the ECU, leading to erratic AWD behavior or complete system failure.
Rear Differential Fluid: Like any differential, the rear differential in the Rogue requires periodic fluid changes. Neglecting this maintenance can lead to premature wear and damage to the differential gears. Refer to your owner's manual for the recommended service interval. Use the specified differential fluid; using the wrong fluid can damage the system.
Tire Wear: Uneven tire wear can negatively impact the performance of the AWD system. The system relies on accurate wheel speed data, and significantly different tire diameters can confuse the ECU. Ensure that all four tires are the same size, type, and have similar tread depth. Regularly rotate your tires to promote even wear.
Wiring Harness Damage: The wiring harness that connects the various components of the AWD system can be damaged by road debris, corrosion, or animal activity. Inspect the wiring harness periodically for any signs of damage.

Do's and Don'ts / Best Practices

To ensure the longevity and proper functioning of your Nissan Rogue's AWD system, follow these guidelines:

Do's:

Do use the AWD Lock mode only in low-speed, low-traction situations (e.g., deep snow, mud).
Do maintain proper tire inflation and ensure all four tires are the same size, type, and have similar tread depth.
Do follow the recommended service intervals for rear differential fluid changes.
Do visually inspect the AWD components (wiring, differential) periodically for any signs of damage or leaks.
Do pay attention to any warning lights on the dashboard related to the AWD system. Address them promptly.

Don'ts:

Don't use the AWD Lock mode on dry pavement at higher speeds. This can cause excessive wear and tear on the system and may even damage it.
Don't ignore any unusual noises or vibrations coming from the rear of the vehicle. These could be signs of an AWD system problem.
Don't attempt to modify the AWD system without proper knowledge and expertise.
Don't drive aggressively or recklessly in slippery conditions, even with AWD engaged. The system enhances traction, but it doesn't defy the laws of physics.
Don't assume AWD makes you invincible in winter weather. Drive defensively and adjust your speed and following distance accordingly.

Conclusion

The Nissan Rogue's Intelligent AWD system is a valuable asset for enhanced traction and stability in various driving conditions. By understanding how the system works, performing regular maintenance, and following the best practices outlined in this article, you can ensure its optimal performance and longevity. If you suspect any issues with your AWD system, it's always best to consult a qualified mechanic for diagnosis and repair. While the system is fairly robust, preventative maintenance and attentive driving habits are key to maximizing the benefits of your Rogue's all-wheel drive capability. Ignoring necessary maintenance can lead to costly repairs down the road. Prioritize regular checks and fluid changes to keep your AWD system running smoothly.
