How To Turn On Awd In Nissan Rogue

The Nissan Rogue, a popular compact SUV, offers the option of all-wheel drive (AWD) in many of its trims. While the system generally operates automatically, understanding how to engage and optimize it can improve your driving experience and safety, especially in challenging conditions. This article dives into the specifics of Nissan Rogue's AWD system, explaining its mechanics, usage, and benefits.

Understanding the "Auto" AWD System

Unlike some older AWD systems requiring manual engagement, the Nissan Rogue primarily employs an automatic, on-demand AWD system. This means it doesn't need you to flip a switch or pull a lever to activate it. The system continuously monitors wheel slippage and traction conditions. When it detects a loss of grip in the front wheels, it automatically diverts torque to the rear wheels to improve traction.

Think of it like this: imagine you're running on a slippery surface. You initially rely on your front foot for propulsion. If that foot starts to slide, your body instinctively shifts weight to your other foot to regain balance and forward momentum. The Rogue's AWD system works similarly, except it's computers and mechanical components managing the weight (torque) distribution.

How the Rogue's AWD System Works: A Mechanical Deep Dive

At the heart of the Rogue's AWD system is an electronically controlled coupling. This coupling, typically located at the rear differential, acts as a clutch, connecting the front and rear axles. Here's a breakdown of the process:

1. Sensors and Monitoring: The vehicle's ABS (Anti-lock Braking System) and wheel speed sensors constantly monitor the rotational speed of each wheel. These sensors feed data to the vehicle's computer (ECU - Engine Control Unit or a dedicated AWD control module).
2. Slippage Detection: If the front wheels begin to spin faster than the rear wheels, indicating slippage, the ECU interprets this data as a loss of traction.
3. Coupling Engagement: The ECU then sends a signal to the electronically controlled coupling. This signal increases the pressure applied to the clutch plates within the coupling.
4. Torque Transfer: As the clutch plates engage, they begin to transfer torque from the front wheels (which are connected to the engine) to the rear wheels. The amount of torque transferred is variable and depends on the severity of the slippage. The greater the difference in wheel speed, the more torque is diverted to the rear.
5. Automatic Disengagement: Once the front wheels regain traction, the ECU gradually reduces the pressure on the coupling, decreasing the torque transfer to the rear wheels and eventually returning to a primarily front-wheel-drive configuration. This optimizes fuel efficiency in normal driving conditions.

The system is typically pre-emptive. Some systems can anticipate slippage based on throttle position, steering angle, and yaw rate, even before actual wheel spin occurs. This predictive capability allows for even quicker and more seamless torque distribution.

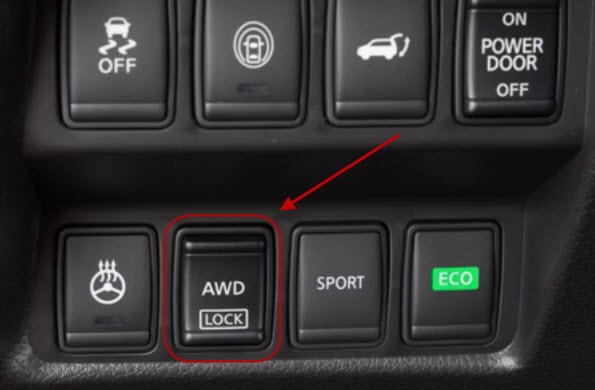

The "AWD Lock" Mode

Many Rogue models equipped with AWD also feature an "AWD Lock" button. This is *not* a true locking differential in the traditional sense. Instead, it's a feature designed to provide maximum torque to the rear wheels at lower speeds, typically below 25 mph. When engaged, the AWD Lock forces the electronic coupling to maintain a higher level of engagement, sending more torque to the rear wheels than it normally would in "Auto" mode, even if the front wheels haven't started slipping significantly. This is useful for starting from a standstill on slippery surfaces like snow, ice, or mud.

Important Note: The AWD Lock is intended for temporary use in low-traction situations. It should not be used at higher speeds or on dry pavement. Doing so can overheat the coupling, damage the system, and reduce fuel economy. Above the designated speed (usually around 25 mph), the system will automatically revert to "Auto" mode.

Pros and Cons of Nissan Rogue's AWD System

Pros:

• Improved Traction: Provides enhanced grip and stability in slippery conditions, improving safety.
• Automatic Operation: Requires no driver intervention in most situations, simplifying the driving experience.
• Enhanced Resale Value: Vehicles equipped with AWD often hold their value better than their FWD counterparts.
• AWD Lock Feature: Offers additional traction assistance for specific low-speed situations.

Cons:

• Increased Weight: The AWD system adds weight to the vehicle, slightly impacting fuel economy and acceleration.
• Higher Cost: AWD models typically have a higher initial purchase price.
• Increased Maintenance: The AWD system adds complexity, potentially leading to higher maintenance costs over the vehicle's lifespan (e.g., differential fluid changes).
• Not a Substitute for Winter Tires: While AWD improves traction, it doesn't replace the need for proper winter tires in heavy snow or ice.

Use Cases for the Rogue's AWD System

• Snowy or Icy Roads: Provides enhanced traction and stability, reducing the risk of skidding or losing control.
• Rainy Conditions: Helps maintain grip on wet pavement, especially during acceleration and cornering.
• Gravel or Dirt Roads: Offers improved traction and control on unpaved surfaces.
• Light Off-Roading: Can handle mild off-road trails and conditions, although the Rogue is not designed for serious off-road adventures.
• Hilly Terrain: Provides added grip when climbing steep hills, especially in slippery conditions.

Manufacturer Examples: Beyond the Rogue

The type of AWD system used in the Nissan Rogue is common in many other compact SUVs and crossovers. Similar systems can be found in vehicles like the Honda CR-V, Toyota RAV4, and Subaru Forester. While the specific components and programming may vary, the underlying principle of an electronically controlled, on-demand AWD system remains the same.

Subaru, while also employing automatic AWD systems, often use a *symmetrical* AWD system with a mechanically biased torque split even at baseline. This provides a fundamentally different, often more stable, feel compared to the Rogue's primarily front-wheel-drive bias.

Luxury brands like BMW and Mercedes-Benz often incorporate more sophisticated AWD systems with features like torque vectoring, which can actively distribute torque between the left and right rear wheels to improve handling and cornering performance. These systems go beyond simply transferring torque between the front and rear axles.

Real-World Insights and Recommendations

The Nissan Rogue's AWD system is a valuable asset for drivers who frequently encounter challenging weather conditions or drive on unpaved roads. However, it's important to understand its limitations. It is not a magic bullet that makes the Rogue invincible in snow or ice. Safe driving practices, including reduced speed and increased following distance, are still essential.

The "AWD Lock" feature can be useful for getting unstuck or starting from a standstill on slippery surfaces. However, remember to disengage it once you're moving at a reasonable speed. Leaving it engaged for extended periods can damage the system and reduce fuel economy.

Ultimately, the decision of whether or not to opt for AWD on a Nissan Rogue depends on your individual needs and driving conditions. If you live in an area with frequent snow, ice, or rain, or if you regularly drive on unpaved roads, the added traction and stability of AWD can be a significant benefit. However, if you primarily drive on dry pavement in mild weather, the added cost and weight of AWD may not be worth it.

Also, remember that proper tire selection plays a *huge* role. A Rogue with AWD and all-season tires will still underperform compared to a Rogue with front-wheel drive and dedicated winter tires in deep snow. Prioritize good tires for your environment.
