How To Turn On Fog Lights Car

Fog lights, those low-mounted beams that cut through the gloom, are essential for safe driving in adverse weather. While seemingly simple, their operation relies on a specific electrical circuit and understanding that circuit can empower you to troubleshoot issues and ensure they're functioning correctly. This article details how fog lights are activated, the underlying electrical principles, common problems, and best practices for their use and maintenance.

Background: The Fog Light System

Unlike headlights designed for distance and brightness, fog lights are designed for low and wide illumination. Their purpose is to enhance visibility in fog, heavy rain, snow, and dust storms by projecting a beam below the obscuring weather conditions, minimizing glare back into the driver's eyes. The key design principles are low mounting and a broad, diffused beam pattern.

The fog light system comprises several key components:

Fog Light Assemblies: These contain the bulb or LED and a specially designed reflector and lens to create the desired beam pattern.

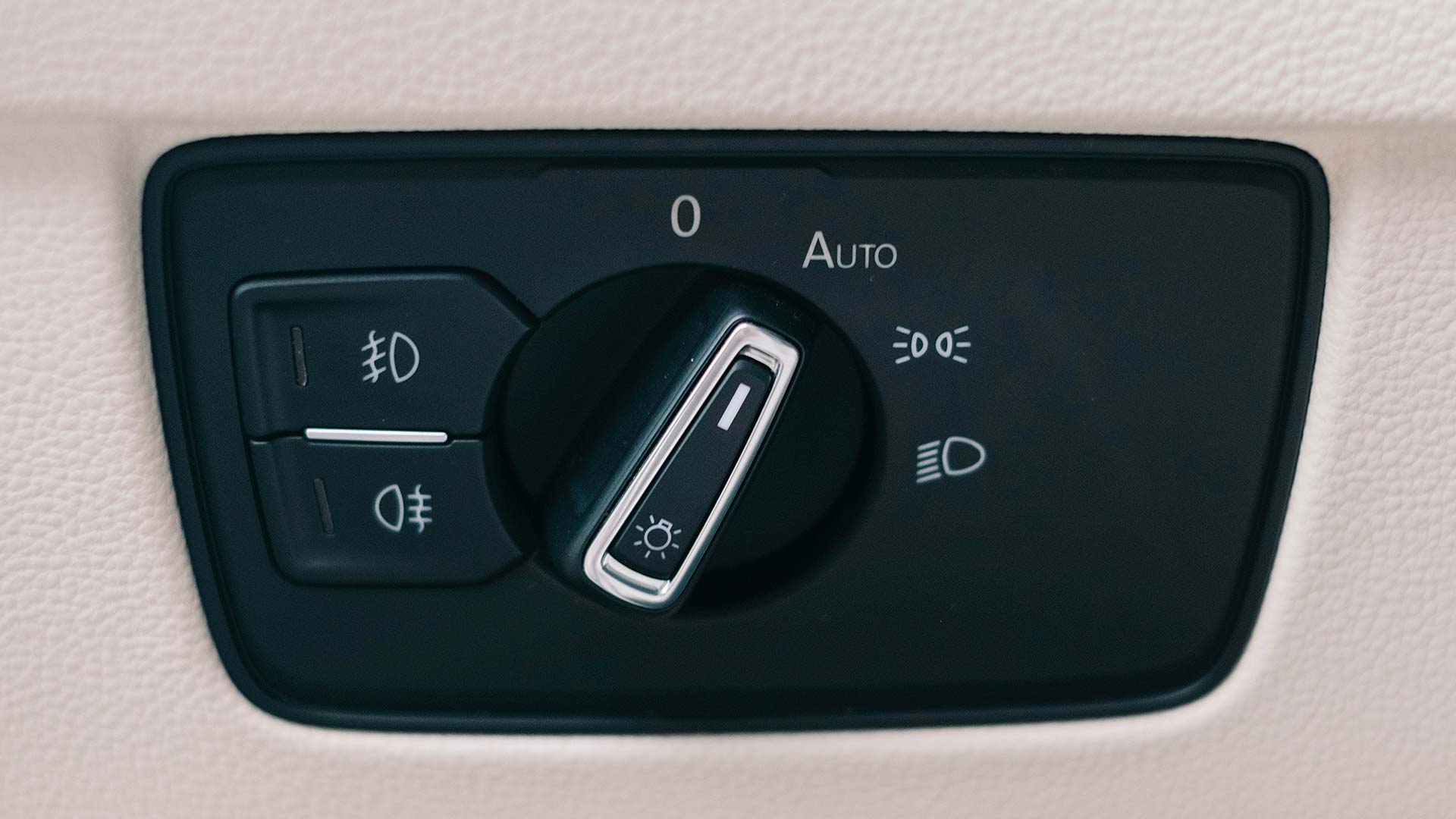

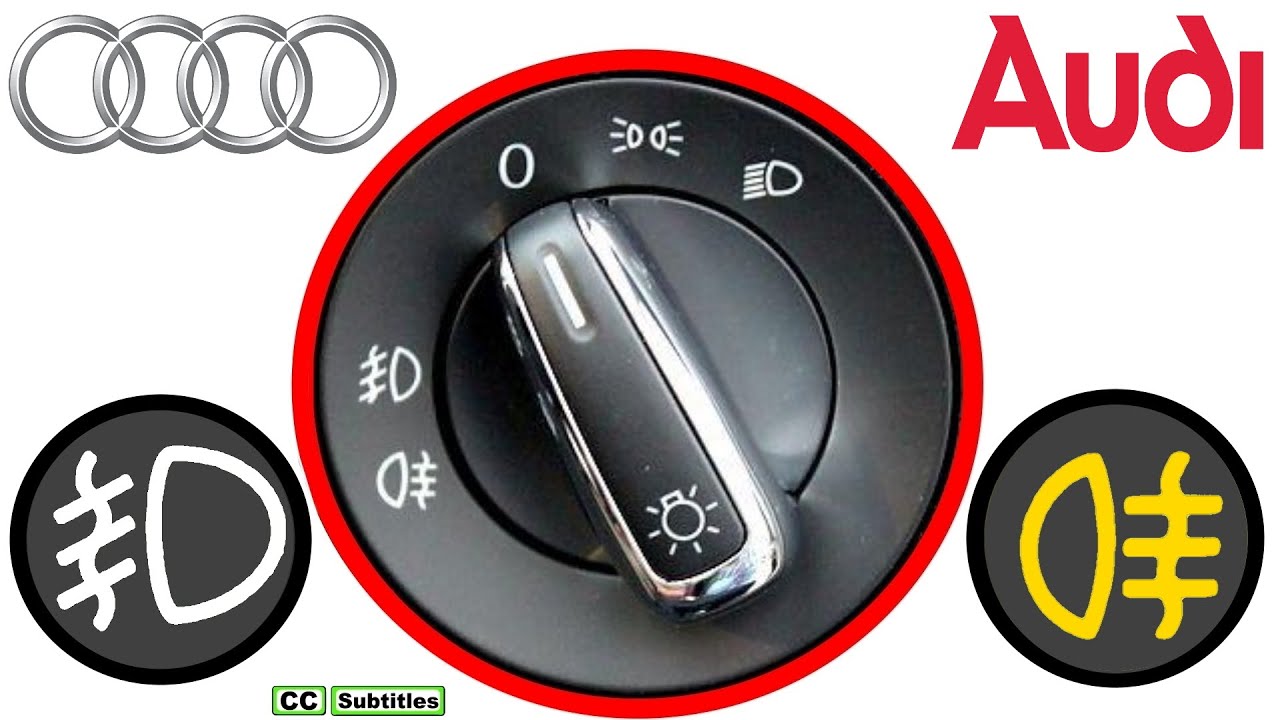

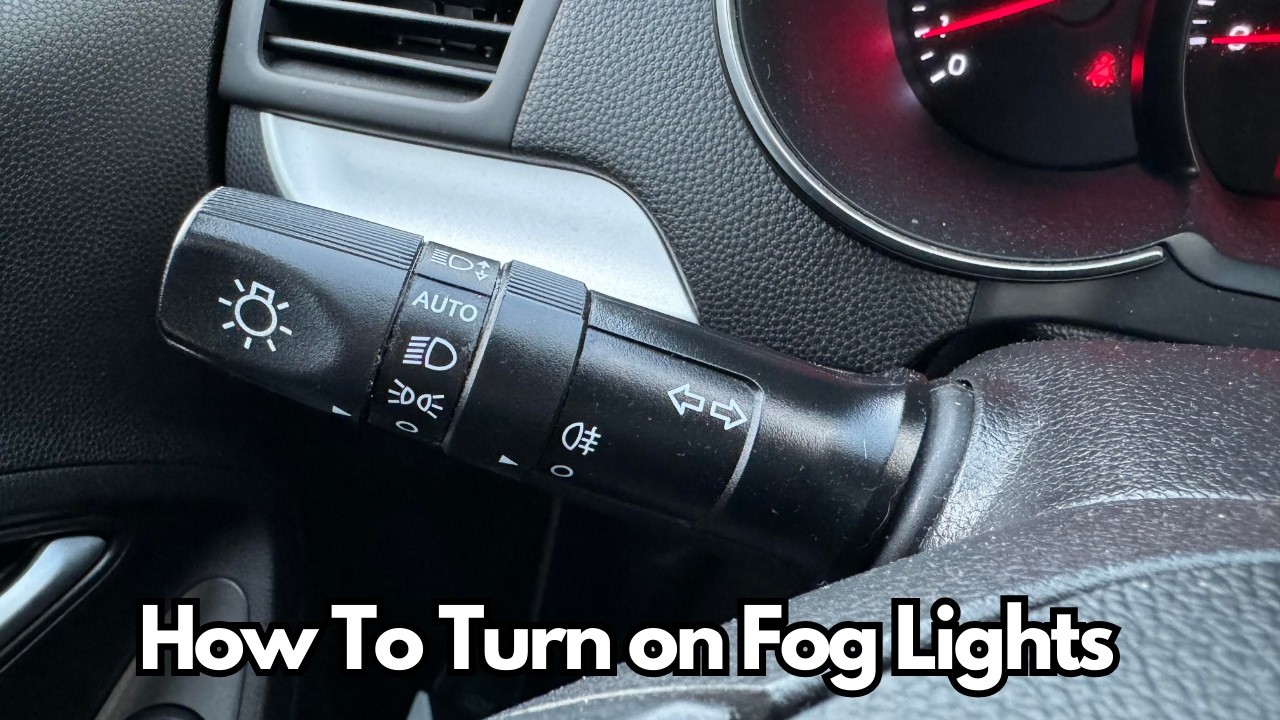

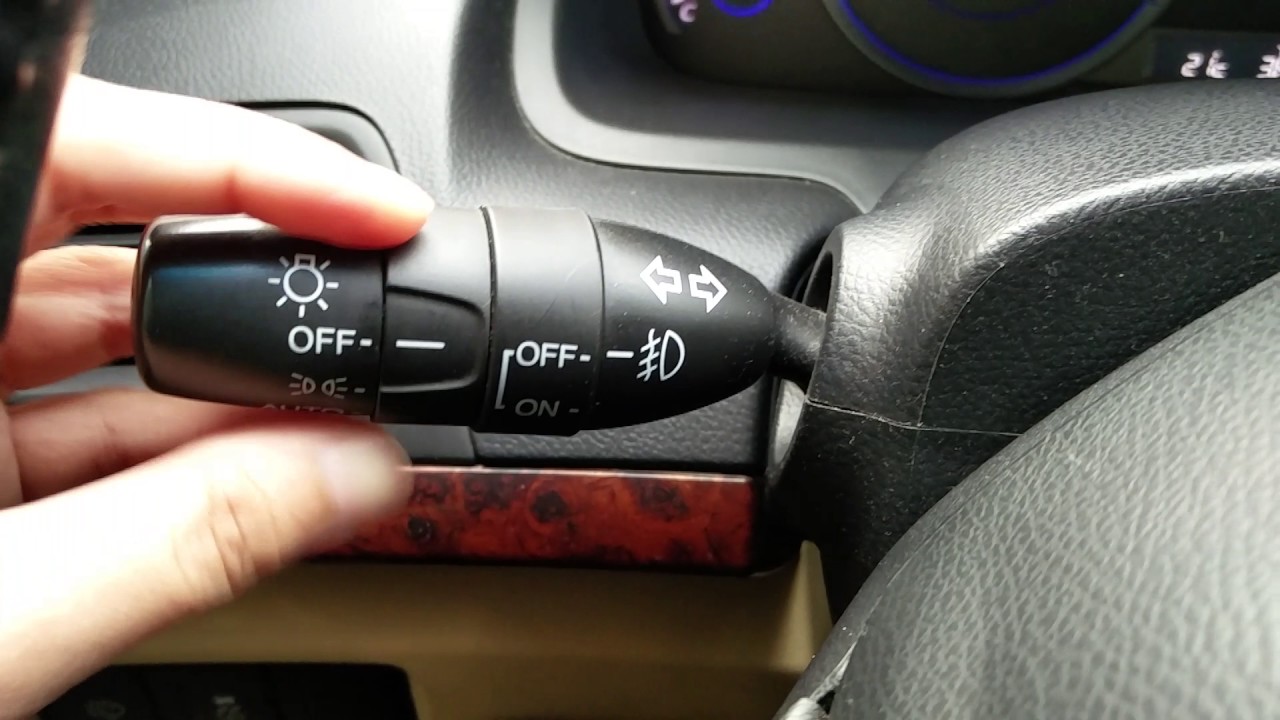

Switch: Typically located on the headlight stalk or dashboard, this activates the fog light circuit.
Relay: An electromagnetic switch that allows a low-current switch to control a high-current circuit. Fog lights draw a significant amount of power, so a relay is crucial to protect the switch and wiring.
Fuse: A safety device that protects the electrical circuit from overloads. If too much current flows through the circuit, the fuse will blow, breaking the circuit.
Wiring: Connects all the components together, carrying power from the battery to the fog lights.
Indicator Light: Usually on the dashboard, this illuminates to confirm that the fog lights are active.

Technical Breakdown: How Fog Lights Are Turned On

The activation of fog lights follows a sequence of events governed by basic electrical principles. Understanding this sequence is critical for troubleshooting.

1. Switch Activation

The process begins when you activate the fog light switch. This switch doesn't directly power the fog lights. Instead, it sends a small electrical signal (a low-current signal) to the relay's control circuit. The fog light switch is designed to handle a minimal amount of current, protecting the switch components and wiring from damage.

2. Relay Engagement

The relay is an electromagnetic switch. It consists of a coil, a spring-loaded contact, and a set of terminals. When the fog light switch sends a signal to the relay coil, the coil becomes energized, creating a magnetic field. This magnetic field pulls the spring-loaded contact towards the coil, closing the circuit between the relay's power input terminal and its power output terminal. Think of it as a gatekeeper: a small signal opens the gate for a much larger flow of electricity.

There are generally four or five terminals on a standard automotive relay, each serving a specific purpose:

30 (or 51): This terminal is connected directly to the battery or a fused power source, providing the high-current power required for the fog lights.
85: One side of the relay coil. This terminal is connected to ground (earth).
86: The other side of the relay coil. This terminal receives the signal from the fog light switch.
87: The output terminal. When the relay is activated, this terminal becomes connected to terminal 30 (or 51), sending power to the fog lights.
87a (Optional): Some relays have a fifth terminal, 87a, which is normally connected to terminal 30 (or 51) when the relay is not activated. When the relay is activated, the connection to 87a is broken. This is typically used in changeover circuits.

3. Power Delivery to Fog Lights

With the relay activated, power flows from the battery (or a fused power source) through the relay and then through the wiring to the fog light assemblies. The resistance in the wiring affects the amount of current that can flow to the lights. Thicker gauge wire will offer lower resistance, delivering more power and a brighter light output. The fog light assemblies then convert this electrical energy into light.

4. Indicator Light Activation

In most vehicles, when the fog lights are activated, an indicator light on the dashboard illuminates. This light is usually connected to the fog light circuit after the relay, ensuring that it only lights up when the fog lights are receiving power. The indicator light provides confirmation to the driver that the fog lights are on.

Common Issues and Maintenance Concerns

Like any electrical system, the fog light circuit is susceptible to several common problems:

Blown Fuse: A blown fuse is one of the most common issues. This is usually caused by a short circuit or an overload in the fog light circuit. If your fog lights stop working, the first thing you should do is check the fuse.
Faulty Relay: Relays can fail due to corrosion, overheating, or mechanical failure. A faulty relay may not activate the fog lights, or it may cause them to flicker or turn on intermittently. You can test a relay using a multimeter or by swapping it with a known good relay.
Burnt-Out Bulbs/LEDs: Fog light bulbs or LEDs eventually burn out. Replacement is straightforward but ensure you use the correct bulb type and wattage.
Corroded Wiring or Connectors: Corrosion can build up on wiring and connectors, increasing resistance and reducing the amount of power that reaches the fog lights. Clean corroded connections with a wire brush and apply dielectric grease to prevent future corrosion.
Faulty Switch: Although less common, the fog light switch itself can fail. This is often due to worn contacts or internal damage.
Grounding Issues: A poor ground connection can cause a variety of electrical problems, including dim or flickering fog lights. Ensure that the fog light ground wires are securely attached to a clean, unpainted metal surface.

Do's and Don'ts / Best Practices

To ensure the optimal performance and longevity of your fog lights, follow these do's and don'ts:

Do's

Check your local laws: Some jurisdictions have restrictions on when fog lights can be used.
Use appropriate bulb types: Always use the correct bulb type and wattage for your fog light assemblies. Using the wrong bulb can damage the assembly or create a safety hazard.
Regularly inspect the wiring and connectors: Look for signs of corrosion, damage, or loose connections.
Consider LED upgrades: LED fog lights offer brighter output, lower power consumption, and longer lifespan compared to traditional halogen bulbs. Ensure they are DOT-approved for street use.
Use dielectric grease on connectors: Dielectric grease helps prevent corrosion and ensures a good electrical connection.

Don'ts

Use fog lights in clear weather: Fog lights are designed for use in low-visibility conditions. Using them in clear weather can create glare and annoy other drivers.
Modify the fog light circuit without proper knowledge: Modifying the circuit can create safety hazards and damage your vehicle's electrical system.
Use excessively high-wattage bulbs: This can overload the circuit and damage the wiring or fog light assemblies.
Ignore warning signs: If your fog lights are dim, flickering, or not working at all, address the problem promptly.
Overtighten connections: Overtightening can damage connectors and wires.

Conclusion

Understanding how your car's fog lights work, from switch activation to relay engagement and power delivery, is vital for proper maintenance and troubleshooting. Regular inspections, addressing issues promptly, and adhering to best practices will ensure that your fog lights are ready when you need them most. If you're not comfortable working with electrical systems, it's always best to consult a qualified mechanic. However, with a basic understanding and some simple tools, many fog light issues can be diagnosed and resolved by a capable DIYer.
