How To Turn Vdc On Nissan

Vehicle Dynamic Control (VDC), also known as Electronic Stability Control (ESC) by other manufacturers, is a crucial safety system in modern vehicles, including Nissans. While most drivers know how to *turn off* VDC (for specific situations), understanding how to properly *turn it on* or ensure it's functioning correctly is equally important for maintaining optimal vehicle handling and safety. This article delves into the workings of Nissan's VDC system, common issues, and best practices to ensure it's ready to assist you when needed.

Background of Nissan's VDC System

Nissan's VDC system is a sophisticated electronic aid designed to prevent skidding and loss of control, especially in challenging driving conditions. It builds upon existing systems like Anti-lock Braking System (ABS) and Traction Control System (TCS). ABS prevents wheel lockup during braking, while TCS limits wheel spin during acceleration. VDC takes it a step further by actively intervening to correct oversteer (the rear of the car sliding out) and understeer (the front of the car plowing forward) situations.

The system relies on a network of sensors constantly monitoring various parameters, including:

Wheel speed sensors: These sensors, typically inductive or Hall-effect sensors, measure the rotational speed of each wheel.
Steering angle sensor: Located within the steering column, this sensor determines the driver's intended steering direction.
Yaw rate sensor: This sensor, usually a gyroscope-based device, measures the vehicle's rotation rate around its vertical axis. It indicates if the car is turning more or less than what the driver is commanding with the steering wheel.
Lateral acceleration sensor: Measures the sideways acceleration experienced by the vehicle.
Brake pressure sensor: Monitors the pressure within the braking system.

These sensors feed data to the Electronic Control Unit (ECU), which acts as the brain of the VDC system. The ECU continuously compares the driver's intended path (based on steering angle) with the vehicle's actual movement (based on yaw rate and lateral acceleration). If a discrepancy is detected, indicating a potential loss of control, the VDC system intervenes.

Technical Breakdown: How VDC Works

When the VDC system detects a potential skid, it uses a combination of techniques to regain control:

Selective Braking

The primary method of intervention is selective braking. The VDC system can apply braking force to individual wheels to correct the vehicle's trajectory. For example, if the car is oversteering (rear sliding out), the system might apply the brake to the outer front wheel. This creates a yaw moment that helps steer the car back in line. The system utilizes the ABS hydraulic modulator to precisely control braking pressure at each wheel.

Engine Torque Reduction

In some situations, the VDC system might also reduce engine torque to prevent further wheelspin. This is achieved by communicating with the engine control unit (ECU) and requesting a temporary reduction in fuel delivery or ignition timing. This reduces power output, making it easier to regain traction.

Throttle Intervention

In newer Nissan vehicles with electronic throttle control, the VDC system can directly manipulate the throttle plate opening to reduce engine power, providing more precise control than simply requesting torque reduction from the engine ECU.

The "VDC On" Default State

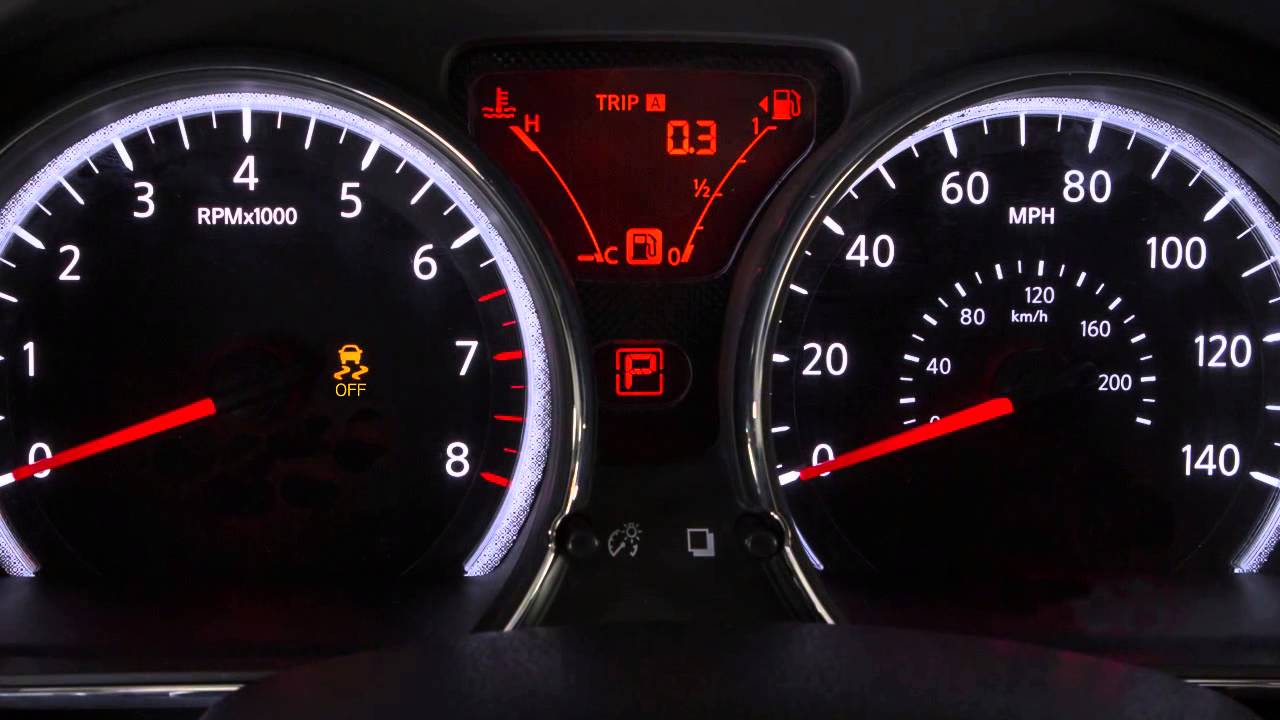

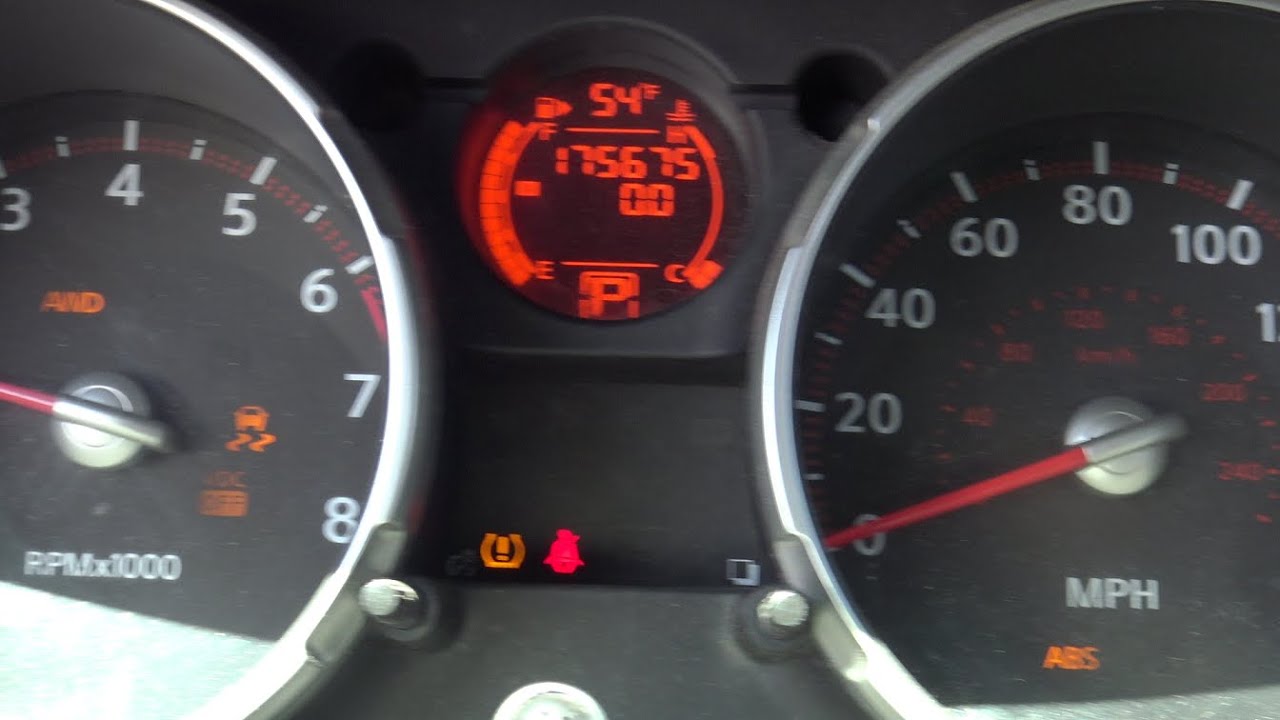

Crucially, VDC is designed to be ON by default in most Nissan vehicles. This means that every time you start the car, the system automatically activates and begins monitoring the vehicle's stability. There is usually a visual indicator on the instrument cluster (typically a car icon with skid marks) that illuminates briefly during startup to confirm the system is active. If this indicator remains illuminated *constantly*, it usually indicates a fault in the VDC system.

Ensuring VDC is Engaged

In the vast majority of situations, the user doesn't need to do anything to turn VDC "on" beyond starting the vehicle. The system is designed to operate automatically in the background. However, here's how to confirm it's active and what to do if it's not:

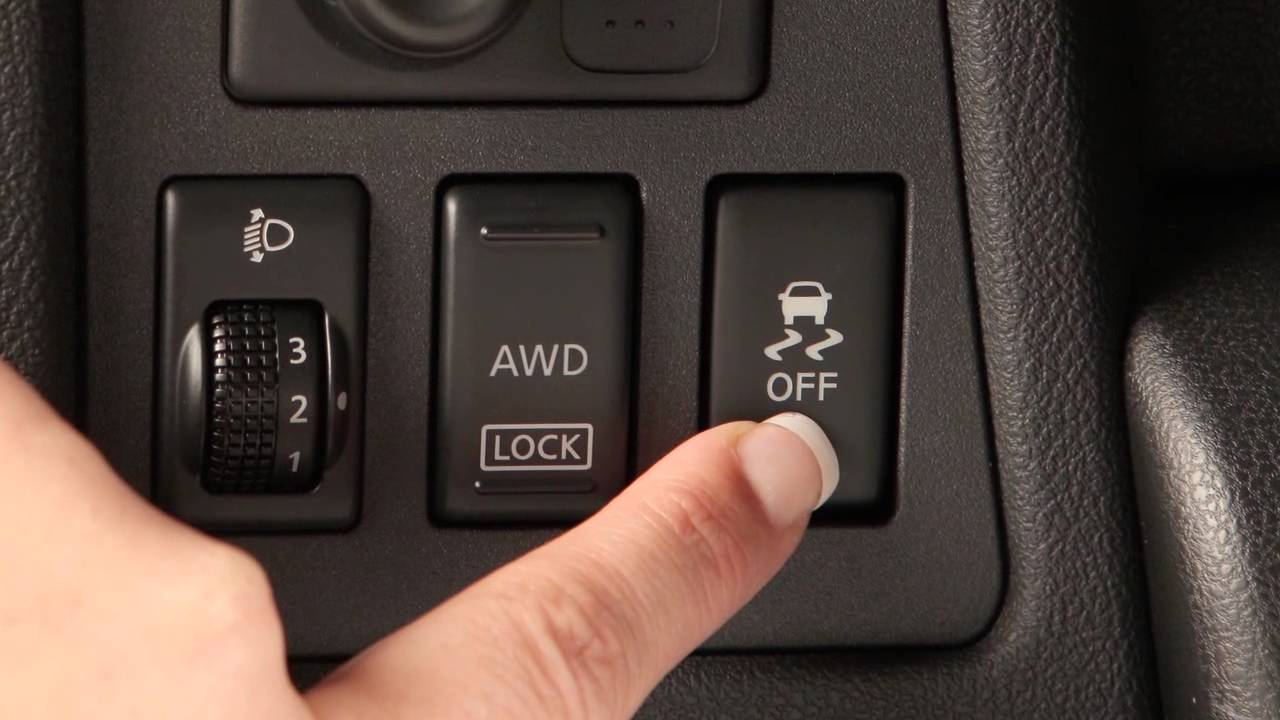

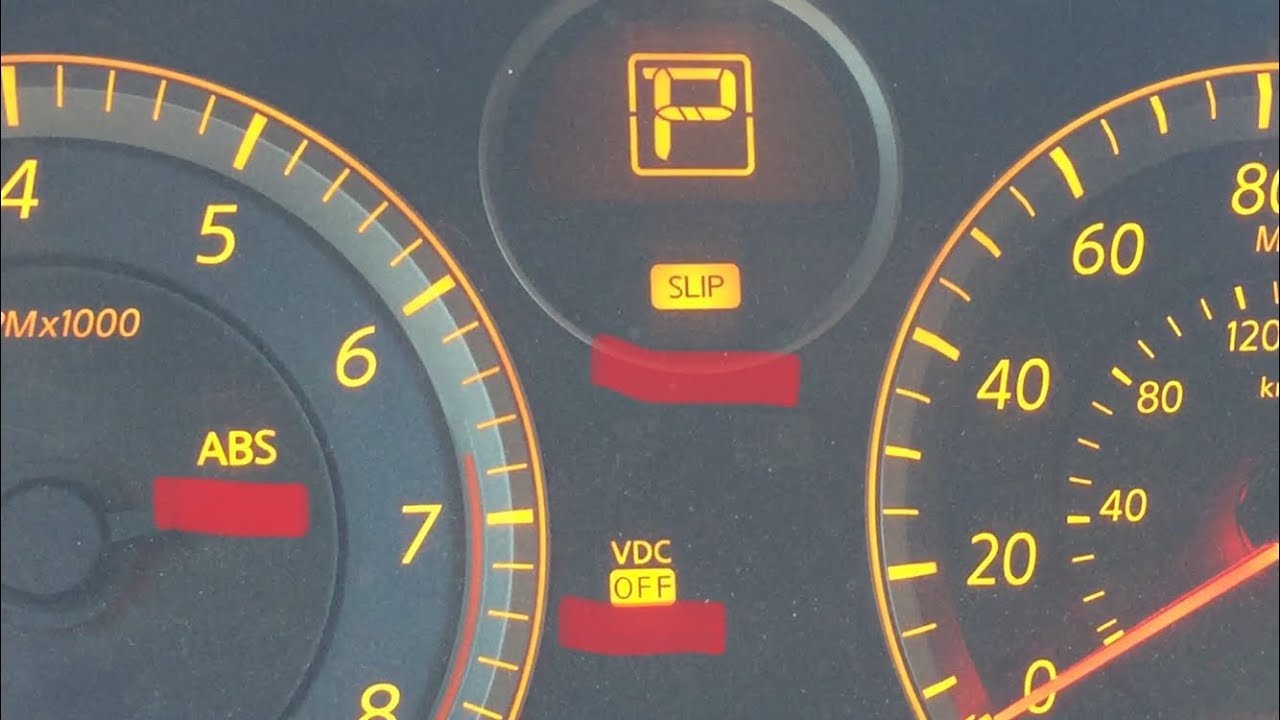

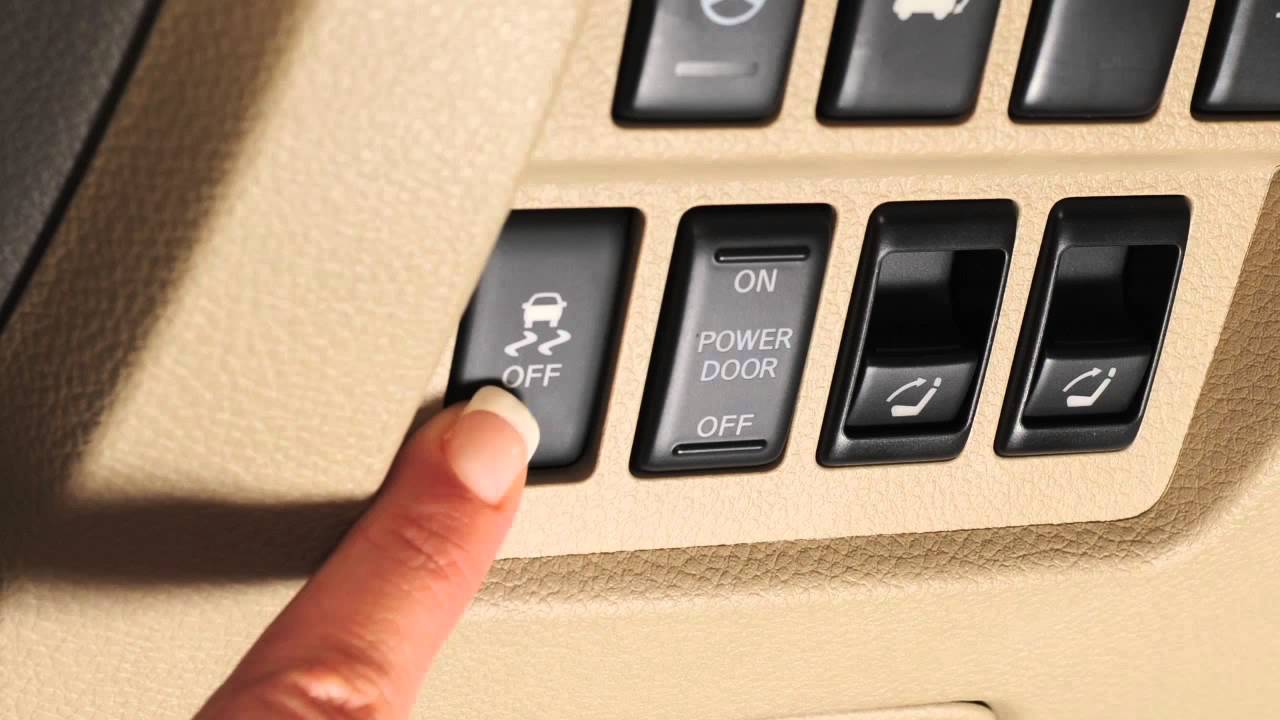

Check the VDC OFF button: Most Nissan vehicles have a "VDC OFF" button on the dashboard. If this button has been pressed, VDC will be deactivated, and a corresponding indicator light will illuminate on the instrument cluster. Pressing the "VDC OFF" button again will re-engage the system, and the indicator light should turn off.
Check for Fault Codes: If the VDC indicator light remains constantly illuminated *without* the "VDC OFF" button being pressed, it indicates a fault in the system. This requires a diagnostic scan using an OBD-II scanner to retrieve diagnostic trouble codes (DTCs). Common codes might relate to wheel speed sensors, steering angle sensor, or other components.
Inspect Wheel Speed Sensors: Wheel speed sensors are a common source of VDC problems. Check the sensors and their wiring for damage, corrosion, or loose connections. A broken or malfunctioning wheel speed sensor will prevent the VDC system from functioning correctly.
Steering Angle Sensor Calibration: In some cases, the steering angle sensor might require calibration. This is often necessary after an alignment or after replacing the sensor. The calibration procedure usually involves using a diagnostic tool to reset the sensor's zero point.

Common Issues and Maintenance Concerns

Several issues can prevent the VDC system from functioning correctly:

Faulty Wheel Speed Sensors: Damaged, dirty, or disconnected wheel speed sensors are a common cause of VDC problems. Road debris can damage the sensor or its wiring.
Steering Angle Sensor Malfunctions: The steering angle sensor can fail due to wear and tear or physical damage.
Hydraulic Modulator Issues: The ABS hydraulic modulator, which is used by the VDC system for selective braking, can develop internal leaks or malfunctions.
ECU Problems: Although less common, the VDC ECU itself can fail due to electrical surges or other issues.
Tire Size Mismatch: Using tires with significantly different diameters can confuse the VDC system and trigger fault codes. Ensure all tires are the same size and have similar tread wear.
Low Brake Fluid: Low brake fluid can affect the braking system's performance and may trigger a VDC warning light.

Do's and Don'ts / Best Practices

Do: Ensure all tires are properly inflated and of the correct size.
Do: Regularly inspect wheel speed sensors and their wiring for damage.
Do: Address any ABS or brake system issues promptly, as they can affect VDC performance.
Do: Use a quality OBD-II scanner to diagnose VDC problems and retrieve fault codes.
Don't: Drive aggressively with VDC disabled, unless specifically required for a particular driving situation (e.g., getting unstuck in deep snow).
Don't: Ignore a constantly illuminated VDC warning light. Have the system diagnosed and repaired promptly.
Don't: Assume VDC makes you invincible. It's a safety aid, not a replacement for safe driving practices.
Don't: Modify the suspension or braking system without considering the impact on the VDC system. Modifications can sometimes interfere with the system's operation and trigger fault codes.

Conclusion

Ensuring your Nissan's VDC system is functioning correctly is paramount for safe driving. While VDC is designed to be ON by default, understanding how to verify its operation, diagnose common issues, and address any problems is crucial. Regular maintenance, careful tire selection, and prompt attention to warning lights will keep your VDC system ready to assist when you need it most. If you're unsure about any aspect of the VDC system, consult a qualified mechanic for diagnosis and repair. Always prioritize safety and responsible driving practices.
