How To Unclog Windshield Wiper Sprayers

Frustration mounts as you pull the windshield wiper stalk, expecting a clarifying spray, only to be met with a pathetic dribble, nothing at all, or a misdirected squirt. Clogged windshield wiper sprayers are a common automotive annoyance, but understanding the underlying system and troubleshooting process can empower you to tackle this issue efficiently. Let's delve into the mechanics and methods for restoring your windshield washer system to its peak performance.

The Annoying Scenario: A Dirty Dilemma

Imagine you're cruising down the highway after a light rain, the road spray coating your windshield with a grimey film. You reach for the wiper stalk, hoping for a quick cleanse, only to be greeted by a faint whirring sound and... nothing. Or perhaps a weak stream valiantly attempts to reach the glass, only to fall short and streak even more dirt across your field of vision. This situation isn't just annoying; it can compromise your visibility and safety. Think of it like trying to paint a wall with a clogged spray gun – the result is uneven, ineffective, and ultimately, frustrating.

Understanding the Windshield Washer System: A Hydraulic Overview

To effectively unclog the sprayers, it's crucial to grasp how the windshield washer system operates. It's essentially a miniature hydraulic system relying on a few key components:

• Washer Fluid Reservoir: This tank holds the washer fluid, usually a mix of water and a cleaning solution, sometimes with antifreeze properties.
• Washer Pump: An electric pump submerged in the reservoir, responsible for drawing fluid and generating the pressure needed to propel it through the system.
• Fluid Lines (Hoses): These hoses act as conduits, carrying the washer fluid from the pump to the spray nozzles.
• Check Valve(s): Often integrated within the lines or nozzles, these one-way valves prevent backflow of fluid, ensuring the system remains primed.

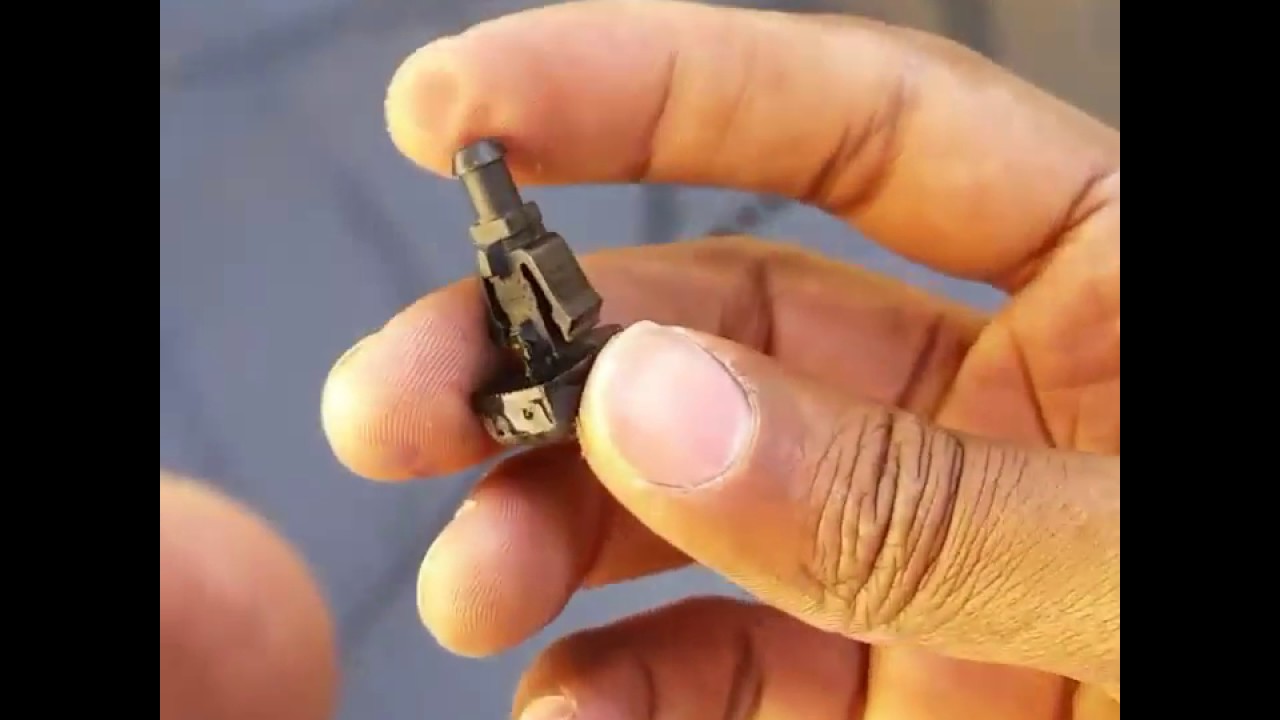

• Spray Nozzles: Located on the hood or near the base of the windshield, these nozzles are designed to direct the fluid stream onto the glass. They often feature adjustable ball-and-socket joints for precise aiming.
• Windshield Wiper Stalk/Button: Activates the pump and typically the wipers themselves.

The process is straightforward: When you activate the system, the pump draws fluid from the reservoir and forces it through the hoses. The check valve(s) maintain pressure within the lines, preventing the fluid from draining back into the reservoir when the pump is off. Finally, the fluid exits through the spray nozzles, cleaning the windshield as the wipers sweep across the glass.

Common Causes of Clogged Sprayers

Several factors can lead to clogged windshield washer sprayers:

• Debris in the Reservoir: Over time, dirt, leaves, and other debris can accumulate in the reservoir and be drawn into the pump, eventually clogging the lines and nozzles.
• Hard Water Deposits: Mineral deposits from hard water can build up inside the system, restricting fluid flow.
• Contaminated Washer Fluid: Using incorrect or contaminated washer fluid can introduce debris and cause blockages.
• Frozen Washer Fluid: In cold climates, using summer washer fluid that isn't formulated for freezing temperatures can lead to ice blockages in the lines and nozzles.
• Kinked or Damaged Hoses: A kinked hose restricts fluid flow, while a damaged hose can leak and introduce air into the system.
• Nozzle Blockage: The nozzles themselves can become clogged with debris, wax from car washes, or dried washer fluid.

Unclogging Techniques: A Step-by-Step Guide

1. Visual Inspection: The First Line of Defense

Begin with a thorough visual inspection of the entire system. Check the washer fluid reservoir level – a low level can prevent the pump from functioning correctly. Examine the hoses for kinks, cracks, or leaks. Inspect the spray nozzles for visible debris or damage.

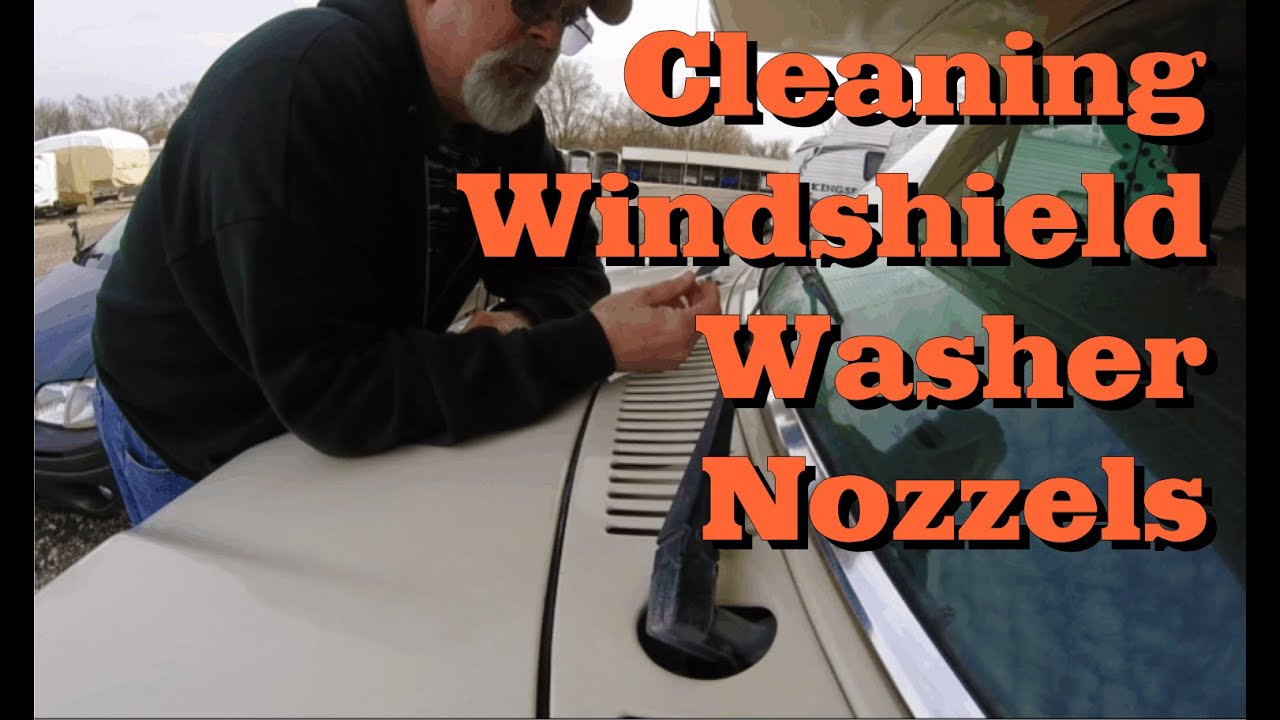

2. The Pin Prick Method: Targeting Nozzle Blockages

The most common cause of a clogged sprayer is a blockage at the nozzle itself. Use a small needle, a straightened paperclip, or a thin wire to gently poke into the nozzle opening. Be careful not to widen the opening, as this can affect the spray pattern. Move the pin around to dislodge any debris. Test the system after each attempt.

3. Compressed Air: Blasting Away the Obstruction

If the pin prick method fails, try using compressed air to blow out the nozzles. Disconnect the hose from the nozzle and direct a short burst of compressed air into the nozzle opening. Wear eye protection to prevent debris from flying into your face. Reconnect the hose and test the system.

4. Hose Disconnection and Flushing: Clearing the Lines

If the clog persists, the blockage might be in the hoses. Disconnect the hoses at both the nozzles and the pump (or at various points along the line). Use a syringe or small funnel to flush the hoses with warm water or a diluted vinegar solution. This helps dissolve any mineral deposits or debris. Alternatively, you can use compressed air to blow out the hoses. Reconnect the hoses and test the system.

5. Reservoir Cleaning: Preventing Future Blockages

A dirty reservoir can continuously re-introduce debris into the system. Empty the reservoir and rinse it thoroughly with clean water. If necessary, use a mild detergent and a brush to scrub the inside of the reservoir. Be sure to rinse it completely to remove any soap residue. Refill the reservoir with fresh, high-quality windshield washer fluid.

6. Check Valve Inspection: Ensuring Proper Flow

If the sprayers are weak or intermittent, the check valve(s) might be malfunctioning. Locate the check valve(s) (refer to your vehicle's service manual for location). Some are integrated into the nozzles, while others are inline. Disconnect the check valve and inspect it for debris or damage. Try blowing through it in both directions. It should only allow air to flow in one direction. If it's blocked or allowing backflow, replace it.

7. Pump Testing: Diagnosing a Faulty Pump

If none of the above methods work, the problem might be a faulty washer pump. You can test the pump by disconnecting the electrical connector and using a multimeter to check for voltage when the washer system is activated. If there's no voltage, the problem might be a faulty switch or wiring. If there is voltage, the pump itself is likely faulty and needs to be replaced.

Pros and Cons of DIY Unclogging

Pros:

• Cost-Effective: DIY unclogging is significantly cheaper than taking your vehicle to a mechanic.
• Convenient: You can perform the repairs at your own pace and on your own schedule.
• Educational: You gain a better understanding of your vehicle's systems.

Cons:

• Time-Consuming: It can take time to diagnose the problem and perform the repairs.
• Potential for Damage: If you're not careful, you could damage the nozzles, hoses, or other components.
• Limited Access: Some components might be difficult to access without specialized tools.

Manufacturer Examples and Design Variations

Different manufacturers employ slightly different designs for their windshield washer systems. Some vehicles use a single pump to serve both the windshield and rear window washers, while others use separate pumps. Some systems have heated nozzles to prevent freezing in cold climates. The location of the reservoir and pump can also vary depending on the vehicle model.

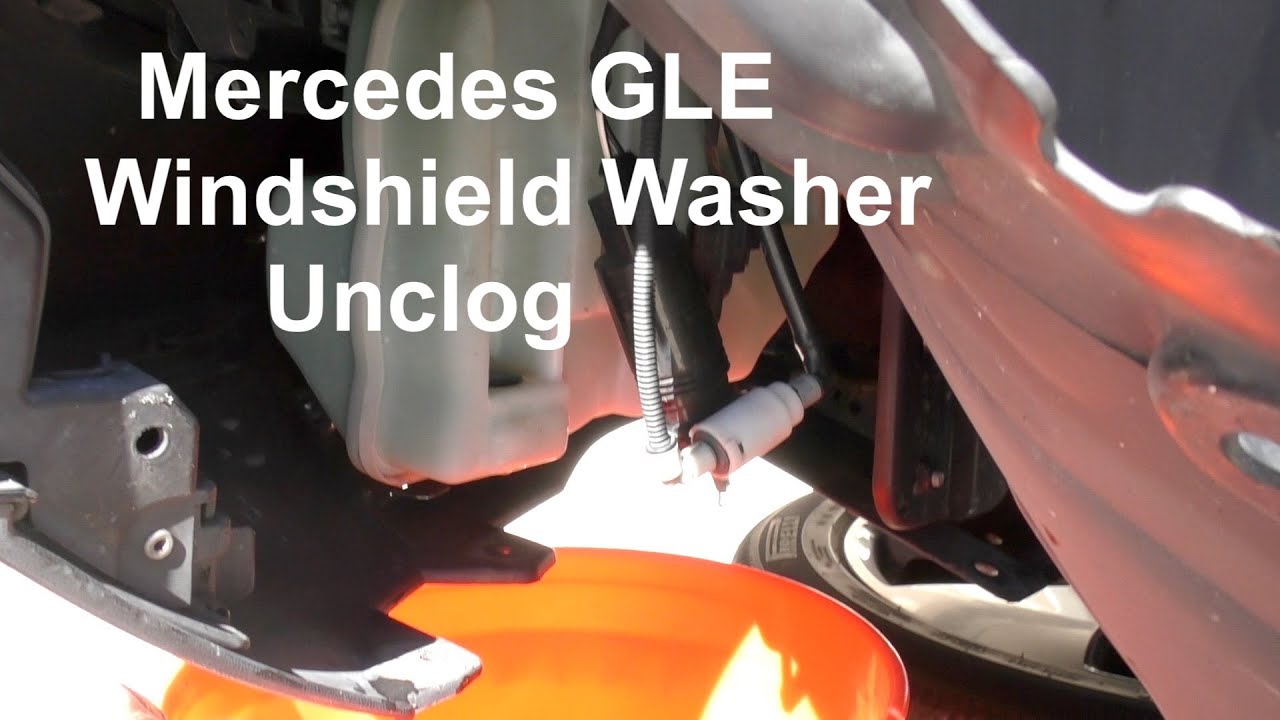

For example, older Mercedes-Benz models often have a complex washer system with multiple check valves and filters, requiring meticulous cleaning. Toyota vehicles are known for their relatively simple and reliable systems, making them easier to troubleshoot. Ford often uses inline check valves that are easily accessible for replacement.

Real-World Insights and Recommendations

Based on practical experience, here are some additional insights and recommendations:

• Use High-Quality Washer Fluid: Invest in a good-quality washer fluid that is formulated for your climate. Avoid using plain water, as it can freeze in cold weather and promote mineral deposits.
• Regularly Inspect and Clean the System: Periodically check the washer fluid level and inspect the hoses and nozzles for damage or debris. Clean the reservoir regularly to prevent blockages.
• Don't Use Sharp Objects: Avoid using sharp objects like knives or screwdrivers to unclog the nozzles, as this can damage them.
• Consult Your Vehicle's Service Manual: Refer to your vehicle's service manual for specific instructions and diagrams related to your windshield washer system.
• Consider a Professional: If you're unable to unclog the sprayers yourself, or if you suspect a more serious problem, consult a qualified mechanic.

By understanding the mechanics of the windshield washer system and following these troubleshooting steps, you can effectively unclog your sprayers and restore your visibility on the road. A clear windshield is not just a matter of convenience; it's a critical safety factor that can make a significant difference in preventing accidents. So, take the time to maintain your windshield washer system and enjoy a clearer, safer driving experience.
