How To Unfreeze A Gas Tank Door

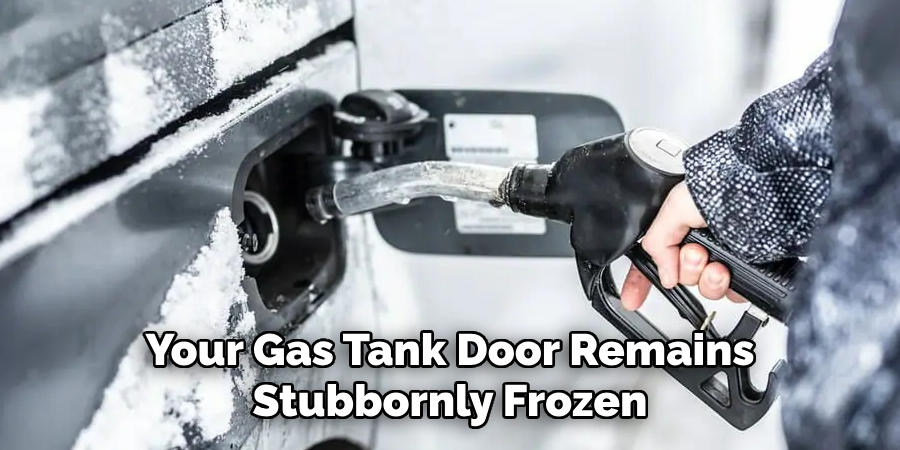

We've all been there: a frigid winter morning, the fuel gauge blinking insistently, and a gas tank door that's stubbornly frozen shut. It's a frustrating situation that can quickly derail your day. This article provides a detailed guide to safely and effectively unfreezing your gas tank door, drawing on mechanical principles and practical techniques. We'll cover the typical mechanisms, common freezing points, troubleshooting steps, and preventive measures to ensure you're prepared for winter's challenges.

Background: The Gas Tank Door System

Before diving into unfreezing techniques, understanding the gas tank door system is crucial. While the design varies across makes and models, the fundamental principle remains the same: a secure closure that's easily accessible when needed. The gas tank door, also known as the fuel filler door or fuel cap door, prevents debris and contaminants from entering the fuel system and, in some cases, helps maintain fuel vapor pressure within the tank.

The system typically consists of these key components:

• Fuel Filler Door: The physical door itself, usually made of metal or plastic.
• Hinge: Allows the door to pivot open and closed. This is a common area for freezing.
• Latch/Release Mechanism: Secures the door shut. This can be a spring-loaded latch, a magnetic closure, or an electronically controlled solenoid.
• Actuator (if electronic): An electric motor or solenoid that retracts the latch when triggered, usually by a button inside the vehicle.
• Release Cable (for cable-actuated systems): Connects the interior release lever to the latch mechanism.

The presence of an electronic actuator versus a cable-actuated system significantly impacts troubleshooting. Electronic systems are prone to electrical faults and actuator failures, while cable systems can stretch, bind, or corrode.

Technical Breakdown: How Freezing Occurs

The primary culprit behind a frozen gas tank door is water. Water can enter the system in several ways: rain, snow, condensation, or even during car washes. This water can then accumulate in the hinge, latch mechanism, or around the door's perimeter. When temperatures drop below freezing (0°C or 32°F), the water turns to ice, effectively gluing the door shut.

The freezing process can be exacerbated by:

• Dirt and Grime: These contaminants act as nucleation points, providing surfaces for ice crystals to form and accelerating the freezing process.
• Lack of Lubrication: A dry hinge or latch mechanism is more susceptible to binding due to ice formation.
• Poor Drainage: Designs that trap water are more likely to freeze.

Understanding the mechanics of ice formation is key to choosing the appropriate unfreezing method. Simply forcing the door open can damage the hinge, latch, or even the surrounding body panels. The goal is to safely melt the ice and restore the system's normal operation.

Common Issues and Maintenance Concerns

Beyond freezing, several other issues can plague the gas tank door system:

• Corrosion: Especially in areas with road salt, corrosion can seize the hinge or latch mechanism.
• Broken Hinge: Over time, the hinge can weaken and break, preventing the door from closing properly.
• Actuator Failure (Electronic Systems): Electronic actuators can fail due to electrical problems, worn-out motors, or internal damage. Testing the actuator with a multimeter can help diagnose this. Check for voltage at the actuator when the release button is pressed.
• Cable Stretch or Breakage (Cable Systems): The release cable can stretch or break, rendering the interior release lever useless. Examining the cable for fraying or kinks is essential.
• Latch Malfunction: The latch itself can become worn or damaged, preventing it from engaging or releasing properly.

Preventive maintenance is crucial to avoid these issues. Regularly lubricating the hinge and latch mechanism with a silicone-based lubricant can prevent corrosion and freezing. Inspecting the release cable for damage and ensuring it's properly adjusted can also prevent problems. Consider applying a hydrophobic coating to the gas tank door surround to repel water and minimize ice formation.

Do's and Don'ts / Best Practices

When faced with a frozen gas tank door, approach the situation with caution and patience. Here's a list of dos and don'ts:

Do's:

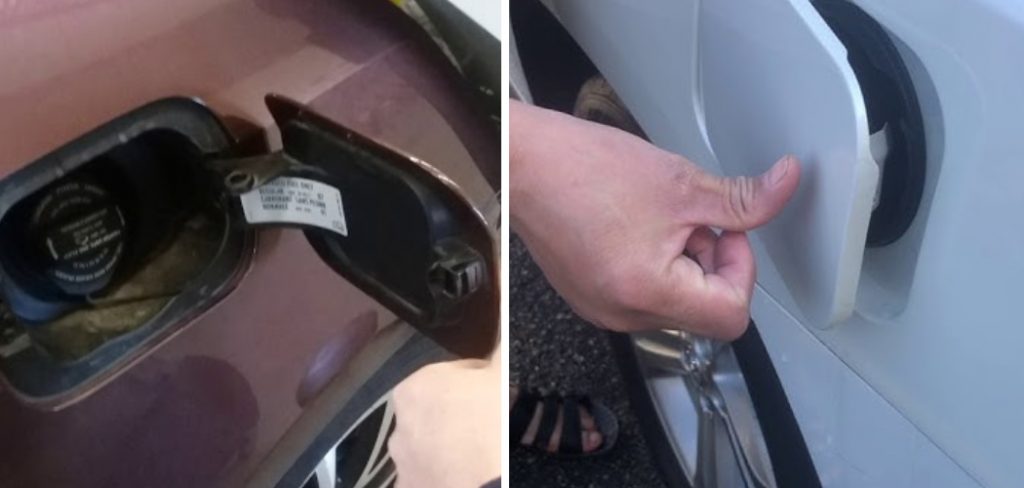

• Try Gentle Pressure: Start by applying gentle pressure to the door, attempting to rock it back and forth. This can help break the ice's bond without causing damage.
• Use a Hair Dryer (Carefully): A hair dryer can be used to gently warm the area around the door. Keep the hair dryer moving and avoid prolonged exposure to any one spot, as excessive heat can damage the paint. Use the low setting.
• Apply Warm Water (Cautiously): Pouring warm (not hot) water over the door can melt the ice. Ensure the water doesn't enter the fuel filler neck. Dry the area thoroughly afterward to prevent re-freezing. Consider adding a small amount of rubbing alcohol to the water to lower its freezing point.
• Use a De-Icer Spray: Commercial de-icer sprays, designed for car windows and locks, can also be effective. Apply the spray directly to the hinge and latch mechanism.
• Try the Interior Release: Even if the door seems frozen shut, try using the interior release lever or button. The actuator might still be able to retract the latch, even if the door is iced over.
• Check for a Manual Override: Some vehicles have a manual release cable located in the trunk or behind a side panel. Consult your owner's manual for its location and operation. This bypasses the electric actuator and directly pulls the latch.
• Lubricate After Unfreezing: Once the door is open, thoroughly lubricate the hinge and latch mechanism to prevent future freezing.

Don'ts:

• Don't Force It: Avoid using excessive force to pry the door open. This can damage the hinge, latch, or body panels.
• Don't Use Hot Water: Hot water can damage the paint and potentially crack plastic components. It can also refreeze quickly in very cold temperatures, making the problem worse.
• Don't Use Sharp Objects: Avoid using screwdrivers, knives, or other sharp objects to chip away at the ice. This can scratch the paint and damage the surrounding area.
• Don't Neglect Lubrication: Failing to lubricate the system after unfreezing leaves it vulnerable to future freezing.
• Don't Ignore Warning Signs: If you notice the door becoming increasingly difficult to open or close, address the issue promptly. Ignoring the problem can lead to more significant damage and potentially strand you in a freezing situation.

In the event that none of these methods work, or if you suspect a more serious mechanical issue, consult a qualified mechanic. They have the tools and expertise to diagnose and repair the problem without causing further damage.

Conclusion

Dealing with a frozen gas tank door is an inconvenience, but with the right knowledge and techniques, it's a problem you can often resolve yourself. Understanding the mechanics of the system, employing safe unfreezing methods, and implementing preventive maintenance are key to avoiding this common winter woe. The most crucial recommendation is to use gentle methods first and prioritize preventive lubrication before the cold weather sets in. Regular lubrication is the best defense against a frozen gas tank door and will keep your fuel system operating smoothly all winter long.
