Have you ever considered the sheer ingenuity packed into that brief, unassuming act of turning the key (or pressing the button) to start your car? It's a daily ritual for millions, yet few truly understand the orchestrated chaos that unfolds under the hood in those crucial seconds. This guide delves into the inner workings of the automotive starter system, demystifying the process and revealing the engineering principles at play.

The Starting Problem: Overcoming Inertia

The fundamental problem a car starter solves is overcoming the inertia of a stationary engine. An internal combustion engine, whether gasoline or diesel, requires a series of precisely timed events – intake, compression, combustion, and exhaust – to initiate and sustain operation. These events create rotational energy, which ultimately drives the wheels. However, to get the engine going in the first place, we need an external force to turn the crankshaft. This is where the starter motor comes in.

Think of it like pushing a swing. A stationary swing requires a significant initial push to get it moving. Once it's swinging, it's easier to maintain the motion with smaller, timed pushes. The starter motor provides that initial "push" to the engine.

How the Starter System Works: A Mechanical Symphony

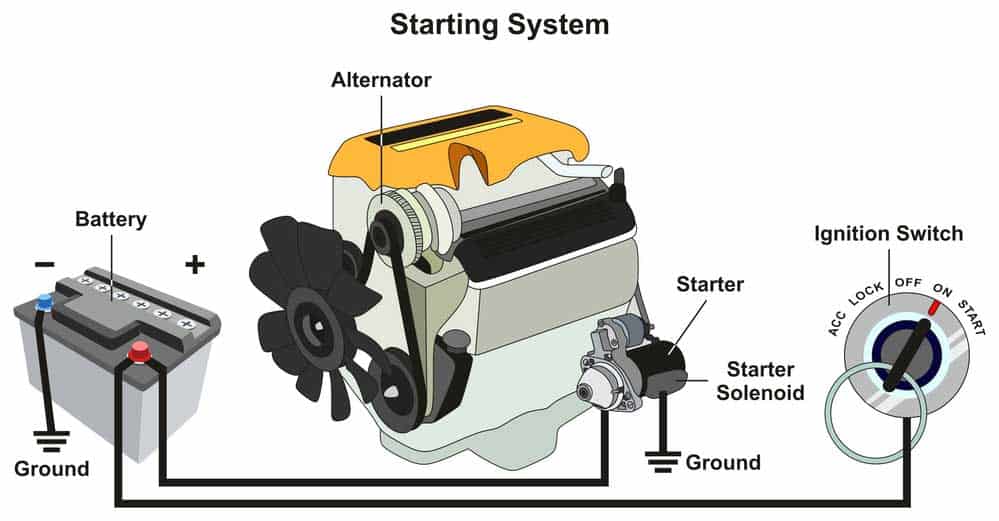

The car starter system is comprised of several key components working in concert:

1. The Battery: The Power Source

The battery provides the necessary electrical energy to power the starter motor. Car batteries are typically 12-volt, designed to deliver high current for short bursts.

2. The Ignition Switch (or Start Button): The Conductor

Turning the ignition switch (or pressing the start button) closes a circuit, sending a signal to the starter solenoid. This acts as a command center, relaying the signal and higher current to the starter motor.

3. The Starter Solenoid: The Amplifier and Engager

The solenoid serves a dual purpose. First, it acts as an electromagnetic relay. The low-current signal from the ignition switch activates the solenoid, which then allows the battery's high current to flow to the starter motor. Second, the solenoid is mechanically linked to the Bendix drive (or overrunning clutch). When energized, the solenoid not only completes the electrical circuit but also physically pushes the Bendix drive forward, engaging the starter pinion gear with the ring gear (or flywheel gear) on the engine's crankshaft.

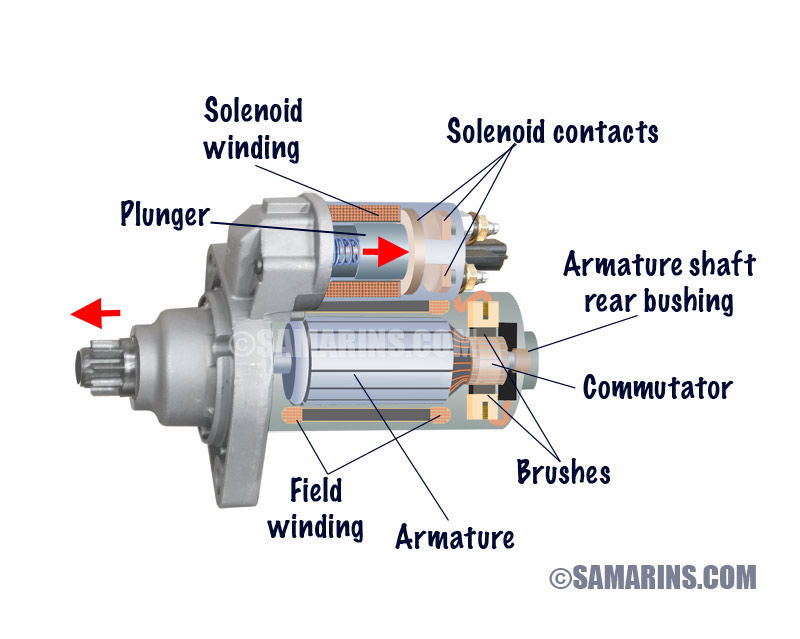

4. The Starter Motor: The Rotational Force

The starter motor is a high-torque electric motor designed for intermittent operation. It receives high current from the battery via the solenoid and converts this electrical energy into rotational mechanical energy. This rotational force is what spins the engine's crankshaft.

5. The Bendix Drive (or Overrunning Clutch): The Connector and Protector

The Bendix drive is a crucial component that allows the starter pinion gear to engage the ring gear only during the starting process. It incorporates a one-way clutch mechanism. This clutch allows the starter motor to spin the engine, but prevents the engine from spinning the starter motor once it has started. This protection is vital, as the engine spins much faster than the starter motor, and forcing the starter motor to overspeed would quickly damage it.

The Process in Motion: From Key Turn to Engine Rumble

Let's walk through the starting process step-by-step:

1. You turn the key (or press the start button).
2. This sends a low-current signal to the starter solenoid.
3. The solenoid energizes, closing the high-current circuit to the starter motor.
4. Simultaneously, the solenoid pushes the Bendix drive forward, engaging the starter pinion gear with the ring gear.
5. The starter motor spins, turning the engine's crankshaft.
6. Once the engine starts, it begins to spin faster than the starter motor.
7. The Bendix drive's one-way clutch disengages, preventing the engine from driving the starter motor.
8. You release the key (or the start button is automatically disengaged), cutting power to the solenoid and starter motor.
9. The solenoid retracts, pulling the Bendix drive back and disengaging the starter pinion gear from the ring gear.

Pros and Cons of Electric Starters

Like any mechanical system, electric starters have their advantages and disadvantages:

Pros:

• Reliability: Generally reliable with proper maintenance and battery condition.
• Convenience: Easy to use with a simple key turn or button press.
• Relatively Compact: Compared to alternative starting methods, electric starters are compact and easily integrated into modern vehicle designs.
• Automation: Enables features like start-stop systems.

Cons:

• Battery Dependent: Requires a healthy battery to operate. A weak or dead battery will prevent starting.
• Heat Sensitive: Can overheat if used excessively or if the engine is difficult to start, leading to premature wear or failure.
• Wear and Tear: The Bendix drive and other components are subject to wear and tear over time.
• Potential for Failure: Solenoids, motors, and gears can fail due to electrical or mechanical issues.

Use Cases and Manufacturer Examples

Electric starters are ubiquitous in modern vehicles, from compact cars to heavy-duty trucks. However, some subtle variations exist depending on the engine type and vehicle application.

Direct Drive Starters: These are the most common type, where the starter motor directly drives the crankshaft through the Bendix drive. Manufacturers like Bosch and Denso are major suppliers of direct-drive starters. Found in most passenger vehicles.

Gear Reduction Starters: These starters use a gear reduction mechanism to increase the torque delivered to the crankshaft. This is particularly useful for starting larger engines, such as those found in trucks and heavy equipment. Mitsubishi Electric is a prominent manufacturer of gear reduction starters.

Start-Stop Systems: Modern vehicles with start-stop systems employ specially designed starters that are more robust and can withstand the frequent starting and stopping cycles. These starters often utilize reinforced components and improved heat management. Valeo and Continental are key players in start-stop system technology.

Troubleshooting and Maintenance

Common signs of a failing starter include:

• Clicking sound: Often indicates a weak battery or a failing solenoid.
• Grinding noise: Suggests worn or damaged starter pinion gear or ring gear.
• Slow cranking: Points to a weak battery, corroded connections, or a failing starter motor.
• No response: Could be a dead battery, a faulty ignition switch, or a failed solenoid or starter motor.

Regular maintenance can help extend the life of your starter:

• Battery maintenance: Ensure the battery is properly charged and the terminals are clean and corrosion-free.
• Check connections: Inspect and clean all electrical connections to the starter and solenoid.
• Avoid excessive cranking: If the engine doesn't start after a few attempts, diagnose the underlying issue rather than continuously cranking the engine.
• Professional inspection: Have your starter inspected by a qualified mechanic during routine vehicle maintenance.

Real-World Insights and Recommendations

The car starter is a marvel of engineering that we often take for granted. Understanding its components and operation can empower you to diagnose potential problems and perform basic maintenance. Here are some insights based on real-world use:

Invest in a Quality Battery: A healthy battery is the cornerstone of a reliable starting system. Don't skimp on battery quality, especially if you live in a region with extreme temperatures.

Address Issues Promptly: Don't ignore warning signs of a failing starter. Addressing problems early can prevent more costly repairs down the road.

Consider a Gear Reduction Starter for Older Vehicles: If you're experiencing starting issues with an older vehicle, upgrading to a gear reduction starter can provide improved torque and reliability.

By understanding the intricacies of the car starter, you can appreciate the engineering that goes into starting your vehicle and take proactive steps to ensure its continued reliable operation.
