How To Use A Remote Starter Switch

Ever been hunched over a car, wrestling with a wiring harness, trying to diagnose a starting issue, and wished you had a third hand – or maybe just the ability to crank the engine without contorting yourself into a pretzel to reach the ignition? That's where a remote starter switch comes in. It's a simple, yet incredibly useful tool, especially for automotive diagnostics and repair. Forget the awkward stretches and potential for accidental short circuits. A remote starter switch offers a safe and convenient way to manually crank the engine for testing purposes.

The Problem: Isolated Engine Cranking

The core problem the remote starter switch solves is the need for isolated engine cranking. Imagine you're chasing down a fuel delivery problem. You need to confirm the fuel pump is running when the engine is turning over, but the engine isn't firing. You can't rely on the key because other systems are engaged. Or perhaps you suspect a faulty crankshaft position sensor. You need to observe its signal output while the engine is cranking. The traditional method involves turning the ignition key, which also engages the starter solenoid and potentially other systems you don't want active during testing. The remote starter switch bypasses the ignition system, allowing you to directly control the starter motor.

Think of it like this: the ignition key is the general contractor for starting the car. It gives the order to multiple subcontractors (fuel pump, ignition system, starter motor). The remote starter switch is like directly hiring the starter motor contractor, bypassing the general contractor entirely. You're isolating that one specific task.

How It Works: Electrically Simple, Mechanically Effective

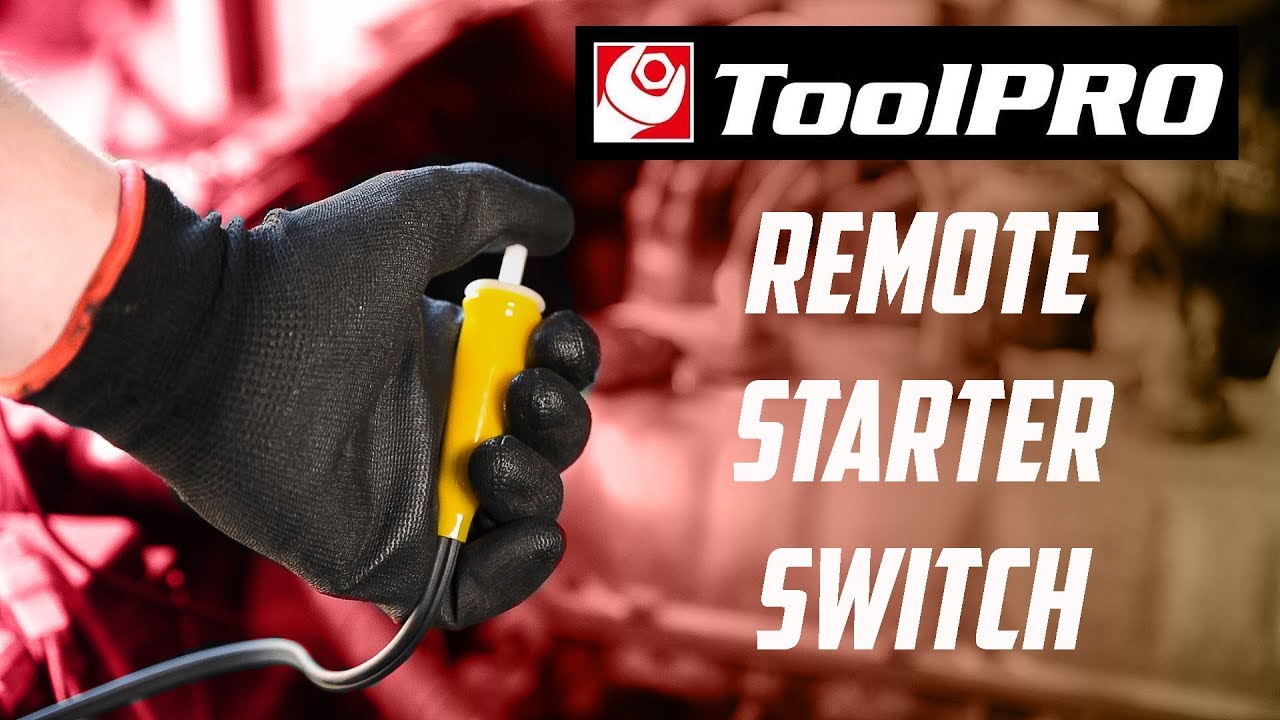

The beauty of a remote starter switch lies in its simplicity. It's essentially a heavy-duty momentary switch wired to a battery clip and a probe. The battery clip connects to the positive terminal of the car's battery. The probe connects to the starter solenoid's activation terminal. When the switch is pressed, it creates a direct electrical path from the battery to the starter solenoid, bypassing the vehicle's ignition switch, immobilizer, and any other associated circuitry.

Let's break it down step-by-step:

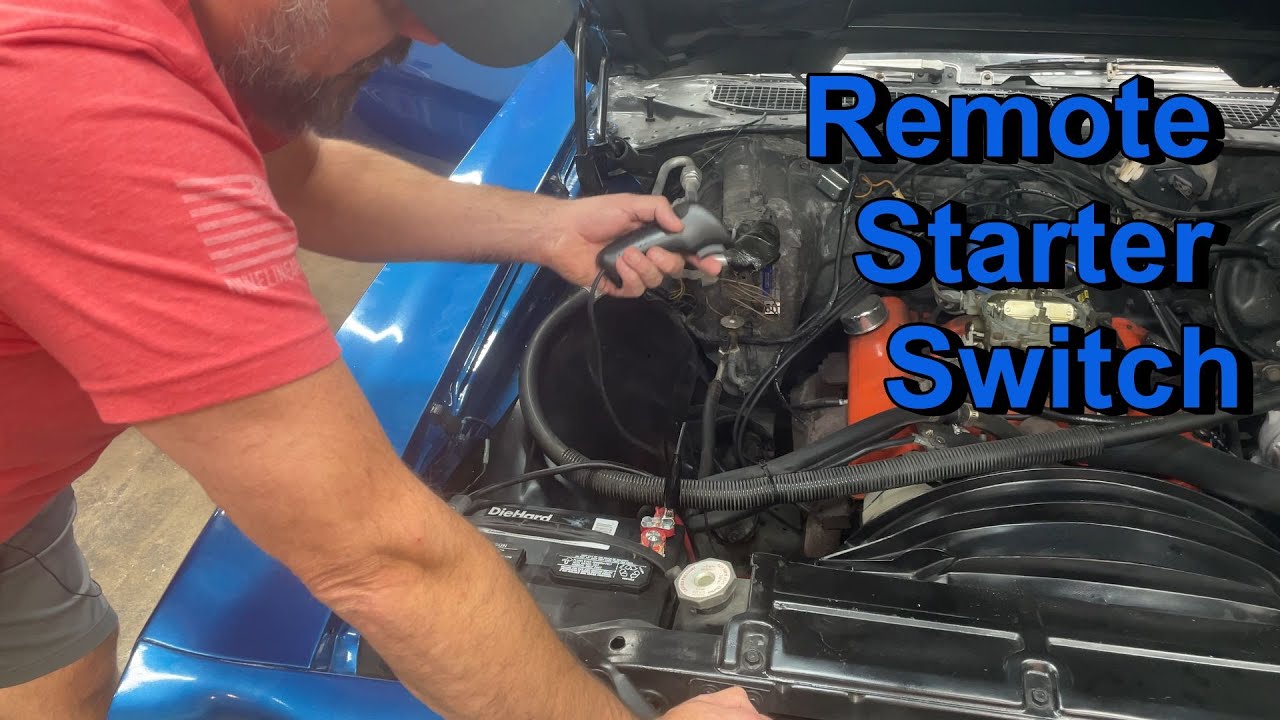

Battery Connection: The battery clip (usually red) is securely attached to the positive (+) terminal of the vehicle's battery. This provides the power source for the circuit.

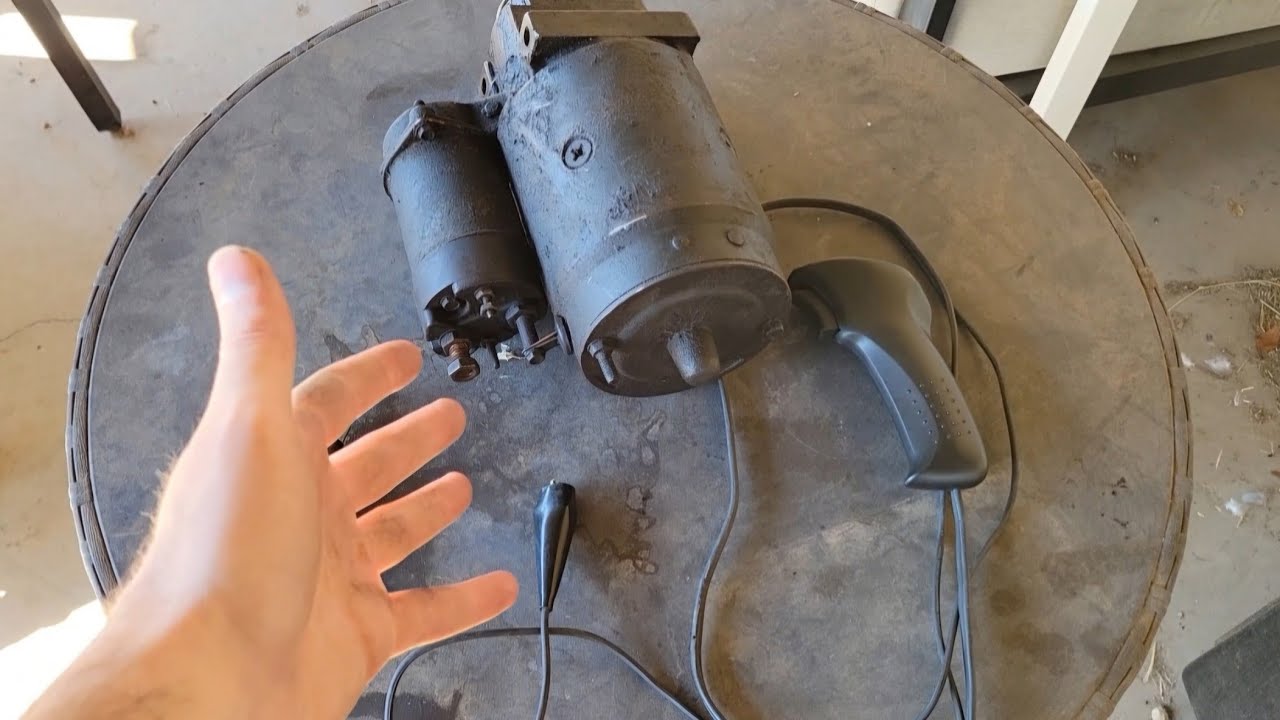

Solenoid Activation Terminal: The probe (often with an alligator clip or a pointed end) is connected to the small terminal on the starter solenoid. This terminal is specifically designed to activate the solenoid, which in turn engages the starter motor with the flywheel. This is usually a small gauge wire coming off of the starter.
The Switch: The momentary switch is the heart of the device. When pressed, it bridges the connection between the battery clip and the probe, completing the circuit.
Circuit Completion: Once the switch is pressed, current flows from the battery, through the switch, and into the solenoid activation terminal. This energizes the solenoid.
Solenoid Engagement: The energized solenoid acts as an electromagnet, pulling a plunger that physically engages the starter motor's pinion gear with the engine's flywheel. Simultaneously, the solenoid closes a high-current switch, allowing the battery to directly power the starter motor.
Engine Cranking: The starter motor spins, turning the engine over. Releasing the switch breaks the circuit, de-energizing the solenoid and stopping the engine cranking.

It's crucial to identify the correct terminal on the starter solenoid. Consult the vehicle's wiring diagram for precise location. On many vehicles, it's the smaller terminal separate from the heavy-gauge cable connected directly to the starter motor. Connecting the probe to the wrong terminal could potentially damage the wiring or other components.

Safety Considerations

While simple, using a remote starter switch requires careful attention to safety. Always ensure the vehicle is in Park (automatic transmission) or Neutral (manual transmission) with the parking brake firmly engaged. Double-check your connections to avoid accidental short circuits. Be mindful of moving parts (belts, pulleys, fans) while the engine is cranking. It's generally advisable to have a second person present, especially when working alone, as they can quickly release the switch in case of an emergency.

Pros and Cons

Pros:

Convenience: Allows engine cranking from anywhere around the engine bay.
Isolation: Bypasses the ignition system for focused diagnostics.
Safety: Reduces the risk of accidental starting or engaging other systems.
Troubleshooting: Ideal for diagnosing starting problems, fuel delivery issues, and sensor failures.
Cost-Effective: Remote starter switches are relatively inexpensive.

Cons:

Manual Operation: Requires physical connection to the battery and starter solenoid.
Potential for Misuse: Incorrect connections can damage electrical components.
Limited Functionality: Only provides engine cranking, not full vehicle operation.
Dependency on Battery Condition: A weak battery may not provide sufficient power for cranking.

Use Cases and Applications

The remote starter switch is a versatile tool with a wide range of applications in automotive diagnostics and repair:

Fuel System Diagnosis: Verify fuel pump operation and fuel pressure during cranking.
Ignition System Testing: Check for spark at the spark plugs while cranking.
Compression Testing: Crank the engine to perform compression tests on individual cylinders.
Sensor Testing: Observe sensor signals (e.g., crankshaft position sensor, camshaft position sensor) while the engine is turning over.
Timing Verification: Confirm proper timing mark alignment while manually cranking the engine.
Engine Break-In: Some mechanics use remote starters to facilitate initial engine break-in procedures.
Locating TDC: Precise crankshaft rotation when doing engine work.

Manufacturer Examples and Features

Several manufacturers offer remote starter switches, each with slightly different features and designs. Some common brands include:

OTC: Offers heavy-duty switches with comfortable grips and durable leads.
Actron: Provides compact and affordable switches suitable for basic diagnostics.
Lisle: Known for its ergonomic designs and reliable performance.
Power Probe: High-end versions offer added features such as voltage readouts.

When selecting a remote starter switch, consider the following features:

Heavy-Duty Construction: Look for robust materials and well-insulated wiring.
Comfortable Grip: A comfortable grip reduces fatigue during extended use.
Secure Connections: Alligator clips or probes should provide a secure and reliable connection.
Lead Length: Sufficient lead length allows for easy access to the battery and starter solenoid.
Fuse Protection: Some switches include a fuse to protect against short circuits.

Real-World Insights and Recommendations

In real-world use, a few key considerations can enhance the effectiveness and safety of a remote starter switch.

Clean Connections are Critical: Ensure both the battery terminals and the starter solenoid terminal are clean and free of corrosion. A poor connection can result in voltage drop and unreliable cranking. Use a wire brush or terminal cleaner to remove any buildup.
Mind the Heat: Avoid prolonged cranking. Excessive cranking can overheat the starter motor and potentially damage it. Crank in short bursts, allowing the starter to cool down between attempts.
Listen Carefully: Pay attention to any unusual noises during cranking. Grinding, clicking, or squealing sounds can indicate underlying mechanical problems.
Double-Check Wiring Diagrams: Always consult the vehicle's wiring diagram before connecting the switch. Misidentifying the starter solenoid terminal can lead to damage or injury. Many online resources can help you find these.
Consider a Remote Viewing Camera: If you're working alone and need to observe something while cranking (e.g., a fuel pressure gauge), consider using a remote viewing camera or a second person to monitor the gauge for you.

Ultimately, the remote starter switch is an indispensable tool for any serious automotive enthusiast or professional technician. Its simplicity and versatility make it a valuable asset for diagnosing and repairing a wide range of vehicle problems. By understanding how it works, following safety precautions, and applying real-world insights, you can leverage its full potential to streamline your diagnostic process and get your vehicles back on the road quickly and efficiently. A little investment in understanding how this tool works can pay off big time in saved time and improved accuracy.
