How To Use Fuel Pressure Tester

A fuel pressure tester is an invaluable tool for diagnosing engine problems related to fuel delivery. Using one allows you to quickly and accurately assess whether your fuel pump is functioning correctly, if there are any restrictions in the fuel lines, or if the fuel pressure regulator is operating as intended. By understanding how to use a fuel pressure tester, you can save time and money on unnecessary repairs, and ensure your vehicle runs smoothly.

Why Testing Fuel Pressure Matters

Fuel pressure is the lifeblood of your engine's performance. It's the force that delivers fuel from the tank to the injectors, where it's atomized and mixed with air for combustion. If the fuel pressure is too low, the engine may experience symptoms like:

• Difficulty starting
• Rough idling
• Poor acceleration
• Stalling
• Reduced fuel economy

Conversely, excessive fuel pressure can also cause issues, such as:

• Flooding (too much fuel in the cylinders)
• Poor fuel economy
• Potential damage to fuel injectors

Diagnosing these problems without a fuel pressure tester can be a shot in the dark. You might end up replacing parts that aren't faulty, leading to frustration and wasted resources. By using a fuel pressure tester, you can pinpoint the root cause of the issue and address it directly.

How to Choose the Right Fuel Pressure Tester

Fuel pressure testers come in various types, each with its own set of features and benefits. When selecting a tester, consider these factors:

Analog vs. Digital

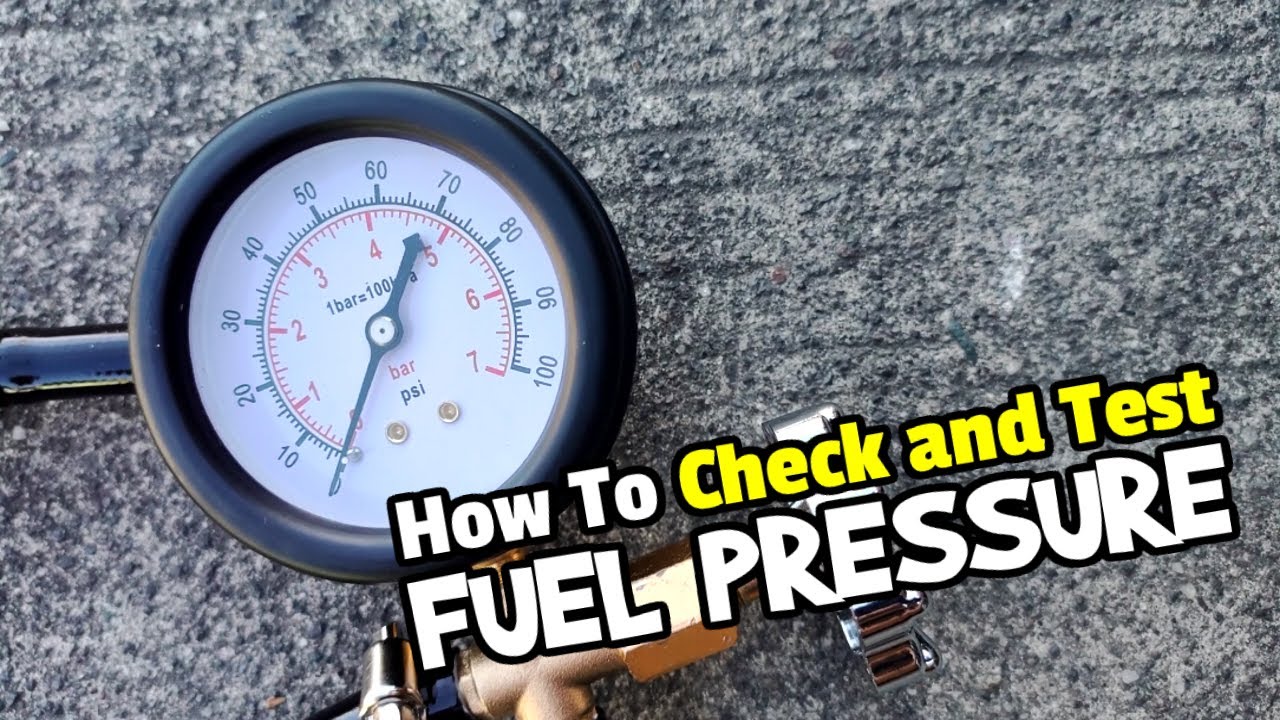

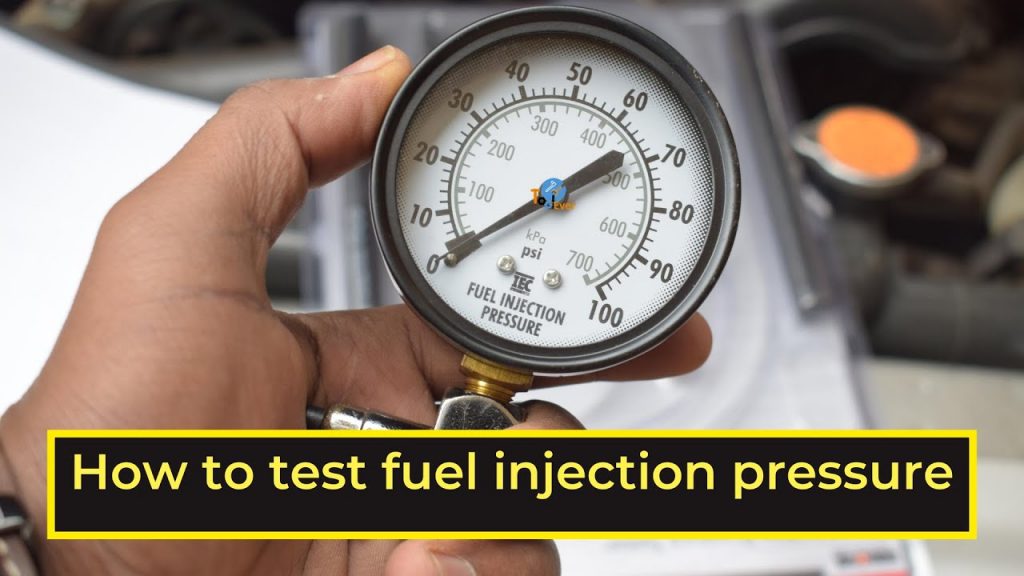

Analog fuel pressure testers feature a gauge with a needle that indicates the pressure. They are typically more affordable and easier to use for beginners. However, reading the gauge precisely can sometimes be challenging.

Digital fuel pressure testers display the pressure reading on a digital screen. They offer greater accuracy and are easier to read, especially in low-light conditions. Some digital testers also have advanced features like data logging and min/max pressure recording.

Pressure Range

Ensure the tester's pressure range is compatible with your vehicle's fuel system. Most gasoline-powered vehicles require a tester with a range of 0-100 PSI. Diesel engines often require a tester with a much higher range, typically up to 1,000 PSI or more. Consult your vehicle's repair manual to determine the correct pressure range.

Adapters and Fittings

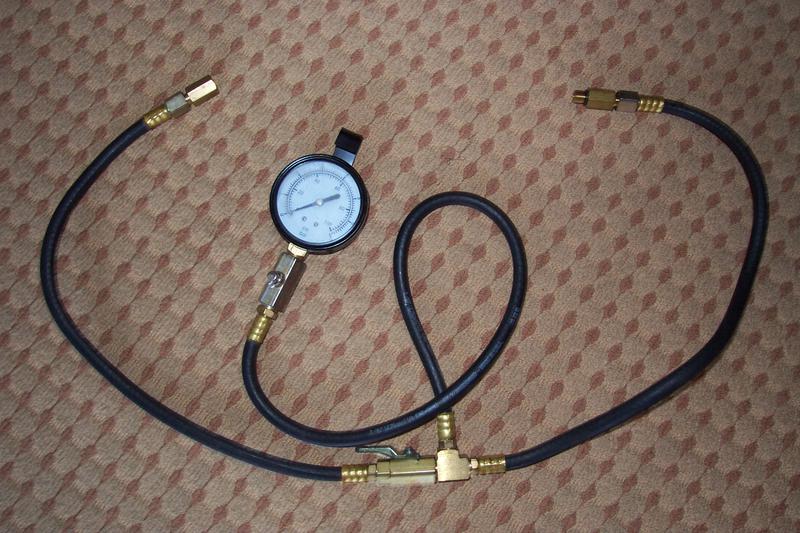

A good fuel pressure tester kit should include a variety of adapters and fittings to connect to different types of fuel systems. Look for a kit that includes adapters compatible with your vehicle's fuel rail fitting. Common fitting types include Schrader valves, banjo fittings, and quick-connect fittings.

Safety Features

Fuel is flammable, so safety is paramount. Choose a fuel pressure tester with a pressure relief valve or a fuel drain hose to safely relieve pressure before disconnecting the tester. Also, ensure the tester is made of durable materials that can withstand the harsh conditions of an engine compartment.

Step-by-Step Guide: How to Use a Fuel Pressure Tester

Before you begin, always consult your vehicle's repair manual for specific instructions and safety precautions related to your model.

1. Safety First: Wear safety glasses and gloves. Work in a well-ventilated area, away from any sources of ignition (e.g., sparks, open flames).
2. Locate the Test Port: Most vehicles have a Schrader valve test port on the fuel rail. This looks similar to a tire valve stem. Consult your repair manual if you're unsure of its location.
3. Relieve Fuel Pressure (If Required): Some vehicles require you to relieve fuel pressure before disconnecting the fuel line. Your repair manual will outline the specific procedure. This might involve removing the fuel pump relay and starting the engine until it stalls.
4. Connect the Tester: Attach the appropriate adapter from your fuel pressure tester kit to the Schrader valve test port. Ensure the connection is secure and leak-free. Tighten securely but avoid over-tightening.
5. Start the Engine (or Turn Key to "On"): Depending on the vehicle and the test you're performing, you may need to start the engine or simply turn the ignition key to the "On" position without starting the engine. This will activate the fuel pump.

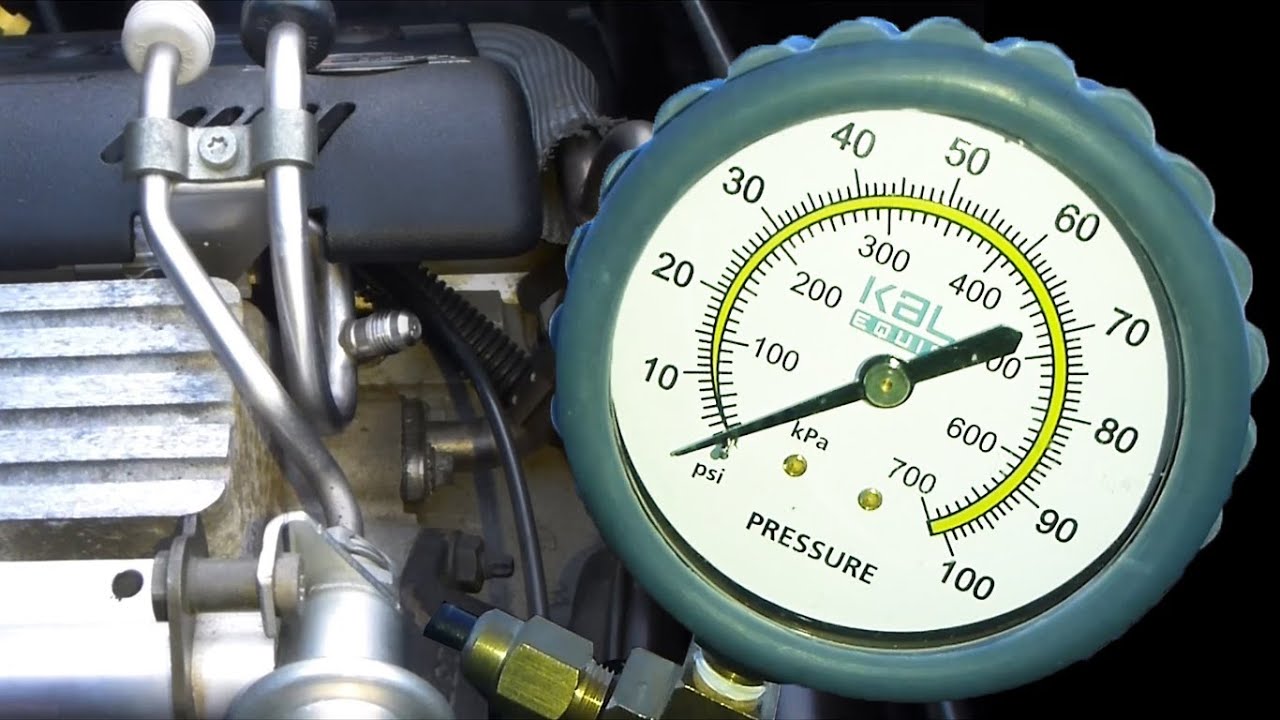

6. Observe the Pressure Reading: Watch the gauge on the fuel pressure tester. The reading should stabilize within a few seconds. Compare the reading to the specifications in your vehicle's repair manual.
7. Check for Pressure Drop: With the engine running (or the key in the "On" position), monitor the pressure reading for a few minutes. A significant drop in pressure could indicate a leak in the fuel system or a faulty fuel pump check valve.
8. Perform Additional Tests (Optional): Some fuel pressure testers allow you to perform additional tests, such as checking the fuel pressure regulator's response to vacuum. Refer to the tester's instructions for guidance.
9. Relieve Pressure and Disconnect: Before disconnecting the tester, use the pressure relief valve or fuel drain hose to safely relieve fuel pressure. Then, carefully disconnect the tester from the fuel rail.
10. Inspect and Reinstall: Inspect the Schrader valve and surrounding area for any leaks. Reinstall any components that were removed during the process.

Real-World Owner Experiences

Many car owners have found fuel pressure testers to be invaluable troubleshooting tools. Here are a few real-world scenarios:

• The Case of the Hesitant Honda: A Honda Civic owner was experiencing hesitant acceleration. A fuel pressure test revealed low fuel pressure, indicating a failing fuel pump. Replacing the fuel pump resolved the issue.
• The Mysterious Misfire: A pickup truck owner was struggling with a persistent misfire. A fuel pressure test showed fluctuating fuel pressure, pointing to a faulty fuel pressure regulator. Replacing the regulator solved the misfire.
• The Fuel-Guzzling SUV: An SUV owner noticed a significant drop in fuel economy. A fuel pressure test revealed excessively high fuel pressure, indicating a clogged fuel return line. Clearing the blockage restored normal fuel pressure and improved fuel economy.

These examples illustrate how a fuel pressure tester can help diagnose a variety of engine problems related to fuel delivery. It's a tool that empowers you to take control of your vehicle's maintenance and repairs.

Frequently Asked Questions (FAQs)

What is the typical fuel pressure for my car?

The typical fuel pressure varies depending on the vehicle make, model, and year. Consult your vehicle's repair manual for the specific fuel pressure specifications.

Can I use a fuel pressure tester to diagnose a clogged fuel filter?

Yes, a fuel pressure test can help diagnose a clogged fuel filter. A clogged filter will restrict fuel flow, resulting in lower-than-normal fuel pressure.

How often should I check my fuel pressure?

It's a good idea to check your fuel pressure if you experience any symptoms of fuel delivery problems, such as difficulty starting, rough idling, or poor acceleration. You can also check it as part of your regular maintenance routine.

What if my fuel pressure is too high?

High fuel pressure can be caused by a faulty fuel pressure regulator, a clogged fuel return line, or a malfunctioning fuel pump. Diagnose the underlying cause and address it accordingly.

What if my fuel pressure is too low?

Low fuel pressure can be caused by a failing fuel pump, a clogged fuel filter, a leak in the fuel lines, or a faulty fuel pressure regulator. Diagnose the underlying cause and address it accordingly.

By understanding how to use a fuel pressure tester and interpreting the results, you can effectively diagnose and address fuel delivery problems, keeping your vehicle running smoothly and efficiently. Remember to always prioritize safety and consult your vehicle's repair manual for specific instructions.
