How To Wire A Light Bar To High Beams

So, you're looking to add some serious illumination to your vehicle with a light bar, and you want it to kick on with your high beams? Excellent choice! Integrating your light bar with your high beams provides a convenient and safe way to maximize visibility when you need it most. However, wiring it incorrectly can lead to electrical issues, safety concerns, and even damage to your vehicle's electrical system. This article will walk you through the process of safely and effectively wiring a light bar to your high beams.

The Problem: Integrating a Light Bar with High Beams

The core issue is safely and reliably triggering your light bar only when your high beams are activated. Simply splicing wires together can overload circuits, damage your headlight switch, or cause unpredictable behavior. A proper installation involves using a relay that is triggered by the high beam circuit, providing a separate, fused power source for the light bar.

Why is this important?

Proper wiring ensures the longevity of your light bar and your vehicle's electrical system. It also provides a level of safety, preventing flickering, dimming, or complete electrical failures. Imagine being out on a dark road and your entire lighting system suddenly cuts out! A correctly wired light bar integration is about both performance and peace of mind.

Symptoms of Improper Light Bar Wiring

Before we dive into the solution, let's identify some tell-tale signs that your light bar or existing wiring is causing issues:

• Light Bar Flickering or Intermittent Operation: The light bar turns on and off randomly or flickers while in use. This could indicate a loose connection, a faulty relay, or insufficient power.
• Dimming Headlights: When the light bar is activated, your headlights (especially your high beams) become dimmer than usual. This signifies an overloaded circuit.
• Blown Fuses: Repeatedly blowing fuses related to your headlights or the light bar circuit is a clear indication of a short circuit or excessive current draw.
• Headlight Switch Malfunction: The high beam switch is no longer functioning correctly, or you notice unusual resistance or clicking sounds.
• Melting or Burned Wires: This is a serious safety hazard and an immediate sign of overheating due to excessive current. Stop using the light bar immediately and investigate the wiring.
• "Check Engine" Light or Electrical System Errors: Modern vehicles have sophisticated monitoring systems. An improperly wired light bar can sometimes trigger error codes related to the electrical system.

The Root Cause: Electrical Overload and Improper Triggering

The main culprit behind these problems is often drawing too much current through the original headlight circuit. Your vehicle's wiring is designed to handle a specific load. Adding a light bar directly to the headlight circuit exceeds that limit, causing overheating, voltage drops, and potential damage. Furthermore, without a proper relay, the tiny switch contacts inside your headlight switch are being asked to handle the full current draw of the light bar, which they are not designed to do.

Another contributing factor is using inferior or improperly sized wiring. Automotive wiring should be of sufficient gauge to handle the current being drawn. Undersized wiring will overheat and potentially melt, creating a fire hazard. Always use automotive-grade wire, which is designed to withstand the harsh conditions under the hood of your vehicle.

What Happens if Ignored?

Ignoring these symptoms can have severe consequences:

• Electrical Fire: Overheated wiring can melt and ignite nearby materials, leading to a potentially devastating electrical fire.
• Permanent Damage to Electrical Components: Overloading circuits can damage your headlight switch, wiring harness, and even the vehicle's computer (ECU). Replacing these components can be expensive.
• Vehicle Immobilization: A serious electrical fault can leave you stranded on the side of the road.
• Voiding Warranty: Tampering with the vehicle's electrical system can void your warranty.

Recommended Fixes: Wiring a Light Bar with a Relay

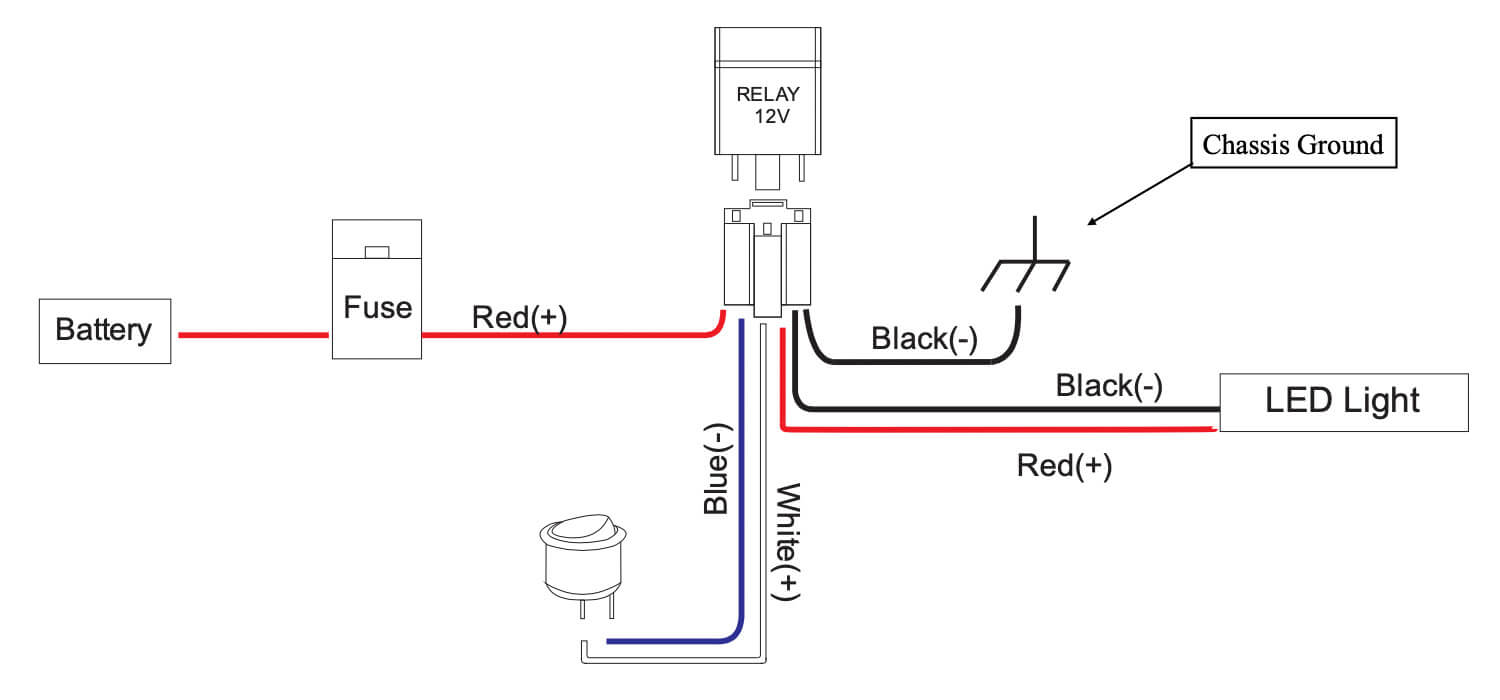

The recommended fix involves using a relay to control the power to your light bar. Here's a step-by-step guide:

1. Gather Your Supplies:
   • Light bar wiring harness with relay (or purchase components separately: relay, fuse holder, wiring, terminals). Ensure the relay is rated for the amperage draw of your light bar.
   • Inline fuse (matching the amperage rating of your light bar).
   • Automotive-grade wiring (of appropriate gauge for the light bar's amperage draw). 14 or 16 gauge is usually sufficient, but consult your light bar's specifications.
   • Wire connectors (butt connectors, ring terminals).
   • Wire stripper/crimper.
   • Multimeter.
   • Electrical tape or heat shrink tubing.
   • Zip ties.
   • Test light or multimeter.

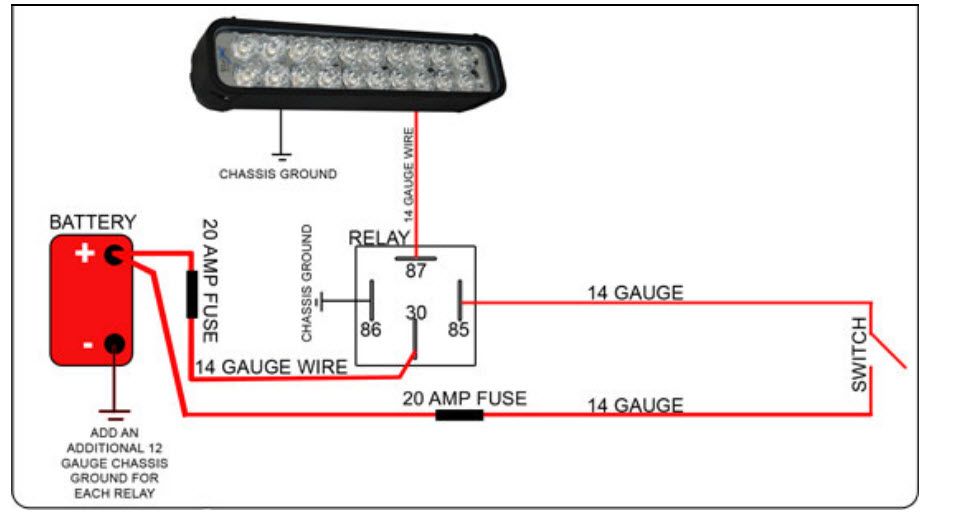

2. Locate a Suitable Power Source: Connect the relay’s power input wire (usually red) directly to the positive (+) terminal of your vehicle's battery. Include an inline fuse as close to the battery as possible. This protects the entire circuit.
3. Grounding: Connect the ground wire (usually black) from the relay to a clean, solid metal point on the vehicle's chassis. Ensure the connection is free of paint and corrosion for a good electrical ground.

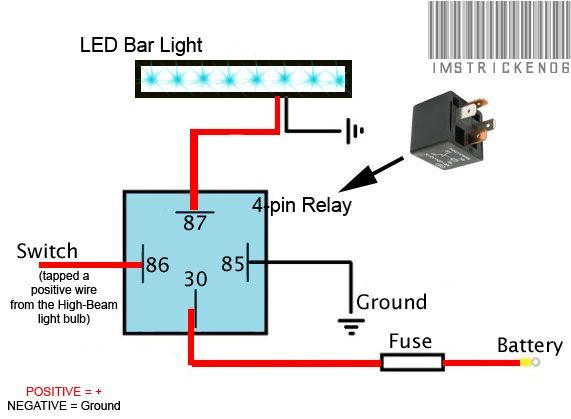

4. High Beam Trigger Wire: This is the crucial step. Use a test light or multimeter to identify the positive (+) wire that provides power to your high beam headlight when the high beams are activated. Do not cut this wire! Use a wire tap connector to tap into this wire without cutting it. Connect the relay's trigger wire (often a different color, consult your relay's diagram) to this tapped connection. This ensures that the relay only activates when the high beams are on.
5. Connect the Light Bar: Connect the positive (+) and negative (-) wires from the light bar to the relay's output terminals. The relay acts as a switch, allowing power to flow to the light bar only when triggered by the high beams.
6. Secure Wiring and Test: Route and secure all wiring away from moving parts and heat sources using zip ties. Double-check all connections. Turn on your high beams to test the light bar. It should activate only when the high beams are on.

Cost Estimates and Shop Advice

The cost of this project can vary depending on the components you choose. A basic light bar wiring harness with a relay can range from $20 to $50. Individual components (relay, fuse, wiring) might cost slightly less, but require more assembly. A decent light bar itself could range from $50 to $500+, depending on size, brand, and features.

If you're not comfortable working with electrical systems, it's best to seek professional help. A reputable mechanic or automotive electrician can perform the installation for you. Labor costs can vary, but you can expect to pay between $100 and $300 for a professional installation, depending on the complexity of the job.

When choosing a mechanic, ask about their experience with light bar installations and electrical work. Look for a shop that offers a warranty on their work.

Credibility: Common Issues and TSBs (Technical Service Bulletins)

While there aren't specific TSBs directly addressing light bar wiring, the principles of proper electrical system modification apply universally. Automotive manufacturers often issue TSBs related to electrical system issues caused by aftermarket accessories. These TSBs typically emphasize the importance of proper wiring techniques, using correctly sized fuses, and avoiding overloading circuits.

Online forums and communities dedicated to specific vehicle makes and models are valuable resources for information about light bar installations. You can often find discussions about common wiring issues, recommended wiring diagrams, and experiences shared by other owners. This community data can provide valuable insights and help you avoid potential pitfalls.

One common issue reported in online forums is the premature failure of headlight switches due to excessive current draw from improperly wired light bars. Many users report this issue occurring around 50,000-100,000 miles after installing a light bar without a relay. This highlights the importance of using a relay to protect the headlight switch and ensure its longevity.

By following these guidelines and using proper wiring techniques, you can safely and effectively integrate a light bar with your high beams, enhancing your visibility and enjoying the benefits of auxiliary lighting without compromising the safety or reliability of your vehicle's electrical system.
