How To Wire An Electric Fan Relay

Is your car overheating, especially when idling or in stop-and-go traffic? Does the air conditioning blow warm air unless you're cruising down the highway? The problem could very well be a faulty electric fan relay. Properly functioning electric cooling fans are critical for maintaining your engine's optimal temperature and ensuring the air conditioning system operates correctly. A malfunctioning relay can prevent the fan from activating when needed, leading to serious engine damage. Let's dive into how to diagnose and fix this issue.

Identifying the Symptoms of a Bad Electric Fan Relay

Recognizing the symptoms early can prevent costly repairs down the road. Here are the telltale signs of a failing electric fan relay:

• Overheating engine, especially at idle: This is the most common symptom. When the car is stationary or moving slowly, the electric fan is crucial for drawing air through the radiator. If the relay is faulty, the fan won't turn on, and the engine temperature will rise rapidly.
• Air conditioning blowing warm air at idle: Many air conditioning systems rely on the electric fan to cool the condenser, which is necessary for efficient cooling. If the fan isn't working, the A/C won't be able to dissipate heat, resulting in warm air blowing from the vents when you're not moving.
• Electric fan not turning on at all: This is the most obvious sign. Even when the engine is hot, the fan remains stubbornly off.
• Electric fan running constantly: While less common, a stuck relay can also cause the fan to run continuously, even when the engine is cold. This can drain the battery and shorten the lifespan of the fan motor.
• Erratic fan operation: The fan may turn on and off intermittently, or it might operate at the wrong speed.
• Check engine light (CEL): In some cases, a faulty fan relay can trigger the check engine light. The error code might specifically relate to the cooling fan circuit.
• Burnt or melted relay: A visual inspection of the relay itself might reveal signs of damage, such as a burnt or melted case.

Understanding the Root Cause: How the Relay Works

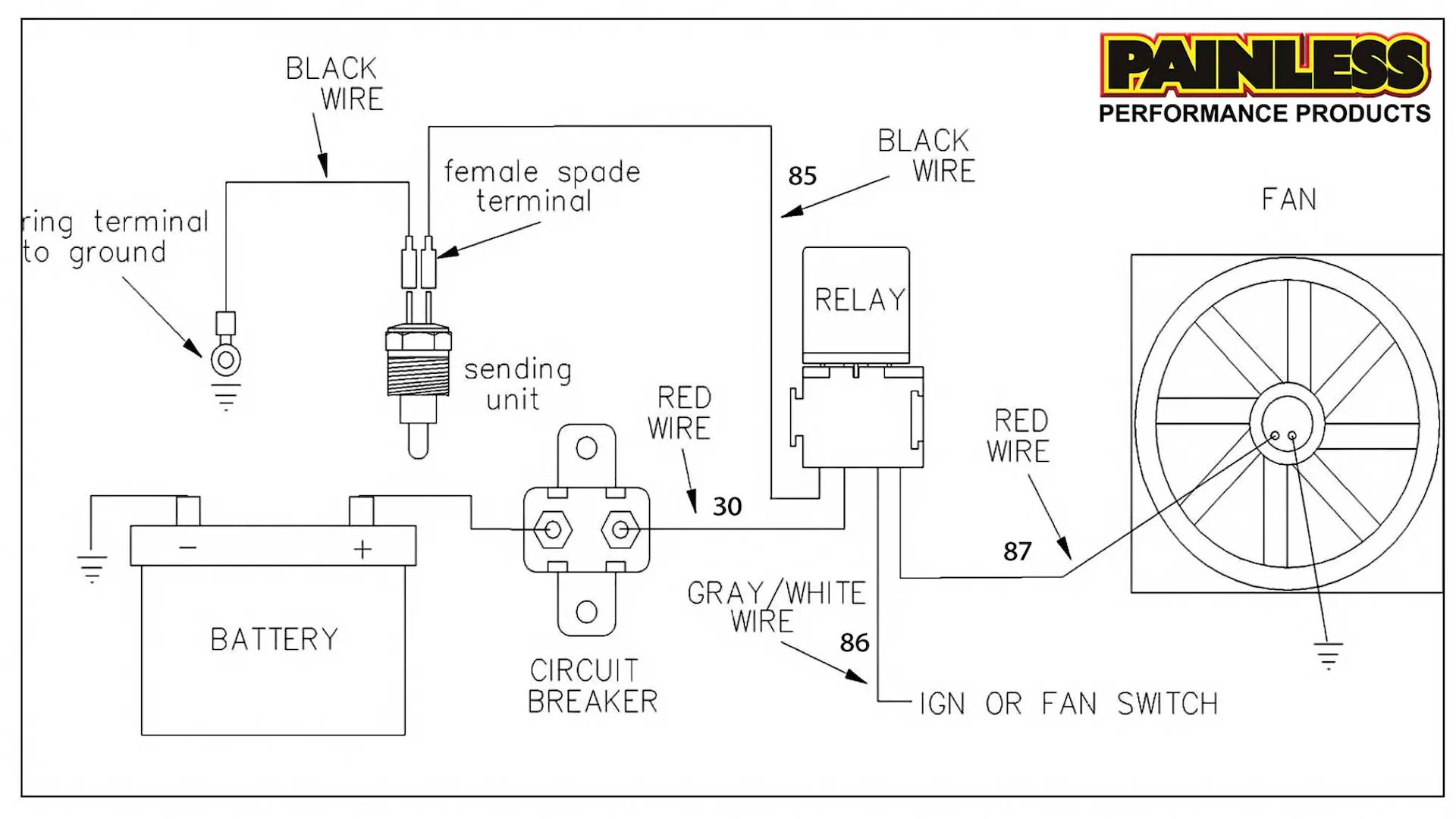

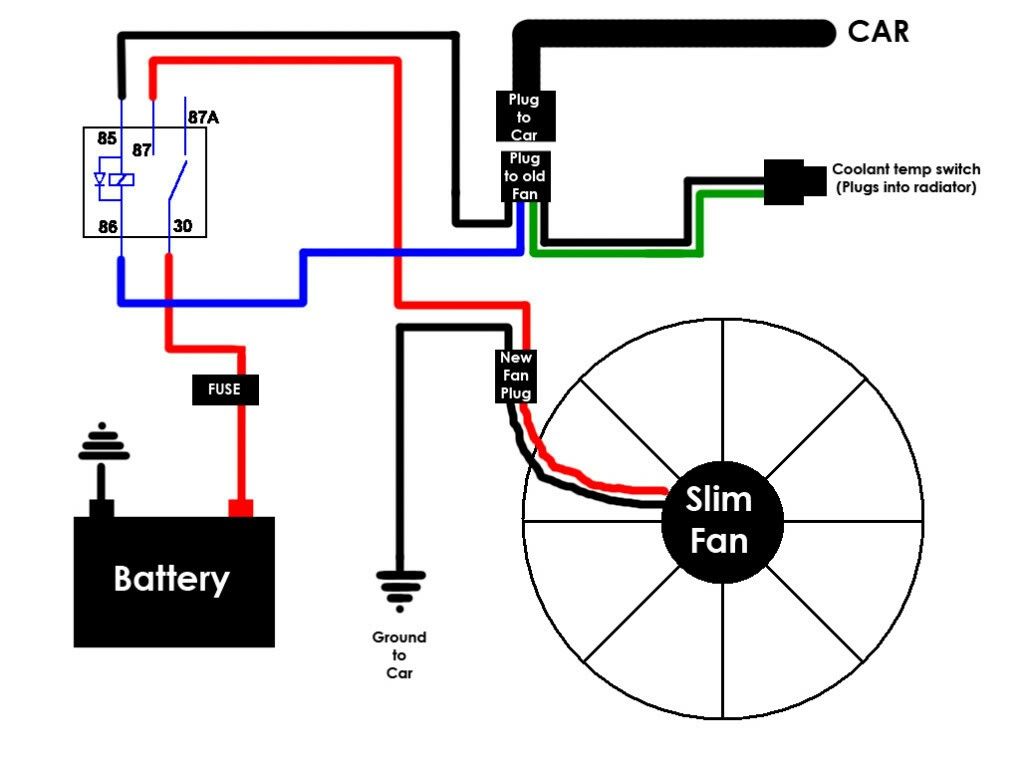

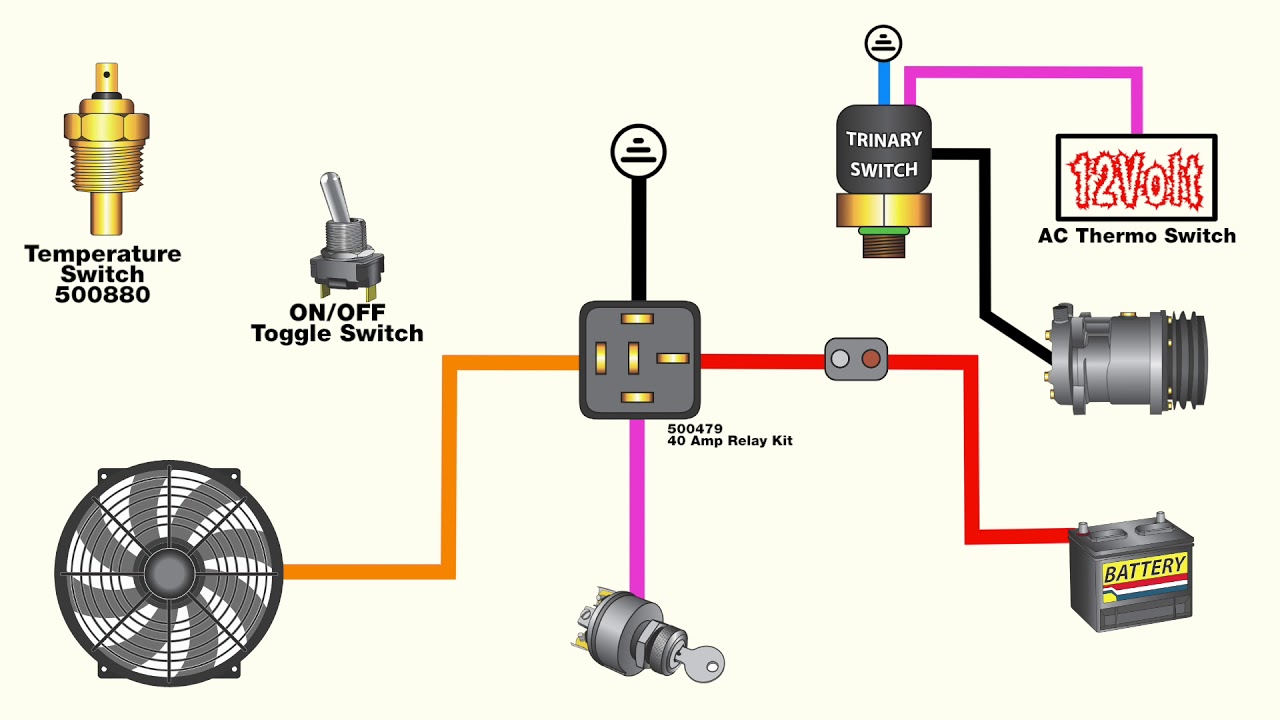

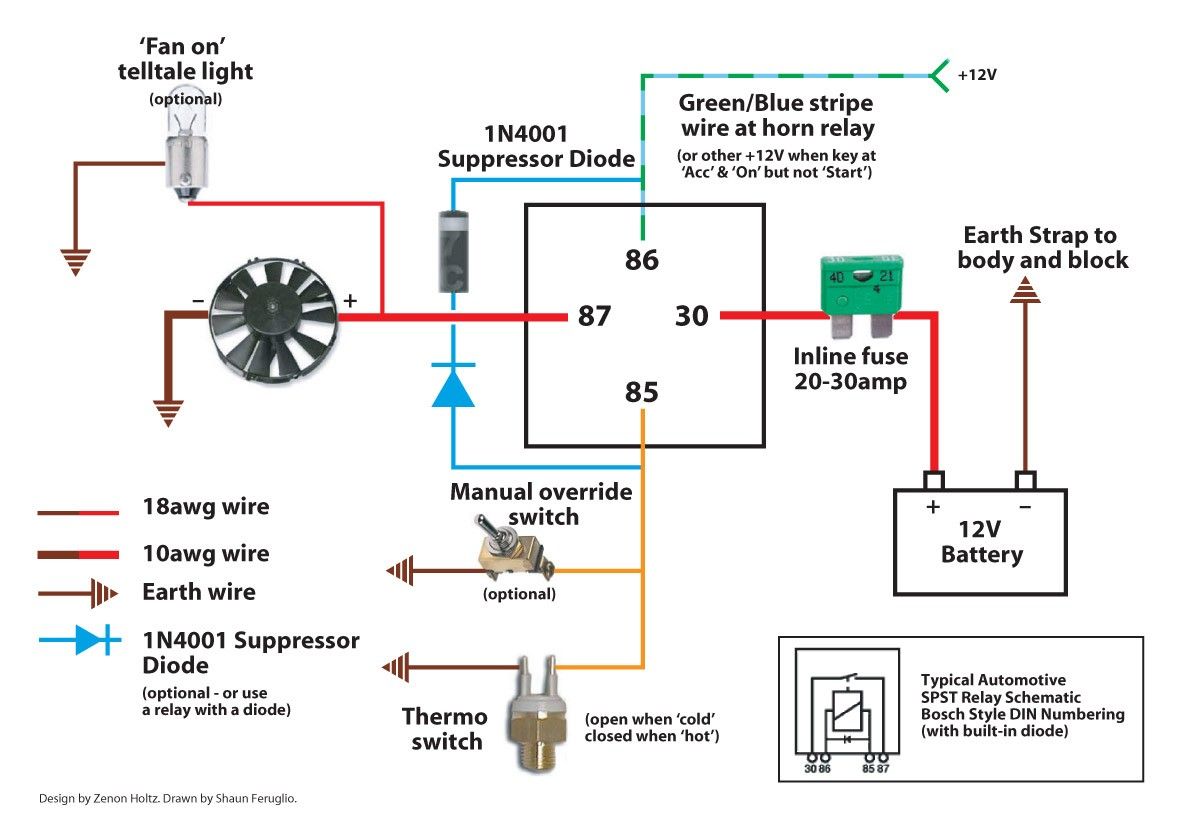

An electric fan relay is essentially a small electrical switch that controls the flow of power to the cooling fan motor. It allows a low-current circuit (controlled by the engine control unit, or ECU) to switch a high-current circuit (the power supply to the fan). Here's a breakdown of the typical relay circuit:

• Power Source: A direct connection to the battery or a fused power source provides the necessary amperage to run the fan motor.
• Ground: A solid ground connection is essential for completing the circuit.
• Control Signal: The ECU monitors engine temperature and other parameters. When the engine gets too hot, the ECU sends a low-current signal to the relay.
• Relay Coil: This is a small coil of wire inside the relay. When the ECU sends the control signal, the coil becomes energized, creating an electromagnetic field.
• Switch Contacts: The electromagnetic field pulls a set of contacts together, closing the high-current circuit and allowing power to flow to the fan motor.

Relays fail for several reasons:

• Overheating: The relay handles a significant amount of current. Over time, this can cause the internal components to overheat and fail.
• Corrosion: Moisture and road salt can corrode the relay terminals, leading to poor connections and eventual failure.
• Mechanical Fatigue: The constant switching action can cause the mechanical parts of the relay to wear out.
• Voltage Spikes: Electrical surges in the vehicle's system can damage the relay's internal components.

The Consequences of Ignoring a Bad Fan Relay

Ignoring a faulty electric fan relay can have severe consequences for your engine. The most immediate risk is overheating. Prolonged overheating can lead to:

• Damaged head gasket: This can result in coolant leaking into the cylinders, causing serious engine damage.
• Cracked cylinder head: A cracked head is a major repair and can be very expensive.
• Warped engine block: In extreme cases, the engine block itself can warp, rendering the engine unusable.
• Reduced engine performance: Overheating can cause the engine to run less efficiently and produce less power.
• Premature engine wear: High temperatures accelerate the wear and tear on engine components, shortening the engine's lifespan.

Furthermore, if the relay is stuck in the "on" position, the continuous fan operation can drain the battery, leaving you stranded.

Recommended Fixes: From DIY to Professional Repair

Here's a breakdown of how to address a faulty electric fan relay, ranging from simple DIY solutions to more complex professional repairs:

1. Visual Inspection

Start by visually inspecting the relay itself. Locate the relay box (usually under the hood or sometimes in the passenger compartment). Refer to your owner's manual or a wiring diagram to identify the electric fan relay. Look for signs of:

• Burnt or melted plastic: This is a clear indication of overheating and relay failure.
• Corroded terminals: Clean any corrosion with a wire brush or terminal cleaner.

2. Relay Swapping

Many relay boxes contain multiple relays that are identical. A simple test is to swap the electric fan relay with another relay of the same type (e.g., the horn relay). If the fan now works, but the horn doesn't, you've confirmed that the original relay is faulty.

3. Testing with a Multimeter

A multimeter can be used to test the relay for continuity and proper function. You'll need to identify the relay's terminals (usually marked on the relay itself or in the wiring diagram). You can test:

• Coil Resistance: Check the resistance across the coil terminals. An open circuit indicates a faulty coil.
• Continuity of Contacts: Test for continuity between the switch contacts when the relay is both energized and de-energized.

4. Replacing the Relay

If the relay is faulty, simply replace it with a new one of the same type. Ensure the replacement relay has the same voltage and amperage rating. This is usually the easiest and most common fix.

5. Checking the Wiring and Connections

Sometimes, the problem isn't the relay itself but the wiring leading to and from it. Inspect the wiring for:

• Damaged or frayed wires: Repair or replace any damaged wiring.
• Loose connections: Ensure all connections are tight and secure.
• Corrosion: Clean any corrosion from the wiring terminals.

6. Diagnosing a More Complex Problem

If replacing the relay and checking the wiring doesn't solve the problem, there may be a more complex issue, such as:

• Faulty temperature sensor: The temperature sensor sends information to the ECU, which then controls the fan relay. A faulty sensor can prevent the fan from turning on.
• ECU malfunction: In rare cases, the ECU itself may be faulty.
• Faulty fan motor: Even if the relay is working, the fan motor itself may be bad. You can test the fan motor by applying direct power and ground.

These more complex issues often require professional diagnosis and repair.

Cost Estimates and Shop Advice

Here's a general idea of the costs involved in repairing a faulty electric fan relay:

• Relay Replacement (DIY): A new relay typically costs between $10 and $30.
• Relay Replacement (Shop): Labor charges can add another $50 to $100, depending on the shop's hourly rate and the location of the relay.
• Wiring Repair: The cost of wiring repair depends on the extent of the damage. It can range from $50 to several hundred dollars.
• Temperature Sensor Replacement: A new temperature sensor typically costs between $20 and $50, plus labor charges.
• ECU Diagnosis and Repair: ECU problems can be very expensive to diagnose and repair. A new or rebuilt ECU can cost several hundred to over a thousand dollars.

Shop Advice: If you're not comfortable working on electrical systems, it's best to take your car to a qualified mechanic. A mechanic can properly diagnose the problem and ensure that the repair is done correctly. Be sure to get an estimate before any work is performed. Ask if they have experience with this specific issue on your make and model. Also, inquire about warranty on the parts and labor.

Credibility and Common Failure Points

Electric fan relay failures are a common issue, especially in older vehicles or vehicles that operate in hot climates. Online forums and community data often reveal specific models and years that are prone to this problem. You can find valuable information and tips from other owners who have experienced the same issue.

While specific Technical Service Bulletins (TSBs) directly addressing electric fan relay failures are not always published, many TSBs related to engine overheating or air conditioning problems may indirectly point to the electric fan and its related components, including the relay, as potential causes. Checking for TSBs related to these broader issues for your specific vehicle model and year can sometimes provide helpful diagnostic information.

Relay failures are frequently observed in vehicles after 80,000 to 100,000 miles, although this can vary depending on driving conditions and the quality of the original relay.

By understanding the symptoms, causes, and solutions for a faulty electric fan relay, you can take proactive steps to prevent serious engine damage and keep your car running smoothly. Whether you choose to tackle the repair yourself or entrust it to a professional, being informed will help you make the right decision and save money in the long run. Good luck!
