How To Wire Daytime Running Lights

Daytime Running Lights (DRLs) are a crucial safety feature in modern vehicles, significantly increasing visibility to other drivers, especially during dawn, dusk, and inclement weather. A malfunctioning DRL system not only compromises your vehicle's safety profile but can also lead to unwanted attention from law enforcement. If your DRLs aren't functioning correctly, it's essential to diagnose and rectify the issue promptly.

Identifying DRL Problems: What to Look For

Recognizing DRL problems early can save you time and money. Here are some common symptoms indicating a potential issue:

Complete Failure: Neither DRL is illuminating. This is the most obvious symptom.
One DRL Not Working: Only one of the DRLs is illuminated while the other remains off.
Intermittent Operation: The DRLs flicker, turn on and off sporadically, or work sometimes but not others.
Dim Illumination: The DRLs are noticeably dimmer than usual.
DRLs Remain On: The DRLs stay illuminated even when the vehicle is turned off. (Note: some vehicles have a "coming home" feature that temporarily leaves the lights on after the engine is shut off, so verify this isn't the cause).
DRLs Don't Turn On Automatically: The DRLs fail to activate when the vehicle is started and the headlights are off (and the parking brake is released, if applicable - some systems are brake-release dependent).
DRL Indicator Light: The DRL indicator light (if equipped) is illuminated on the dashboard, signaling a system fault.

Unraveling the Root Cause: Why Your DRLs Might Be Failing

Several factors can contribute to DRL malfunction. Understanding the underlying cause is crucial for effective repair:

Blown Bulbs: The most common culprit is simply a burned-out DRL bulb. These bulbs have a limited lifespan and eventually need replacement. Filament bulbs are more prone to failure than newer LED-based DRLs, but even LEDs can fail over time.
Faulty Wiring: Damaged, corroded, or loose wiring connections can disrupt the electrical circuit, preventing the DRLs from illuminating. This is especially common in areas exposed to harsh weather conditions or road salt. Look for frayed wires, cracked insulation, and corroded connectors.
Defective Relay: The DRL relay controls the power supply to the DRLs. A malfunctioning relay can prevent the DRLs from turning on or cause them to operate erratically.
Failed DRL Module/Controller: Many modern vehicles use a dedicated DRL module or controller to manage the DRL system. If this module fails, it can cause various DRL-related problems.
Problematic Light Sensor: Some vehicles use a light sensor to determine when to activate the DRLs. If the sensor is faulty or blocked, it can prevent the DRLs from turning on automatically.
Fuse Issues: A blown fuse in the DRL circuit can immediately disable the system.
Grounding Problems: Improper grounding can cause a variety of electrical issues, including DRL malfunction. Make sure the DRL circuit has a good, clean ground connection to the vehicle's chassis.

Ignoring the Problem: What's at Stake

While a malfunctioning DRL system might seem like a minor inconvenience, ignoring it can have serious consequences:

Reduced Visibility: The primary purpose of DRLs is to enhance vehicle visibility, especially in challenging lighting conditions. Without functioning DRLs, your vehicle becomes less visible to other drivers, increasing the risk of accidents.
Increased Accident Risk: Studies have shown that vehicles equipped with DRLs have a lower accident rate compared to those without. Malfunctioning DRLs negate this safety benefit.
Legal Repercussions: In some jurisdictions, operating a vehicle with non-functional DRLs is a traffic violation, resulting in fines and penalties.
Failed Vehicle Inspection: Many states and provinces require DRLs to be in working order for a vehicle to pass inspection.
Safety Concerns for Others: Impaired visibility affects not just you, but all the vehicles sharing the road.

Recommended Fixes: Getting Your DRLs Back in Action

Addressing DRL problems often involves a systematic approach to identify and rectify the underlying cause. Here's a breakdown of recommended fixes:

Bulb Replacement: Start by inspecting the DRL bulbs. If a bulb is burned out, replace it with a bulb of the correct type and wattage. Refer to your vehicle's owner's manual for the appropriate bulb specification.
Wiring Inspection and Repair: Carefully inspect the wiring harness connected to the DRLs. Look for any signs of damage, corrosion, or loose connections. Repair or replace any damaged wiring as needed. Use dielectric grease on connections to prevent future corrosion.

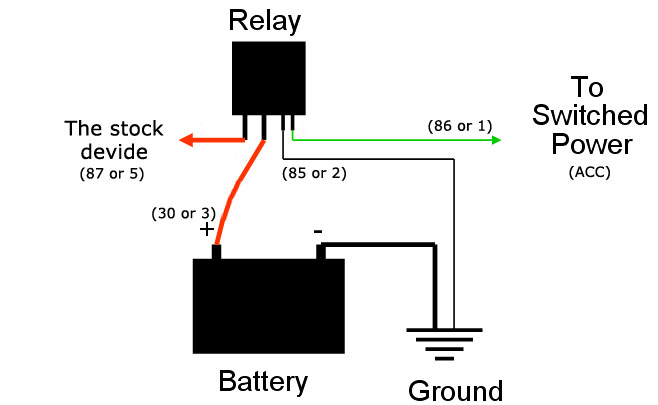

Relay Check: Locate the DRL relay (refer to your vehicle's wiring diagram) and test it using a multimeter. If the relay is faulty, replace it with a new one. Some relays of the same type can be swapped temporarily to verify functionality.
Fuse Inspection: Check the fuse associated with the DRL circuit. A blown fuse indicates a short circuit somewhere in the system. Replace the fuse with one of the correct amperage. If the fuse blows again immediately, it suggests a more significant electrical issue requiring further investigation.
DRL Module Diagnosis: If you suspect a faulty DRL module, you may need to consult with a qualified mechanic who has the necessary diagnostic tools to test the module's functionality. Replacement of the module may be necessary.
Ground Connection Verification: Ensure that the DRL circuit has a clean and secure ground connection to the vehicle's chassis. Clean any corroded grounding points and tighten the connections.
Light Sensor Testing: If your vehicle uses a light sensor, try cleaning the sensor lens. If the problem persists, you may need to have the sensor tested and possibly replaced.

Cost Estimates and Shop Advice

The cost of repairing DRL problems can vary significantly depending on the cause and the extent of the damage. Here's a general idea of what you can expect:

Bulb Replacement: $10-$50 per bulb (depending on bulb type - halogen vs. LED). This is typically a DIY-friendly task.
Wiring Repair: $50-$200, depending on the complexity of the repair. This can be DIY if you're comfortable with basic electrical work, but professional help is recommended for extensive damage.
Relay Replacement: $20-$50. Relays are generally inexpensive and easy to replace.
Fuse Replacement: $5-$10. Fuses are very inexpensive. However, diagnosing the reason for a blown fuse can be more complex.
DRL Module Replacement: $200-$500 (plus labor). This is usually best left to a professional mechanic, as it may require programming.
Diagnostic Fee: If you take your vehicle to a mechanic, expect to pay a diagnostic fee, typically ranging from $75 to $150, to identify the problem.

Shop Advice: If you're not comfortable working with electrical systems, it's best to take your vehicle to a qualified mechanic. Look for a shop that specializes in automotive electrical repair. Be sure to get a written estimate before any work is performed.

Credibility Boost: TSBs and Common Failure Points

It's always a good idea to check for any Technical Service Bulletins (TSBs) issued by the vehicle manufacturer related to DRL problems. TSBs provide information about common issues and recommended repair procedures. You can usually find TSB information online through the National Highway Traffic Safety Administration (NHTSA) website or through online automotive forums specific to your vehicle make and model.

Additionally, online automotive communities and forums can provide valuable insights into common DRL failure points for your specific vehicle. For example, certain models are known to have issues with corroded wiring connectors in the DRL circuit, while others may be prone to relay failures. Knowing these common issues can help you narrow down the possible causes of your DRL problems.

While specific mileage for DRL failure varies greatly depending on usage and environmental conditions, filament bulbs typically have a shorter lifespan than LED DRLs. Expect to replace filament DRL bulbs every 2-3 years, while LED DRLs can potentially last for the lifespan of the vehicle.

Addressing DRL issues promptly ensures your safety, helps you comply with local laws, and maintains the overall reliability of your vehicle. A little proactive maintenance and timely repair can go a long way in keeping your DRLs shining bright.
