How To Wire Fog Lights To A Switch

The allure of piercing through dense fog with focused beams of light is undeniable. Fog lights, a seemingly simple addition to any vehicle, can drastically improve visibility in challenging weather conditions. But how do these auxiliary lights actually work, and how can you, the enthusiastic amateur engineer, wire them up to a switch yourself? This guide delves into the intricacies of fog light wiring, providing a comprehensive understanding of the system's mechanics, benefits, drawbacks, and real-world applications.

Taming the Electrical Current: The Fog Light Wiring Quest

Our quest begins with a problem: how to safely and effectively connect a set of fog lights to your vehicle's electrical system, controlled by a dedicated switch. Simply splicing the lights directly into an existing circuit is a recipe for disaster. Overloading circuits can blow fuses, damage wiring, and potentially lead to a fire. The key is to understand the principles of electrical circuits and use appropriate components to create a safe and reliable system.

Imagine your vehicle's electrical system as a river. The battery is the source, providing the current (water flow). Wires are the channels that carry the current. Each component, like a headlight or fog light, is a water wheel that consumes some of the energy. A fuse is a dam designed to break if the water flow becomes too high, preventing damage downstream. Your goal is to add a new water wheel (fog lights) to the river without causing a flood (overloading the circuit).

The Mechanical Breakdown: Components and Connections

The fog light wiring system comprises several key components:

Power Source: The vehicle's battery provides the 12V DC power needed to operate the fog lights.
Switch: A single-pole, single-throw (SPST) switch or a single-pole, double-throw (SPDT) switch (for more complex setups) allows you to manually turn the fog lights on and off.
Relay: This electromagnetic switch acts as an intermediary. A small current from the switch controls a larger current from the battery to the fog lights, protecting the switch from overload.
Fuse: A fuse protects the circuit from overcurrent, preventing damage to the wiring and components. It's crucial to choose a fuse with an amperage rating appropriate for the fog lights.
Wiring: Automotive-grade wiring connects all the components. The wire gauge (thickness) must be sufficient to handle the current draw of the fog lights.

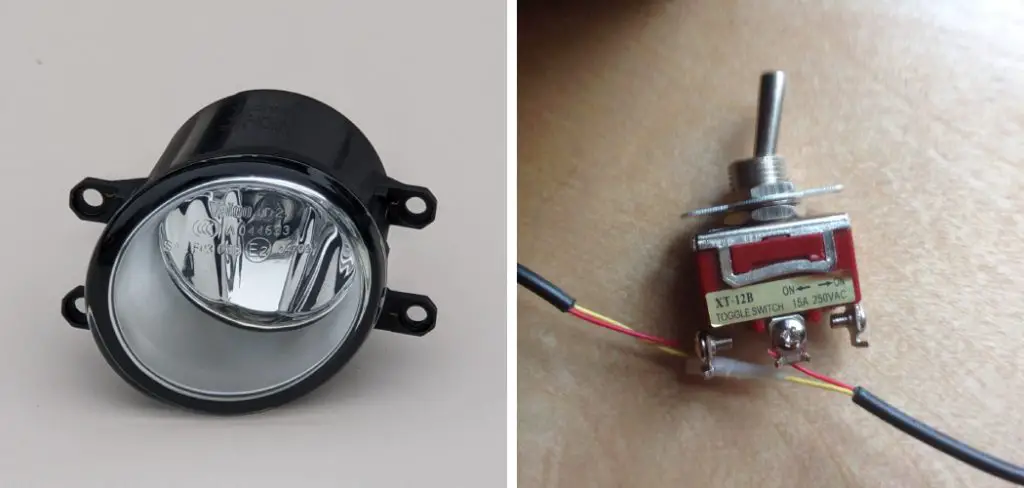

Fog Lights: The actual lights that provide the illumination. They come in various types (halogen, LED) with different power consumption.
Ground Connection: A reliable ground connection is essential for completing the circuit.

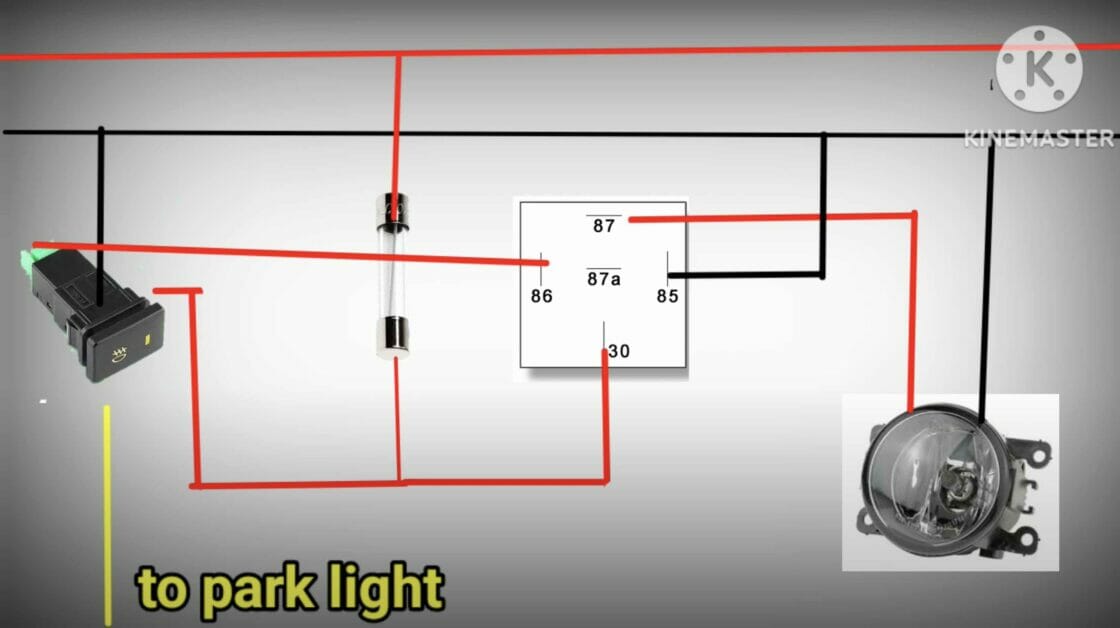

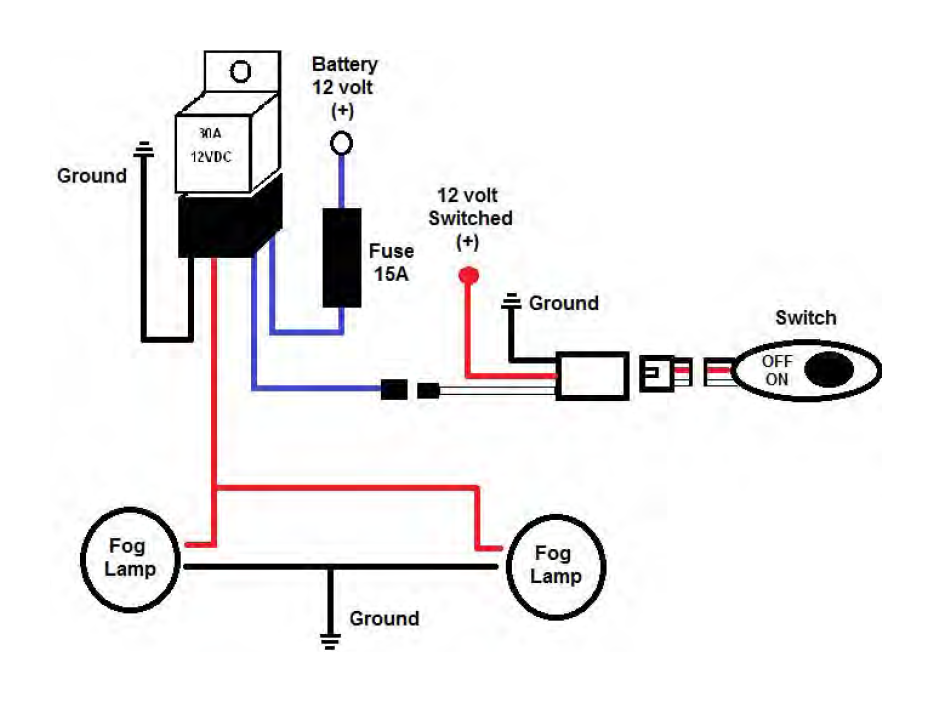

The typical wiring configuration involves the following steps:

Battery Connection: Connect a heavy-gauge wire (e.g., 12 AWG) from the positive (+) terminal of the battery to the fuse holder.
Fuse Holder to Relay: Connect a wire from the fuse holder to terminal 30 on the relay (typically labeled as 30 or 87).
Relay to Fog Lights: Connect a wire from terminal 87 on the relay to the positive (+) terminal of each fog light. If you have two fog lights, you'll need to split the wire using a distribution block or by carefully soldering the wires together.
Fog Light Ground: Connect the negative (-) terminal of each fog light to a reliable ground point on the vehicle's chassis. Clean metal is essential for a good ground connection.
Switch Connection: Connect a wire from the vehicle's existing switched power source (e.g., the parking light circuit or an accessory power wire) to one terminal of the switch. This ensures the fog lights can only be turned on when the ignition is on or the parking lights are activated.
Switch to Relay: Connect a wire from the other terminal of the switch to terminal 86 on the relay.
Relay Ground: Connect terminal 85 on the relay to a reliable ground point on the vehicle's chassis.

Important Safety Note: Always disconnect the negative (-) terminal of the battery before working on any electrical wiring in your vehicle. Use a multimeter to verify voltage and continuity throughout the circuit before connecting the fog lights.

Deep Dive: The Relay's Role

The relay is the unsung hero of this system. It's an electromagnetically operated switch that allows a small current to control a much larger current. When you flip the fog light switch, it sends a small current through the relay's coil (terminals 85 and 86). This energizes the coil, creating a magnetic field that pulls a contact closed (connecting terminals 30 and 87). This completes the circuit, allowing the full current from the battery to flow to the fog lights.

Without a relay, the switch would have to handle the entire current draw of the fog lights, which could damage the switch or even cause it to melt. The relay acts as a buffer, protecting the switch and ensuring a reliable connection.

Pros and Cons: Weighing the Benefits and Drawbacks

Pros:

Improved Visibility: Fog lights provide focused, low-mounted beams of light that cut through fog, rain, and snow, significantly improving visibility.
Enhanced Safety: Increased visibility translates to improved safety for you and other drivers.
Customization: Fog lights can enhance the appearance of your vehicle and provide a personalized touch.
Relatively Simple Installation: With basic wiring knowledge and the right tools, installing fog lights is a manageable DIY project.

Cons:

Potential for Overuse: Using fog lights in clear weather is illegal in some jurisdictions and can be distracting to other drivers.
Wiring Complexity: Proper wiring is essential for safety and reliability. Incorrect wiring can lead to electrical problems.
Cost: The cost of fog lights, wiring, relays, and switches can add up.
Potential for Damage: Low-mounted fog lights are susceptible to damage from road debris and impacts.

Use Cases and Manufacturer Examples

Fog lights are commonly found on vehicles designed for off-road use, as well as those driven in areas prone to inclement weather. Many manufacturers offer factory-installed fog lights as an option, while aftermarket kits are widely available.

Jeep Wrangler: Jeeps are frequently equipped with fog lights for off-road adventures. Many aftermarket kits offer high-intensity LED fog lights for maximum visibility.
Subaru Outback: Subarus, known for their all-wheel drive and suitability for snowy conditions, often include fog lights as standard equipment.
Ford F-150: Trucks like the F-150 often utilize fog lights for added visibility on construction sites and during inclement weather.

Examples of fog light manufacturers include:

PIAA: Known for high-quality halogen and LED fog lights.
KC HiLiTES: Offers a wide range of off-road lighting solutions, including fog lights.
Rigid Industries: Specializes in high-performance LED lighting for various applications, including fog lights.

Real-World Insights and Recommendations

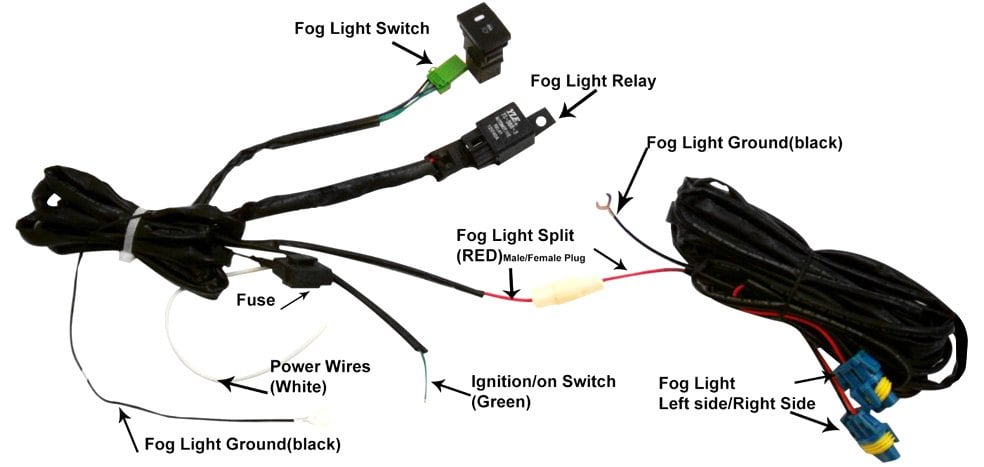

Having installed and used fog lights on several vehicles, I've learned a few key lessons. First, invest in quality components. A cheap relay or undersized wiring can lead to problems down the road. Second, pay close attention to grounding. A poor ground connection is a common cause of fog light malfunctions. Third, consider using a wiring harness specifically designed for fog lights. These harnesses simplify the installation process and ensure proper connections.

When choosing fog lights, consider the type of beam pattern you need. Driving lights provide a long-range, narrow beam, while fog lights offer a wider, lower beam pattern designed to cut through fog. For maximum versatility, consider lights that offer both driving and fog light modes.

Finally, remember to aim your fog lights correctly. Incorrectly aimed fog lights can be distracting to other drivers and reduce your own visibility. Consult your vehicle's owner's manual or a professional for guidance on aiming your fog lights.

Wiring fog lights to a switch is a rewarding project that can enhance your vehicle's functionality and appearance. By understanding the principles of electrical circuits and following these guidelines, you can safely and effectively install fog lights and enjoy improved visibility in challenging driving conditions. Remember to always prioritize safety and consult a qualified technician if you have any doubts.
