How To Wire Up Electric Fans

Wiring up electric fans, whether for your car's cooling system, a home ventilation project, or a DIY electronics endeavor, is a task that requires careful attention to detail and a thorough understanding of electrical principles. Incorrect wiring can lead to fan malfunction, electrical shorts, and even fire hazards. This article provides a comprehensive guide to help you safely and effectively wire up electric fans.

Why Proper Electric Fan Wiring Matters

The importance of correct wiring cannot be overstated. Safety is the paramount concern. Electricity can be dangerous if mishandled. Improper wiring can cause:

• Overheating: If the wiring is too thin for the current draw, the wires can overheat, potentially melting insulation and causing a short circuit.
• Electrical Fires: Short circuits can ignite flammable materials nearby, leading to a fire.
• Damage to Components: Incorrect voltage or polarity can damage the fan motor, the power source, or any connected control circuitry.
• Fan Malfunction: Even without catastrophic failure, incorrect wiring can prevent the fan from operating correctly, impacting its performance.

Beyond safety, proper wiring ensures optimal performance and longevity. A correctly wired fan will run efficiently, providing the desired airflow and minimizing power consumption. It will also be less likely to suffer from premature wear and tear, extending its lifespan.

How to Choose the Right Components for Electric Fan Wiring

Selecting the correct components is crucial for a successful and safe electric fan wiring project. Here's a breakdown of the key factors to consider:

1. Determine the Fan's Voltage and Current Requirements

The first step is to identify the fan's voltage (e.g., 12V DC, 24V DC, 120V AC) and current (measured in amps). This information is usually found on a label on the fan itself or in the manufacturer's specifications. It's essential to match the fan's voltage requirement to the voltage of your power source. The current rating will determine the appropriate wire gauge and fuse size.

2. Select the Correct Wire Gauge

Wire gauge refers to the thickness of the wire. Thicker wires can handle more current without overheating. The appropriate wire gauge depends on the fan's current draw and the length of the wire run. Use a wire gauge chart (easily found online) to determine the correct gauge for your specific application. Always err on the side of using a thicker wire if you're unsure. Common gauges for automotive fans are 12, 14, and 16 AWG. For household fans, 18 AWG is often sufficient.

3. Choose the Right Fuse

A fuse is a safety device that protects the circuit from overcurrent. Select a fuse with a rating slightly higher than the fan's running current but lower than the maximum current the wiring can handle. This ensures that the fuse will blow and protect the circuit in case of a fault, but won't blow unnecessarily during normal operation. For example, if a fan draws 5 amps, a 7.5 amp or 10 amp fuse would be appropriate.

4. Select Appropriate Connectors and Terminals

Proper connectors and terminals ensure secure and reliable electrical connections. Choose connectors that are rated for the voltage and current of the circuit. Common types include spade connectors, ring terminals, and butt connectors. Use a crimping tool to securely attach the connectors to the wires. Consider using heat shrink tubing to insulate the connections and protect them from corrosion.

5. Determine if a Relay is Needed

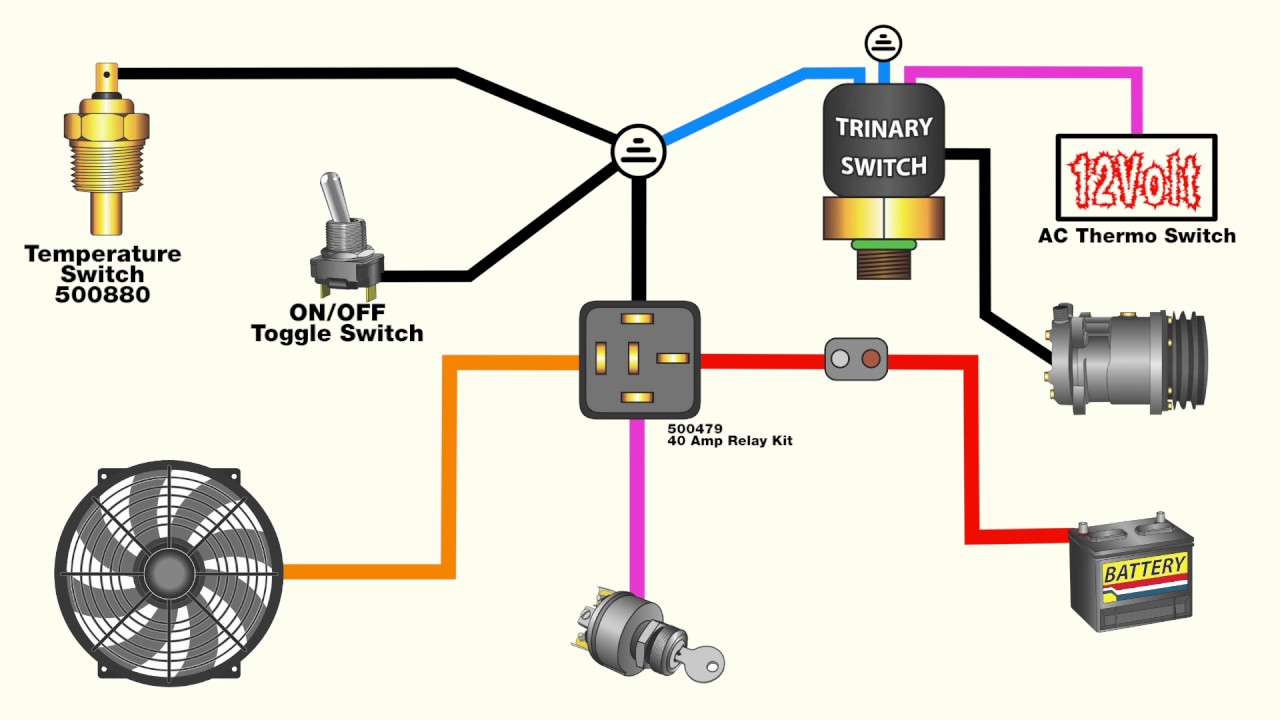

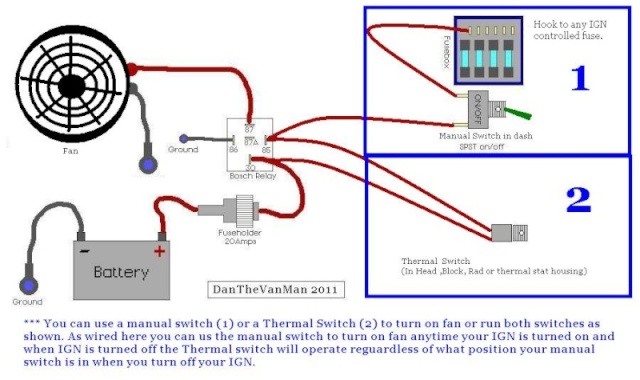

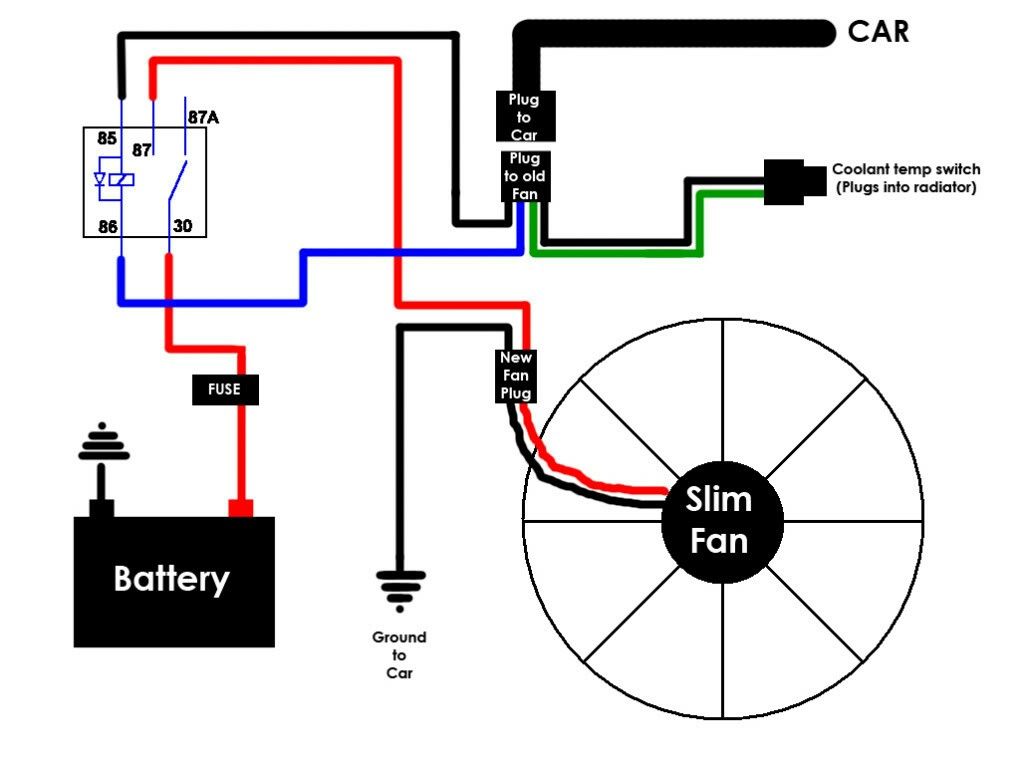

A relay is an electrically operated switch that allows a low-current circuit to control a high-current circuit. Relays are often used when the fan draws a significant amount of current. Using a relay protects the control circuit (e.g., a temperature sensor or switch) from being overloaded by the fan's current draw. A typical automotive fan relay has five terminals: power, ground, input signal, output to fan, and coil ground.

6. Choosing a Power Source

The power source must be compatible with the voltage of your fan. For automotive applications, this is typically the car's 12V battery. For household fans, it's the standard AC wall outlet. If using a wall outlet, ensure you have a suitable AC-to-DC power adapter that provides the correct voltage and amperage.

Real-World Owner Experiences

Many people have successfully wired up electric fans for various purposes. Here are a few common scenarios and insights based on real-world experiences:

• Automotive Cooling Fans: Car enthusiasts often upgrade their mechanical fans to electric fans for improved cooling efficiency and performance. Many report better fuel economy and increased horsepower after making the switch. Key considerations include choosing a fan with adequate CFM (cubic feet per minute) airflow and ensuring the wiring can handle the high current draw.
• Home Ventilation: DIYers often install electric fans in attics, bathrooms, or kitchens to improve ventilation and reduce moisture. Selecting a fan with a built-in thermostat or timer can automate the ventilation process. Using shielded wiring is recommended for running wires through walls or ceilings.
• Electronics Projects: Hobbyists use small electric fans to cool electronic components, such as microcontrollers or power amplifiers. These fans typically operate at low voltages (e.g., 5V or 12V) and draw minimal current. Ensure adequate heat sinking for the components being cooled to maximize the effectiveness of the fan.

One common pitfall is underestimating the fan's current draw. Many users have reported blown fuses or overheated wiring because they used components that were not rated for the fan's actual power consumption. Always measure the fan's current draw with a multimeter to verify the manufacturer's specifications and select appropriate components.

Another common mistake is neglecting proper grounding. A good ground connection is essential for ensuring proper operation and preventing electrical noise. Connect the fan's ground wire to a reliable grounding point, such as the chassis of a car or a grounded electrical outlet.

Frequently Asked Questions (FAQs) About Wiring Up Electric Fans

Q: What tools do I need to wire up an electric fan?

A: You'll typically need wire strippers, a crimping tool, a multimeter, a screwdriver set, pliers, electrical tape or heat shrink tubing, and potentially a soldering iron (for some types of connections).

Q: How do I determine the correct wire gauge for my fan?

A: Use a wire gauge chart (easily found online) and factor in both the fan's current draw and the length of the wire run. When in doubt, always choose a thicker wire.

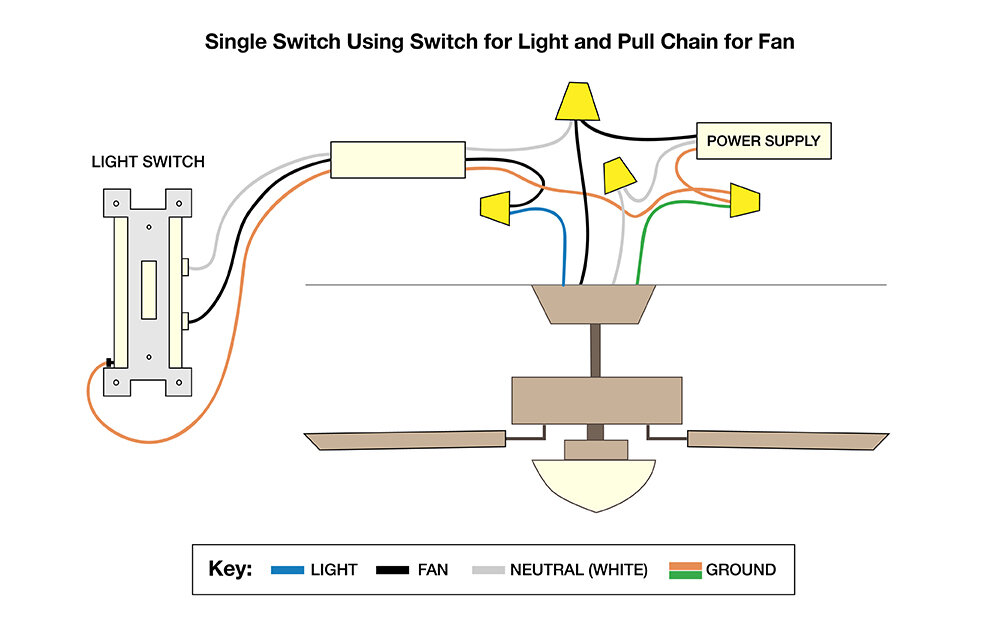

Q: How do I connect the fan wires to the power source?

A: Use appropriate connectors (e.g., spade connectors, ring terminals) and securely crimp them onto the wires. Ensure the connections are properly insulated with electrical tape or heat shrink tubing. Pay close attention to polarity (positive and negative) if wiring a DC fan.

Q: How do I install a relay for my electric fan?

A: Connect the relay's power and ground wires to the appropriate power source and ground point. Connect the input signal wire to the control circuit (e.g., a temperature sensor or switch). Connect the output wire to the fan's power wire. Connect the coil ground to ground.

Q: What if my fan is not running after I wire it up?

A: First, check the fuse to see if it has blown. If the fuse is intact, use a multimeter to check for voltage at the fan's power wire. Also, make sure the ground connection is secure. If you're using a relay, test the relay to ensure it's functioning correctly. Finally, double-check all wiring connections to ensure they are secure and properly connected.

Q: Is it safe to wire an electric fan myself?

A: Wiring up electric fans can be safe if you follow proper procedures and take necessary precautions. If you are not comfortable working with electricity, it's best to consult a qualified electrician. Always disconnect the power source before working on any electrical wiring.

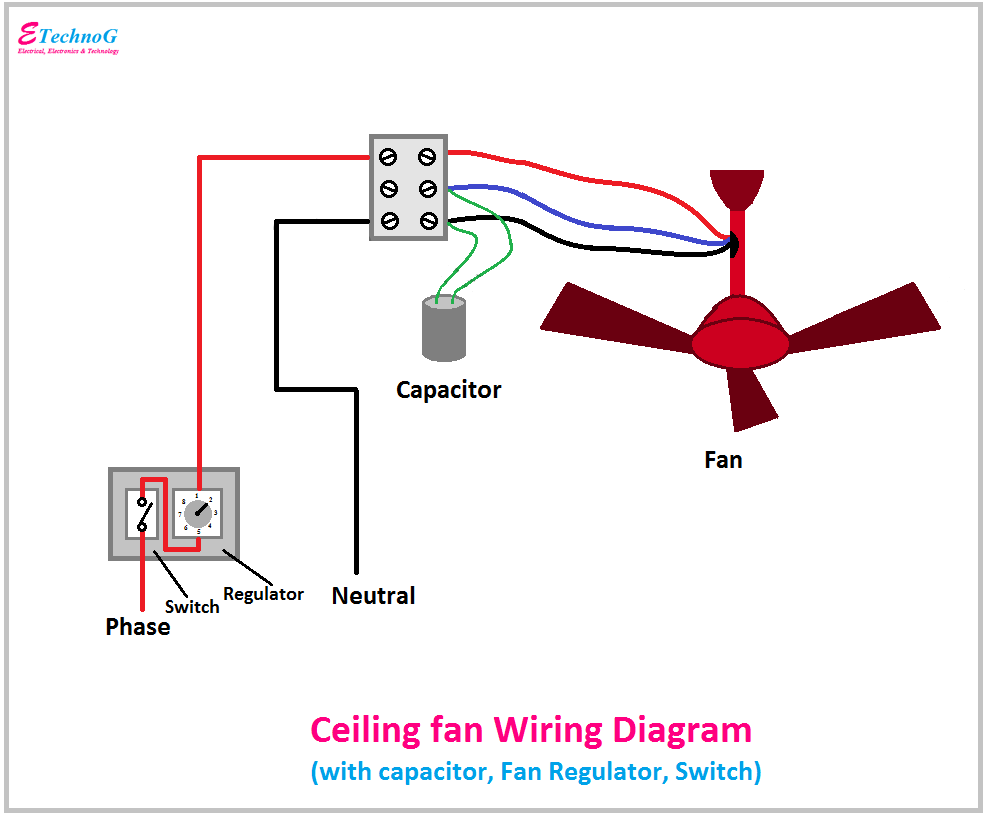

Q: Where can I find wiring diagrams for electric fans?

A: Many fan manufacturers provide wiring diagrams with their products. You can also find wiring diagrams online by searching for the specific type of fan you're using (e.g., "12V DC fan wiring diagram").

By carefully following these guidelines and taking appropriate safety precautions, you can successfully wire up electric fans for a variety of applications, ensuring optimal performance and longevity.
