O/d Off Nissan How To Turn On

The "O/D Off" button on many Nissan vehicles is a small but mighty control that influences your vehicle's fuel efficiency and performance. Understanding how it works, when to use it, and potential issues can empower you to drive smarter and potentially save on fuel costs. This article will provide a comprehensive overview of the Nissan O/D Off system, offering insights into its functionality, maintenance, and best practices, catering to intermediate car owners and DIY mechanics.

Background: Overdrive and Automatic Transmissions

To understand the O/D Off button, we first need to grasp the concept of overdrive in an automatic transmission. Automatic transmissions use a series of planetary gearsets to provide different gear ratios. Each gear ratio is designed to optimize engine speed (measured in RPM, or revolutions per minute) for different driving conditions. Lower gears provide more torque for acceleration, while higher gears prioritize fuel efficiency at higher speeds.

Overdrive is the highest gear ratio in an automatic transmission. In overdrive, the output shaft of the transmission spins faster than the input shaft. This allows the engine to operate at a lower RPM for a given vehicle speed. Think of it like pedaling a bicycle – in a lower gear, you pedal faster to go the same speed, while in a higher gear, you pedal slower. Similarly, overdrive allows the engine to "relax" at cruising speeds, which translates to improved fuel economy and reduced engine wear.

The specific gear ratio considered "overdrive" varies slightly depending on the transmission model. However, it's generally anything numerically less than 1:1. A 0.7:1 overdrive ratio, for example, means the output shaft is spinning significantly faster than the input shaft.

Technical Breakdown: How the O/D Off System Works

The O/D Off button (or switch) on your Nissan gives you the ability to disable the overdrive gear. When activated (O/D Off indicator illuminated), the transmission will not shift into overdrive. This forces the transmission to use only the lower gears. The O/D Off system is primarily controlled by the Transmission Control Module (TCM). This module receives input from various sensors, including vehicle speed, throttle position, and the O/D Off switch itself. The TCM then uses this information to determine the appropriate gear and whether to allow overdrive engagement.

Here's a simplified breakdown of the process:

1. Driver Input: The driver presses the O/D Off button.
2. Signal to TCM: The button sends an electrical signal to the TCM.
3. TCM Interpretation: The TCM registers the signal and interprets it as a request to disable overdrive.
4. Overdrive Inhibition: The TCM prevents the transmission from shifting into the overdrive gear. This is usually achieved by controlling solenoids within the transmission valve body that govern gear selection.

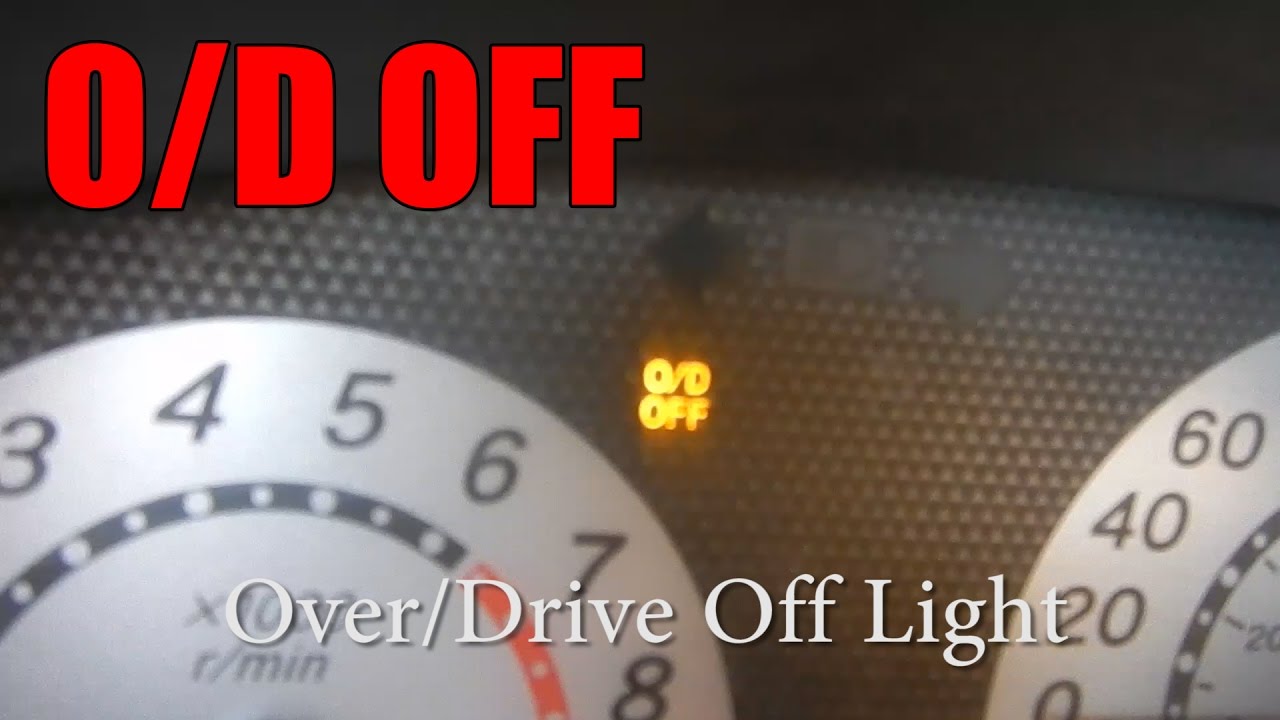

5. Indicator Light: The TCM activates the O/D Off indicator light on the dashboard to inform the driver that overdrive is disabled.

Modern Nissan vehicles often have sophisticated algorithms within the TCM that consider various factors before completely disabling overdrive. For example, even with O/D Off engaged, the transmission might briefly shift into overdrive under very light load conditions to maximize efficiency. However, in most situations, the system will primarily remain in the lower gears.

The Role of Solenoids

Solenoids are electromechanical devices that act as switches, controlling the flow of hydraulic fluid within the transmission. The TCM controls these solenoids based on various inputs, including the O/D Off switch position. When O/D Off is activated, specific solenoids are de-energized or energized in a manner that prevents the transmission from shifting into overdrive. These solenoids control the flow of transmission fluid that actuates clutches and bands within the transmission, which are responsible for engaging different gear ratios.

Common Issues and Maintenance Concerns

The O/D Off system is relatively simple, but problems can arise. Here are some common issues:

• Faulty O/D Off Switch: The switch itself can fail, leading to either a constant "O/D Off" indication or an inability to engage/disengage the system. A multimeter can be used to test the switch for continuity.
• Wiring Problems: Damaged or corroded wiring between the switch, TCM, and transmission can disrupt the signal flow. Visually inspect wiring and connectors for damage. Use a wiring diagram (available in a service manual) to trace the circuit.
• TCM Malfunction: Although less common, the TCM itself can malfunction, leading to incorrect operation of the O/D Off system. This often involves more complex diagnostics using a scan tool to read diagnostic trouble codes (DTCs).
• Transmission Problems: Underlying transmission issues, such as a failing solenoid or worn clutches, can sometimes be mistaken for O/D Off system problems. If the transmission is slipping or not shifting properly in other gears, it's likely a more significant transmission problem.
• O/D Off Light Stays On: If the O/D Off light remains illuminated even after pressing the button, it could indicate a fault within the system. A scan tool can help pinpoint the cause by reading stored DTCs. Common codes might relate to solenoid malfunctions or wiring issues.

Maintenance: Regular transmission fluid changes are crucial for the health of the entire transmission, including the O/D Off system. Dirty or degraded fluid can clog solenoids and lead to shifting problems. Consult your vehicle's service manual for the recommended fluid type and change interval. It's also important to visually inspect the wiring and connectors associated with the O/D Off system for any signs of damage or corrosion.

Do's and Don'ts / Best Practices

• Do: Use O/D Off when towing heavy loads or driving in mountainous terrain. This will help maintain engine RPM and prevent excessive shifting, reducing stress on the transmission.
• Do: Use O/D Off when you need more engine braking, such as when descending steep hills.
• Do: Experiment with O/D Off to understand how it affects your vehicle's performance and fuel economy in different driving conditions.
• Don't: Drive at high speeds for extended periods with O/D Off engaged. This will significantly reduce fuel economy and could potentially overheat the engine.
• Don't: Use O/D Off as a substitute for properly downshifting when needed.
• Don't: Ignore warning lights or unusual transmission behavior. Address any potential problems promptly to prevent further damage.
• Best Practice: Become familiar with your vehicle's owner's manual for specific recommendations regarding O/D Off usage.

Troubleshooting Tip: If you suspect an O/D Off system problem, start by checking the fuse for the transmission control system. A blown fuse can disable the system entirely. Also, consider resetting the TCM by disconnecting the negative battery cable for a few minutes. This can sometimes clear minor glitches. However, be aware that resetting the TCM will also erase any stored diagnostic codes, so be sure to read and record them first if possible.

Conclusion

The Nissan O/D Off system is a valuable tool for optimizing your vehicle's performance and fuel economy under various driving conditions. By understanding how it works, recognizing potential issues, and following best practices, you can effectively utilize this feature to enhance your driving experience and potentially extend the life of your transmission. While the system is relatively simple, diagnosing complex problems may require specialized tools and knowledge. If you're unsure about any aspect of the O/D Off system, consulting a qualified mechanic is always recommended.
