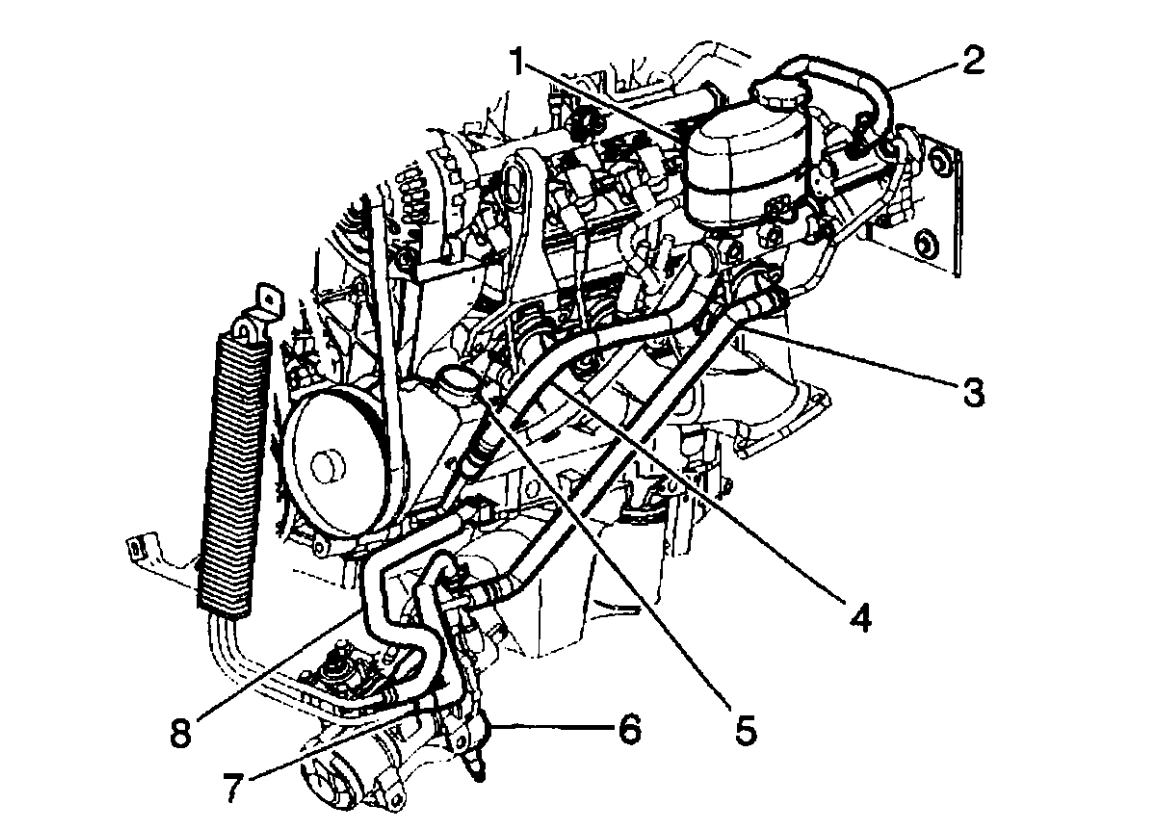

2001 Chevy Silverado Power Steering Hose Diagram

Alright, let's dive into the power steering system of a 2001 Chevy Silverado. Specifically, we're going to dissect the power steering hose diagram. If you're tackling a power steering leak, replacing components, or just trying to understand how this crucial system works, having a good grasp of the hose layout is essential. Think of this as your roadmap to a smoother, easier steering experience.

Purpose of the Power Steering Hose Diagram

Why bother with a diagram? Simple. It's your visual key to navigating the power steering system. The diagram helps with:

Diagnosis: Pinpointing the exact location of a leak or damage. Instead of blindly groping around, you can identify the culprit hose quickly.
Repair and Replacement: Ensuring you're replacing the correct hose with the right part. Matching up connections and routing is critical for proper function and safety.
Understanding the System: Learning how the components interconnect. Knowledge is power (steering?).
Modification: If you're considering aftermarket power steering coolers or reservoir upgrades, the diagram shows you how to integrate them correctly.

Basically, this diagram empowers you to troubleshoot, repair, and even modify your power steering system with confidence.

Key Specs and Main Parts

Before we get into the diagram's details, let's identify the key components of the 2001 Silverado's power steering system. This applies whether you have the 1500, 2500, or 3500 model; the basics are largely the same.

Power Steering Pump: The heart of the system. Driven by the engine, the pump generates the hydraulic pressure needed to assist steering. Expect a pressure range of 800-1300 PSI, but this can vary.
Power Steering Reservoir: A container for the power steering fluid. It usually has a low-level indicator or sensor.
Pressure Hose (or High-Pressure Hose): This hose carries high-pressure fluid from the pump to the power steering gear (steering box). This is usually the one that springs a leak eventually.
Return Hose (or Low-Pressure Hose): This hose carries the lower-pressure fluid from the steering gear back to the reservoir.
Power Steering Gear (Steering Box): The steering box contains valves that direct the high-pressure fluid to assist in turning the wheels.
Cooler (Optional): Some Silverados, especially those equipped for towing, may have a power steering fluid cooler, typically located near the radiator.

Note: The type of fluid is crucial. Most 2001 Silverados use GM-specific power steering fluid. Consult your owner's manual or a reliable parts supplier to confirm the correct fluid specification. Using the wrong fluid can damage the system.

Decoding the Diagram: Symbols, Lines, and Colors

Power steering hose diagrams aren't usually works of art. They're functional representations. Let's break down what you're likely to encounter:

Lines: Different types of lines represent different hoses or connections.
- Solid Line: Typically represents a metal or reinforced rubber hose.
- Dashed Line: Might indicate a vacuum line (though less common in the power steering system itself) or a less critical connection.
- Thick Line: May indicate the high-pressure hose, signifying its importance.
Colors: Colors, if present, are helpful but not always standardized.
- Red: Often designates the high-pressure hose.
- Blue: Sometimes indicates the return hose.
Always cross-reference the color coding with a legend on the diagram itself. Don't assume!
Symbols:
- Arrows: Show the direction of fluid flow. This is vital for understanding the system's operation.
- Rectangles/Squares: Represent components like the pump, reservoir, or steering gear.
- Circles: Could indicate a connector or fitting.
- Clamps: Represented by small, squiggly lines or symbols indicating securement points.
Component Labels: Each component will be labeled with an abbreviation or full name (e.g., "Pump," "Reservoir," "Steering Gear").

The diagram will also show the routing of the hoses, including how they're secured to the frame or engine components. Pay close attention to these routing details when replacing hoses to prevent chafing or interference.

How the Power Steering System Works

Here's the basic flow of fluid:

The power steering pump draws fluid from the reservoir.
The pump pressurizes the fluid and sends it through the pressure hose to the steering gear.
When you turn the steering wheel, valves within the steering gear direct the high-pressure fluid to the appropriate side of a piston. This assists in turning the wheels.
The fluid, now at a lower pressure, returns to the reservoir via the return hose.
In systems with a cooler, the fluid passes through the cooler before returning to the reservoir to dissipate heat.

The pressure generated by the pump reduces the effort required to turn the steering wheel. Without power steering, turning would be significantly more difficult, especially at low speeds.

Real-World Use: Basic Troubleshooting Tips

Let's say you're experiencing stiff steering or noticing a puddle of fluid under your Silverado. Here's how the diagram can help:

Identify the Leak Source: Use the diagram to trace the hoses and connections from the pump to the steering gear. Look for wet spots, drips, or signs of fluid accumulation.
Check the Hose Condition: Inspect the hoses for cracks, bulges, or signs of wear. Pay particular attention to the areas near fittings and clamps.
Confirm the Fluid Level: Check the reservoir fluid level. Low fluid levels can indicate a leak.
Listen for Noises: A whining noise, especially when turning the wheel, can indicate a low fluid level or a failing pump.
Verify Routing: Ensure the hoses are routed correctly and aren't rubbing against other components. Incorrect routing can lead to premature wear and leaks.

If you find a damaged hose, use the diagram to identify the correct replacement part. Always double-check the part number to ensure compatibility.

Safety Considerations

Power steering systems operate under high pressure. Here are some safety precautions to observe:

Eye Protection: Wear safety glasses when working on the power steering system. Fluid can spray under pressure and cause eye irritation.
Pressure Relief: Before disconnecting any hoses, relieve the pressure in the system. This may involve turning the steering wheel lock-to-lock several times with the engine off.
Hot Surfaces: Be careful of hot engine components, especially the exhaust manifold.
Fluid Handling: Power steering fluid can be harmful if swallowed. Dispose of used fluid properly at a recycling center.
High-Pressure Hose: The high-pressure hose is the riskiest component. Never attempt to repair it. Always replace it with a new hose. A failure of the high-pressure hose can result in a sudden loss of power steering and a dangerous situation.

Finally, always consult your Silverado's repair manual for specific instructions and torque specifications. Doing the job right the first time saves you time, money, and potential headaches down the road.
