2002 Honda Crv Serpentine Belt Diagram

The serpentine belt in your 2002 Honda CR-V is a critical component. It's responsible for driving several essential accessories, including the alternator (which keeps your battery charged), the power steering pump (which makes steering easier), the air conditioning compressor (which keeps you cool), and sometimes the water pump (which circulates coolant and prevents overheating, though on some CR-Vs, the water pump is driven by the timing belt). A failing or broken serpentine belt can lead to a host of problems, ranging from a dead battery and loss of power steering to engine overheating. Understanding the serpentine belt diagram is therefore crucial for proper maintenance, troubleshooting, and repair.

Purpose of the Serpentine Belt Diagram

Why is a serpentine belt diagram so important? Several reasons:

Replacement and Installation: When replacing a worn or damaged serpentine belt, the diagram shows you the correct routing path. Installing the belt incorrectly can damage components or render them inoperable.
Troubleshooting: A diagram helps you visualize the belt's path and identify potential issues. Is the belt properly seated on each pulley? Is there excessive wear in a specific area indicating a misaligned pulley?
Maintenance: Knowing the belt's path allows you to inspect it thoroughly for wear, cracks, or glazing. Early detection of problems can prevent a more serious breakdown.
Learning and Understanding: The diagram provides a clear representation of how the various engine accessories are driven and how the belt tensioner works.

Key Specs and Main Parts of the 2002 Honda CR-V Serpentine Belt System

Let's break down the key specifications and main components found in the 2002 Honda CR-V serpentine belt system:

Belt Length: The serpentine belt for the 2002 CR-V (typically with the 2.0L K20A4 engine) is a specific length. This length is crucial for proper tension and accessory operation. While lengths can vary slightly based on options like A/C, expect something in the 55-57 inch range. Always verify the correct part number for your specific vehicle using your VIN.
Belt Rib Count: The number of ribs on the belt is also important. The 2002 CR-V typically uses a multi-rib belt, commonly referred to as a "poly-v" belt. Again, refer to your vehicle's specifications for the exact rib count.

Here are the main parts involved:

Serpentine Belt: The continuous belt that transfers power from the crankshaft to the accessories.
Crankshaft Pulley (Harmonic Balancer): The pulley attached to the crankshaft that drives the serpentine belt.
Alternator Pulley: The pulley on the alternator that is turned by the serpentine belt, generating electricity.
Power Steering Pump Pulley: The pulley on the power steering pump that is turned by the serpentine belt, providing power assist to the steering system.
Air Conditioning Compressor Pulley: The pulley on the A/C compressor that is turned by the serpentine belt, compressing refrigerant for cooling.
Tensioner Pulley: A spring-loaded pulley that maintains the proper tension on the serpentine belt. This is a *critical* component, as incorrect tension can lead to belt slippage, premature wear, and accessory failure. A worn tensioner can often be the culprit behind belt squealing.
Idler Pulley (if equipped): A smooth pulley that helps guide the belt and maintain its proper routing. Some CR-Vs may or may not have an idler pulley.

Symbols and Conventions in a Serpentine Belt Diagram

Understanding the symbols in a serpentine belt diagram is key to interpreting it correctly. Diagrams may vary slightly depending on the source (factory service manual, aftermarket repair manual), but here are some common conventions:

Solid Lines: Typically represent the belt itself.
Arrows: Indicate the direction of belt travel. Pay close attention to these!
Pulley Symbols: Simple circles usually represent pulleys. The diagram may label each pulley with its corresponding component (e.g., "ALT" for alternator, "P/S" for power steering).
Tensioner Symbol: The tensioner pulley is often depicted with a spring symbol indicating its spring-loaded action. Sometimes, an arrow indicates the direction to move the tensioner to release belt tension.
Smooth vs. Grooved: Sometimes, diagrams will differentiate between smooth pulleys (like the idler pulley) and grooved pulleys (which engage with the ribs on the belt).

How the Serpentine Belt System Works

The crankshaft pulley, driven by the engine, provides the power to turn the serpentine belt. The belt then wraps around each of the accessory pulleys, transferring rotational force and driving them. The tensioner pulley maintains the proper tension on the belt, preventing slippage and ensuring efficient power transfer. The arrangement is crucial: the belt must have sufficient wrap (the amount of contact between the belt and the pulley) on each accessory pulley to prevent slippage. The tensioner ensures that this wrap is maintained, even as the belt stretches over time.

Without proper tension, the belt can slip, leading to reduced alternator output (a dimming battery light is a common symptom), reduced power steering assist (making steering difficult), and reduced A/C cooling. In severe cases, a slipping belt can overheat and break.

Real-World Use: Troubleshooting Tips

Here are some basic troubleshooting tips using your knowledge of the serpentine belt system and the diagram:

Squealing Noise: A squealing noise, especially when starting the engine or turning the steering wheel, often indicates a slipping serpentine belt. Check the belt tension. Is the tensioner functioning correctly? Is the belt glazed or cracked? A small amount of belt dressing might temporarily quiet a squealing belt, but it's a band-aid solution. Replacement is usually necessary.
Battery Light On: If the battery light on your dashboard illuminates, it could indicate a problem with the alternator. Verify that the serpentine belt is properly driving the alternator pulley. A broken or slipping belt will prevent the alternator from charging the battery.
Loss of Power Steering: If you suddenly experience difficulty steering, check the serpentine belt and power steering pump pulley. A broken belt will immediately disable the power steering.
Overheating: While the water pump on the 2002 CR-V is *usually* driven by the timing belt, a malfunctioning serpentine belt impacting another related system, like the A/C compressor, can indirectly contribute to overheating under certain conditions. Investigate the belt if overheating is a symptom alongside other accessory failures.
Visual Inspection: Regularly inspect the serpentine belt for cracks, wear, fraying, or missing chunks. Look for signs of oil contamination, which can degrade the belt. Also, check the pulleys for damage or misalignment.

Safety Considerations

Working on the serpentine belt system involves inherent risks. Here's what to keep in mind:

Engine Off and Cool: Always work on the serpentine belt system with the engine off and cooled down. The engine and its components, especially the exhaust manifold, can be extremely hot.
Disconnect the Battery: To prevent accidental starting or electrical shorts, disconnect the negative battery cable before working on any electrical components.
Moving Parts: Be extremely cautious of moving parts when the engine is running. Never put your hands or tools near the serpentine belt or pulleys while the engine is running.
Tensioner Spring: The tensioner pulley is spring-loaded and can snap back forcefully when released. Use the correct tool to relieve the tension and exercise caution. A specialized serpentine belt tool is highly recommended.
Sharp Edges: Be aware of sharp edges on the pulleys and other engine components. Wear gloves to protect your hands.

By understanding the serpentine belt diagram, its function, and potential issues, you can effectively maintain and troubleshoot this critical system in your 2002 Honda CR-V, ensuring reliable performance and preventing costly repairs. Remember to always consult your vehicle's service manual for specific instructions and torque specifications.

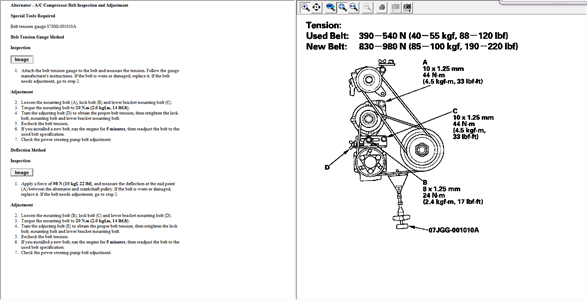

We have the 2002 Honda CR-V serpentine belt diagram available for download. This diagram will provide you with a detailed visual reference for belt routing and component identification.
