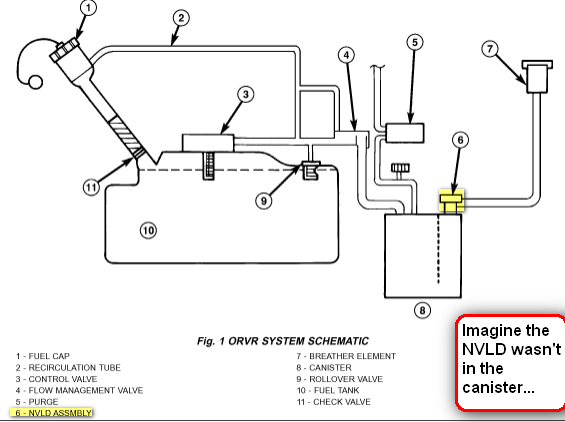

2003 Dodge Ram 1500 Evap System Diagram

Alright folks, let's dive deep into the 2003 Dodge Ram 1500 Evaporative Emission Control (EVAP) system. Knowing this system inside and out is crucial, whether you're tackling a pesky "Check Engine" light, prepping for an emissions test, or simply want a better understanding of how your truck manages fuel vapors. We're going to dissect the EVAP system diagram, making sure you’re equipped to diagnose and maybe even repair some common issues.

Purpose of the EVAP System Diagram

Why bother with an EVAP system diagram? Well, imagine trying to fix a complex electrical circuit without a schematic. Sounds impossible, right? The diagram is your roadmap for the EVAP system. It allows you to:

Diagnose faults: Identify the source of a code related to evaporative emissions.
Trace components: Locate specific parts within the system (e.g., vapor canister, purge valve).
Understand function: See how each component interacts to prevent fuel vapors from escaping into the atmosphere.
Perform repairs: Guide you through replacing faulty components and ensuring proper connections.

The diagram, which we have available for download, is invaluable for any DIY mechanic or serious Ram enthusiast.

Key Specs and Main Parts of the 2003 Dodge Ram 1500 EVAP System

The 2003 Dodge Ram 1500, depending on the engine (3.7L V6, 4.7L V8, or 5.7L Hemi V8), employs a relatively standard EVAP system for its time, though slight variations might exist based on the specific engine and model year. Let’s look at the major players:

Fuel Tank: The source of the fuel vapors. It's designed with a sealed system to prevent vapors from escaping directly.
Fuel Tank Pressure Sensor (FTPS): A sensor that measures the pressure inside the fuel tank. This is a key input for the PCM (Powertrain Control Module) to determine if there are leaks in the system.
Vapor Canister: This is a container filled with activated charcoal. The charcoal absorbs and stores fuel vapors from the fuel tank. It's located typically near the fuel tank or under the hood.
Purge Valve (also called Canister Purge Solenoid): This valve, controlled by the PCM, allows vacuum from the engine intake manifold to draw the stored fuel vapors from the vapor canister into the engine to be burned. This is a crucial part of the system's ability to recycle the vapors.
Canister Vent Valve (also called Vent Solenoid): This valve controls airflow into the vapor canister. It's typically open, allowing fresh air to enter and replace the vapors being purged. It closes during leak tests to seal the system.
Leak Detection Pump (LDP): Some models use a Leak Detection Pump to actively pressurize the system for leak testing. This isn't present on all 2003 Ram 1500s but if it is, it will be near the vapor canister.
Lines and Hoses: These connect all the components, carrying fuel vapors and vacuum. They are usually made of reinforced rubber or plastic.
Fuel Cap: A seemingly simple component, but a poorly sealing fuel cap is one of the most common causes of EVAP system codes.
PCM (Powertrain Control Module): The brains of the operation. The PCM monitors sensors, controls valves, and runs diagnostic tests on the EVAP system.

Understanding the EVAP System Diagram Symbols

Diagrams aren't just a jumble of lines! They use specific symbols to represent components and connections. Here's a breakdown:

Solid Lines: Typically represent hoses or lines carrying fuel vapors or vacuum.
Dotted Lines: Often indicate electrical wiring or communication lines to sensors and actuators.
Colors: Some diagrams use colors to differentiate between different types of lines (e.g., green for vacuum, blue for fuel vapor). Always refer to the diagram's legend to understand the color coding.
Squares and Rectangles: Commonly represent electronic components like the PCM, relays, or sensors.
Circles: Might represent valves, pumps, or other mechanical components.
Arrows: Show the direction of flow for vapors or air.

Pay close attention to the legend or key accompanying the diagram. This will explain the specific symbols used in that particular illustration.

How the EVAP System Works

Let's break down the typical operation of the 2003 Ram 1500 EVAP system:

Vapor Collection: As fuel evaporates in the fuel tank, the vapors are routed through lines to the vapor canister.
Vapor Storage: The activated charcoal in the canister absorbs and stores these vapors, preventing them from escaping into the atmosphere.
Purge Cycle: When the engine is running and meets certain conditions (e.g., engine temperature, speed), the PCM opens the purge valve. This allows engine vacuum to pull fresh air through the canister vent valve, drawing the stored fuel vapors from the canister into the intake manifold.
Combustion: The fuel vapors are then burned in the engine along with the regular air/fuel mixture.
Leak Testing: The PCM regularly performs leak tests on the EVAP system. This involves sealing the system (closing the vent valve), applying vacuum (either through the engine vacuum or the leak detection pump, if equipped), and monitoring the fuel tank pressure sensor. If the pressure doesn't hold, it indicates a leak.

The precise conditions for purge cycles and leak tests vary depending on the engine and driving conditions.

Real-World Use: Basic Troubleshooting Tips

So, your "Check Engine" light is on, and you suspect an EVAP issue? Here's where the diagram really shines:

Code P0440 (Evaporative Emission Control System Malfunction): A very general code. Start by checking the fuel cap for proper sealing. Inspect all the hoses for cracks or disconnections. Use the diagram to locate the vapor canister, purge valve, and vent valve and visually inspect them for damage.
Code P0442 or P0455 (Evaporative Emission Control System Leak Detected - Small or Large Leak): This indicates a leak in the system. Smoke testing is very effective here. Use the diagram to understand the entire system and identify potential leak points. Again, check the fuel cap first.
Code P0446 (Evaporative Emission Control System Vent Control Circuit Malfunction): This usually points to a problem with the vent valve or its wiring. Use the diagram to trace the wiring back to the PCM. Check the valve's resistance with a multimeter to see if it's within the specified range.
Purge Valve Issues: A faulty purge valve can cause rough idling or stalling. Use the diagram to locate the valve and test its operation with a scan tool. You can also check for vacuum at the valve with the engine running.

Always consult a repair manual specific to your 2003 Dodge Ram 1500 for detailed diagnostic procedures and component specifications.

Safety Considerations

Working on the EVAP system involves dealing with fuel vapors and potential ignition sources. Take these precautions:

Disconnect the Battery: Before working on any electrical components.
Work in a Well-Ventilated Area: Fuel vapors are flammable and can be harmful to breathe.
Avoid Sparks: Do not smoke or use open flames near the fuel system.
Fuel Pressure: Be aware that the fuel system may still be pressurized even with the engine off. Follow proper procedures for relieving fuel pressure before disconnecting any fuel lines.
Specifically, remember that the fuel tank is a sealed system. Do not puncture or damage the tank! This is a major fire hazard.

The EVAP system is complex, but with a good understanding of the diagram and some basic troubleshooting skills, you can tackle many common issues. Remember, safety first! And don't hesitate to consult a professional mechanic if you're unsure about any aspect of the repair.

Now that you have a good grasp of the 2003 Dodge Ram 1500 EVAP system and the importance of the diagram, download the full diagram [link to download here]. It’s an invaluable tool for diagnosing and repairing EVAP-related issues on your truck. Good luck!
